- FRACTAL DESIGN Meshify C Dark MATX Mini Tower Cabinet
Description
Features of FRACTAL DESIGN Meshify C Dark MATX Mini Tower Cabinet
Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant look. Like black diamond facets, the angular asymmetry of the Fractal Design cabinet carves a space uniquely its own in high-airflow design.
- Streamlined high-airflow design
- Performance and capacity of a larger tower in a compact mATX designed tower

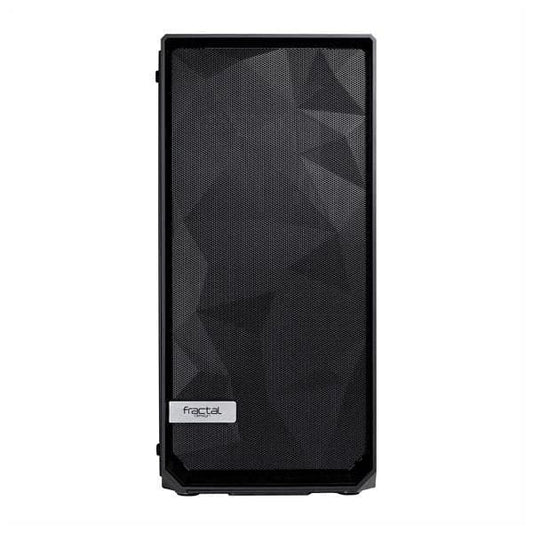

- Angular mesh front panel maximizes air intake
Significantly smaller, but just as cool

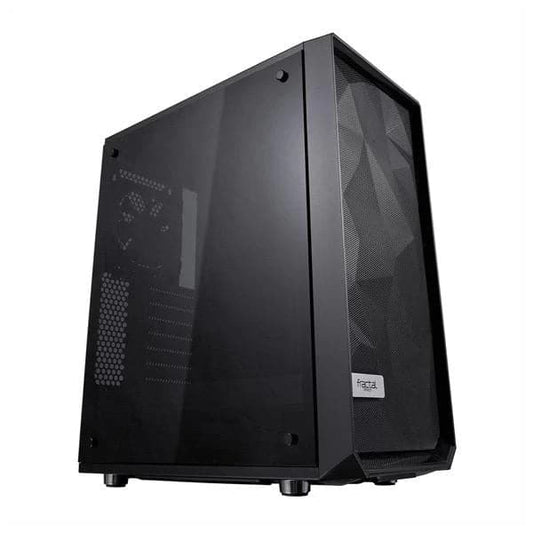

Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
The Meshify C Mini – Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match. When performance is top priority and compromise is not an option, Meshify has you covered in style.
Streamlined high-airflow design
-
Angular mesh front panel maximizes air intake
-
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
-

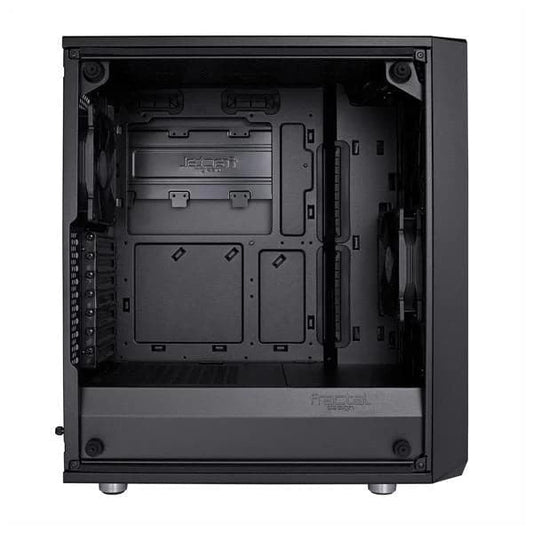

Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-
Flexible storage options with room for up to five drives
Full interior visiblity

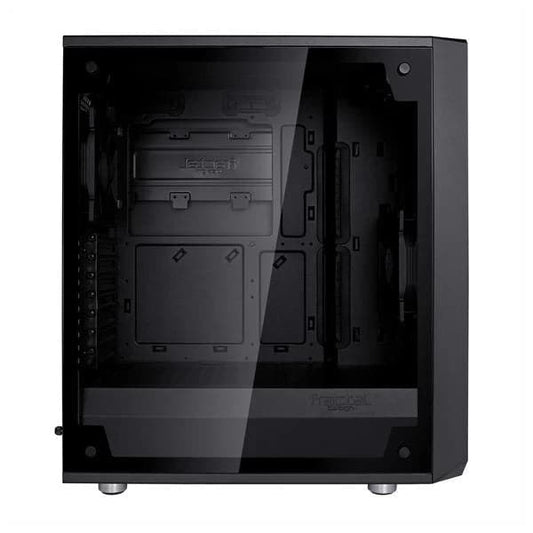

Tinted tempered glass side panel for a clean looking exterior with full interior visibility
Distinctive style
With stealthy black-on-black aesthetic

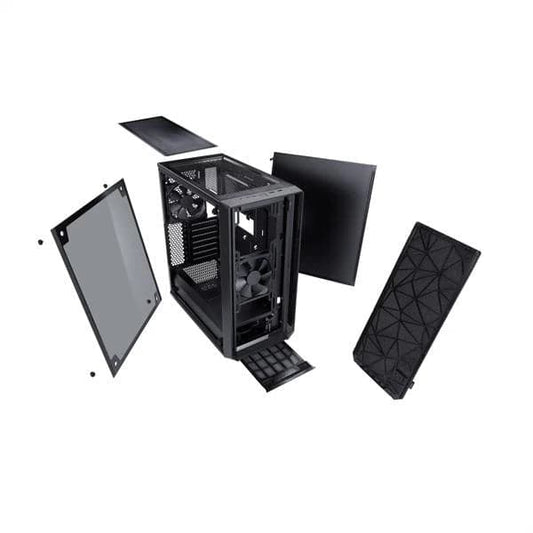

Easy-to-clean filters
Front, top and base with full PSU coverage and convenient front access
Open to suggestions
-
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
-

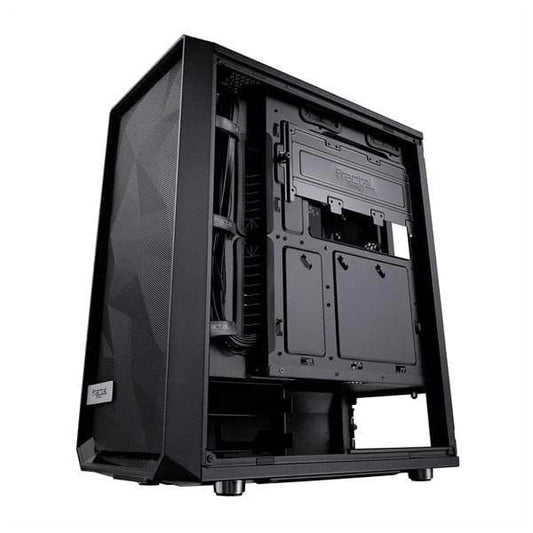

Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
-
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Room for flexibility
Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.
-
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
-
Flexible storage options with room for up to five drives
-
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Improved air cooling
Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise and 100,000 hour life expectancy.
-
Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 280 mm in the front and 240 mm up top
-
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-
Even the largest enthusiast-class GPUs leave plenty of room for thick dual-fan radiators in the front. The adjustable drive cage can be moved or removed to fit even the longest heavy-duty PSU
Get the affordable cpu cabient price with the huge variety with us!
Specifications of FRACTAL DESIGN Meshify C Dark MATX Mini Tower Cabinet
3.5″ or 2.5″ Drive capacity | 2 |
Dedicated 2.5″ drive capacity | 3 |
Expansion slots | 5 |
Motherboard compatibility | mATX, ITX |
Power supply type | ATX |
Total fan mounts | 7 |
Front fan | 3x 120 or 2x 1401x Dynamic X2 GP-12 included |
Top fan | 2x 120/140 |
Rear fan | 1x 1201x Dynamic X2 GP-12 included |
Bottom fan | 1x 120 |
Side fan | No |
Dust filters |
Bottom fan PSUFront fans Top panel |
Front radiator | 120/240mm140/280mm (max width 144mm) |
Top radiator | 120/240mm (max component height on motherboard 40 mm) |
Rear radiator | 120mm (max width 125mm) |
Power supply depth limit | Maximum 175mm recommended |
Graphics card length limit | Max 315mm with front fan mounted |
CPU cooler height limit | 172mm |
Cable routing | 15-35mm space |
Cable routing grommets | Yes |
Fixed Velcro straps | Yes |
Captive thumbscrews | Both side panelsSSD brackets |
Left side panel | Tempered glass panel |
Case dimensions (LxWxH) | 395 x 212 x 399 mm |
Case dimensions w feet/protrusions/screws | 409 x 217 x 412 mm |
Net weight | 6.28 kg |
Package dimensions (LxWxH) | 502 x 295 x 484mm |
Package weight | 7.41 kg |
