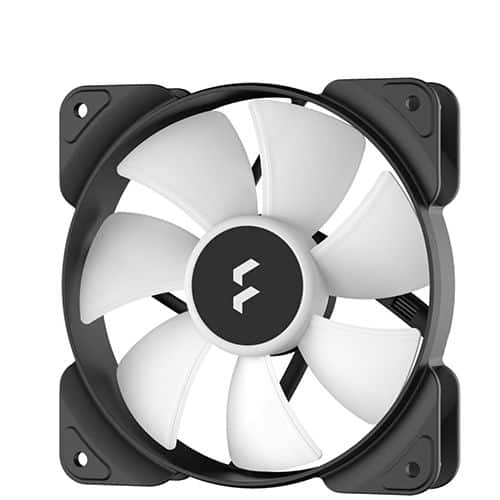

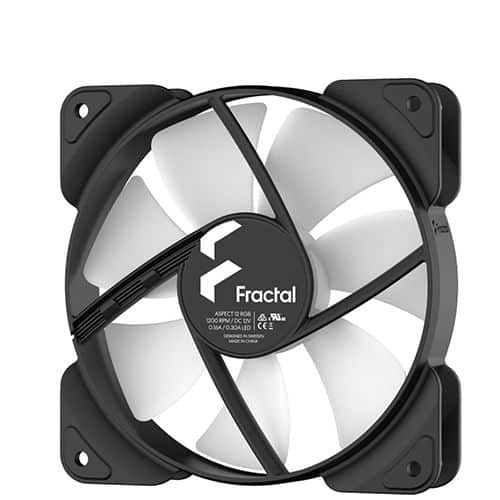

Fractal Design Aspect 12 RGB Black Frame 120mm PC Fan

Fractal Design Aspect 12 RGB Black Frame 120mm PC Fan

Features :

Aspect 12 RGB

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

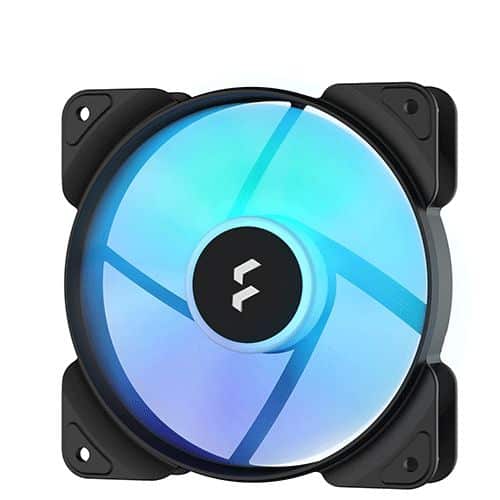

In living color

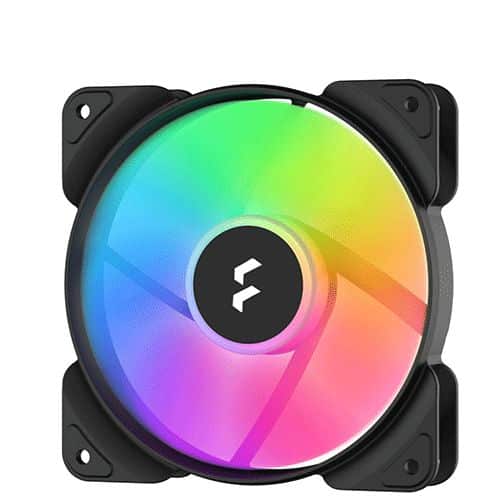

Let your system shine with six individually addressable hub-mounted RGB LEDs
The aerodynamic stator struts decrease turbulence and noise caused by flowing air
The Aspect frame offers aesthetics without compromising on performance

Extensive support

Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Rifle bearings

More efficient than standard sleeve bearings

Trip Wire Technology

Introducing a micro-turbulent layer for enhanced blade efficiency

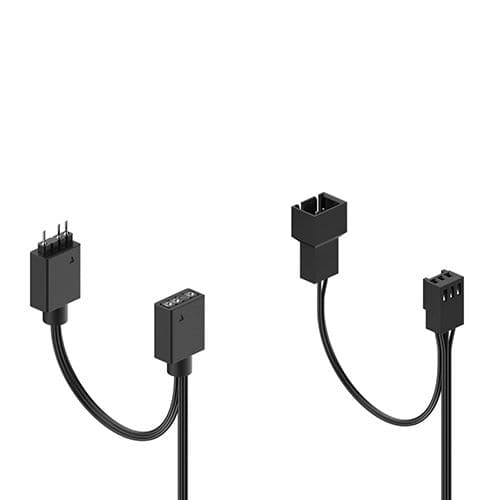

Chain Feature

Simplify cable management by using the Aspect chain feature for multiple units

Technica Detail

Brand : Fractal Design
Modal : FD-F-AS1-1204

Technical Spec

Size : 120 x 120 x 25 mm
Screw hole pattern : 105 x 105 mm
LED type : Addressable RGB
Power connector : 3-pin
Bearing : Rifle
Number of blades : 7
Rotational speed : 1200 RPM
Noise level : 18.3 dB(A)
Max airflow (CFM) : 32 CFM
Max airflow (m³/h) : 54.4 m³/h
Max pressure : 1.20 mm H2O
Fan typical input power : 0.96 W
Fan max input current : 0.16 A
Fan input voltage : 12 V
Minimum startup voltage : 7 V
LED rated voltage : 5 V
LED rated current : 0.3 A
LED Rated input power : 1.5 W
MTTF : 90.000 h
Unit weight : 135 g
Cable length : 500 mm
Cable type : Black ribbon (allows chaining)
