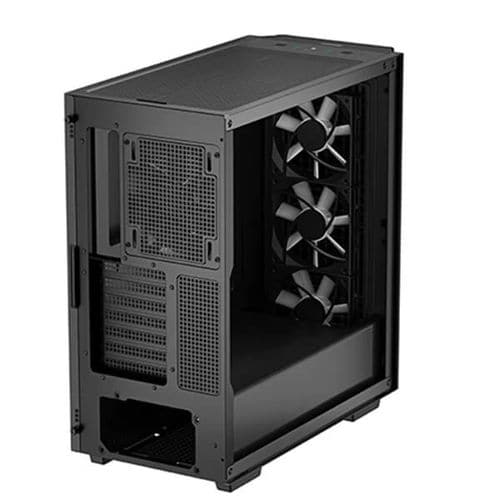

deepcool cabinet CG540 support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
– Max PSU Length: 160mm

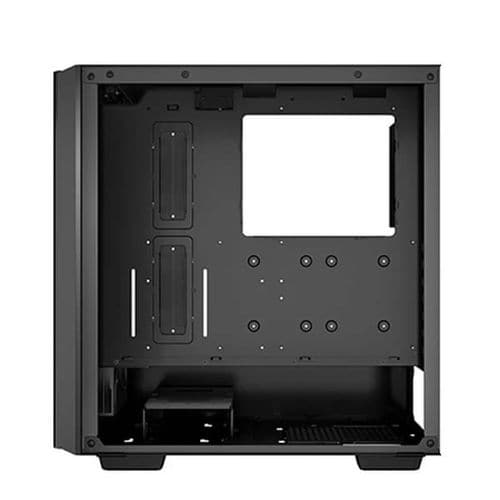

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.

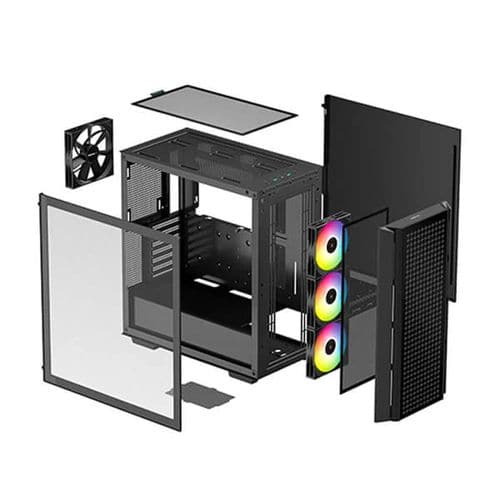

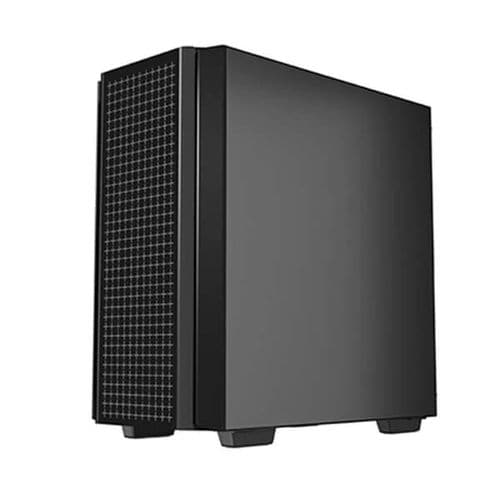

Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
Easy-to-clean magnetic dust filters.
Remove and reuse for simpler setup.
P/N Code | R-CG540-BKAGE4-G-1 |
Net Weight | 7.5Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Mico-ATX / ATX / E-ATX |

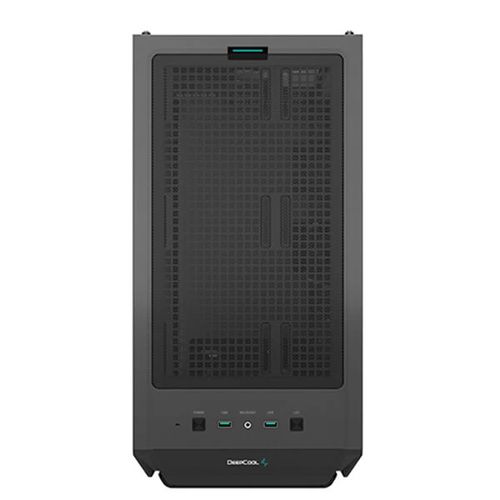

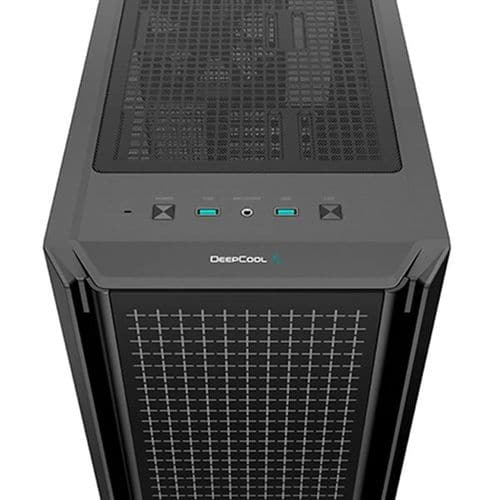

Front I/O Ports | USB3.0×2、Audio×1 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2 |

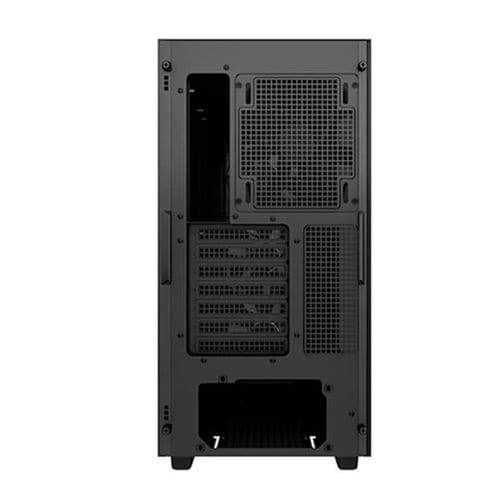

Expansion Slots | 7 Slots |

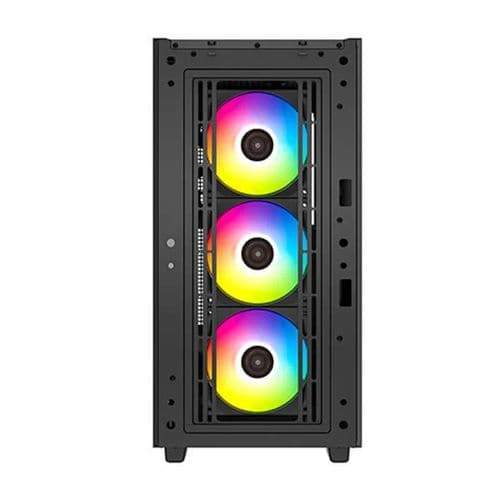

Pre-Installed Fans | Front: 3×120mm Rear: 1×140mm |
Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm |
Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm |
CPU Cooler Height Limit | 175mm |
GPU Length Limit | 380mm |
Power Supply Type | ATX PS2(maximum length: 160mm) |
Product Dimensions | 455×230×470mm(L×W×H) |
Warranty | 1 Year |
Note | ***Features, Price and specifications are subject to change without notice. |
