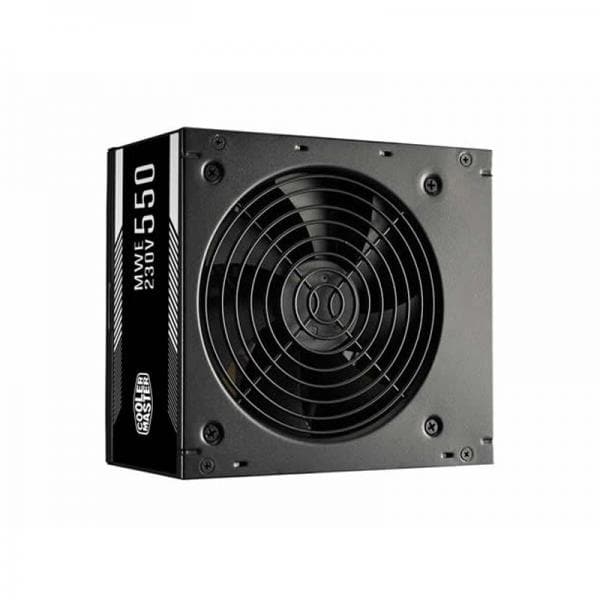

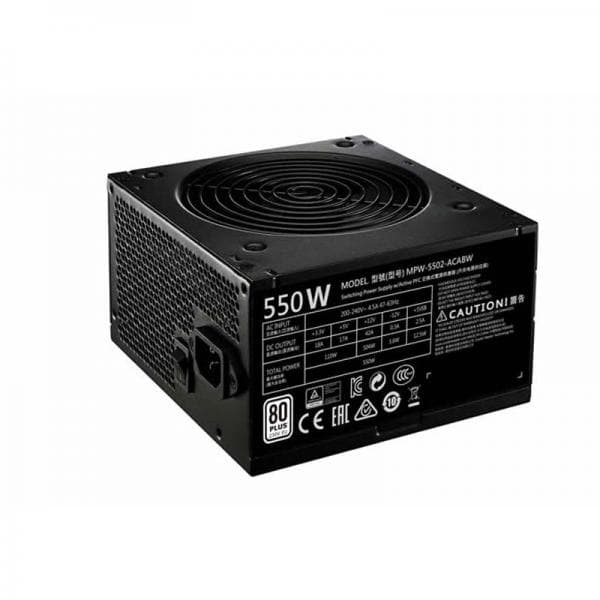

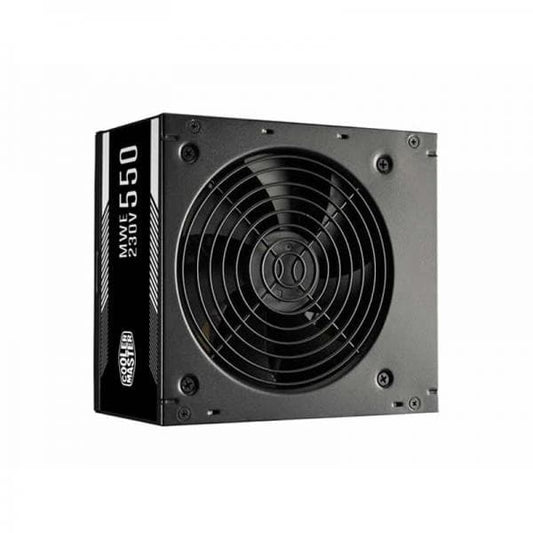

- COOLER MASTER MWE 550W 80+ White Non Modular ATX 2.0 Power Supply
Description
Features of COOLER MASTER MWE 550W 80+ White
Cooler Master Power Supply with high efficiency and low noise. The Cooler Master MWE 550 is from the Cooler Master's MWE series. The Cooler Master MWE 550 has high efficiency and low noise profile with high thermal resistant components. The MWE series aims to deliver premium performance at a non-premium price. The Cooler Master MWE 550 follows the same roots with a high-quality circuit design and a 120mm temperature-controlled fan to keep the power supply cool. This little but tough power box is the perfect power solution for all the power needs. The high efficiency and low noise profile of the Cooler Master MWE 550 provides an Active Power Correction design and a forward topology. The 80 PLUS certification ensures a typical efficiency of 85% during normal use.
The ERP 2013 LOT 6 compliance makes the Cooler Master MWE 550 designed with the latest environmental standard and regulation in mind. The Cooler Master MWE 550 comes with less power consumption when idling to reduce environmental strain and energy bills. The proven thermal resistance to work normally up to 40℃, the components provides secure and reliable operations in warmer environments. The Cooler Master MWE 550W Power Supply is quiet and durable with a frictionless 120mm fan for a quiet environment. The damage-resistant standard like OCP, OVP, OTP, OPP makes sure the power supply unit is not damaged by overvoltage, overcurrent, over-temperature, or overpower removing the risk of damage to the system from power outages and power failures.
The MWE delivers everything you expect from top tier power supply at a budget price. This unit also comes with a circuit design that will protect your system at all times. The 120mm fan keeps your system cool with little noise. This tough little box is the perfect solution for all your power needs.
High Efficiency and Low Noise
with Active Power Factor Correction design and forward topology. Meeting the 80 PLUS certification for 230V, the MWE will guarantee a typical efficiency of at least 85% during normal use.
ErP 2013 Lot 6 Compliant
The MWE is designed to the latest environmental regulations and standards, meeting the ErP 2013 mandates. The MWE consumes less then 0.5 Watt when your system is in standby mode, which not only reduces strain on the environment but also your energy bill
Proven Thermal Resistance
The MWE is engineered to operate normally at up to 40°C, providing added security and reliability to systems operating in warmer environments.
Quiet and Durable
The thermally controlled 120mm HDB fan operates smoothly without friction. Enjoy your system with a durable fan in a quiet environment.
Damage Resistant
The MWE provides you full standard protection (OCP/OVP/UVP/SCP/OPP) plus built-in Over Temperature Protection (OTP). These extra security measures minimize the risk of damage to your system from power outages.
Get the best 80 Plus White psu power supply price from us today!
Specifications of COOLER MASTER MWE 550W 80+ White
Model | MPW-5502-ACABW | |
Type | Intel Form Factor ATX 12V V2.31 | |
PFC | Active PFC (>0.9 typical) | |
Input Voltage | 200-240 Vac | |
Input Current | 4.5A | |
Input Frequency | 47-63Hz | |
Dimensions (LxBxH) | 140 x 150 x 86mm | |
Fan Size | 120mm | |
Fan Bearing | HDB | |
Fan Speed | 840 - 1980 RPM | |
Power Good Signal | 100 - 500ms | |
Hold Up Time | >14ms | |
Efficiency | 85% @ Typically Load | |
ErP 2013 Lot 6 | Yes | |
MTBF | >100,000 Hours | |
Operating Temperature | 40°C | |
Protections | OVP / OPP / OTP / SCP | |
Regulatory | CE, TUV, EAC, RCM, CCC | |
Connectors
|
MB 20 4 Pin | |
CPU 12V 4 4 Pin | ||
SATA | ||
4 Pin Peripheral | ||
FDD Cable 4 Pin | ||
PCI-e 6 2 Pin | ||
Warranty | 5 Years | |
Note | ***Features, Price and specifications are subject to change without notice. |
