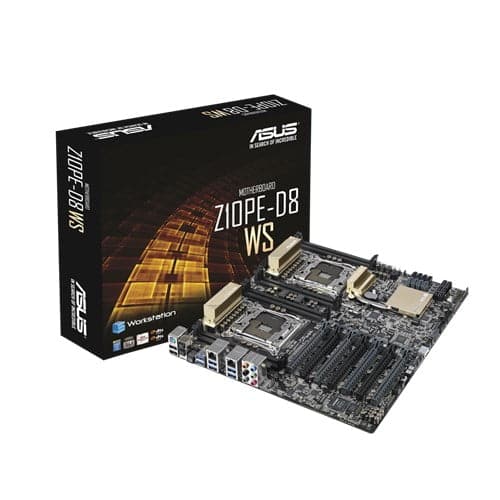

- ASUS Z10PE-D8 WS DDR4 Intel Motherboard
Description
Feature of ASUS Z10PE-D8 WS DDR4
- Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors
- Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family
- Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family
Specifications of ASUS Z10PE-D8 WS DDR4
| CPU | Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) ProcessorsIntel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product familyIntel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family |
| Chipset | Intel® C612 PCH |
| Memory | 8 x DIMM, Max. 512GB, DDR4 1866*/2400/2133/1600/1333 MHz RDIMM, LR-DIMM MemoryQuad Channel Memory Architecture |
| Graphic | ASpeed AST2400 32MBVGA port*1- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz |
| Multi-GPU Support | Supports NVIDIA® 4-Way SLI™ TechnologySupports AMD 4-Way CrossFireX Technology |
| Storage | Intel® C612 chipset :4 x SATA 6Gb/s port(s), gray, *3,4 x SATA 6Gb/s port(s), black, *3,1 x SATA Express port, gray, *41 x M.2 Socket 3, *5Support Raid 0, 1, 5, 10ASMedia® SATA Express controller :1 x SATA Express port, gray, , Compatible with 2 x SATA 6.0 Gb/s ports |
| Expansion Slots | 4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *22 x PCIe 3.0/2.0 x16 (dual x16) *21 x PCIe 3.0/2.0 x16 (dual x8) *2 |
| LAN | Intel® I210-AT, 2 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC1150 8-Channel High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)Audio Feature :- DTS Ultra PC II- DTS Connect- Optical S/PDIF out port(s) at back panel- BD Audio Layer Content Protection- Absolute Pitch 192khz/24bit true BD lossless sound |
| USB Ports |
Intel® C612 chipset :4 x USB 3.1 Gen 1 port(s) (4 at back panel, ) Intel® C612 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 1 controller : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) |
| Workstation Feature | 7 x PCIe x 16 slot(s)ASWM EnterpriseASUS Dr. Power12K hours CapacitorsProCool Power ConnectorQ-Code LoggerUSB BIOS Flashback™ASUS PIKE SAS upgrade kit(Optional) |
| Special Features |
ASUS Digital Power Design :- Industry leading Digital 8 Phase Power Design - Industry leading Digital 2 Phase DRAM Power Design ASUS Exclusive Features : - Front Panel USB 3.0 Support ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-Slot - ASUS Q-DIMM |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)2 x LAN (RJ45) port(s)6 x USB 3.1 Gen 1 (blue)2 x USB 2.0 *61 x Optical S/PDIF out1 x USB BIOS Flashback® Button(s)1 x Q-Code Logger button1 x 8-channel Audio I/O |
| Internal I/O Ports | 1 x AAFP connector2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)2 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports1 x M.2 Socket 31 x TPM connector(s)1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)2 x CPU Fan connector(s) (2 x 4 -pin)7 x Chassis Fan connector(s) (7 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)2 x 8-pin ATX 12V Power connector(s)1 x RAID key header(s)1 x VGA connector(s)1 x AUX panel header(s)1 x SMBus header(s)1 x System panel(s)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x Dr.Power switch(es)1 x Serial Port header1 x ASMB8-iKVM connector1 x 6-pin EATX 12V_3 Power connector |
| Accessories | I/O Shield1 x COM port cable(s)12 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x 3-Way SLI bridge(s)1 x 4-Way SLI bridge(s)1 x SLI bridge(s)1 x 2-port USB 2.0 module(s)1 x VGA bracket(s)1 x ASWM Enterprise SDVD |
| BIOS | 128 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 2.6.1, ACPI 3.0, ASUS EZ Flash Utility, ASUS CrashFree Technology |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers、ASUS Utilities、ASUS Update |
| Operating System | Windows® Server 2012 R2Windows® Server 2012Windows® Server 2008 Enterprise R2 SP1 64-bitWindows® 7 32/64-bitWindows® 8.1 32/64-bitWindows® 8 32/64-bit |
| Form Factor | EEB Form Factor12 inch x 13 inch ( 30.5 cm x 33.02 cm ) |
| Weight | Color Box (1-in-1)Net Weight : 1.5 KGGross Weight : 3.4 KGBulk Pack(5-in-1)Net Weight : 7.5 KGGross Weight : 10.2 KG |
| Environment | Operation temperature: 10℃ ~ 35℃Non operation temperature: -40℃ ~ 70℃Non operation humidity: 20% ~ 90% ( Non condensing) |
| Warranty | 3 Years |
| Note |
2400MT/s is supported only when installing E5-2600 v4/E5-1600 v4 CPUs*1 with bracket*2 This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details*3 4 x gray from SATA controller, 4 x black from sSATA controller*4 Compatible with 2 x SATA 6.0 Gb/s ports from SATA controller *5 M.2 Socket 3 supports M Key and type 2260/2280/22110 storage devices*6 1 supports USB BIOS Flashback®, 1 supports Q-Code Logger***Features, Price and Specifications are subject to change without notice. |
