Description
Features of ASUS ROG Strix X870E-E Gaming Wifi DDR5 AMD Motherboard

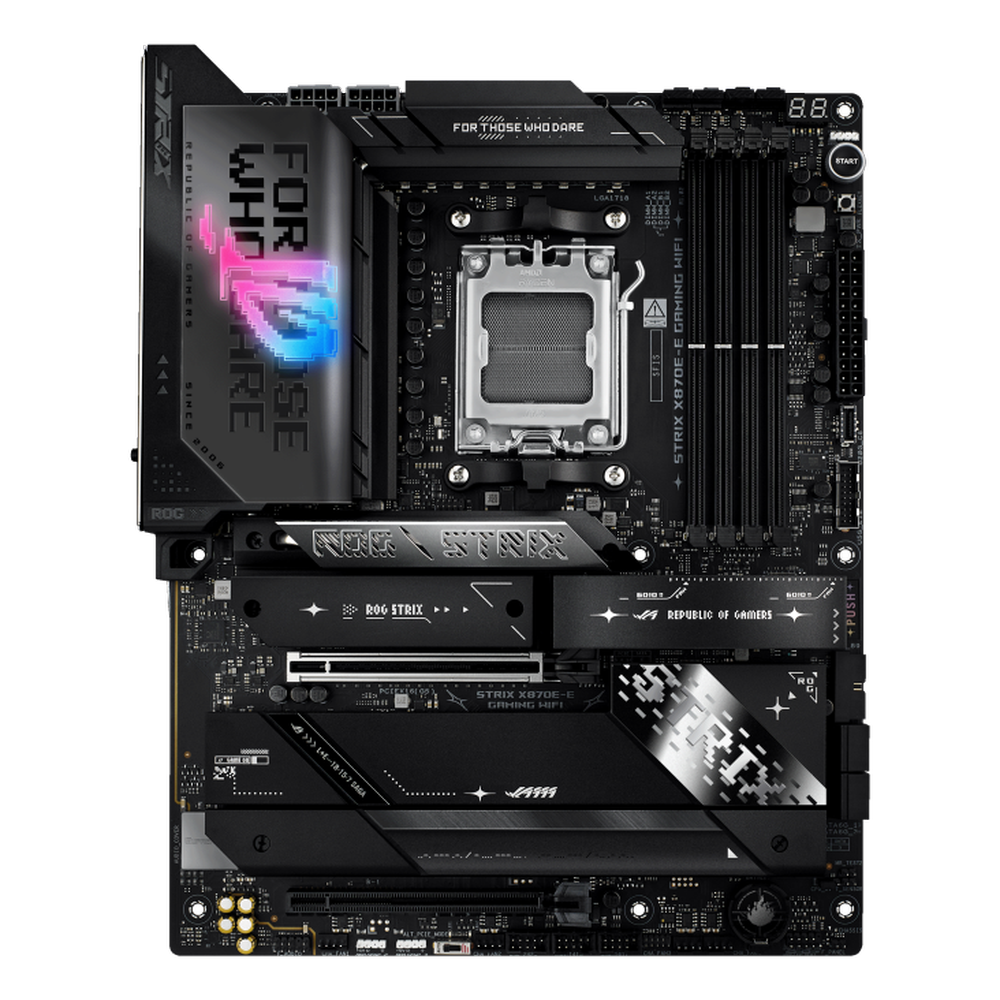

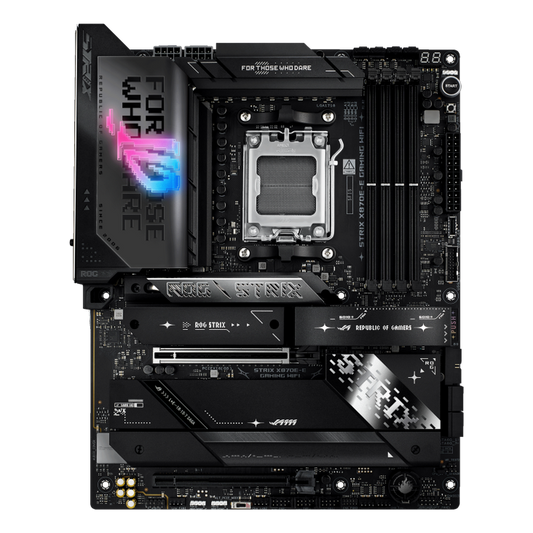

The ASUS ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
For next-level frequency flexibility, the ROG Strix X870E-E features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
Separate CPU BCLK from other domains for unfettered overclocking
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance
Specification of ASUS ROG Strix X870E-E Gaming Wifi DDR5 AMD Motherboard
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* | |
| * Refer to www.asus.com for CPU support list. | ||
| Chipset | AMD X670 | |
|
Memory
|
4 x DIMM, Max. 128GB, DDR5 | |
|
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
|
||
| Dual Channel Memory Architecture | ||
| Supports AMD EXTended Profiles for Overclocking (EXPO™) | ||
| OptiMem II | ||
|
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
|
||
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | ||
|
Graphics
|
1 x DisplayPort** | |
| 1 x HDMI® port*** | ||
| **Supports max. 8K@60Hz as specified in DisplayPort 1.4. | ||
| ***Supports 4K@60Hz as specified in HDMI 2.1. | ||
|
Expansion Slots
|
AMD Ryzen™ 7000 Series Desktop Processors* | |
| 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes) | ||
| AMD X670 Chipset | ||
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | ||
|
Storage
|
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* | |
| AMD Ryzen™ 7000 Series Desktop Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | ||
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | ||
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)) | ||
| AMD X670 Chipset | ||
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | ||
| 4 x SATA 6Gb/s ports | ||
|
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
|
||
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet | |
| ASUS LANGuard | ||
|
Wireless & Bluetooth
|
Wi-Fi 6E | |
| 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | ||
| Supports 2.4/5/6GHz frequency band* | ||
| Bluetooth v5.2 | ||
|
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
|
||
|
USB
|
Rear USB (Total 13 ports) | |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | ||
| 12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x USB Type-C®) | ||
| Front USB (Total 9 ports) | ||
| 1 x USB 3.2 Gen 2×2 connector | ||
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | ||
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports | ||
|
Audio
|
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 | |
| – Impedance sense for front and rear headphone outputs | ||
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | ||
|
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
|
||
| – Supports up to 32-Bit/384 kHz playback | ||
| Audio Features | ||
| – Audio Shielding | ||
| – Savitech SV3H712 AMP | ||
| -Gold-plated audio jacks | ||
| – Rear optical S/PDIF out port | ||
| – Premium audio capacitors | ||
| – Audio cover | ||
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
||
|

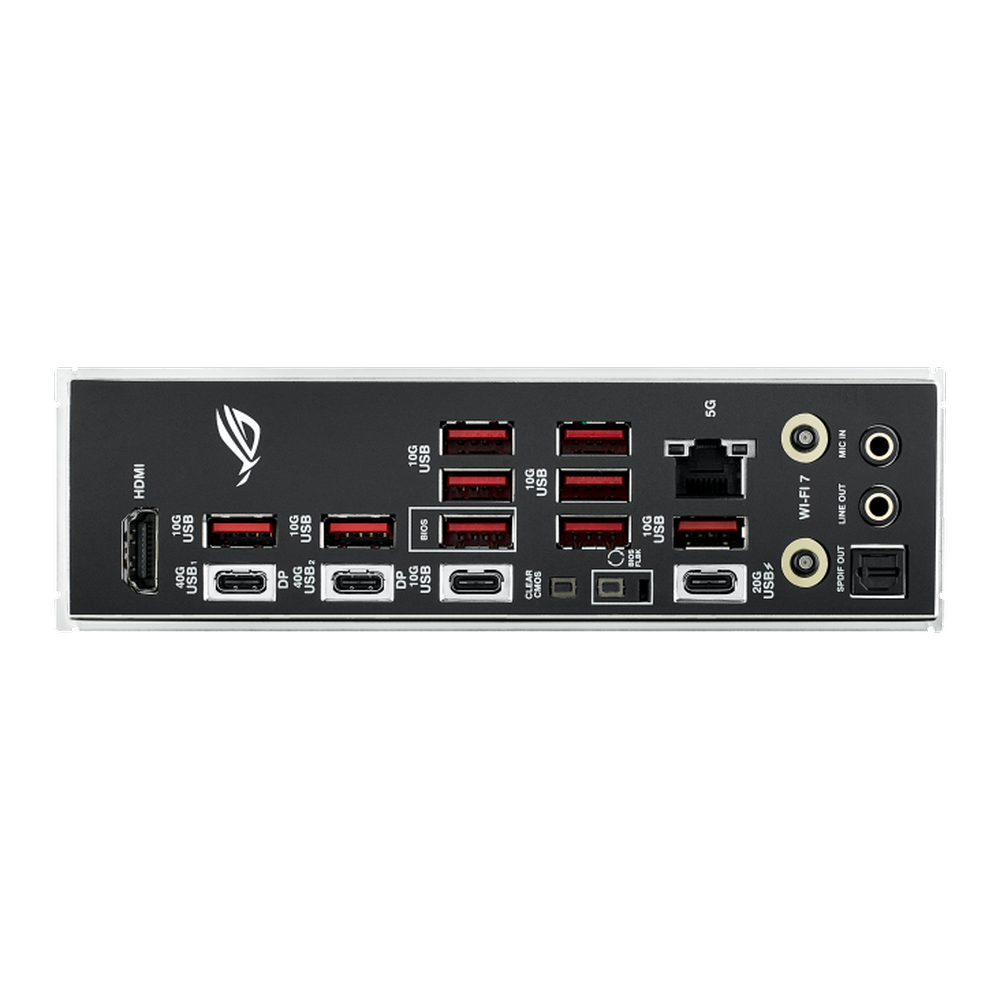

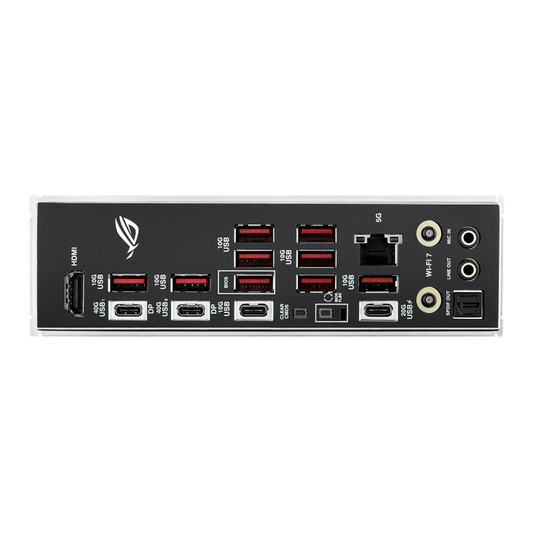

Back Panel I/O Ports
|
1 x USB 3.2 Gen 2×2 port (1 x Type-C®) | |
| 12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C®) | ||
| 1 x DisplayPort | ||
| 1 x HDMI® port | ||
| 1 x Wi-Fi Module | ||
| 1 x Intel® I225-V 2.5Gb Ethernet port | ||
| 5 x Gold-plated audio jacks | ||
| 1 x Optical S/PDIF out port | ||
| 1 x BIOS FlashBack™ button | ||
| 1 x Clear CMOS button | ||
|
Internal I/O Connectors
|
Fan and Cooling related | |
| 1 x 4-pin CPU Fan header | ||
| 1 x 4-pin CPU OPT Fan header | ||
| 1 x 4-pin AIO Pump header | ||
| 5 x 4-pin Chassis Fan header | ||
| Power related | ||
| 1 x 24-pin Main Power connector | ||
| 2 x 8-pin +12V Power connector | ||
| Storage related | ||
| 4 x M.2 slots (Key M) | ||
| 4 x SATA 6Gb/s ports | ||
| USB | ||
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) | ||
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | ||
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports | ||
| Miscellaneous | ||
| 3 x Addressable Gen 2 headers | ||
| 1 x AURA RGB header | ||
| 1 x Alteration Mode Switch | ||
| 1 x CPU Over Voltage jumper | ||
| 1 x Front Panel Audio header (AAFP) | ||
| 1 x Start button | ||
| 1 x 20-3 pin System Panel header with Chassis intrude function | ||
| 1 x Thermal Sensor header | ||
| 1 x Thunderbolt™ header | ||
|
Special Features
|
Extreme Engine Digi+ | |
| – 5K Black Metallic Capacitors | ||
| ASUS Q-Design | ||
| – M.2 Q-Latch | ||
| – PCIe Slot Q-Release | ||
| – Q-Code | ||
| – Q-DIMM | ||
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | ||
| – Q-Slot | ||
| ASUS Thermal Solution | ||
| – M.2 heatsink backplate | ||
| – M.2 heatsink | ||
| – VRM heatsink design | ||
| – Massive Bundled PCIe® 5.0 M.2 Heatsink | ||
| ASUS EZ DIY | ||
| – BIOS FlashBack™ button | ||
| – BIOS FlashBack™ LED | ||
| – Clear CMOS button | ||
| – ProCool II | ||
| – Pre-mounted I/O shield | ||
| – SafeSlot | ||
| – SafeDIMM | ||
| AURA Sync | ||
| – AURA RGB header | ||
| – Addressable Gen 2 headers | ||
|
Software Features
|
ROG Exclusive Software | |
| – GameFirst VI | ||
| – ROG CPU-Z | ||
| – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | ||
| – Sonic Radar III | ||
| – DTS® Sound Unbound | ||
| – Anti-virus software | ||
| ASUS Exclusive Software | ||
| Armoury Crate | ||
| – AIDA64 Extreme (60 days free trial) | ||
| – AURA Creator | ||
| – AURA Sync | ||
| – Fan Xpert 4 (with AI Cooling II) | ||
| – Power Saving | ||
| – Two-Way AI Noise Cancellation | ||
| AI Suite 3 | ||
| – TPU | ||
| – DIGI+ VRM | ||
| – Turbo app | ||
| – PC Cleaner | ||
| MyAsus | ||
| WinRAR | ||
| UEFI BIOS | ||
| ASUS EZ DIY | ||
| – ASUS CrashFree BIOS 3 | ||
| – ASUS EZ Flash 3 | ||
| – ASUS UEFI BIOS EZ Mode | ||
| Dynamic OC Switcher | ||
| FlexKey | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | WOL by PME, PXE | |
|
Accessories
|
Cables | |
| 2x SATA 6Gb/s cables | ||
| Additional Cooling Kit | ||
| 1 x Thermal pad for M.2 | ||
| Miscellaneous | ||
| 1 x ASUS Wi-Fi moving antennas | ||
| 1 x Cable ties pack | ||
| 1 x Massive Bundled PCIe® 5.0 M.2 Heatsink | ||
| 1 x M.2 Q-Latch package for M.2 backplate | ||
| 1 x M.2 Q-Latch package | ||
| 1 x ROG Graphics card holder | ||
| 2 x Rubber Packages for M.2 | ||
| 1 x Rubber Package for M.2 backplate | ||
| 1 x ROG key chain | ||
| 1 x ROG Strix sticker | ||
| 1 x ROG Strix thank you card | ||
| Documentation | ||
| 1 x User guide | ||
| Operating System | Windows® 11 64-bit, Windows 10 64-bit | |
|
Form Factor
|
ATX Form Factor | |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ||
| Dimension | ||
| Product (mm)_ L*W*H | 305mm*244mm*50mm | |
| Color Box (mm)_ L*W*H | 338mm*273mm*68mm | |
| Weight | ||
| Motherboard only | 1.7 Kg | |
| Full package | 2.671 Kg | |
| Warranty | 3 Years | |
| Note** | **Prices, Specifications & Features are subject to change without notice |
