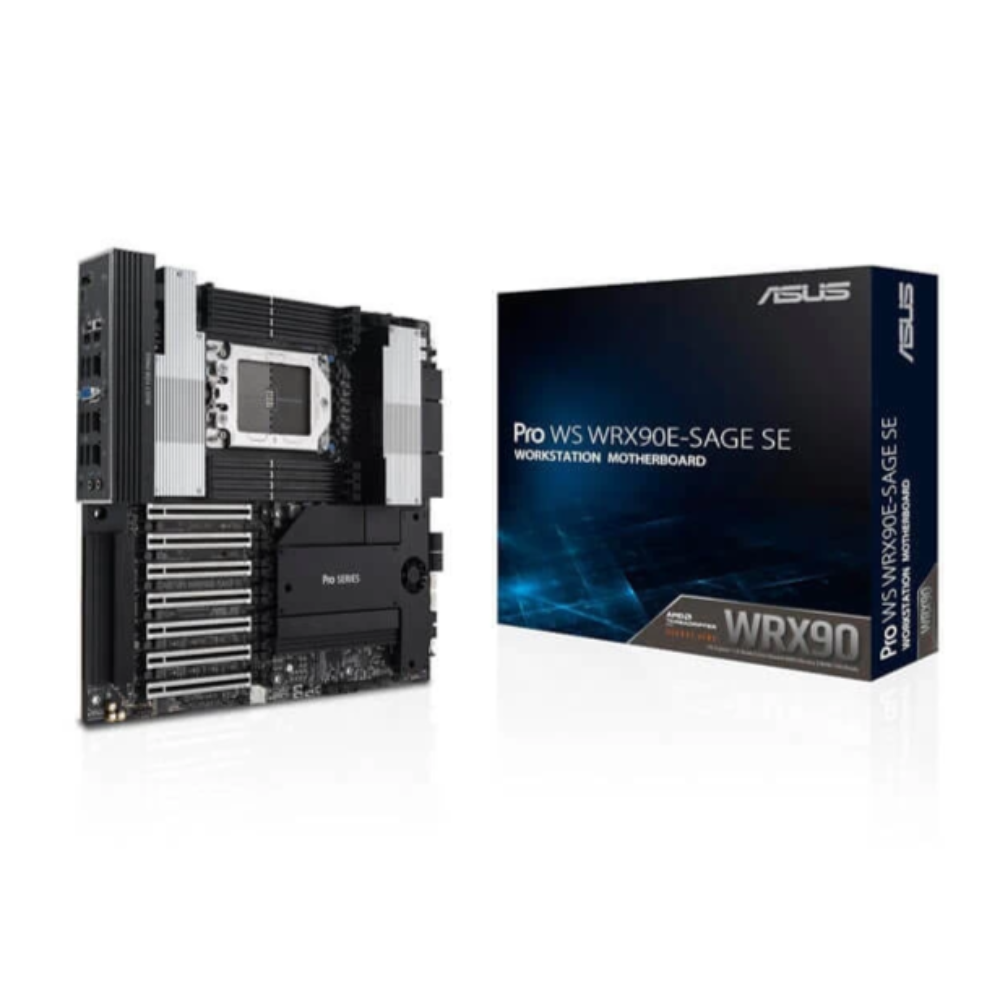

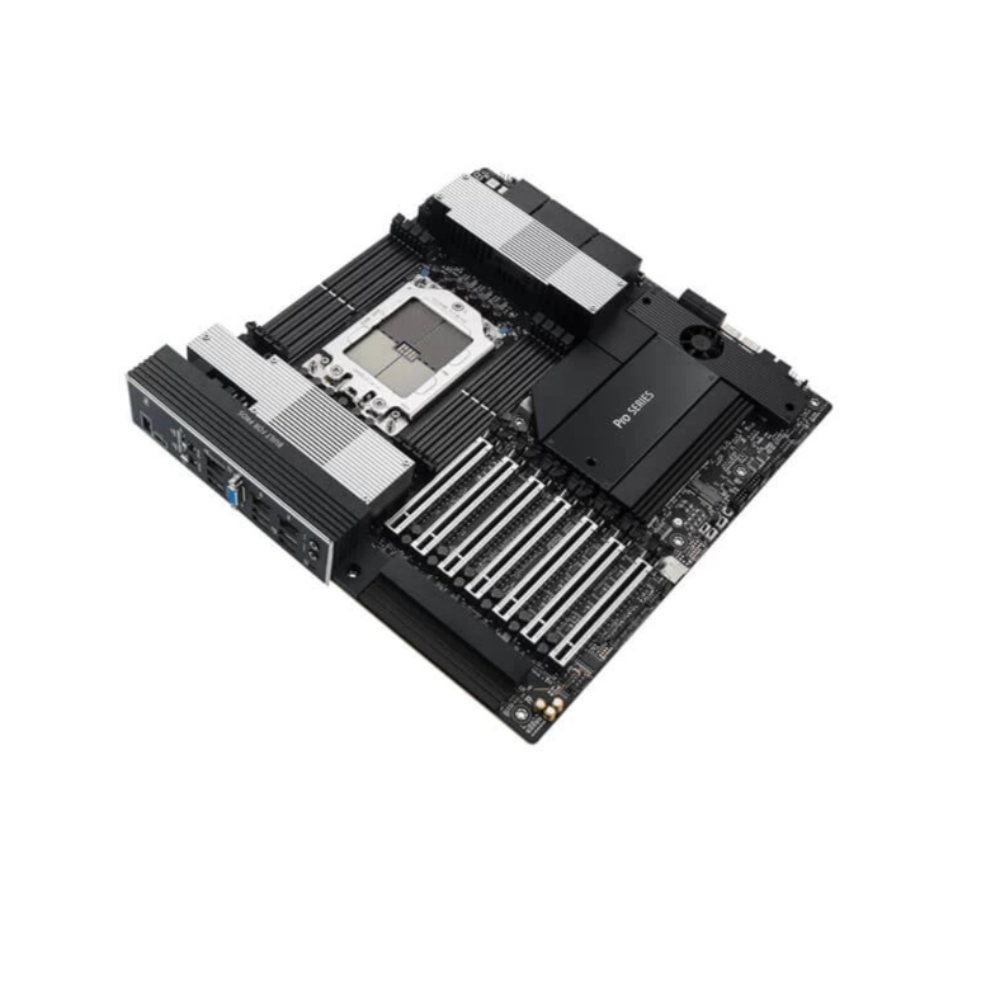

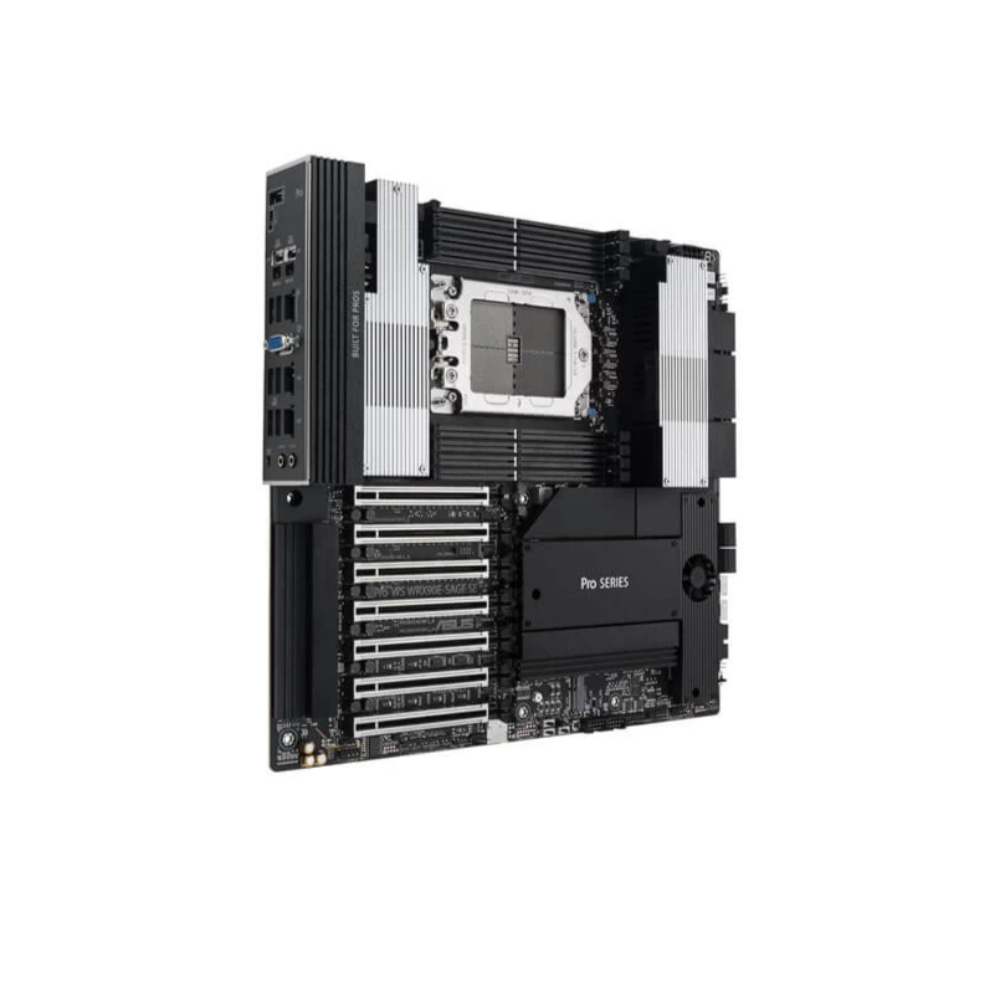

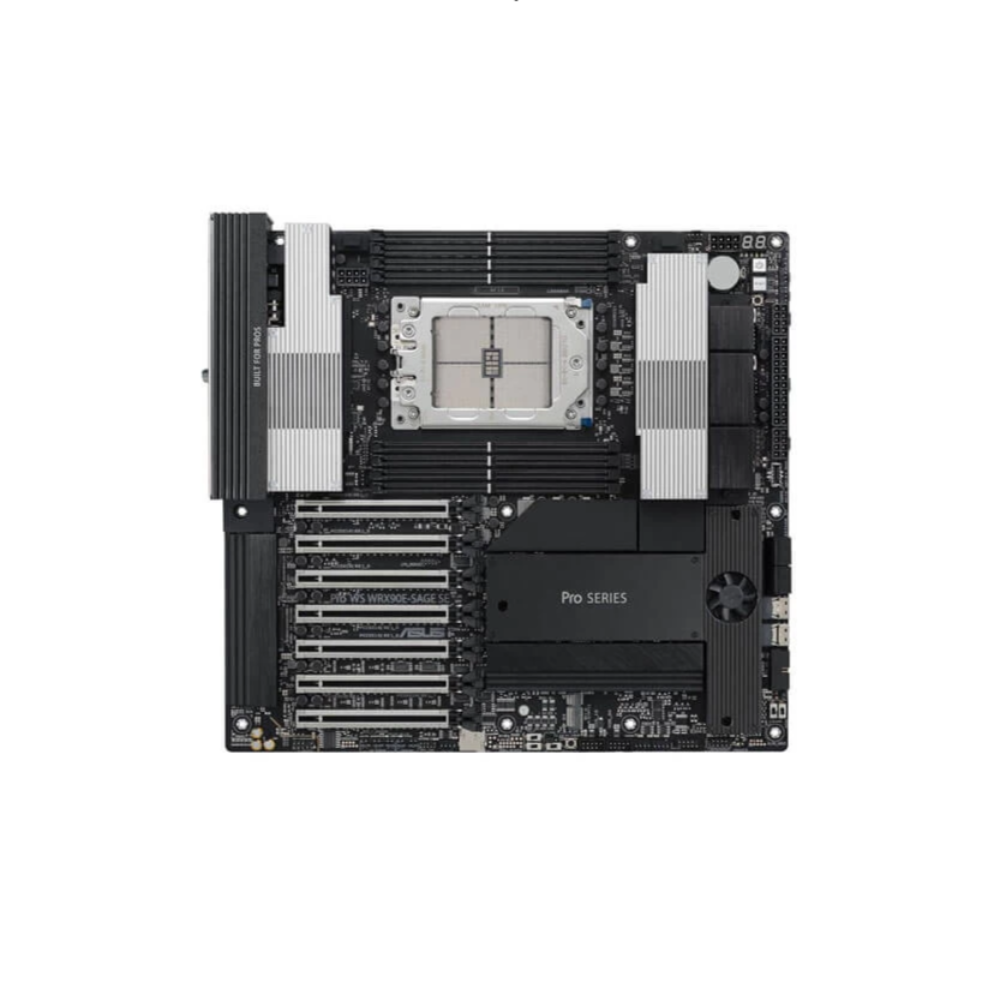

- ASUS Pro WS WRX90E-SAGE SE Workstation DDR5 AMD Motherboard
Description
Features of ASUS Pro WS WRX90E-SAGE SE Workstation DDR5
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
A WORKSTATION WONDERLAND
ASUS Pro WS WRX90E-SAGE SE Workstation DDR5 motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-two power stages fuel AMD Ryzen™ Threadripper™ PRO 7000 WX-series processors with up to 96 cores, while supporting up to 2 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, USB 40Gbps ports, SlimSAS and onboard BMC, the Pro WS WRX90E-SAGE SE comes prepared for a wide array of scenarios and industries.
ULTRAFAST CONNECTIVITY Multi-GPU Support
The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.
1 Gb Ethernet Dedicated to BMC
The Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller.
USB 20Gbps with USB Type-C®
The front panel connectors offer a transfer rate of up to 20 Gbps.
Embrace Next-Generation USB4®
The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators.
M.2 PCIe 5.0 slots
The Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.
SlimSAS slot
The Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industrial SSD drives, servers and networking equipment.
CPU AND MEMORY OVERCLOCKING READY
For AMD TR5 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS WRX90E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation computing.
Power Stages in VRM Area
The Pro WS WRX90E-SAGE SE voltage regulator module setup is comprised of (16*2)+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors demand, with stability for extreme overclocking.
ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
Specifications of ASUS Pro WS WRX90E-SAGE SE Workstation DDR5
| Model | Pro WS WRX90E-SAGE SE |
| CPU | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series |
| Chipset | AMD WRX90 Chipset |
| Memory | 8 x DIMM slots, DDR5, ECC Registered Memory 8 Channel Memory Architecture |
| Expansion Slots | AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) |
| Storage | Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports* AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD WRX90 Chipset 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel® dual 10Gb Ethernet ASUS LANGuard |
| USB | Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 ports (2 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit |
| Back Panel I/O Ports | 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate and onboard thermal pads - M.2 heatsink - Steel backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection BMC Related 1 x BMC switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Message LED header 1 x microSD card socket 2 x LAN LED headers 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header (Dedicated Management for AST2600) 1 x VPP_I2C header |
| Software Features | ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey IT Management software supported - ASUS Control Center Express(ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS(text-based) |
| Manageability | WOL by PME, PXE (UEFI mode) |
| Accessories | Cables 2 x PCIe 8-pin to CPU power cables 1 x 24-pin power cable (Y cable) 2 x Mini DisplayPort cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x Q-connector 1 x M.2 Q-Latch package 1 x AMI license sticker 4 x M.2 rubber packages 1 x Screw package for M.2 Key E Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
| Operating System | Windows® 11 Windows® 10 64-bit |
| Form Factor | EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
