ASUS Prime Z590M Plus DDR4 Intel Motherboard

Rs. 16,595.00 Rs. 28,500.00

Discount: Rs. 11,905.00 (42%)

23 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: 17 December,2024 - 21 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of ASUS Prime Z590M Plus DDR4

Intel® Z590 (LGA 1200) micro ATX motherboard with PCIe® 4.0, 9 DrMOS power stages, DisplayPort™, HDMI®, DVI, SATA 6 Gbps, Intel® 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting

Intel^® LGA 1200 socket: Ready for 11th and 10th gen Intel^® Core™ processors

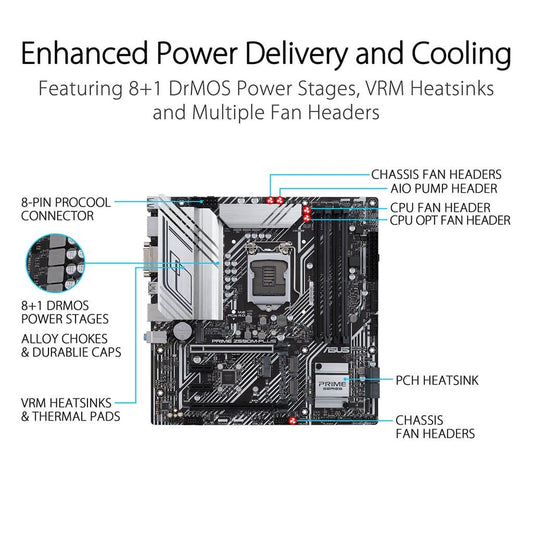

Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: PCIe^® 4.0, Intel^® 1 Gb Ethernet , USB 3.2 Gen 2×2 Type-C^®, Thunderbolt™ 4 header support

ASUS Prime Z590M Plus DDR4 series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

Flexible Air- and Liquid-Cooling Controls

ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
1. Search Function: Quickly and easily find the option or setting you need.
2. ASUS User Profile: Port configuration settings between different BIOS versions or share them with friends.

VRM Heatsinks and Thermal Pads

Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Specifications of ASUS Prime Z590M Plus DDR4

CPU	Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z590 Chipset

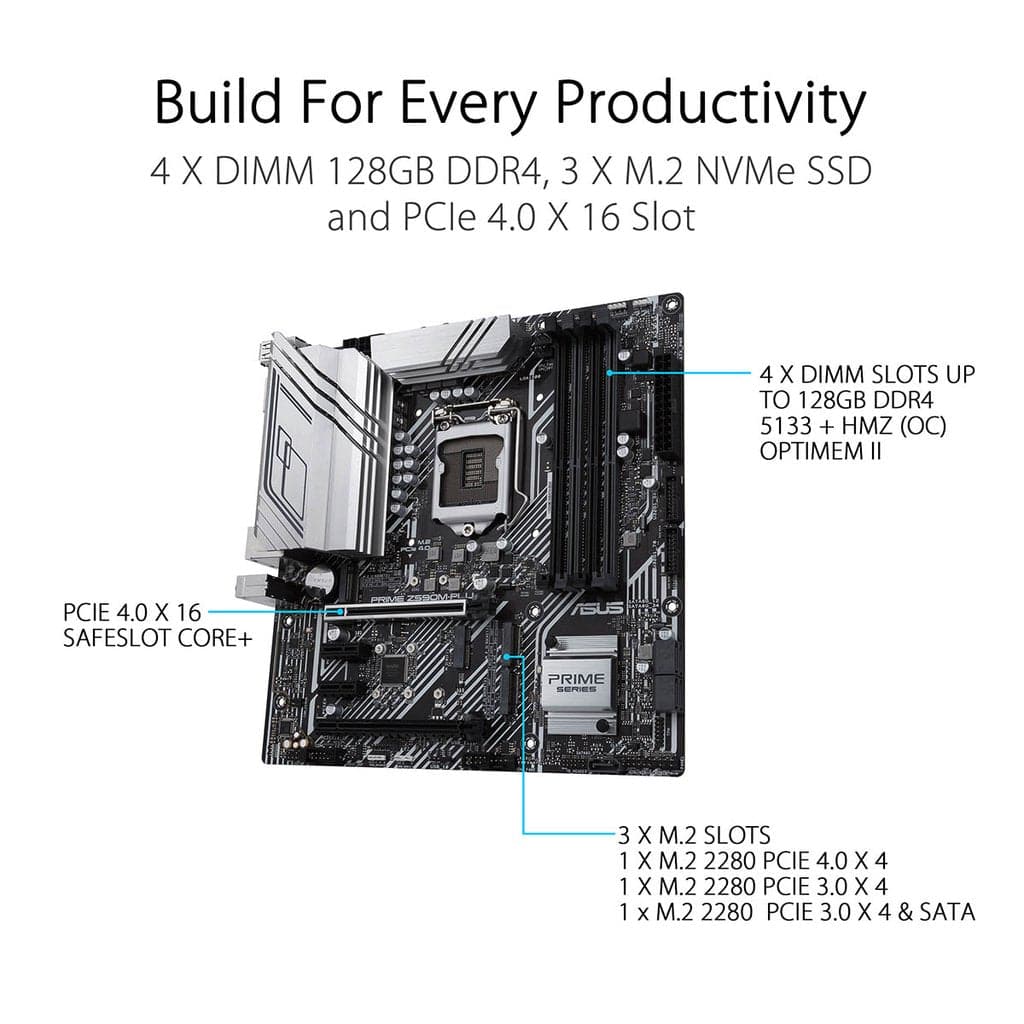

Memory	4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/ 4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/ 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics	1 x DisplayPort 1.4 1 x DVI-D 1 x HDMI™ 1.4 / 2.0* * Graphics specifications may vary between CPU types. Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. * Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
Expansion Slots	Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 mode - Intel®10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 mode Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function.
Storage	Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 5 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_1 port cannot be used.
Ethernet	1 x Intel® I219-V 1Gb Ethernet
Wireless & Bluetooth	M.2 slot only (Key E) (Support CNVi & PCIe interface)* * Wi-Fi module is purchased separately.
USB	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio	"Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x DVI-D port 1 x HDMITM port 1 x Intel® I219V 1Gb Ethernet 3 x Audio jacks
Internal I/O Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 5 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header

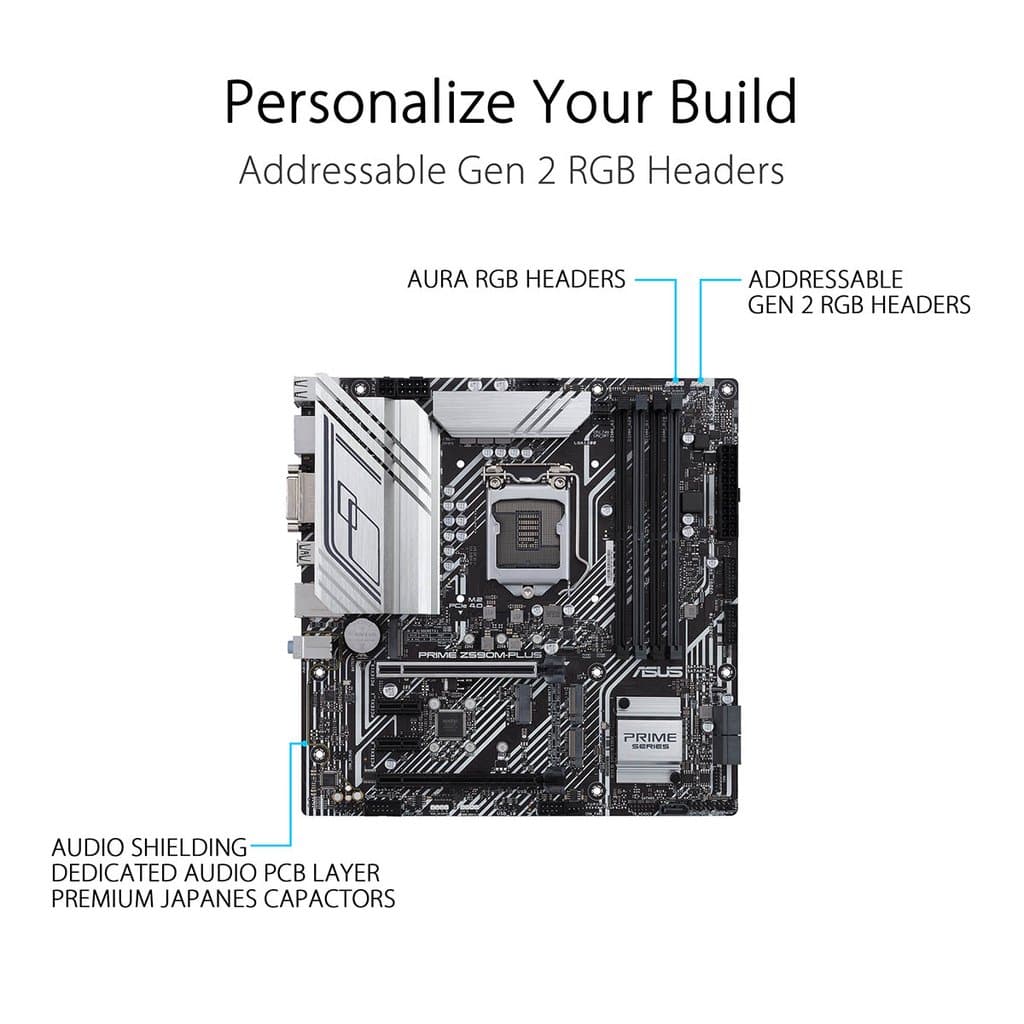

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - Procool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Software Features	ASUS Exclusive Software Armoury Crate - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger Norton Anti-virus software (Free Trial version) DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual
Operating System	Windows® 10 - 64 bit
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
