- ASUS Prime H570M Plus Motherboard
Description

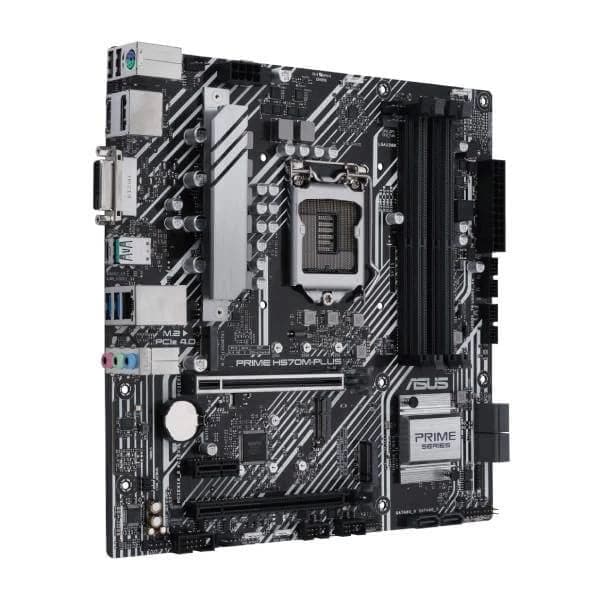

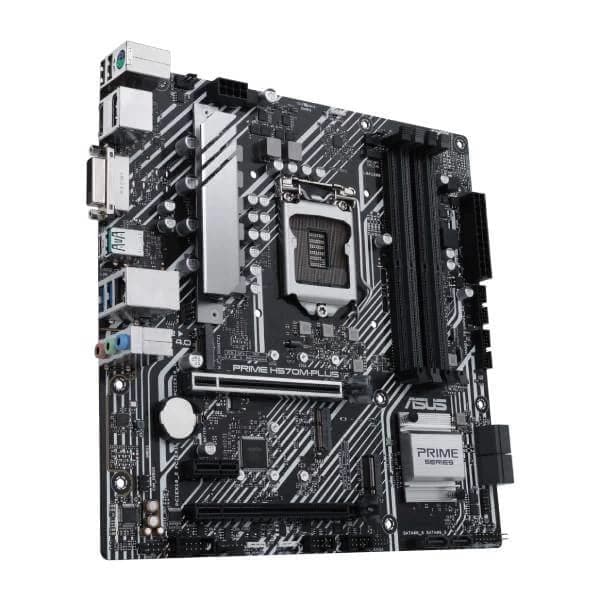

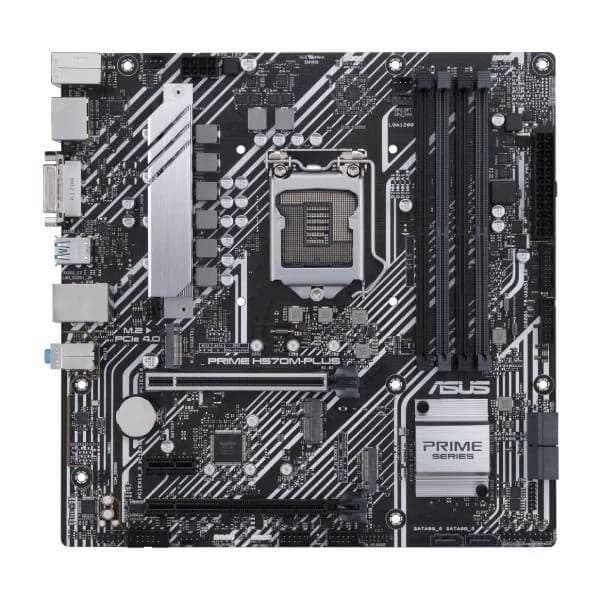

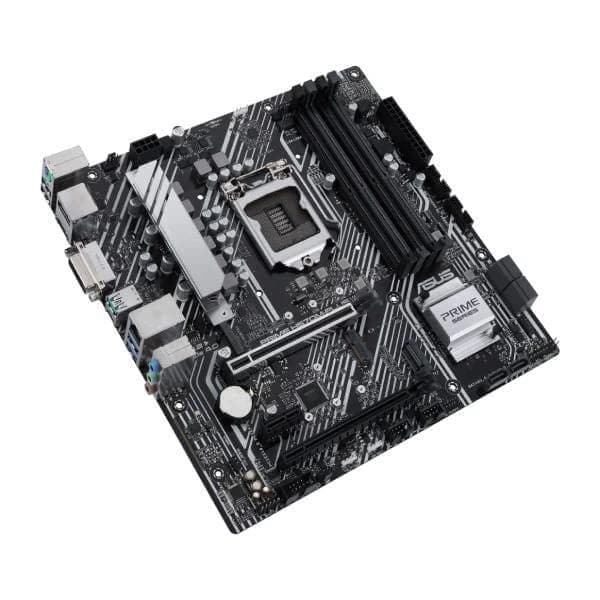

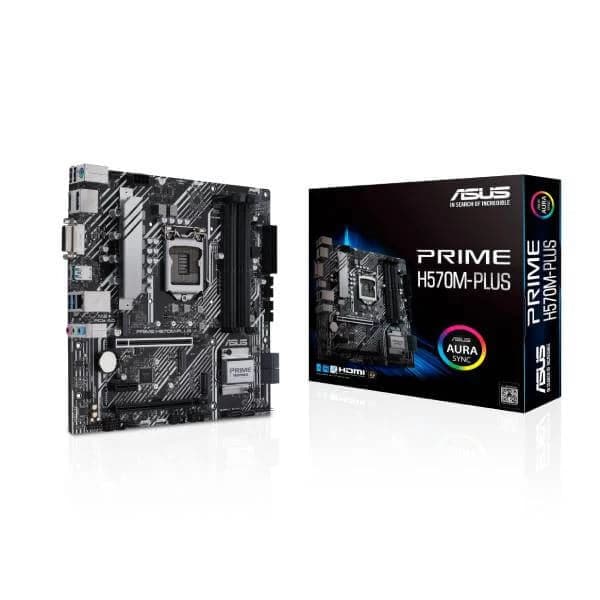

ASUS Prime H570M Plus Motherboard
Features:
- The ASUS Prime H570M-Plus motherboard is designed to support latest Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors. The board is PCIe 4.0 Ready supporting up to 128GB DDR4 4600MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
- The board features the most comprehensive cooling options ever that are configurable via Fan Xpert 2+ or the UEFI BIOS. It employs enlarged VRM heatsink, PCH heatsink and hybrid fan headers. These comprehensive cooling options are controllable and configurable via Fan Xpert 2+ software.

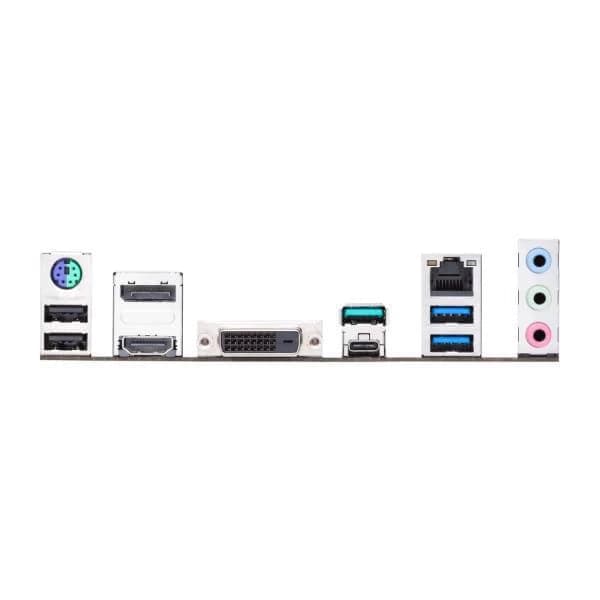

- Enjoy extended connectivity with the next-gen technology of PCIe 4.0, Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C and Thunderbolt 4 support. With the integration of LANGuard gives advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput.
- ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers. An exclusive circuit design with built-in voltage regulators protects your motherboard from damage caused by unexpected high-level or unstable voltages.
Specifications:
| Brand | ASUS |
| Manufacturer | Asus |
| Model | 90MB16W0-M0EAY0 |
| Model Name | PRIME H570-PLUS |
| Model Year | 2021 |
| Product Dimensions | 24.4 x 4 x 24.4 cm; 940 Grams |
| Batteries | 1 A batteries required. |
| Item model number | 90MB16W0-M0EAY0 |
| Memory Storage Capacity | 128 GB |
| Memory Slots Available | 4 |
| Maximum Memory Supported | 128 GB |
| Ram Memory Technology | DDR4 |
| Computer Memory Type | DDR4 SDRAM |
| Operating System | Windows |
| Processor Socket | LGA 1200 |
| Compatible Processor Types | Intel Celeron, 10th Generation Intel Core, Intel Pentium Gold |
| Graphics Card Interface | PCI-Express x16 |
| Special Features | Thunderbolt 4, Aura Sync |
| Chipset Type | Intel H570 |
| Number Of Items | 1 |
| Batteries Included | No |
| Batteries Required | No |
| Total Usb Ports | 10 |
| Includes Rechargable Battery | No |
| Manufacturer | Asus |
| Country of Origin | China |
| Item Weight | 940 g |
