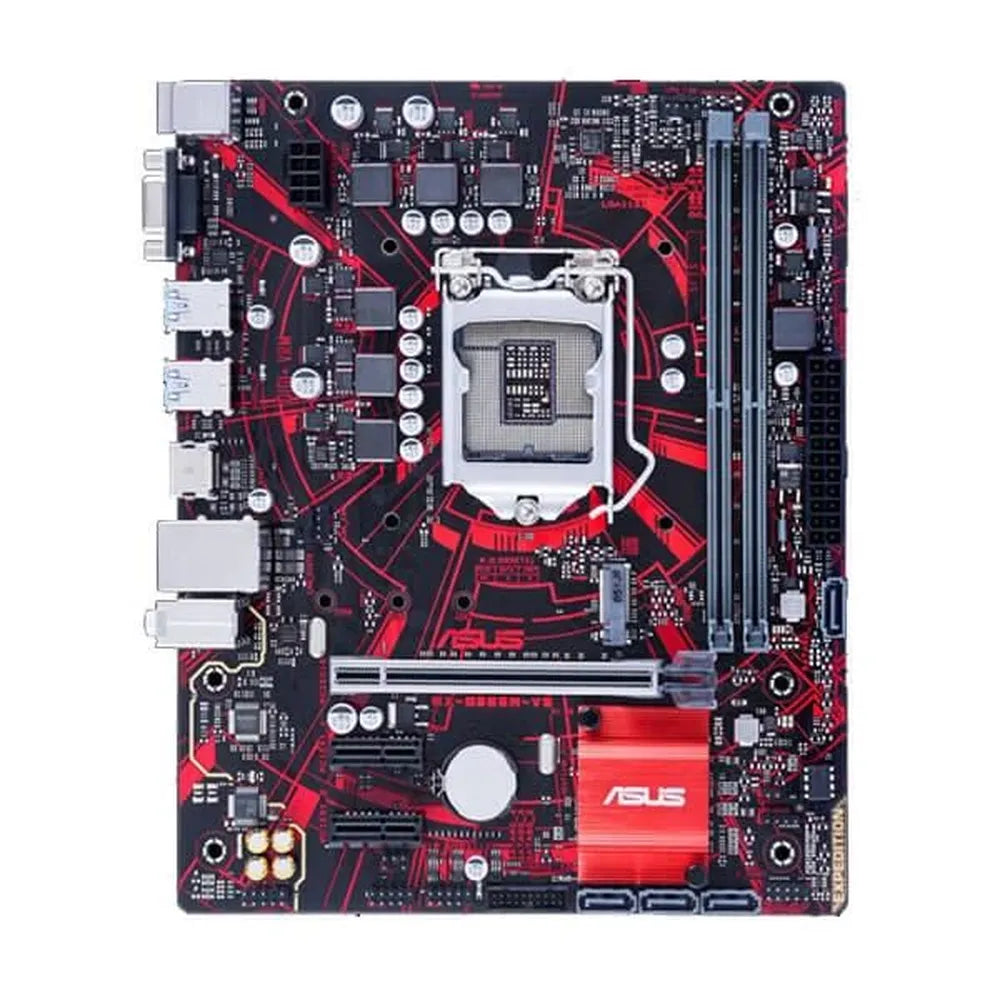

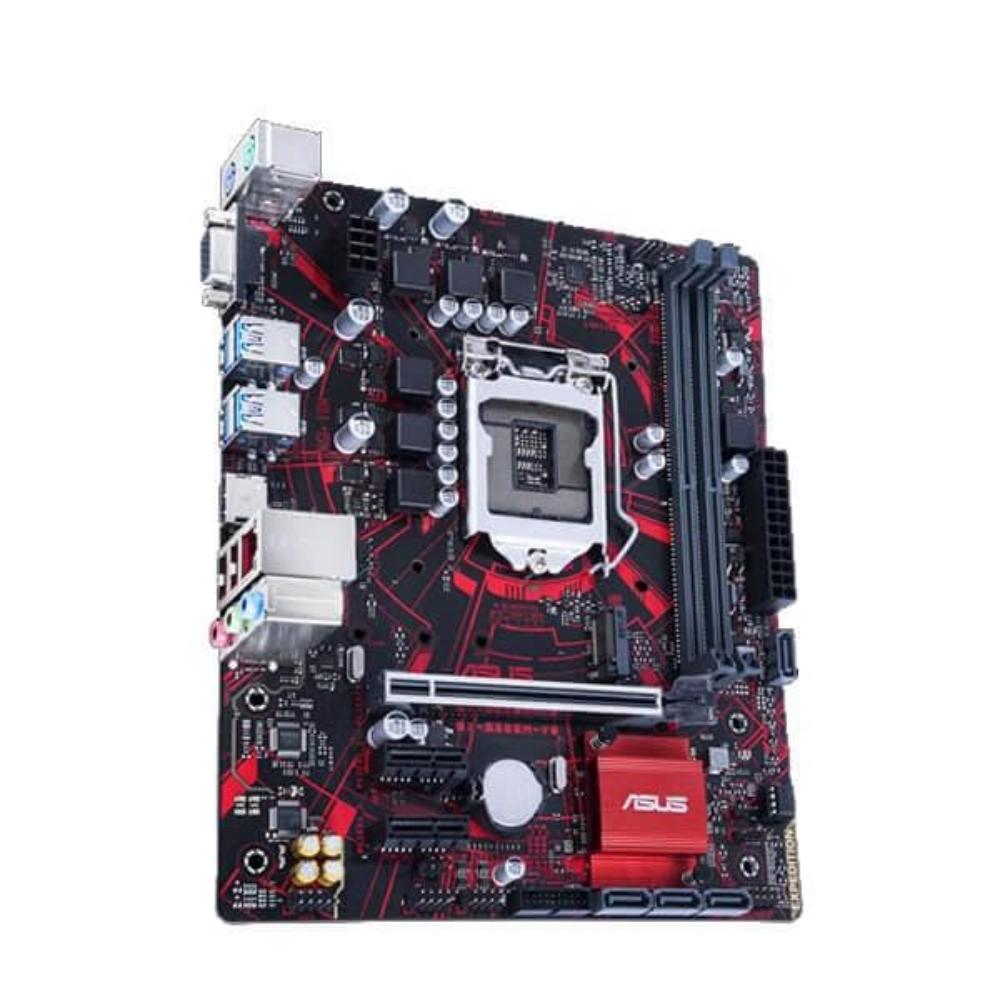

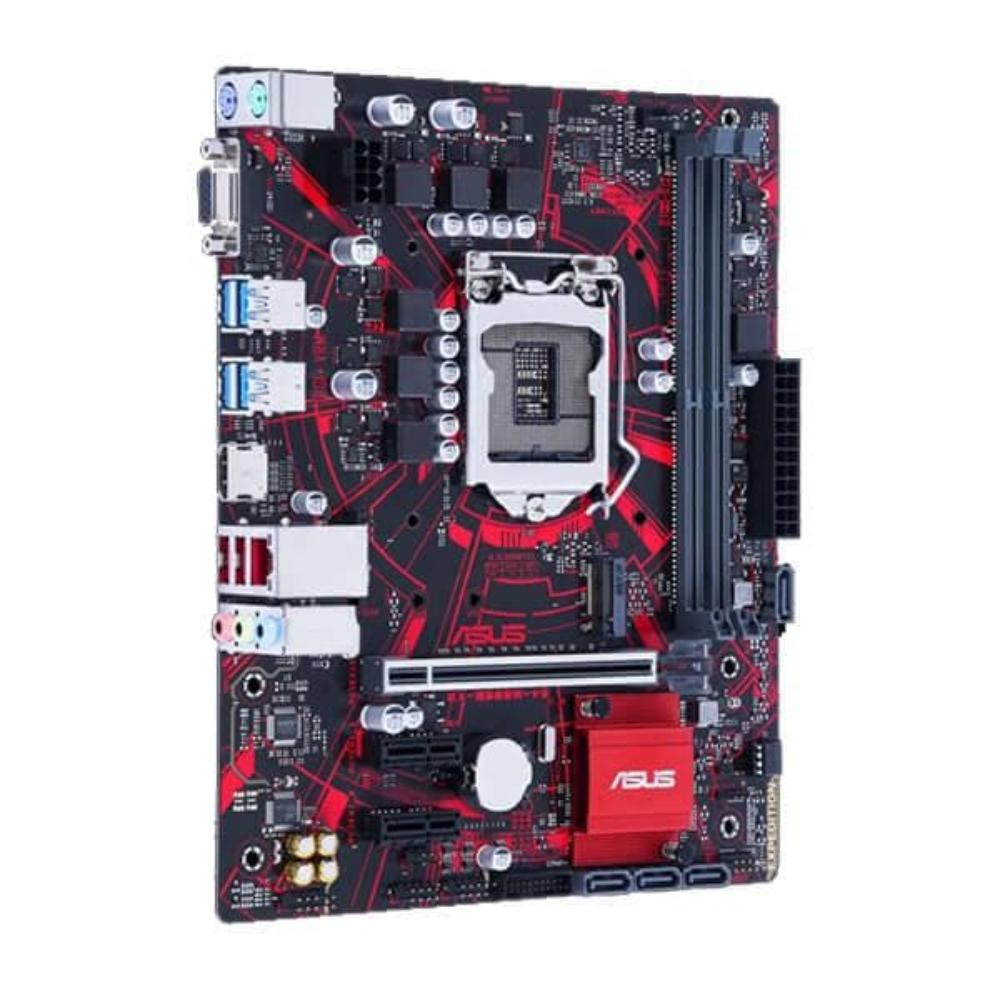

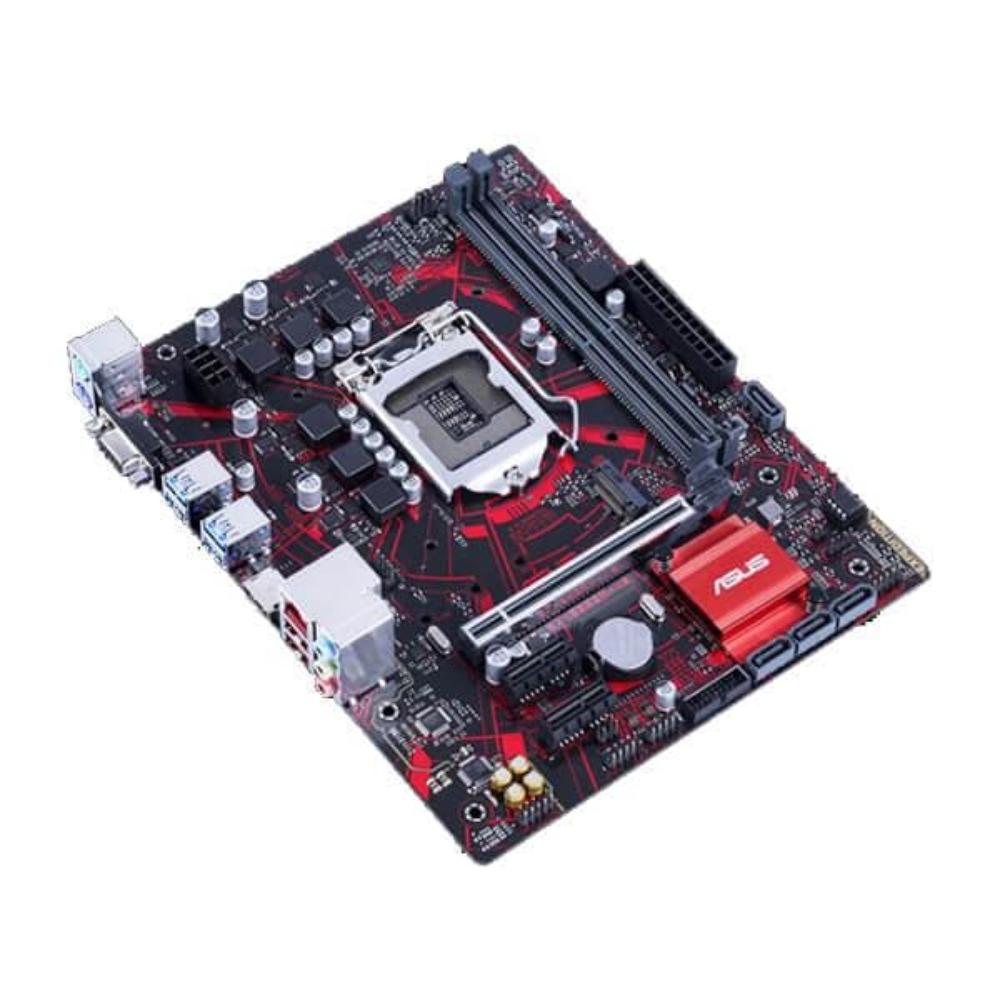

- ASUS EX-B365M-V5 DDR4 Intel Motherboard
Description
Feature of ASUS EX-B365M-V5 DDR4
ASUS EX-B365M-V5 DDR4 motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages — for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you!
Exceptional stability and protection
ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability.
Luminous Anti-moisture Coating Protects against moisture and corrosion
An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé , data centers and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.
USBGuard
120% higher overvoltage protection
Exclusive USBGuard technology detects voltage changes in real time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.
5X Protection III
ASUS EXPEDITION motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
SAFESLOT CORE+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the iCafe and Advanced Modes help you find your way, quickly and easily.
ASUS Beyond VR Ready
Perfect for iCafe Owners Wanting to Expand
Beat the competition by offering a VR experience in your iCafe with ASUS Beyond VR Ready. ASUS Expedition motherboards, plus the right mix of class-leading ASUS components, are the perfect solution for delivering the best VR experiences to your customers. ASUS Expedition motherboards passed the 3DMark VR test and further ASUS VR tests without any faults, so you can feel confident that you're offering the best performance and reliability. Expand your businesses appeal, and take your iCafe into the age of VR computing — with ASUS Beyond VR Ready!
144-hr diskless solution compatibility
ASUS operates the iCafé Labs to certify Expedition motherboards for use as diskless systems, subjecting them to 144 hours of dedicated tests, including a 24-hour reboot test and 12-hour 3D Mark test with heavy loading. A total of 1,200 validation hours ensure that Expedition motherboards are ready to run non-stop — with the smooth performance you demand.
Top games and 100+ peripherals tested
ASUS iCafé Labs engineers also subject Expedition boards to lengthy stability tests in an environment that simulates a real-world internet café. We test with the top games, and with over 100 of the most popular hardware combinations, so both you and your customers are assured of the very best gaming experiences!
Specifications of ASUS EX-B365M-V5 DDR4
CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
Chipset | Intel® B365 |
Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
Graphic |
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/D-Sub ports Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider |
Expansion Slots |
1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1 |
Storage |
4 x SATA 6Gb/s port(s) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support |
LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
USB Ports |
Intel® B365 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 2 at mid-board) Intel® B365 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
Special Features |
ASUS 5X Protection III : ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI VRM: 6 Phase digital power design ASUS SafeSlot Core - Prevent graphics card damage Non-stop Durability : Anti-moisture coating - Outstanding protection against moisture and corrosion USBGuard- 120% higher voltage tolerance Non-stop Gaming : Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : ASUS iCafe Labs Certified - Top games and 100 peripherals tested ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |

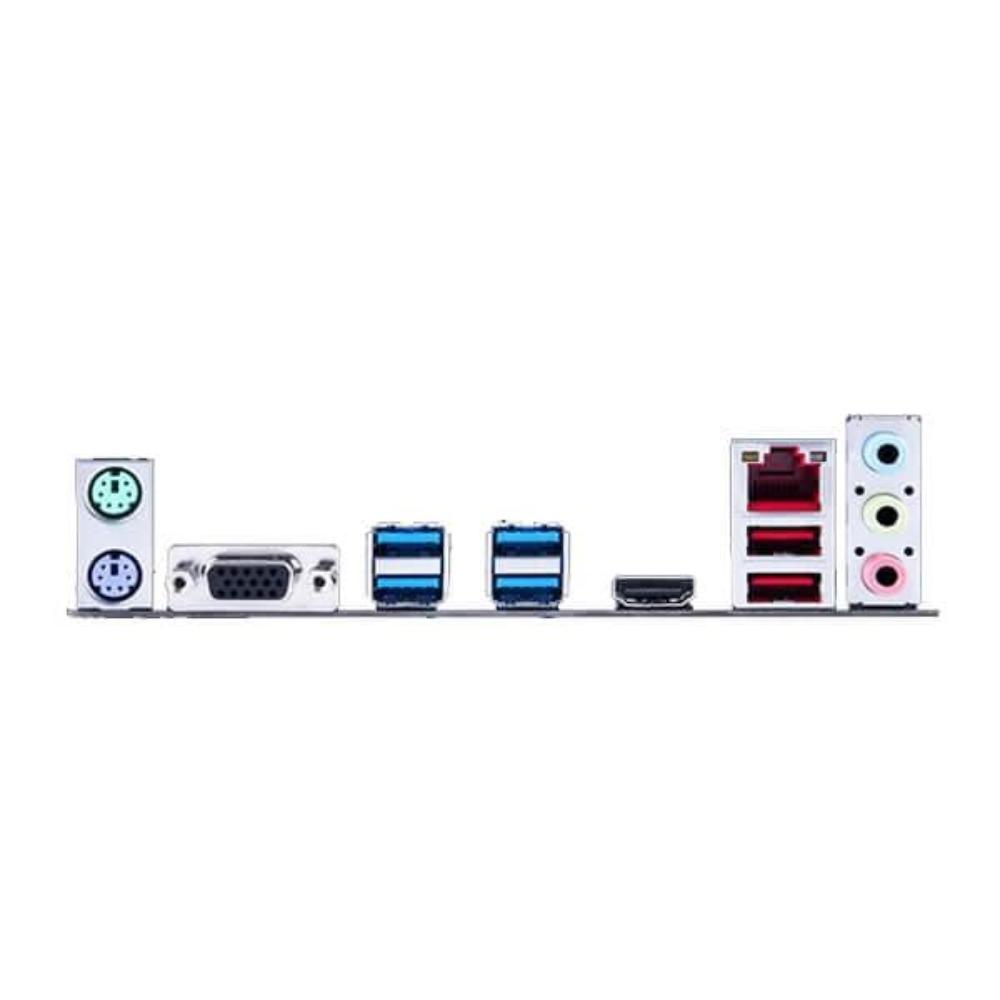

Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 1 x D-Sub 2 x USB 2.0 3 x Audio jack(s) |
Internal I/O Ports |
1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
Operating System Support | Windows® 10 64-bit |
Form Factor |
uATX Form Factor 8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
