- ASUS GeForce RTX 3090 EKWB 24GB Nvidia Graphic Card With Water Block
Description
Features of ASUS GeForce RTX 3090 EKWB 24GB Nvidia Graphic Card With Water Block
Let it Flow
The ASUS EKWB GeForce RTX™ 3090 graphic card are the result of collaborative engineering efforts between ASUS and EK®. ASUS Auto-Extreme Technology, along with a metal backplate and customized steel mounting bracket, create a durable foundation for EK®’s full-coverage water block. The entire package takes up just a single slot, bringing the tangible benefits of water cooling to small form factor builds, heavyweight workstations, and showcase rigs.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Protective Backplate
That’s so metal!

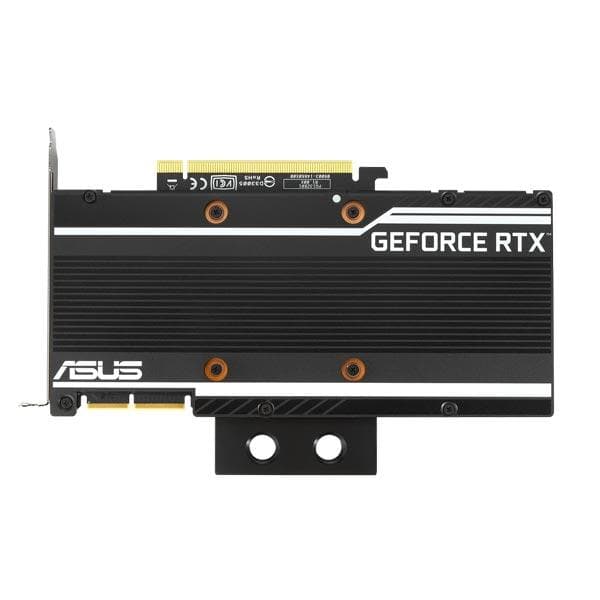

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.
Stainless Steel Bracket
Steel yourself
The mounting bracket of the ASUS EKWB has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
High-performance Water Block
Go with the flow
A central inlet split-flow cooling engine designed by EK® channels coolant over the GPU and other key components without restricting flow. The design efficiently dispatches large thermal loads and saves prized slot space.
Remarkable Construction
A feat of engineering
A nickel-plated copper cold plate prevents oxidation and ensures efficient heat transfer. On top, the cast acrylic cover makes a spectacle of coolant as it courses over the GPU and other components. High-quality EPDM O-rings and brass standoffs are arranged throughout to ensure proper sealing and an easy installation.
Aura Sync
Outshine the competition
The ASUS EKWB graphics card features an addressable RGB strip that spans the length of the block. Armoury Crate software allows complete control and customization of the lighting colors and effects. Build with other Aura Sync components to enable uniform lighting across your entire setup.
Single-slot Design
So much room
A compact single-slot design increases compatibility with other PCIe peripherals and even allows multiple ASUS EKWB cards to be stacked in a system.
Software
GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
DLSS AI ACCELERATION
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.
VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA G-SYNC monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.
UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
STREAM LIKE A BOSS
Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. So you can give your audience your best—every time.
DIRECTX 12 ULTIMATE
Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
- Features an EK® Water Block designed for custom loops.
- A protective backplate prevents PCB flex and trace damage.
- A stainless steel bracket is harder and more resistant to corrosion.
- A single-slot design fits in small chassis and leaves room for additional PCIe devices.
- Auto-Extreme Technology uses automation to enhance reliability
Specifications of ASUS GeForce RTX 3090 EKWB 24GB Nvidia Graphic Card With Water Block
| Graphic Engine | NVIDIA® GeForce RTX™ 3090 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 24GB GDDR6X |
| Engine Clock |
OC Mode - 1725 MHz (Boost Clock) Gaming Mode - 1695 MHz (Boost Clock) |
| CUDA Core | 10496 |
| Memory Speed | 19.5 Gbps |
| Memory Interface | 384-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | Yes |
| Accessories |
1 x Collection card 1 x Speedsetup manual 1 x EK Loop Multi Allen Key 2 x EK-Plug G1/4 CSQ Bridge |
| Software | ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
8.5 " x 5.36 " x 0.78 " Inch 21.6 x 13.62 x 1.98 Centimeter |
| Recommended PSU | 750W |
| Power Connectors | 2 x 8-pin |
| Slot | 1 Slot |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html |
