Description

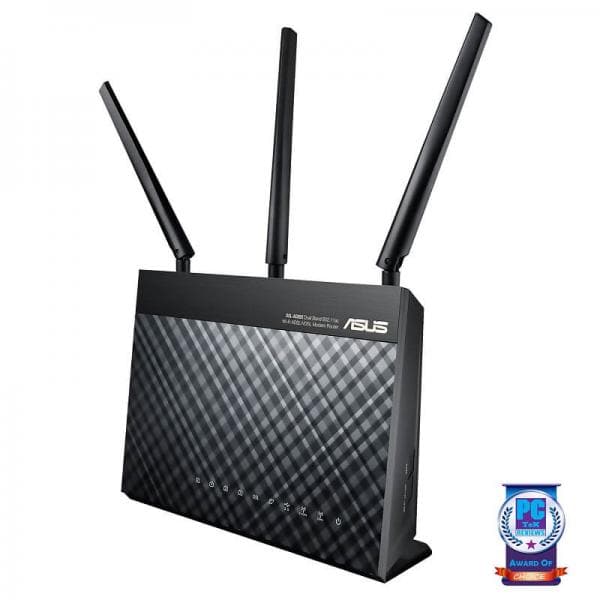

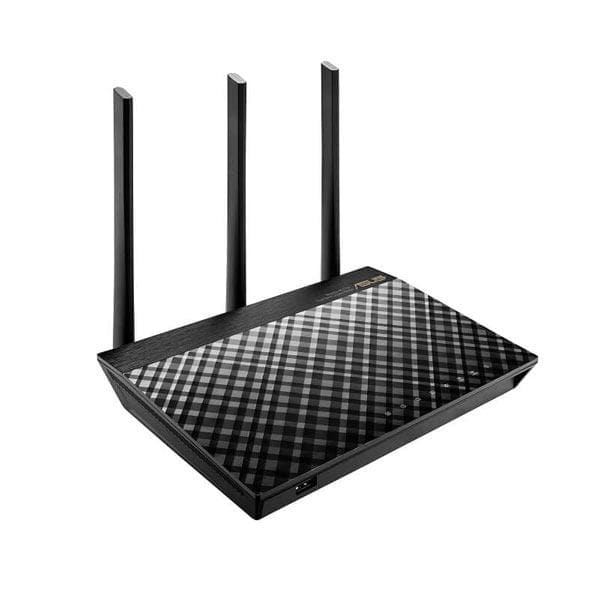

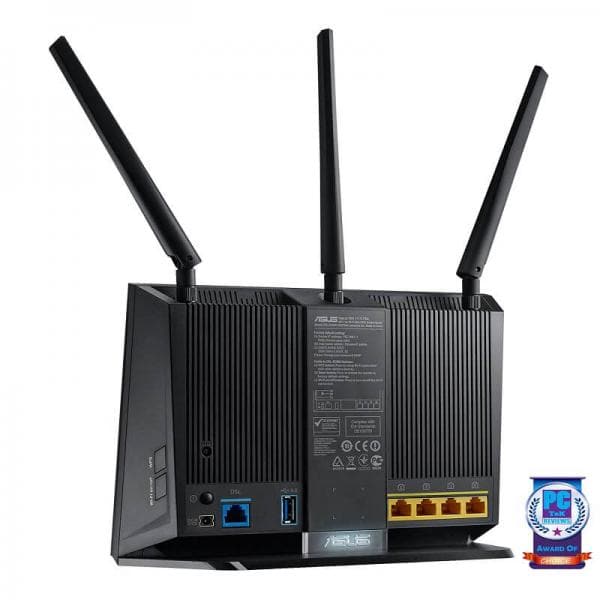

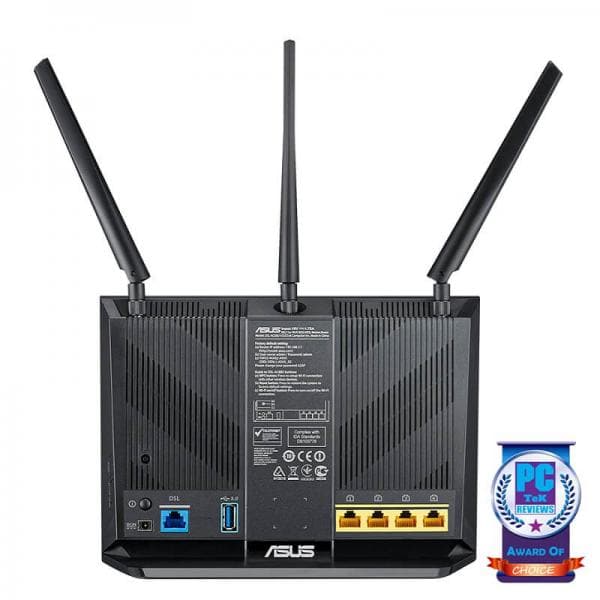

Asus DSL-AC68U WiFi Router
Features:
- Compatible with ADSL2/2 , ADSL, VDSL2, fiber and cable services
- Three external high-gain antennas with AiRadar universal beamforming for superb Wi-Fi range
- Manage your network anywhere, without needing to boot up a PC
- ASUS AiProtection with Trend Micro™ for triplestrength network security, plus robust Parental Controls and privacy protection
- Remotely access your home network through encrypted and private connection
- Enjoy more internet bandwidth available via aggregating two WAN connections or set up a backup internet connection for better reliability
- 10X-faster data transfers than USB 2.0
- AiMesh Supported - Connect to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network
Specifications:
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv6 |
| Product Segment | AC1900 ultimate AC performance: 600 1300Mbps |
| Wi-Fi Data Rate |
802.11a : 6,9,12,18,24,36,48,54Mbps 802.11b : 1, 2, 5.5, 11Mbps 802.11g : 6,9,12,18,24,36,48,54Mbps 802.11n : up to 450Mbps 802.11n TurboQAM：up to600Mbps 802.11ac: up to 1300Mbps |
| xDSL Data Rate |
VDSL2/ADSL2 /ADSL2/ADSL multimode Up to 100Mbps/100Mbps upstream/downstream Support Annex A/B/I/J/L/M Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a VDSL2 interface compliance with ITU-T993.2 G.992.1 (G.dmt), Annex A, and B Compliant G.992.2 (G.lite), Annex A, and B Compliant ANSI T1.413 Compliant G.992.3 (ADSL2) Compliant, Annex A, B, L, and M G.992.5 (ADSL2 ) Compliant, Supporting Annex A, B, and M G.993.2 Compliant, Annex A, B, up to profile 30a with external AFE. G.993.5 (Vectoring) ATM and PTM (dual-priority) |
| Antenna | External dBi antenna x 3 |
| LED Indicator | Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi |
| Button | WPS Button, Reset Button, Power Button, Wireless on/off Button |
| Ports |
4 x RJ45 10/100/1000/Gigabits BaseT for LAN 1 x RJ11 for xDSL |
| USB Ports | USB 3.0 x 1 |
| USB Applications |
Printer Server FTP Server Download Master 3G/4G sharing |
| Router Special Features | 3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control |
| Operating Frequency |
2.4GHz 5GHz |
| Operation Channel | 13 Europe (ETSI) |
| Memory |
128MB Flash/256MB DDR3 RAM for WiFi/Router 8MB Flash/64MB DDR2 RAM for xDSL/Modem |
| Security | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support |
| Management |
Web-based GUI configuration Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI UPnP IGD 1.0 Auto VPI/VCI detection Configuration backup and restore Diagnostics Log & Trace function |
| Utilities |
Download master - support BT, NZB, HTTP, ED2K - support encryption, DHT, PEX and magnet link - upload and download bandwidth control - download scheduling ．Media server ．File server: Samba and FTP server with account management ．PPTP VPN server ．Network map ．Traffic monitor |
| VPN Support |
IPSec Pass-Throuth PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
| Power Adapter |
AC Input : 100 ~240 V(50~60HZ) DC Output : 19 V/1.75 A |
| Certificates | CE |
| Dimensions | 220 x 83.3 x 160 mm (WxDxH) |
| Weight | 640 g (Device Only) |
| OS Support |
Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP , 32bit/64bit Mac OS X Linux |
| Package Content |
DSL-AC68U Dual-band Wireless-AC1900 VDSL/ADSL Modem Router RJ-45 cable RJ-11 cable Support CD(User manual and utility) Power adapter Warranty card Quick start guide Splitter (varies with regions) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
