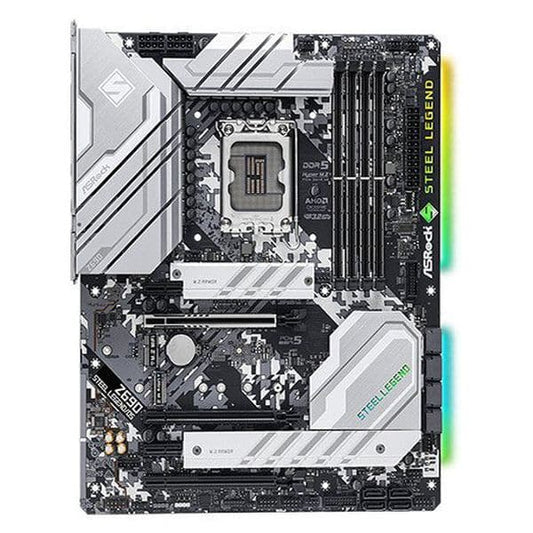

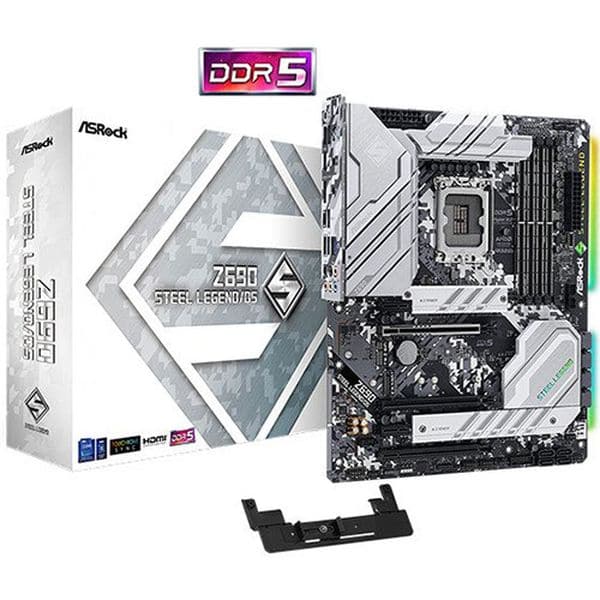

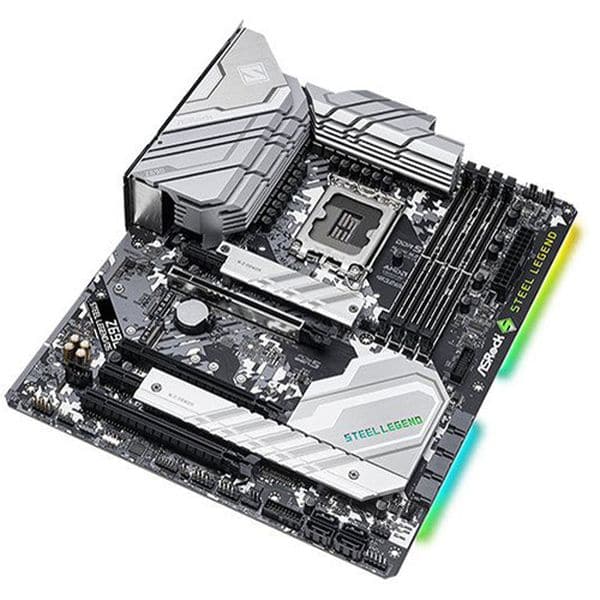

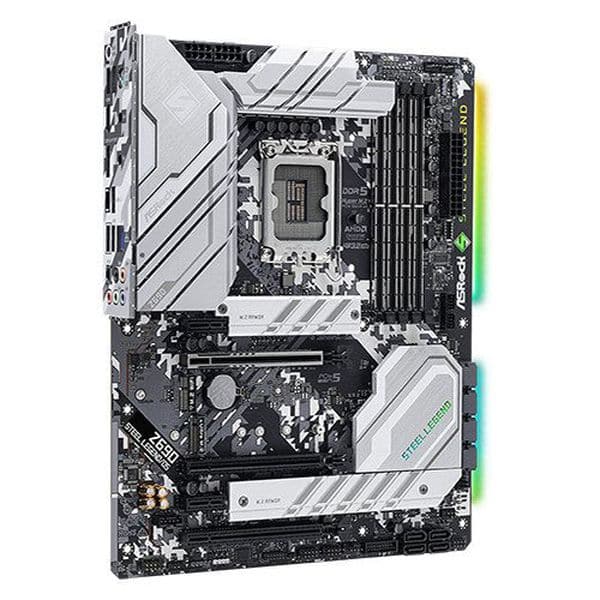

- ASROCK Z690 Steel Legend DDR5 Intel Motherboard
Description
Feature of Asrock Z690 Steel Legend DDR5
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
DDR5 Memory with Protection Circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
ASRock Graphics Card Holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Specifications of Asrock Z690 Steel Legend DDR5
Model | ASROCK Z690 Steel Legend DDR5 |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | Supports 12th Gen Intel® Core™ Processors |
Chipsets | |
Chipset | Intel® Z690 |
Memory | |
Number of Memory Slots | 2 x DDR5 DIMM |
Memory Standard | Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)* |
Maximum Memory Supported | 128 GB |
Channel Supported | Dual Channel DDR5 Memory Technology |
Expansion Slots | |
PCI Express x1 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
PCI Express x16 | 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*, 1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode*, 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* |
Storage Devices | |
SATA 3Gb/s | 8 x SATA3 6.0 Gb/s Connectors, |
Onboard Video | |
Onboard Video Chipset | Intel Xe Graphics Architecture (Gen 12) |
Onboard Audio | |
Audio Channels | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
Audio Chipset | Nahimic Audio |
Onboard LAN | |
LAN Chipset | Supports Dragon 2.5G LAN Software |
Max LAN Speed | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s ,Dragon RTL8125BG |

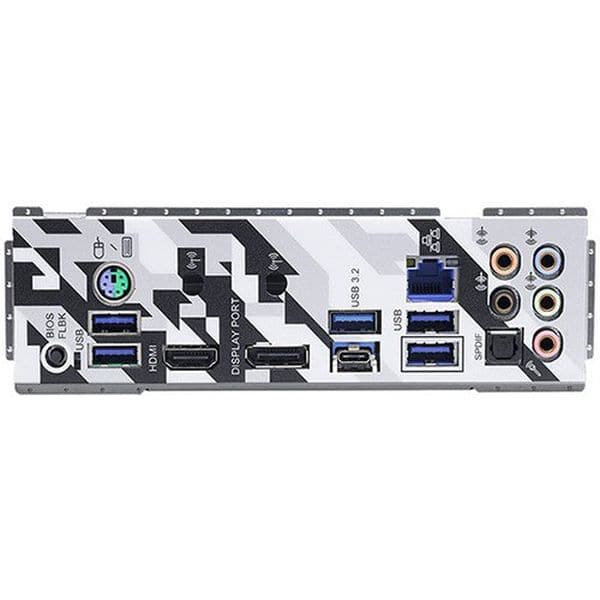

Rear Panel Ports | |
USB | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) ,1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) ,4 x USB 3.2 Gen1 Ports |
S/PDIF Out | 1 x optical S/PDIF Out connector |
Audio Ports | HD Audio Jacks: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone (Gold Audio Jacks) |
PS/2 | 1 x PS/2 keyboard & PS/2 mouse connectors |
Video Ports | 1 x DisplayPort and 1 x HDMI |
HDMI | 1 x HDMI |
Onboard USB | |
Onboard USB | N/A |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | ATX Form Factor |
Power Pin | 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors |
Dimensions | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
