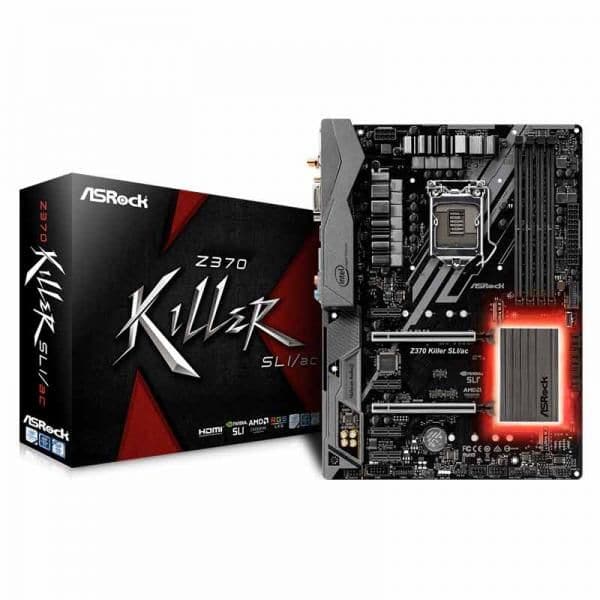

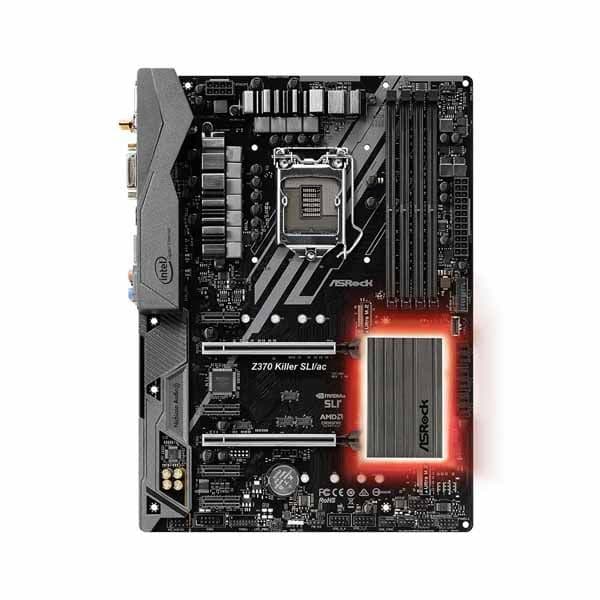

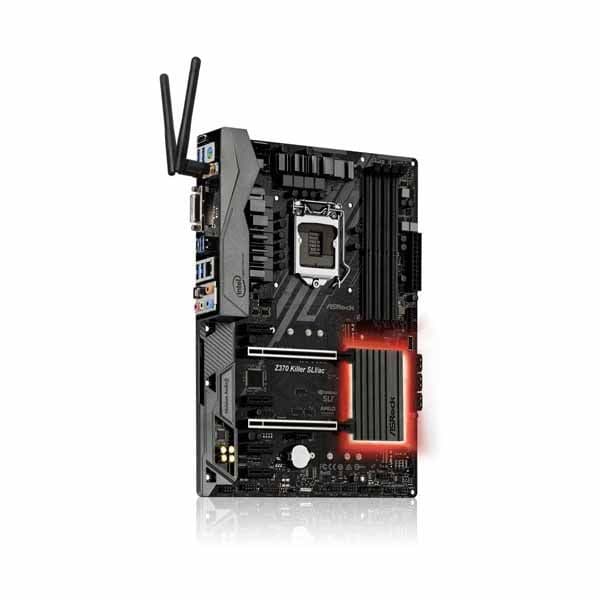

- ASROCK Z370 Killer Sli/Ac DDR4 Intel Motherboard
Description
Feature of ASRock Z370 Killer Sli/Ac DDR4
- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- Digital PWM, 10 Power Phase
- Supports DDR4 4266+(OC)
- 2 PCIe 3.0 x16, 4 PCIe 3.0 x1, 1 M.2 (Key E)
- NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
- Graphics Output Options : HDMI, DVI-D
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec)
Nichicon Fine Gold Series Audio Caps - 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 9 USB 3.1 Gen1 (1 Front Type-C, 2 Front Type-A, 1 Rear Type-C, 5 Rear)
- Intel® Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
- ASRock RGB LED
RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
SLI HB Bridge Free Bundled
The free bundled ASRock’s new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR
ROCK-SOLID VRM
Built for 8th Generation Intel® Core™ Processors
The improved power phase design offers smooth power delivery to the more powerful 8th Generation Intel® Core™ Processors, providing unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.
Hyper DDR4
UNBEATABLE MEMORY PERFORMANCE
ASROCK Z370 Killer Sli/Ac DDR4 technology unlocks the hidden performance of DDR4 memory modules, giving the overall performance a huge boost. Unlike traditional memory signal designs that are easily distorted, Hyper DDR4 uses an optimized trace design and the memory circuitry are ideally isolated, thus providing pure memory signals for compatibility, stability and performance.
Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Specifications of ASRock Z370 Killer Sli/Ac DDR4
| Unique Feature | ASRock Super Alloy- Premium 45A Power Choke- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Sapphire Black PCB- High Density Glass Fabric PCBIntel® 802.11ac WiFiASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| CPU | Supports 8th Generation Intel® Core™ Processors (Socket 1151)- Digi Power design- 10 Power Phase design- Supports Intel® Turbo Boost 2.0 Technology- Supports Intel® K-Series unlocked CPUs- Supports ASRock BCLK Full-range Overclocking |
| Chipset | - Intel® Z370 |
| Memory | - Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4266 (OC)* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Graphics | - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: VP9 8-bit, VP9 10- bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1- Max. shared memory 1024MB**- Dual graphics output: Support DVI-D and HDMI ports by independent display controllers- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-D and HDMI Ports- Supports 4K Ultra HD (UHD) playback with HDMI Port |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- Nichicon Fine Gold Series Audio Caps |
| LAN | - Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Wireless LAN | - Intel® 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth 4.2 / 3.0 High speed class II |
| Slots | - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*- 4 x PCI Express 3.0 x1 Slots (Flexible PCIe)- Supports AMD Quad CrossFireX™ and CrossFireX™- Supports NVIDIA® Quad SLI™ and SLI™- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)- 15μ Gold Contact in VGA PCIe Slot (PCIE2) |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
| Connector | - 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 1 x CPU Fan Connector (4-pin)**- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x Chassis Optional/Water Pump Fan Connector (4-pin)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.1 Gen1 Header- 1 x Performance Mode / Easy OC Header |

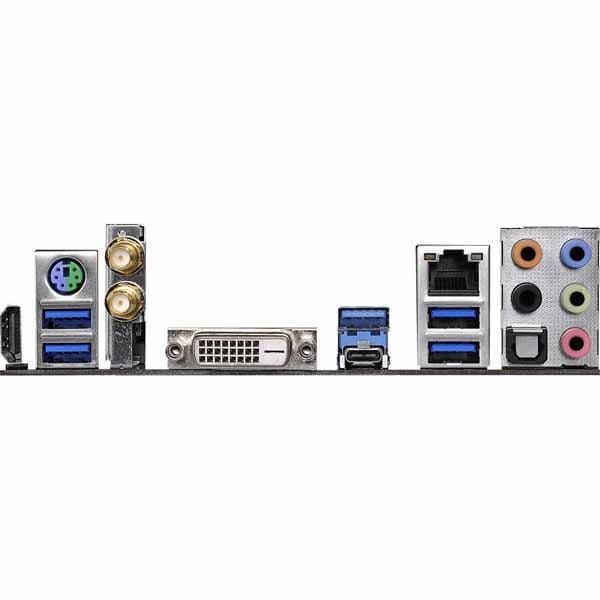

| Rear Panel I/O | - 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x DVI-D Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection)- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Software and UEFI | Software- ASRock A-Tuning- ASRock RGB LED- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_2S Card- 2 x ASRock WiFi 2.4/5 GHz Antennas- 2 x Screws for M.2 Sockets |
| Hardware Monitor | - Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans- Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans- CASE OPEN detection |
| Form Factor | - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm |
| OS | - Microsoft® Windows® 10 64-bit |
| Certifications | - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
