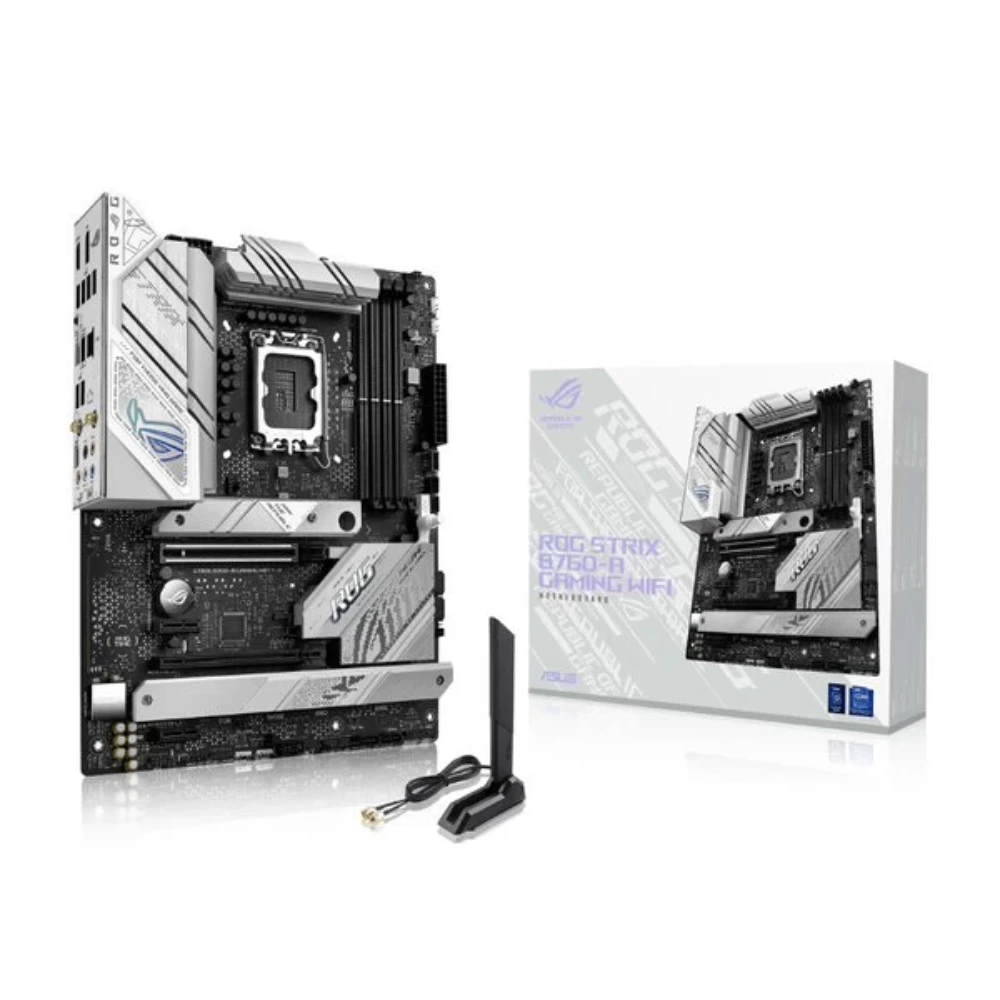

- ASUS ROG Strix B760-A Gaming Wifi DDR5 Intel Motherboard
Description
Features of ASUS ROG Strix B760-A Gaming Wifi DDR5
The ROG Strix ASUS B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2×2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.

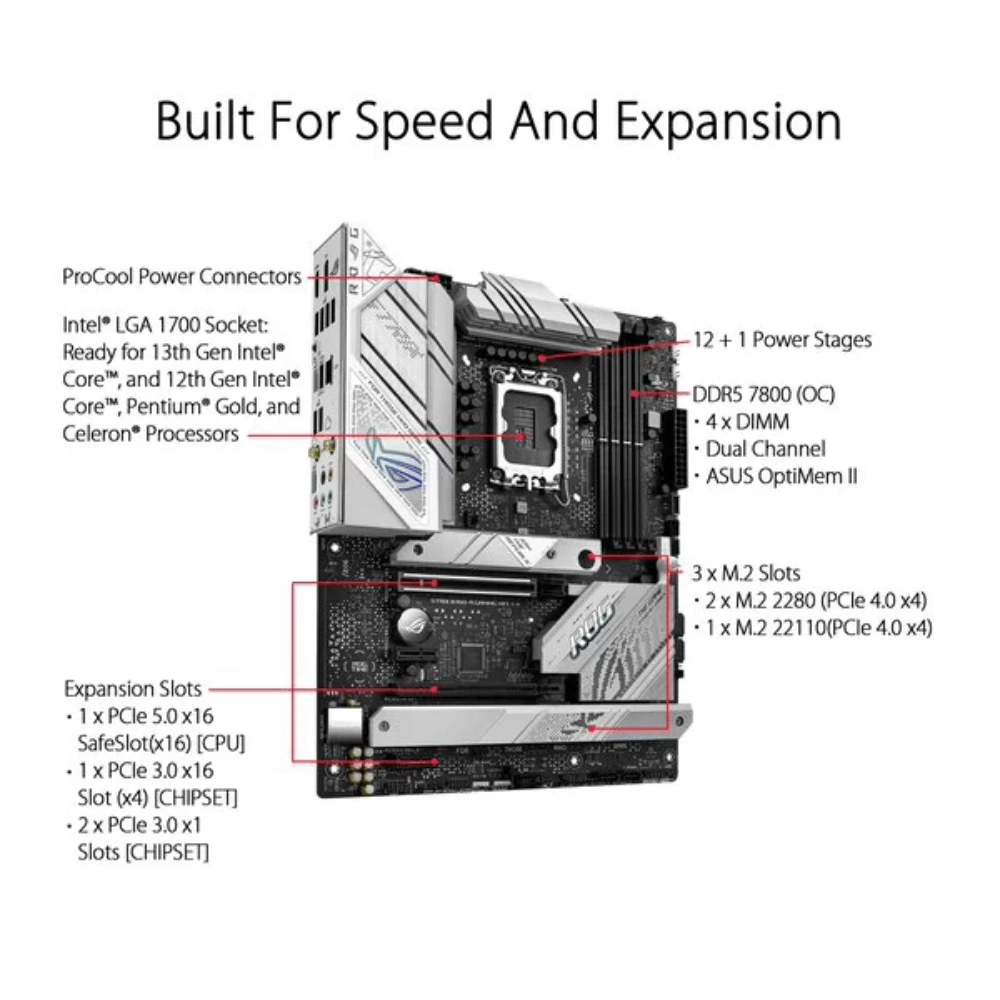

- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
- Robust Power Solution: 12 + 1 power stages, ProCool power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors

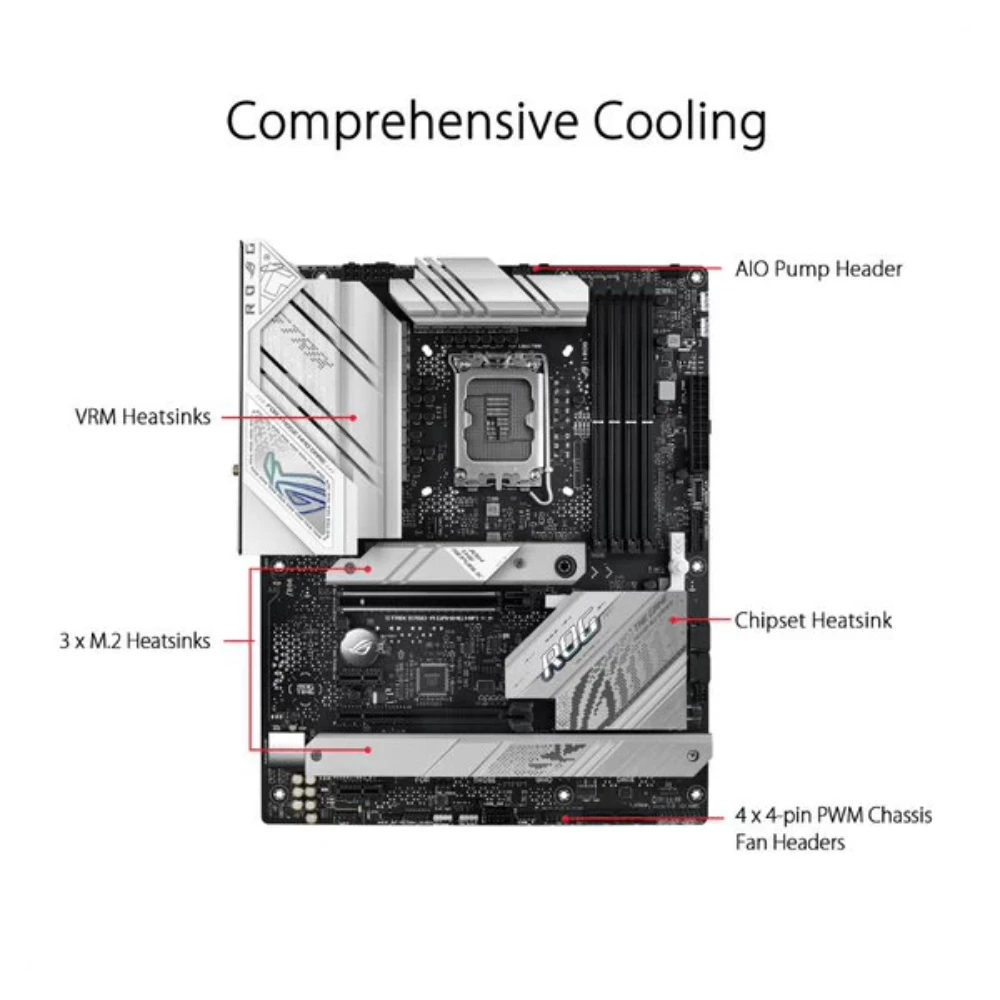

- Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads keep the solution cool during heavy workloads
- Ample M.2 Support: Three PCIe 4.0 M.2 slots with heatsinks maintain optimal temperatures for maximum data transfer speed
- Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard
- Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port, eight additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4
- Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation simplifies setup and improves performance
- DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™ button, and Q-LED
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
- Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
POWER ARCHITECTURE
12 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
UNDENIABLY ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
Specifications of ASUS ROG Strix B760-A Gaming Wifi DDR5
| CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
| Memory |
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics |
1 x DisplayPort 1 x HDMITM port |
| Expansion Slots |
Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet |
1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3 |
| USB |
Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports |

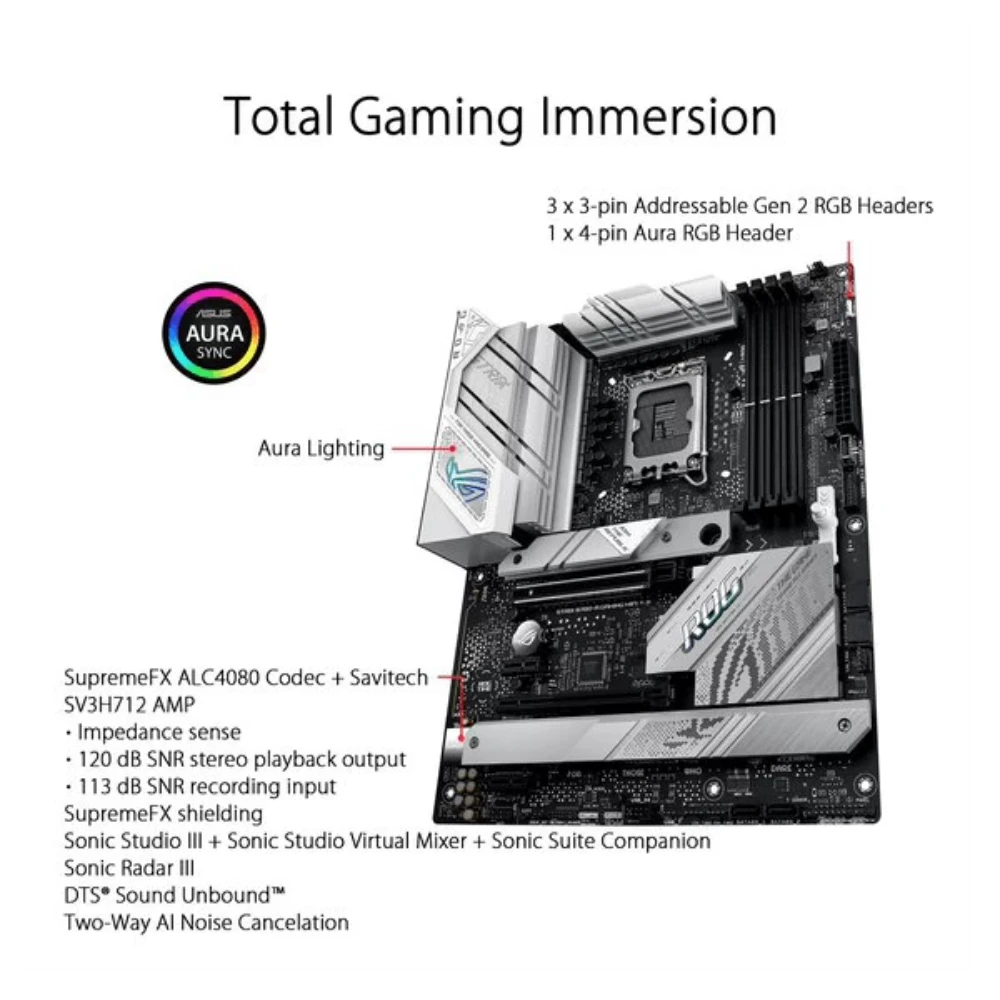

| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Dedicated audio PCB layers - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |

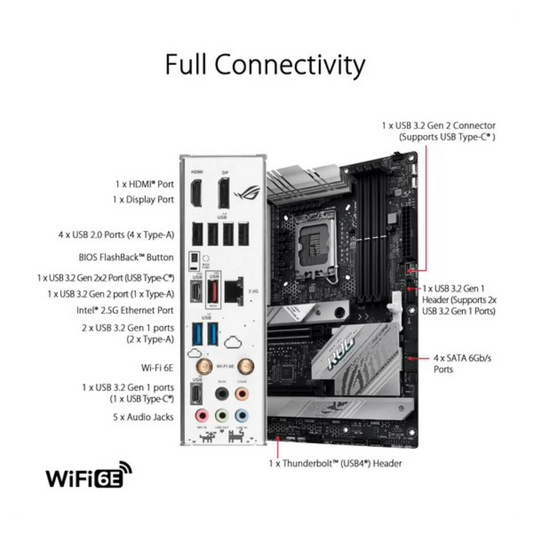

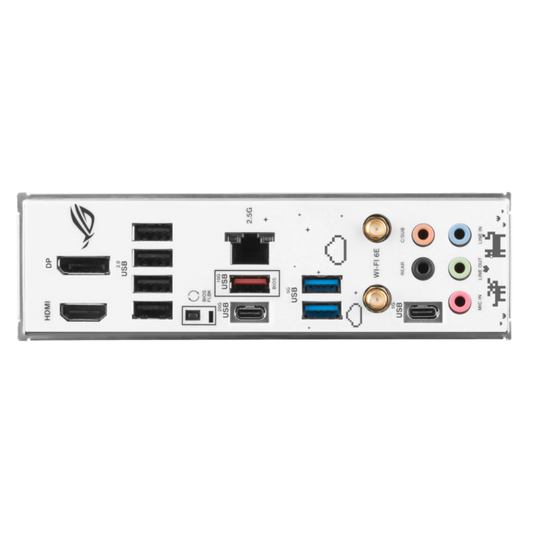

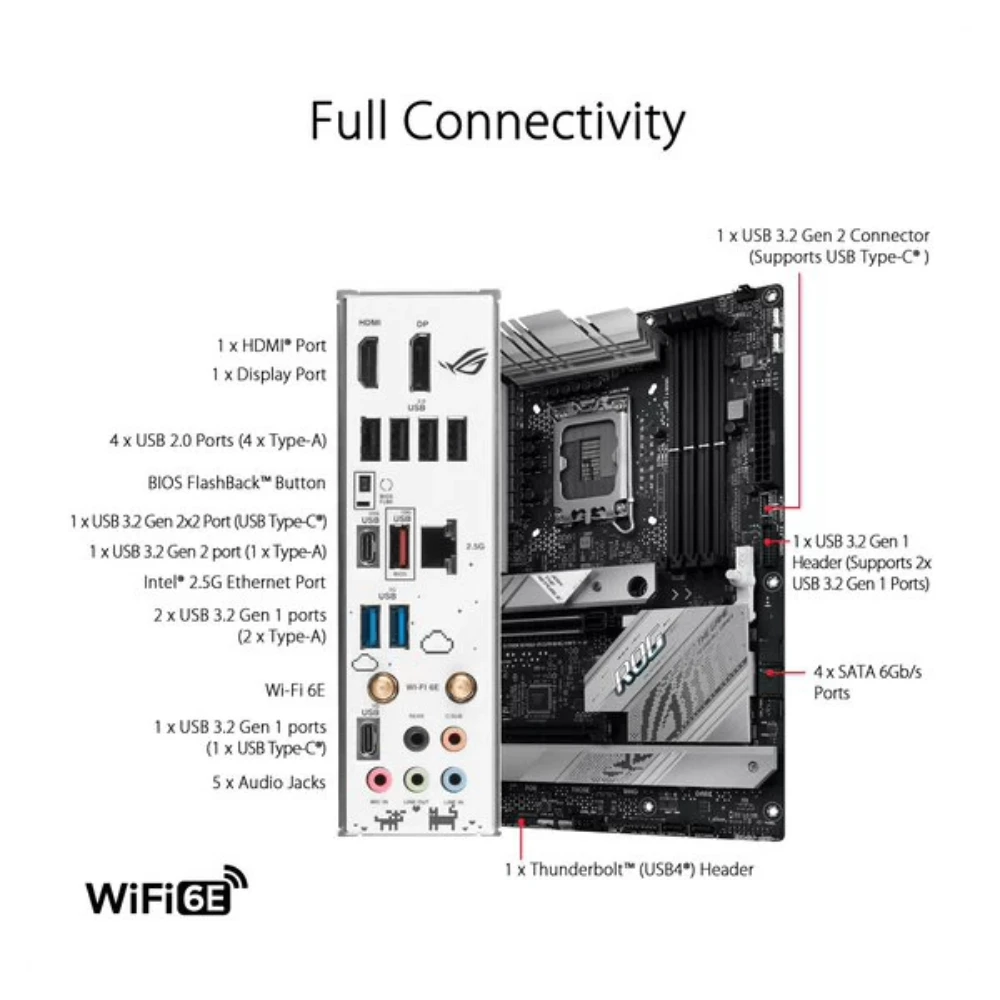

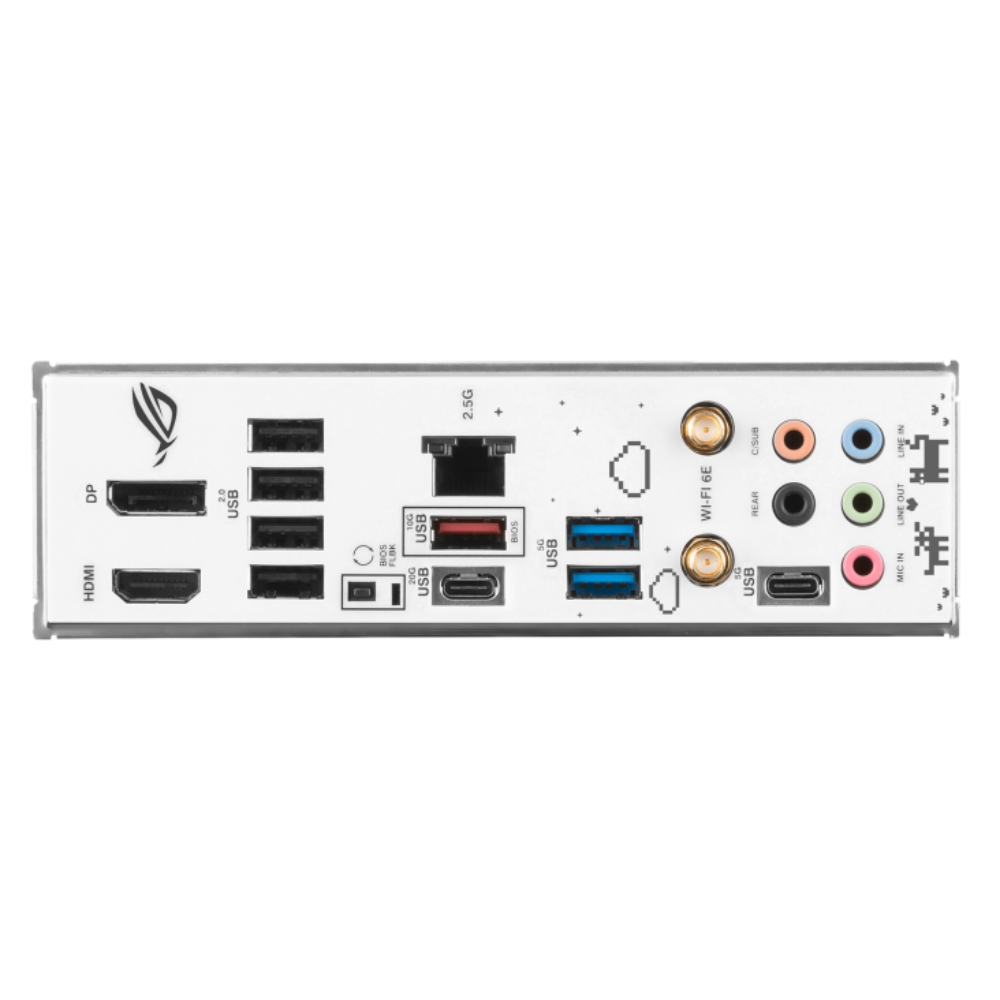

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
| Special Features |
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features |
ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation - Performance and Power Saving Utility AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Adobe Creative Cloud (Free Trial) Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |

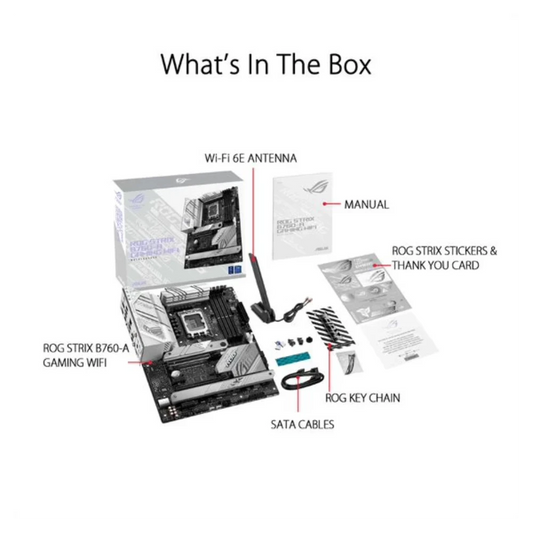

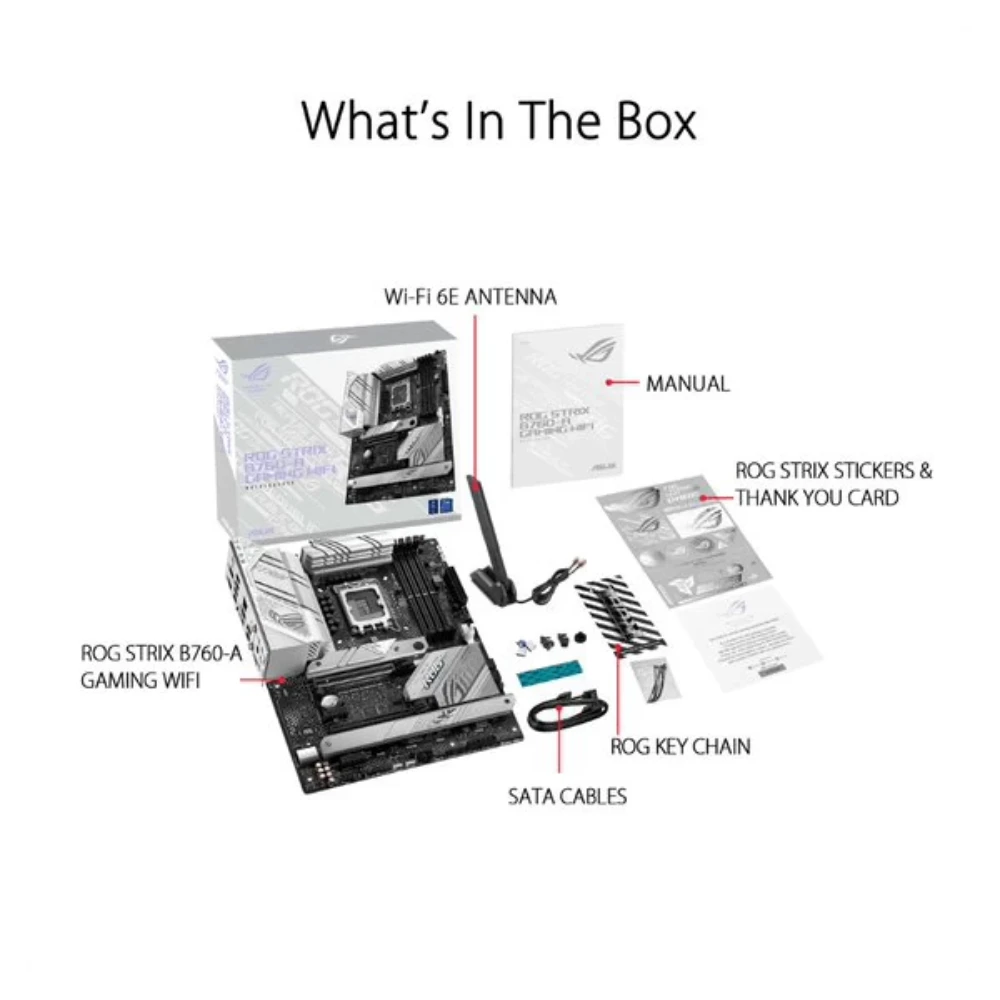

| Accessories |
Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x M.2 Rubber Packages Documentation 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
