Description
Features of ASROCK Radeon RX 7900 XTX Taichi White OC 24GB AMD Graphic Card
Experience unprecedented performance, visuals, and efficiency at 4K and beyond with ASROCK Radeon RX 7900 XTX Taichi White OC 24GB AMD Graphics Card, the world’s first gaming GPUs powered by AMD RDNA™ 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies.1,2 To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.
Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
Taichi 3X Cooling System
Crafted for the best balance between the thermal efficiency and silence by all the details improved.
Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Memory Heatpipe
Designed to enhance and balance the temperature and heat dissipation for the video memory.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
ED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Reinforced Metal Frame
Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.
Dual BIOS
Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.
*Please make sure the system is powered off when you switch between P(Performance) BIOS and Q(Quiet) BIOS.
22 Power Phase Design
More Power Phase Equipped to Deliver More Sufficient Power.
Featuring 22 power phases with sturdy components to raise maximum current to GPU and memory to offer enhanced performance.
Clock: GPU / Memory
- Boost Clock: Up to 2680 MHz / 20 Gbps
- Game Clock: 2510 MHz / 20 Gbps
Key Specifications
- AMD Radeon RX 7900 XTX GPU
- 24GB GDDR6 on 384-Bit Memory Bus
- 96 AMD RDNA 3 Compute Units (With Rt+Ai Accelerators)
- 96MB AMD Infinity Cache Technology
- PCI Express 4.0 Support
- 3 x 8-pin Power Connectors

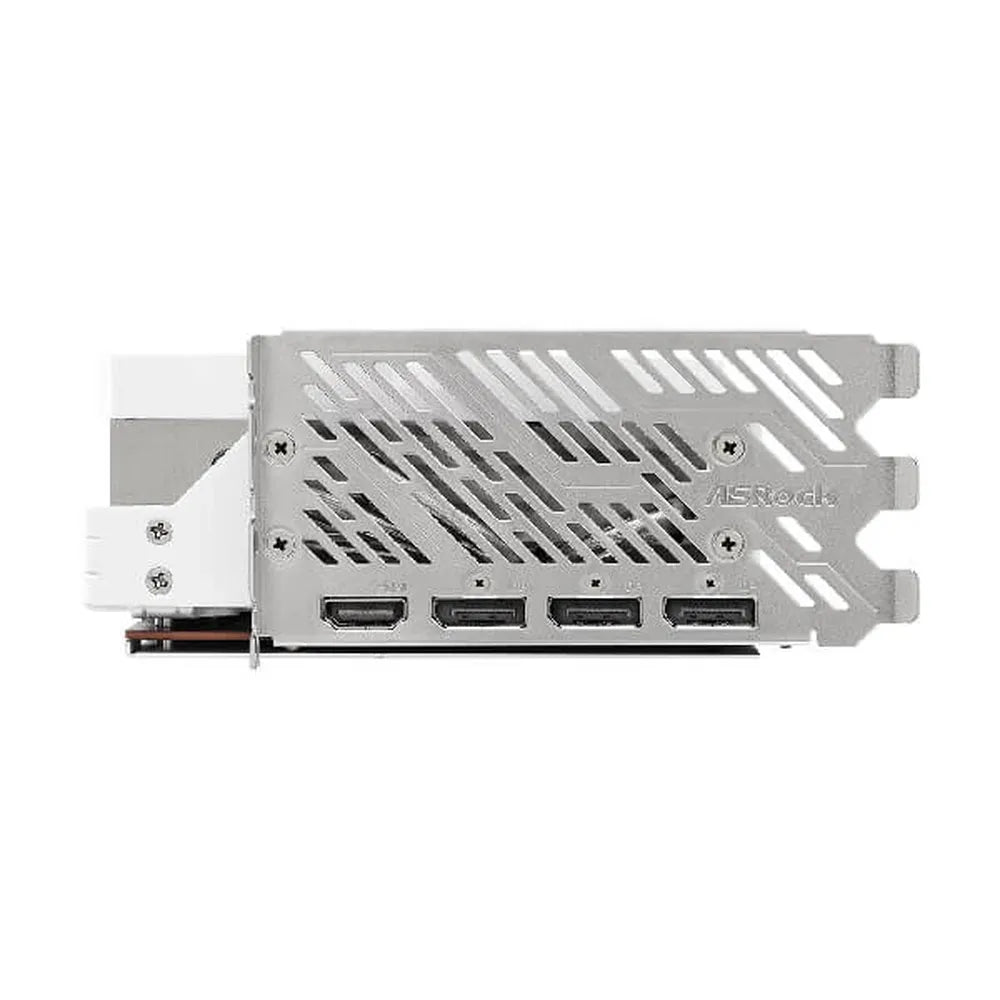

- 3 x DisplayPort 2.1 / 1 x HDMI 2.1
Key Features
- Polychrome SYNC
- Taichi 3X Cooling System
- ARGB Backplate
- Reinforced Metal Frame
- Dual BIOS
- 22 Power Phase Design
- 110/100/110mm Striped Ring Fans
Specifications of ASROCK RX 7900 XTX Taichi White OC 24GB
| Graphics Engine | AMD Radeon™ RX 7900 XTX |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 24GB GDDR6 |
| Engine Clock | Boost Clock*: Up to 2680 MHz Game Clock**: 2510 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 6144 |
| Compute Units | 96 |
| Memory Clock | 20 Gbps |
| Memory Interface | 384-bit |
| Resolution | Digital Max Resolution: 7680x4320 |
| Interface | 3 x DisplayPort™ 2.1* 1 x HDMI™ 2.1 *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously. |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 1000W |
| Power Connector | 3 x 8-pin |
| Accessories | 1 x Quick Installation Guide 1 x Taichi White Post Card 1 x Graphics Card Stand |
| Dimensions | 345 x 140 x 61 mm, 3-slot |
| Net Weight | 1900 g |
