- ASROCK Radeon RX 6900 XT Phantom Gaming D OC 16GB AMD Graphic Card
Description
Features Of ASRock RX 6900 XT Phantom Gaming D OC 16GB
- 7nm AMD Radeon™ RX 6900 XT Graphics
- 16GB 256-bit GDDR6
- AMD RDNA™ 2 Architecture
- Hardware Raytracing
- PCI® Express 4.0 Support
- 3 x 8-pin Power Connectors

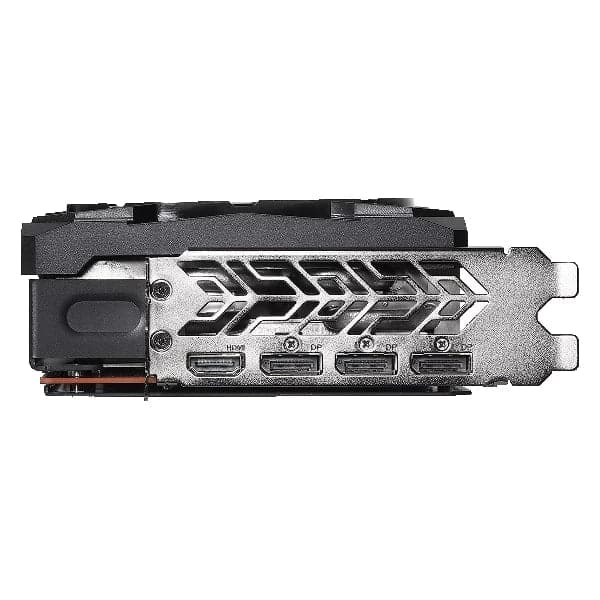

- 3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
- Boost Clock: Up to 2340 MHz / 16 Gbps
- Game Clock: Up to 2105 MHz / 16 Gbps
- Base Clock: 1925 MHz / 16 Gbps
Phantom Gaming 3X Cooling System - For Cool and Silent.
The ASROCK Radeon RX 6900 XT Phantom Gaming D OC is Crafted for the best balance between the thermal efficiency and silence by all the details.
Striped Axial Fan - Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Air Deflecting Fin - Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base - Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste - Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad - Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics card to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Polychrome SYNC - Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch - On or Off? Switch as You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-header - More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Reinforced Metal Frame - Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.

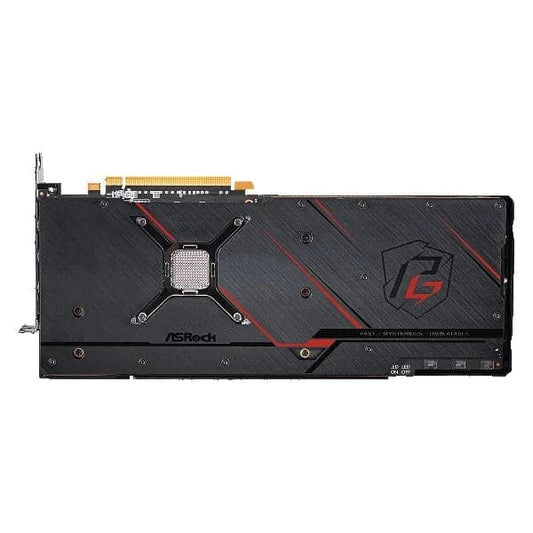

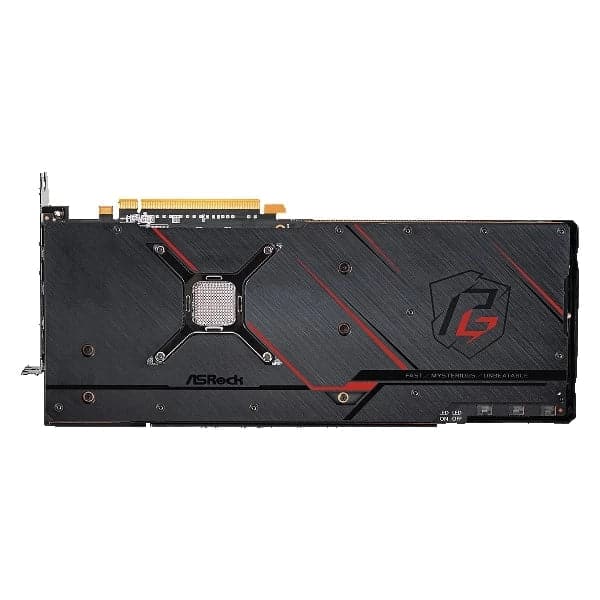

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 70A continuous current for each phase, thus providing improved thermal result and superior performance.Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.ASRock Tweak 2.0 - Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Powerhouse Performance
AMD Radeon™ RX 6000 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.
Elevated Experiences
Ultimate responsiveness and smooth gaming are up-leveled with low-latency gaming technology from AMD Radeon Anti-Lag and AMD Radeon Boost.1, 2 Propel your gaming experience with the latest HDMI™ 2.1 VRR technology, USB-C™ enabled VR headsets, or over 1250 AMD FreeSync™ technology-enabled gaming displays.3
Vivid Visuals
AMD Radeon™ RX 6000 Series graphics cards pull you into the action with immersive gaming technologies and support for DirectX® 12 Ultimate. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.
One Gaming DNA for PCs and Consoles
AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.
FidelityFX Contrast Adaptive Sharpening - Brings out the Details.
Contrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied.
For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
FidelityFX Ambient Occlusion - More Realistic Geometry Shading.
AMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
FidelityFX Variable Shading - Get Performance with Quality.
Uses AMD RDNA™ 2 architecture support for variable rate shading (VRS) to analyze luminance and motion of frames to help optimize rendering for optimal performance without lowering the image quality.
DirectX® Raytracing - Experience Photorealistic Games.
DirectX Raytracing (DXR) adds a new level of graphics realism to games through effects like reflections, shadows, and global illumination at real-time frame rates on AMD Radeon™ RX 6000 series graphics, thanks to AMD RDNA™ 2 architecture support for hardware-accelerated raytracing.
Specifications Of ASRock RX 6900 XT Phantom Gaming D OC 16GB
| Graphics Engine | AMD Radeon™ RX 6900 XT Graphics |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 16GB |
| Engine Clock | Boost Clock: Up to 2340 MHz |
| Game Clock: Up to 2105 MHz | |
| Base Clock: 1925 MHz | |
| Stream Processors | 5120 |
| Compute Units | 80 |
| Memory Clock | 16 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| Interface | 1 x HDMI™ 2.1 VRR |
| 3 x DisplayPort™ 1.4 with DSC | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 900W |
| Power Connector | 3 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 330 x 140 x 56 mm, 2.8-slot |
| Net Weight | 1784 g |
| Note | **Features, Price and Specifications are subject to change without notice to customer. |
