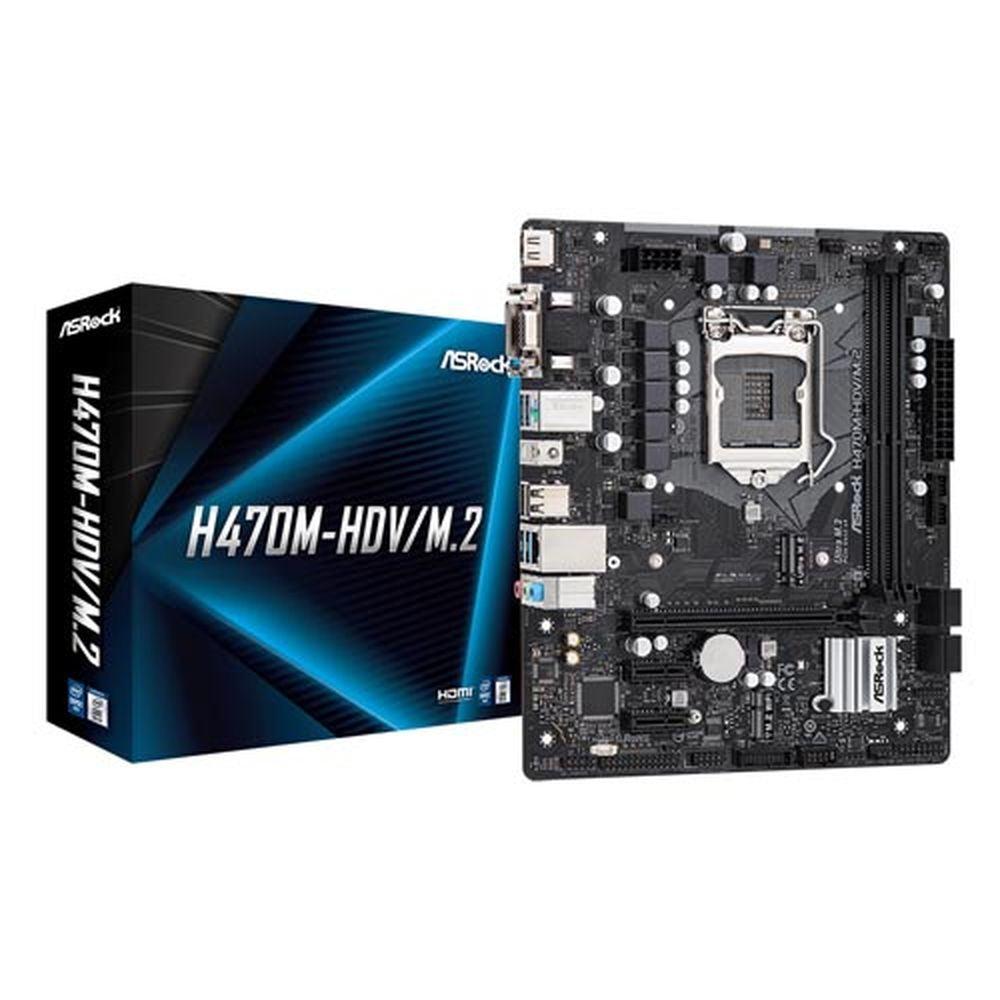

Asrock H470M-HDV/M.2 Intel H470 Micro ATX Motherboard
Features
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- 7 Power Phase Design
- Supports DDR4 2933 MHz
- 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Intel® Gigabit LAN
Specifications
| Unique Feature |
ASRock Super Alloy
|
|
Premium 50A Power Choke
|
|
|
Sapphire Black PCB
|
|
|
High Density Glass Fabric PCB
|
|
|
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
|
|
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
|
|
|
ASRock Live Update & APP Shop
|
|
| CPU |
Supports 10th Gen Intel® Core™ Processors (Socket 1200)
|
|
Digi Power design
|
|
|
7 Power Phase design
|
|
|
Supports Intel® Turbo Boost Max 3.0 Technology
|
|
| Chipset |
Intel® H470
|
| Memory |
Dual Channel DDR4 Memory Technology
|
|
2 x DDR4 DIMM Slots
|
|
|
Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
|
|
|
Supports ECC UDIMM memory modules (operate in non-ECC mode)
|
|
|
Max. capacity of system memory: 64GB**
|
|
|
Supports Intel® Extreme Memory Profile (XMP) 2.0
|
|
|
15μ Gold Contact in DIMM Slots
|
|
|
*Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
|
|
|
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
|
| BIOS |
128Mb AMI UEFI Legal BIOS with multilingual GUI support
|
|
ACPI 6.0 Compliant wake up events
|
|
|
SMBIOS 2.7 Support
|
|
|
CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
|
|
| Graphics |
Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
|
|
Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
|
|
|
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc
|
|
|
Three graphics output options: D-Sub, DVI-D and HDMI
|
|
|
Supports Triple Monitor
|
|
|
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
|
|
|
Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
|
|
|
Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
|
|
|
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
|
|
|
Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
|
|
|
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
|
|
|
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
|
|
**VP9 10bit and VC-1 are for decode only.
|
|
|
VP8 and VP9 encode are not supported by Windows® OS.
|
|
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
Supports Surge Protection
|
|
| LAN |
Gigabit LAN 10/100/1000 Mb/s
|
|
Giga PHY Intel® I219V
|
|
|
Supports Wake-On-LAN
|
|
|
Supports Lightning/ESD Protection
|
|
|
Supports Energy Efficient Ethernet 802.3az
|
|
|
Supports PXE
|
|
| Slots |
1 x PCI Express 3.0 x16 Slot*
|
|
2 x PCI Express 3.0 x1 Slots
|
|
|
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
|
*Supports NVMe SSD as boot disks
|
|
| Storage |
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
|
|
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
|
|
|
*Supports Intel® Optane™ Technology
|
|
|
Supports NVMe SSD as boot disks
|
|
|
Supports ASRock U.2 Kit
|
|
| Connector |
1 x Print Port Header
|
|
1 x COM Port Header
|
|
|
1 x SPI TPM Header
|
|
|
1 x Chassis Intrusion and Speaker Header
|
|
|
1 x CPU Fan Connector (4-pin)*
|
|
|
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
|
|
|
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
|
|
|
1 x 24 pin ATX Power Connector
|
|
|
1 x 8 pin 12V Power Connector
|
|
|
1 x Front Panel Audio Connector
|
|
|
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
|
|
|
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
|
|
|
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
|
|
|
**The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
|
|
|
***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
|
|
|
CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
| Rear Panel I/O |
1 x Antenna Bracket
|
|
1 x PS/2 Mouse/Keyboard Port
|
|
|
1 x D-Sub Port
|
|
|
1 x DVI-D Port
|
|
|
1 x HDMI Port
|
|
|
2 x USB 2.0 Ports (Supports ESD Protection)
|
|
|
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
|
|
|
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
|
|
|
HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
| Software and UEFI | Software |
|
ASRock Motherboard Utility (A-Tuning)
|
|
|
ASRock XFast LAN
|
|
| UEFI | |
|
ASRock EZ Mode
|
|
|
ASRock Full HD UEFI
|
|
|
ASRock My Favorites in UEFI
|
|
|
ASRock Instant Flash
|
|
|
ASRock Internet Flash
|
|
|
ASRock Easy RAID Installer
|
|
|
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
| Support CD |
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
|
| Accessories |
Quick Installation Guide, Support CD, I/O Shield
|
|
2 x SATA Data Cables
|
|
|
2 x Screws for M.2 Sockets
|
|
| Hardware Monitor |
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
|
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
|
CASE OPEN detection
|
|
|
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST
|
|
| Form Factor |
Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
|
|
Solid Capacitor design
|
|
| OS |
Microsoft® Windows® 10 64-bit / 11 64-bit
|
| Certifications | FCC, CE |
|
ErP/EuP ready (ErP/EuP ready power supply is required)
|
|
| **Features, Price and Specifications are subject to change without notice to customer. |
