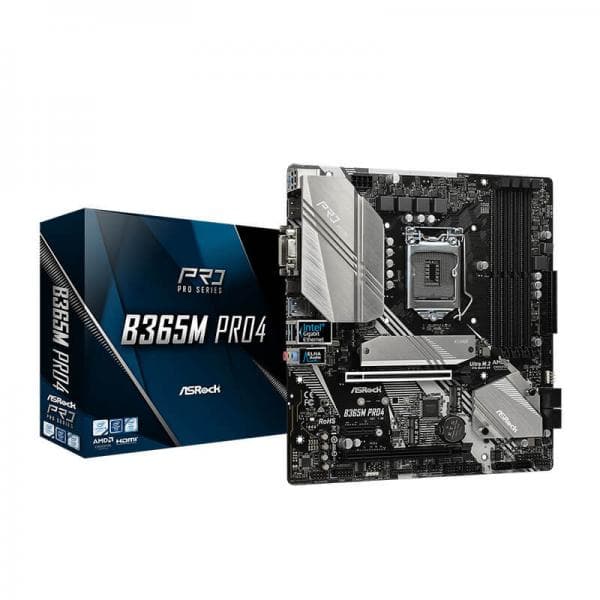

ASROCK B365M Pro4 DDR4 Intel Motherboard

Features of ASROCK B365M Pro4 DDR4 Intel Motherboard

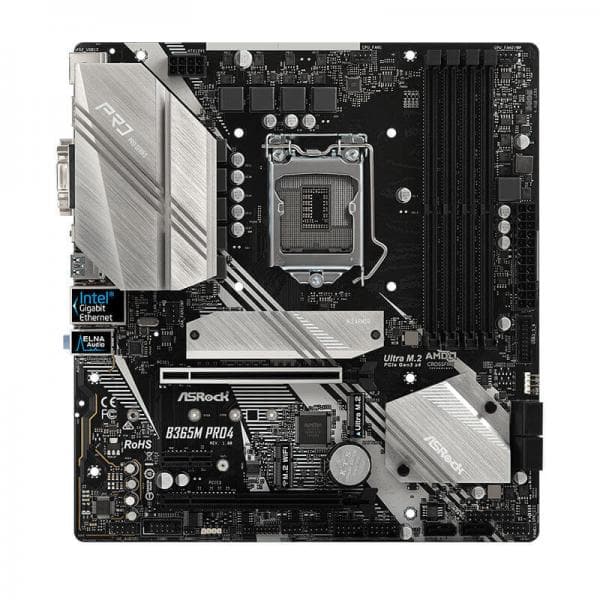

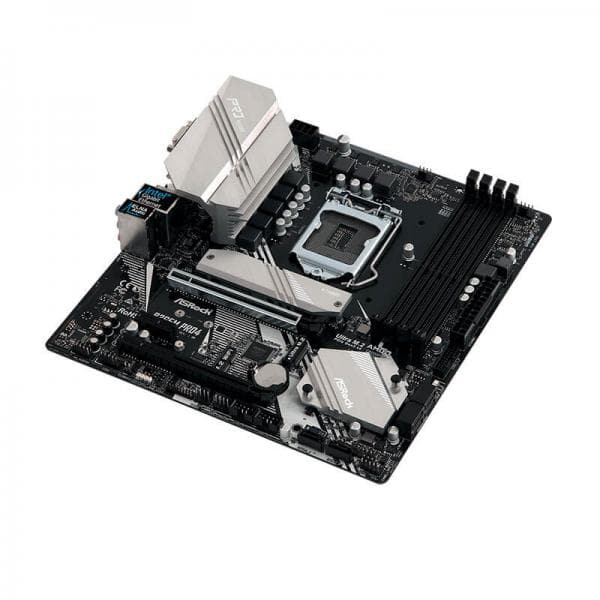

The Asrock B365M Pro4 motherboard is an Intel based motherboard. The Asrock B365 Pro4 is a Micro ATX motherboard with the dimensions of 9.6-in x 9.0-in and has solid capacitor design. The B365 Pro4 supports the latest Intel 8th gen and 9th gen processors and has the LGA 1151 socket and supports Intel Core Processors line up. This motherboard also supports Intel Turbo Boost 2.0 Technology. The Asrock B365M Pro4 supports DDR4 RAM upto 64GB with 2666 MHZ non-ECC, unbuffered memory and supports ECC UDIMM memory modules. The motherboard supports Intel Extreme Memory Profile(XMP) 2.0 The motherboard has 2 PCIe 3.0x16 slots, 1 PCIe x1 slot, 1 M.2 socket(Key E) and supports type 2230 WiFi/BT module. The B365 motherboard AMD Quad crossfireX. It has 6 SATA 3 ports, 2 ultra M.2 ports and 7 USB 3.1 Gen1 ports.

The Asrock B365M Pro4 has the Intel Gigabit LAN which supports speed upto 1000 Mb/s. The B365M Pro4 has the 7.1 CH HD Audio(Realtek ALC892 Audio codec) and ELNA Audio caps. The BIOS has a 128mb AMI UEFI Legal BIOS with multilingual GUI support. This motherboard has all the necessary connectors along with a couple of RGB headers. It comes with all the necessary certifications like FCC, CE, ErP/EuP.The motherboard comes with the following accessories: quick installation guide, support CD, I/O Shield, 2 SATA 3 cables, 3 screws for M.2 sockets and 1 standoff for M.2 socket. The B365M Pro4 also comes with 3-years warranty and reliable tech support.

REVOLUTIONARY B365 MOTHERBOARDS

Your PC Transformed Style, More reliable Design that delivers.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

*Please refer to the product specifications for more detail.

Full Coverage M.2 Heatsink

A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

PCI-E STEEL SLOT

The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Intel® LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Intel® Optane™ Memory Ready

Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

ASRock Intel® 4-Layer Memory POOL Technology

POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

Digi Power

This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.*Wi-Fi module is not included.

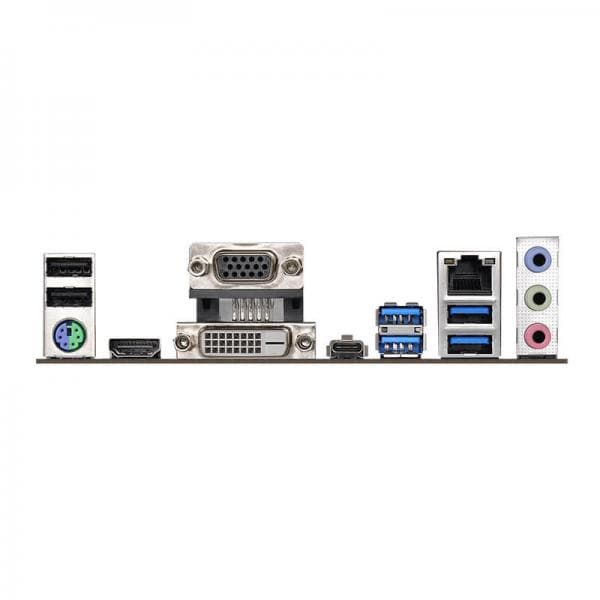

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub DVI-D HDMI combo.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
