Description
Features of ASUS Prime H610M-CS DDR4 Intel Motherboard
- Intel® LGA 1700 socket:Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Luminous anti-moisture coating: Keep key components from moisture and corrosion
PRIME
ASUS Prime H610M-CS DDR4 series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Specifications of ASUS Prime H610M-CS DDR4 Intel Motherboard
Model | |
Brand | ASUS |
Model | H610M-CS |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | Intel 13th Gen Intel® Core™ Processors & 12th Gen |
Chipsets | |
Chipset | Intel H610 |
Memory | |
Number of Memory Slots | 2 x DDR4 |
Memory Standard | DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express x16 | 2 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slot |
Storage Devices | |
SATA 3Gb/s | 4 x SATA 6Gb/s ports |
Onboard Video | |
Onboard Video Chipset | N/A |
Onboard Audio | |
Audio Channels | Audio Shielding |
Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Onboard LAN | |
LAN Chipset | LANGuard |
Rear Panel Ports | |

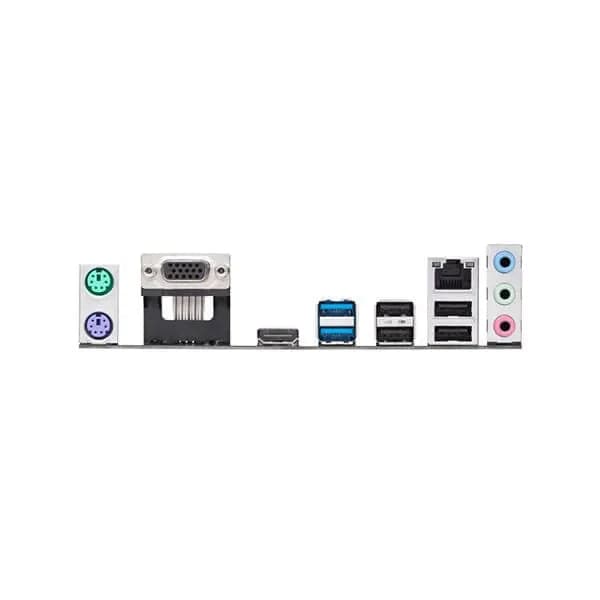

USB | 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A) |
Audio Ports | 3 x audio jacks |
Video Ports | 1 x D-Sub port 1 x HDMI port 1 x DisplayPort |
HDMI | 1 x HDMI |
Onboard USB | |
Onboard USB | N/A |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | Micro ATX Form Factor |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
Dimensions | 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
