Description

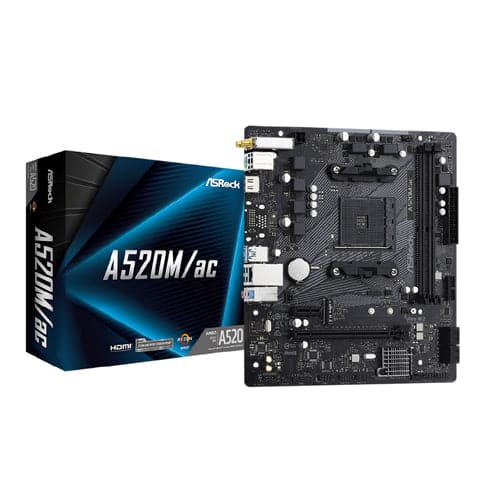

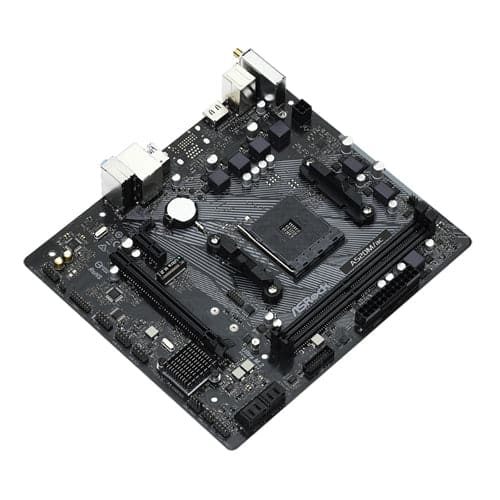

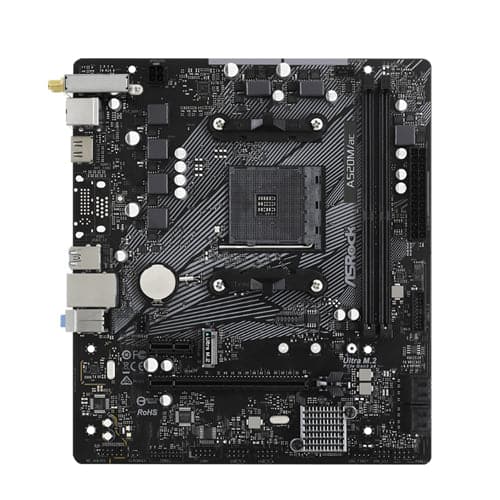

ASRock A520M/AC Motherboard
The beast of all ASRock A520M/AC Motherboard has a CPU of 6 power phase design. ASRock A520M/AC Motherboard also has a Dual Channel DDR4 Memory Technology with 2 x DDR4 DIMM Slots. The ASRock A520M/AC Motherboard has 128Mb AMI UEFI Legal BIOS with GUI support. Not only visual satisfaction is necessary but also audio! Get the best hypnotic sounds with 7.1 CH HD Audio to feel like a pro! The hardware monitors the temperature, Fan Tachometer, quiet fan control, voltage. Installation is super easy as the package includes a quick installation guide for user’s ease and 2 x SATA Data Cables along with 1 x Screw for M.2 Socket. Along with all this the amusing ASRock A520M/AC Motherboard also comes with a complete warranty of three whole years!
Features:
- Dual Band 802.11ac WiFi
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
- HDMI 4k @60Hz
- Premium 50A Power Choke
- High Density Glass Fabric PCB
- Sapphire Black PCB
- Full Spike Protection
- Live Update & APP Shop
Specifications:
| Brand | ASRock |
| Model | A520M-AC |
| CPU Socket Type | AM4 |
| CPU Type | 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors |
| North Bridge | AMD A520 |
| Number of Memory Slots | 2 x DDR4 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode),1 x PCI Express 3.0 x1 Slot,1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) |
| SATA 3Gb/s | 4 x SATA3 6.0 Gb/s Connectors |
| SATA RAID | 0,1,10 |
| Onboard Video Chipset | N/A |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 |
| Max LAN Speed | 10/100/1000Mbps |
| LAN Chipset | Realtek RTL8111H |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| HDMI | 1 x HDMI |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | Available |
| Onboard 1394 | N/A |
| Form Factor | Micro ATX |
| Dimensions | 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
| Power Pin | 24 Pin |
