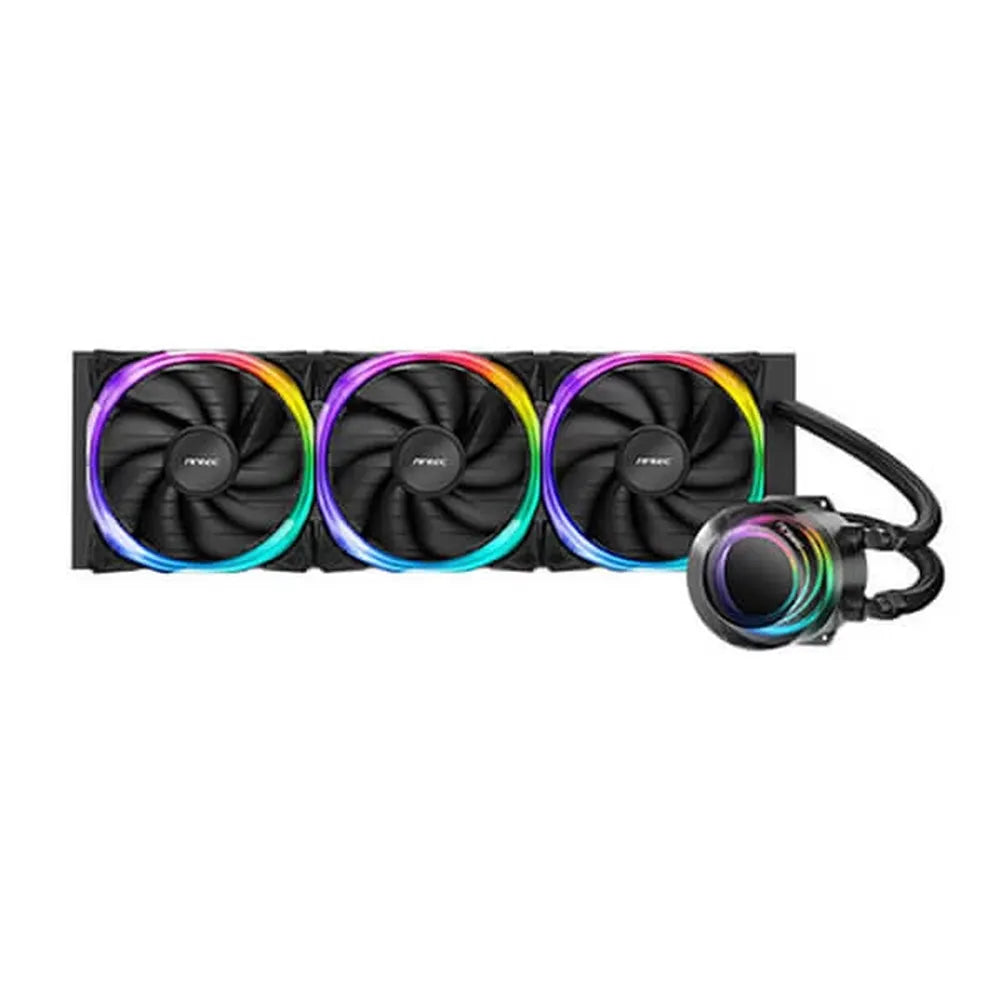

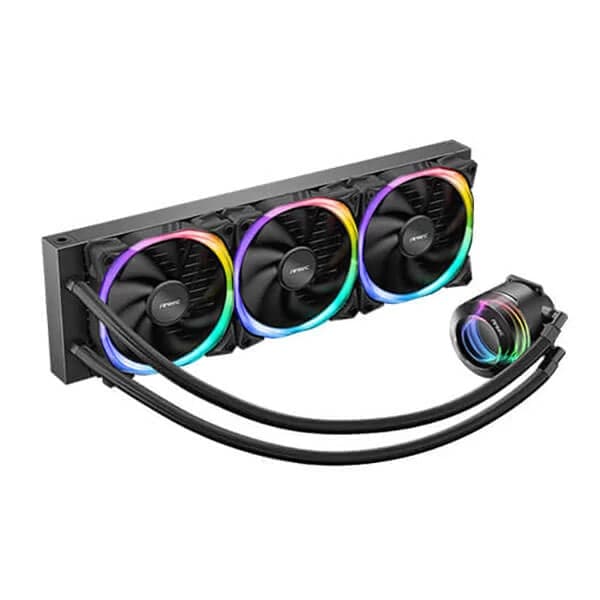

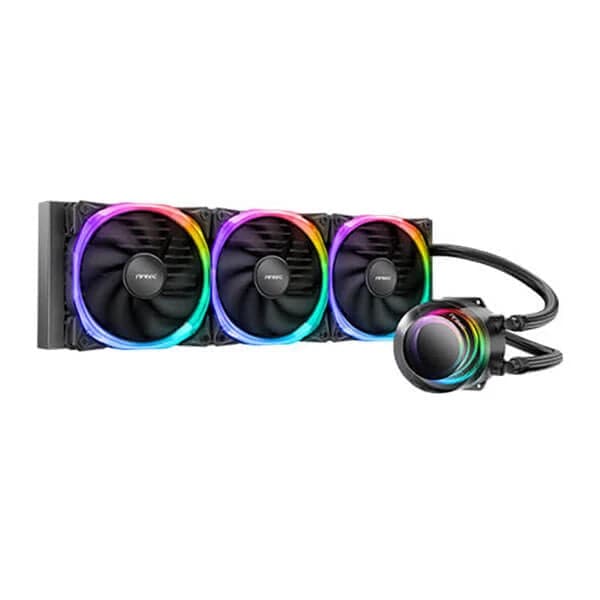

- ANTEC Vortex 360 ARGB 360mm CPU Liquid Cooler (Black)
Description
Features of ANTEC Vortex 360 ARGB 360mm CPU Liquid Cooler (Black)

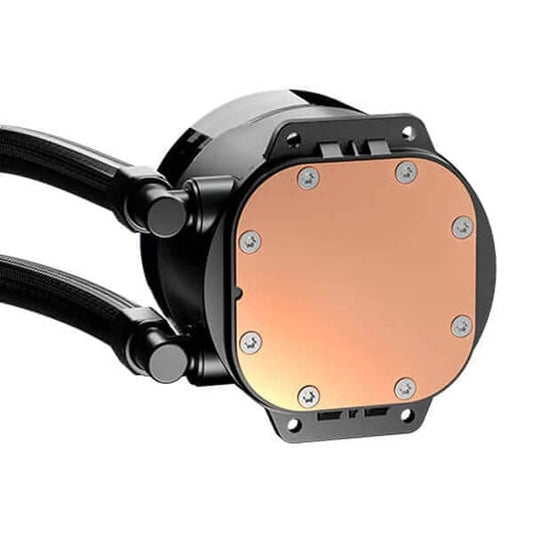

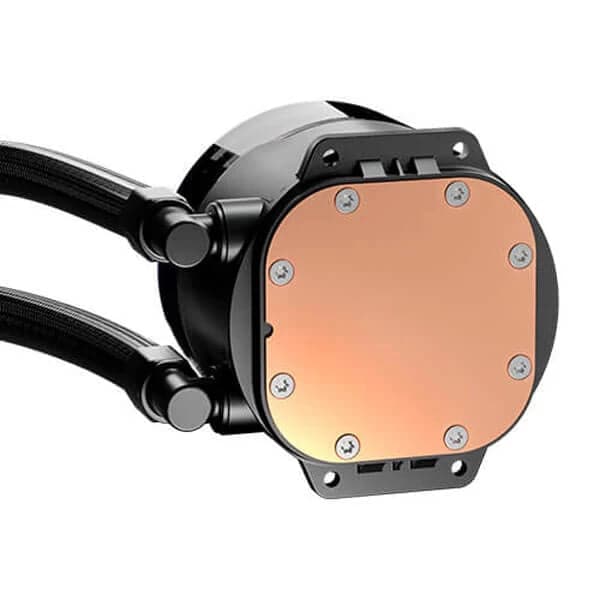

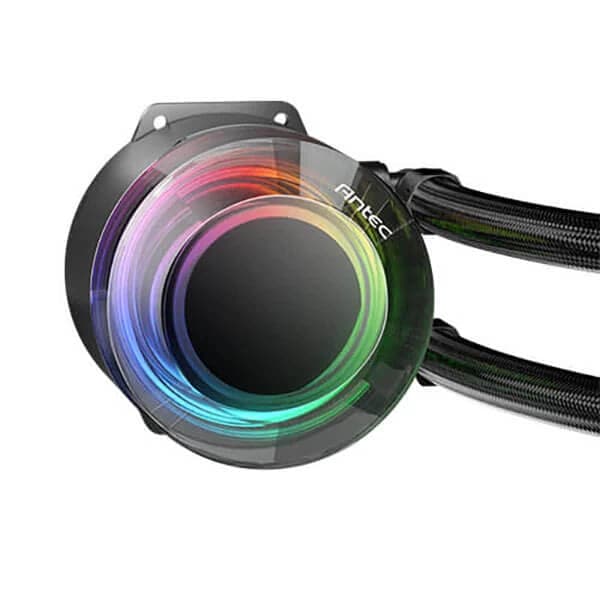

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.

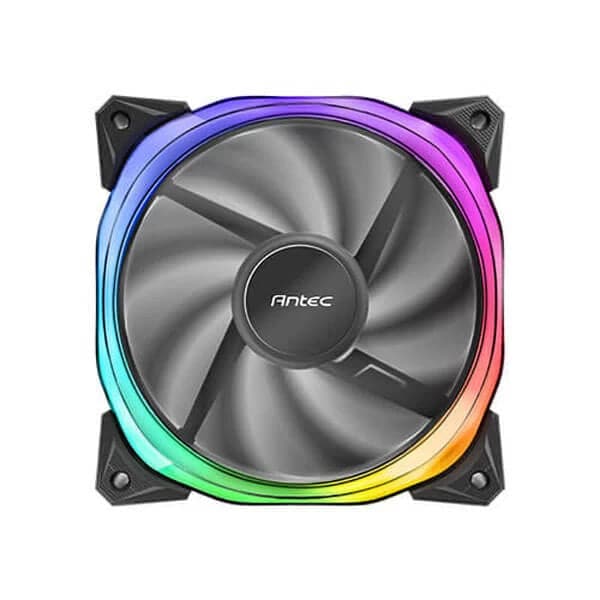

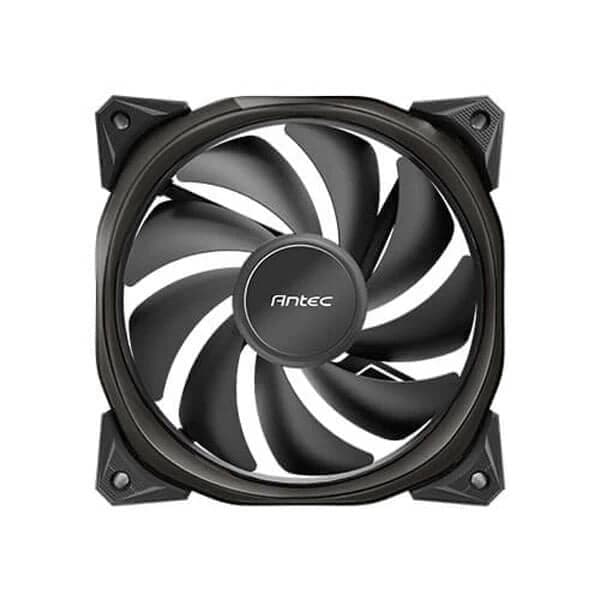

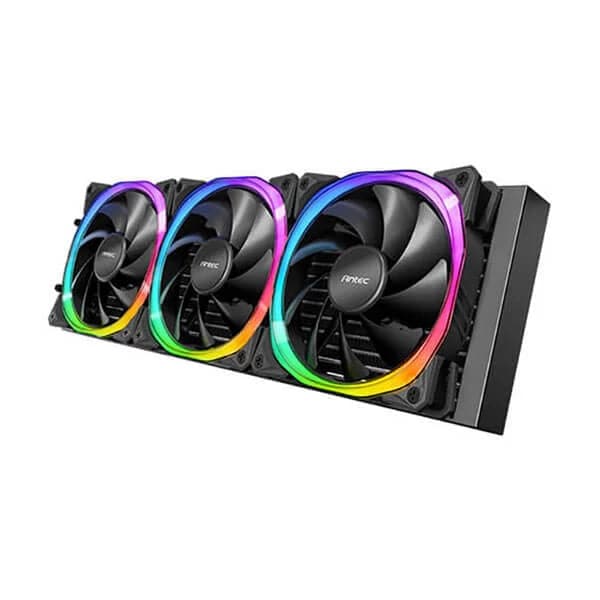

Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
Specifications of ANTEC Vortex 360 ARGB 360mm CPU Liquid Cooler (Black)
Model | VORTEX-360-ARGB |
Color | Black |
Radiator | |
Radiator Dimensions | 397 x 120 x 27 mm |
Radiator Material | Aluminum |
Tdp Number | Vortex360 280W |
Pump | |
Dimensions | ¢67 x 48.5 mm |
Rating Voltage | DC 12 V |
Minimum Startup Voltage | ≥ 5.0 V |
Fan Speed | 2800±10% RPM |
Rated Current | 0.25±20% A |
Consumed Power | 3.0 W |
Flow rate | ≥ 1300 mL / min |
Water Pressure | 1.4M |
Operation Temperature | -10°C ~ +60°C |
Noise Level | ≤ 28 dB(A) |
Lifespan | 40,000 hours |
Connector | PUMP: 3-pin | LED: 3-pin |
Fan | |
Model Name | Fusion 120 ARGB fan (AH12012FM1) |
Fan Type | PWM Fan |
Dimensions | 120 x 120 x 25 mm |
Bearing Type | Hydraulic Bearing |
LED Type | Addressable RGB |
Fan Speed | 600±200 ~ 2000±10% RPM |
Airflow | 57.93 CFM (max.) |
Air Pressure | 2.11 mmH₂O (max.) |
Fan Noise Level | 31.24 dB(A) |
Lifespan | 40,000 hours |
Connector | FAN: 4-pin PWM | LED: 3-pinRated Voltage |
Rated Voltage | FAN: DC 12 V | LED: DC 5 V |
Operation Voltage | FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V |
Rated Current | FAN : ≤ 0.21 A | LED : ≤ 0.58 A |
Socket Compatibility CPU |
Intel : LGA 115X / 1200 / 1700 / 20XX AMD : AM3/AM4/AM5 |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
