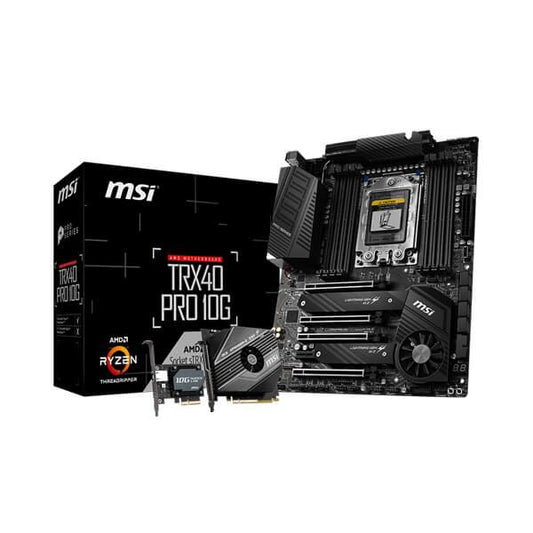

MSI TRX40 PRO 10G Motherboard
Msi TRX40 Pro 10G provides full support to 3rd Gen AMD® Ryzen Threadripper Desktop Processors. Also supports up to 4666(OC) MHz with quad-channel max frequency and 8 DIMMs
- Comes with PCIe 4.0, AMD Turbo USB 3.2 GEN2, StoreMI, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr. All this helps to enjoy the games at lightning-fast speed.
- Worried about heating and frying up your components? Msi TRX40 Pro 10G gives the optimum performance and keeps the temperature low at the same time with the help of PWM and Enhanced circuit design. This helps to dash out non-stop work along with high performance.
- Now set core power free with DDR4 boost, 2×8 pin CPU power connector, stacked fin array, 12+3 digital power phases, extended heatsink design, and Core boost.
- Now increase your storage capacity at maximum speed with Msi TRX40 Pro 10G as it offers two extra M.2 slots.
Out of stock
MSI TRX40 PRO 10G Motherboard
Msi TRX40 Pro 10G is very reliable as it has gone through over 7000+ validation hours of industrial-level tests.No need to worry about lag anymore as the Msi TRX40 Pro 10G comes with an onboard 10G super LAN plus card which helps for smooth gaming and professional multimedia use.Comes with PCI-E Gen3 x4 which maximizes performance for NVMe based SSDs. This helps to enjoy the games at a lightning-fast speed.Msi TRX40 Pro 10G gives the most immersive audio experience as it comes with studio sound quality.Supports three-way SLI Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build.
- Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz
- Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
- Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12 3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.
- M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
- Dual LAN onboard: Premium network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- 10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency.
- Audio Boost 4: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire
|Processor||3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors|
|Chipset||AMD® TRX40 Chipset|
|Memory||8x DDR4 memory slots, support up to 256G
Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz1DPC 1R max speed 4666 MHz
1DPC 2R max speed 4000 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHzQuad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
|Slots||4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
1 x PCIe 3.0 x1 slot
|Multi-GPU||Supports 3-Way NVIDIA® SLI™ Technology
Supports 3-Way AMDA® CrossFire™ Technology
|Storage||8x SATA 6Gb/s ports
2x M.2 slot (M2_3, Key M)Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
2x M.2 slots (M2_1 & M2_2, Key M)M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
|RAID||Supports RAID 0, RAID 1 and RAID 10|
|USB||2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
|Audio||1x Realtek® ALC1220 Codec7.1-Channel High Definition Audio
1x Realtek® ALC4050H CodecSupports front & rear panel Mic-in
|LAN||2 x Intel® I211AT Gigabit LAN controller|
|Internal connectors||1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
8x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen2 Type-C port
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump Fan connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin 5050 RGB LED connector
2x 3-pin ARGB LED connectors
1x 3-pin CORSAIR LED connector
1x Slow mode booting jumper
1x Power button
1x Reset button

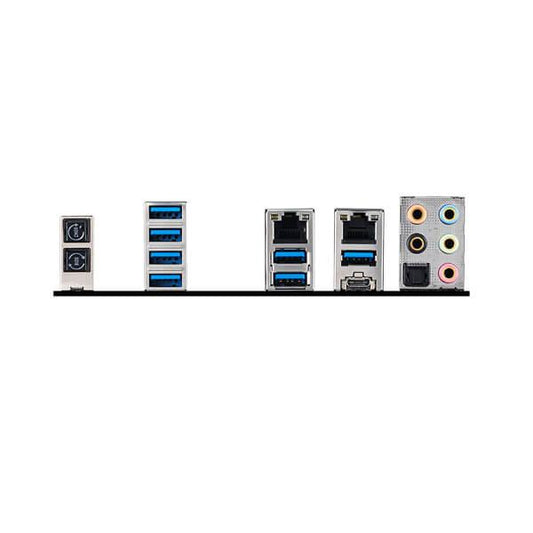

|Back panel ports||Clear CMOS Button
USB 3.2 Gen1 Type-A
Flash BIOS Button
USB 3.2 Gen2 Type-A
USB 3.2 Gen2x2 20G Type-C
Optical S/PDIF out
|Dimensions||12 in. x 9.6 in. (30.4 cm x 24.4 cm)
ATX Form Factor
|Operating System||Support for Windows® 10 64-bit|
|Mounting||9 mounting holes|
|Note||***Features, Price and Specifications are subject to change without notice.|
|Motherboard Form Factor|
