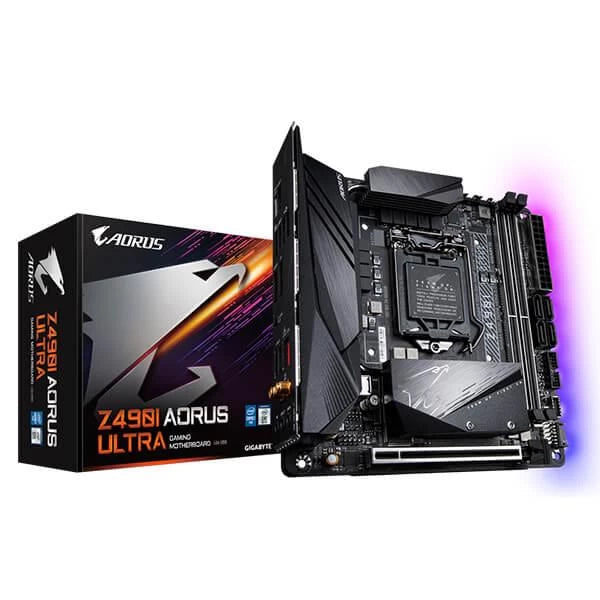

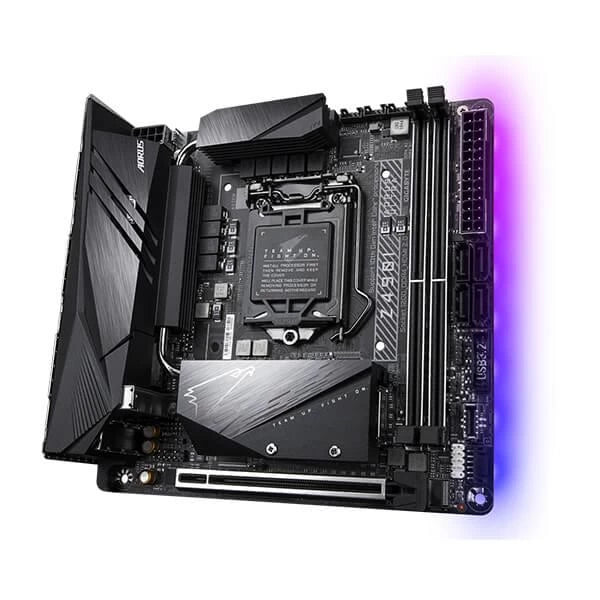

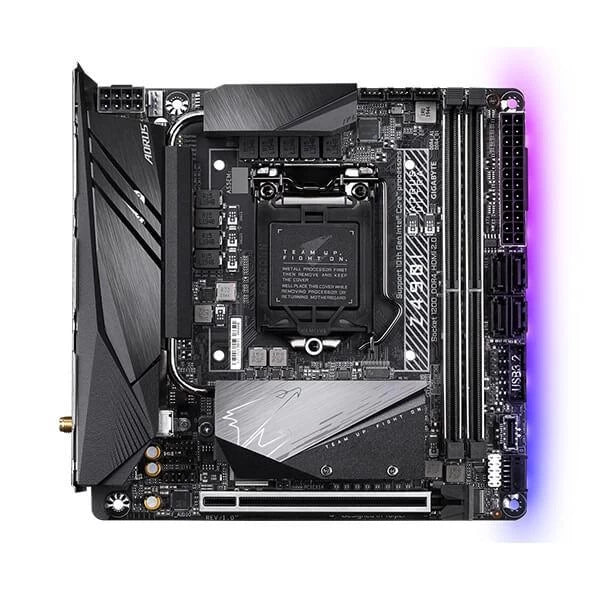

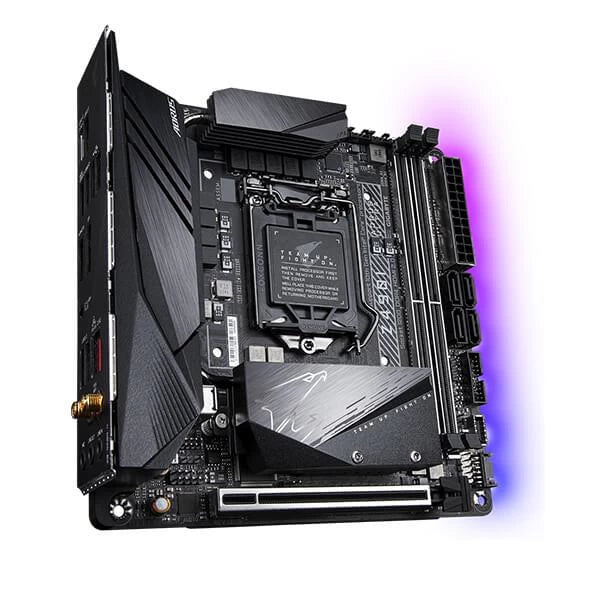

- GIGABYTE Z490I Aorus Ultra DDR4 Intel Motherboard
Description
Feature of Gigabyte Z490I Aorus Ultra DDR4
- Supports 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs
- Intel® Optane™ Memory Ready
- Direct 8 Phase Digital VRM Solution with 90A Smart Power Stage
- Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink with Heatpipes
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with AORUS Antenna
- Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
- AMP-UP Audio with ALC1220-VB for Rear 120dB SNR
- HDMI 2.0 supports Premium 4K
- Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard
- RGB FUSION 2.0 with Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Best Choice for Small but Powerful PC
Z490I AORUS ULTRA is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest 10th gen CPU, dual slots graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
Ultimate power Design
To fully support the latest 10th Gen ten- cores CPU, the Z490I AORUS ULTRA is equipped with the ultimate power solution with the desired features: direct, digital and multiple phases. After countless experiments and tests, GIGABYTE presents the unbeatable Z490I AORUS ULTRA for enthusiasts and gamers.
- 90A Smart Power Stage for each vCore Phase
- High Current Capacity MOSFET
- Tantalum Polymer Capacitors Array
- Higher Efficiency Lower Temperatures
- Improved Transient Response
Unparalleled Performance
GIGABYTE realize that our customer won't stop chasing a better computer performance. We take care of it and implement more on products. Optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 Storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the Z490 easier to upgrade.
Support for DDR4 XMP Up to 5000MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
Next Generation Connectivity
Network connectivity is getting more important nowadays. Majority of Desktop PC are with both ethernet and WIFI for the stable connection to avoid interrupt or bad signal. The Z490I AORUS ULTRA features the fastest WIFI 6 that improves the reliability and performance in dense environment. Furthermore, As 4k Monitor become more popular, ultra high resolution display output is also required.
Specifications of Gigabyte Z490I Aorus Ultra DDR4
| CPU |
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU |
| Chipset | Intel® Z490 Express Chipset |
| Memory |
Intel® Core™ i9/i7 processors: Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
Integrated Graphics Processor+PARADE PS175 chip: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.3, and HDR. Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Maximum shared memory of 512 MB |
| Audio |
Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel * To configure7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless Communication module |
Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) |
| Storage Interface |
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
| USB |
Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-C™ header, with USB 3.2 Gen 1 support. 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x chassis intrusion header |

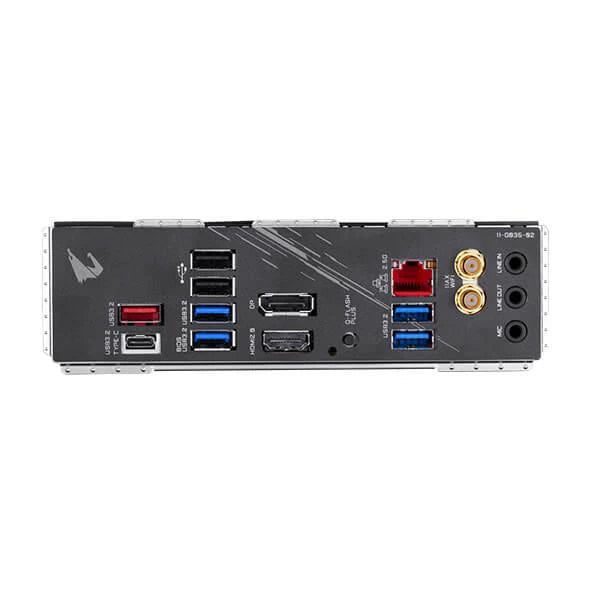

| Back Panel Connectors |
1 x DisplayPort 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
