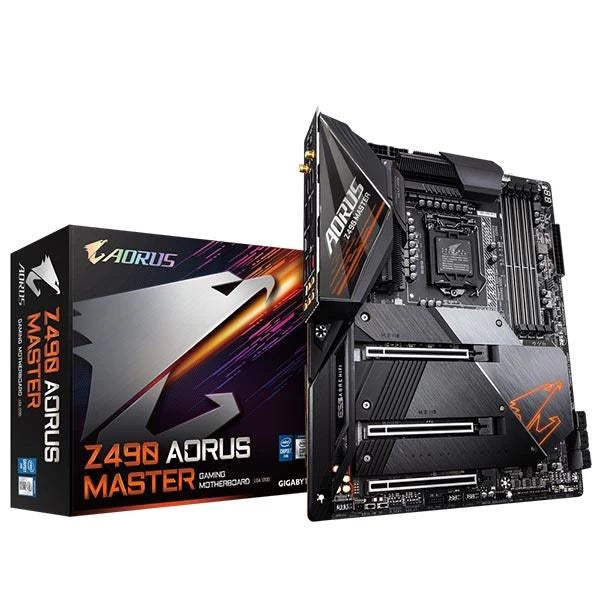

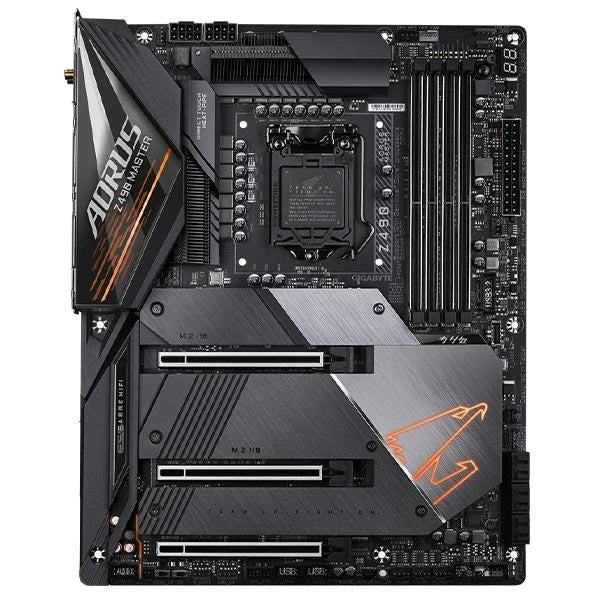

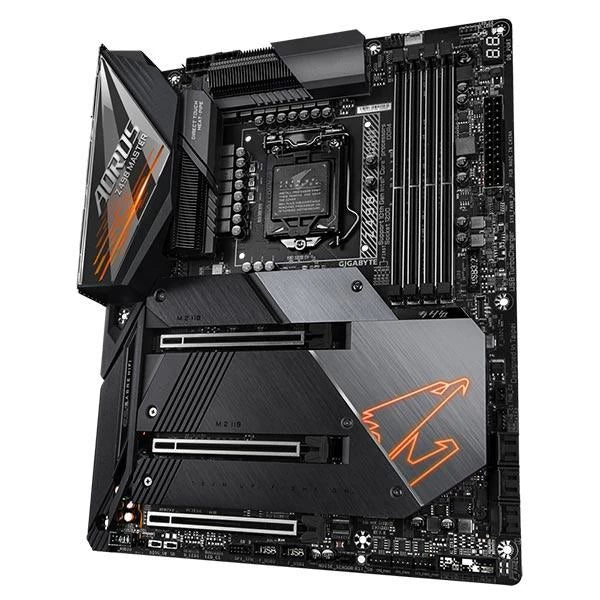

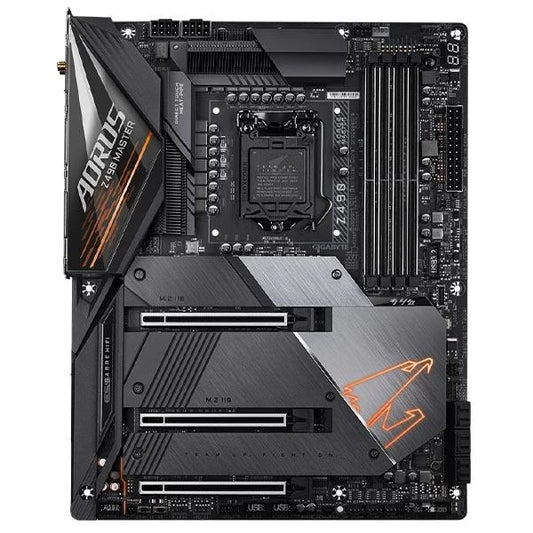

Gigabyte Z490 Aorus Master ATX Motherboard

GIGABYTE Z490 Aorus Master DDR4 Intel Motherboard

Rs. 39,150.00 Rs. 46,500.00

Discount: Rs. 7,350.00 (16%)

30 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: 16 December,2024 - 20 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of Gigabyte Z490 Aorus Master DDR4

Supports 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel® Optane™ Memory Ready
14 Phase Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
Shielded Memory Routing for Better Memory Overclocking
Newly Invented Thermal Design with Fins-Array II Heatsink and Direct Touch Heatpipe II
Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220 and WIMA Audio Capacitors
Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
USB TurboCharger for Mobile Device Fast Charge Support
Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

punk gaming

Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night.
The new era of esports has arrived.

EXTREME POWER DESIGN

To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS MASTER is a true beast among motherboards.

GIGABYTE Z490 Aorus Master DDR4 uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1260A. This 100% digital controller, new Tantalum Polymer Capacitors Array, and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the new 10-core 10th Gen. Intel^® Core™ processors.

1. Digital PWM Controller

2. 14+1 Phases 90A Smart Power Stages

3. Tantalum Polymer Capacitors

4. 8+8 Solid Pin CPU Power Connectors with Metal Shielding

Unparalleled Performance

GIGABYTE understands that our customer won't stop chasing better computer performance, and strive to deliver that in our products. For the Z490 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z490 are made possible by the use of PCIe 4.0-ready components

Support for DDR4 XMP Up to 5000MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Advanced Thermal Solution

Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z490 AORUS MASTER stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.

Specifications of Gigabyte Z490 Aorus Master DDR4

CPU	Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset	Intel® Z490 Express Chipset
Memory	Intel® Core™ i9/i7 processors: Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB
Audio	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS ES9118EQ DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module	Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
USB	Chipset: 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches

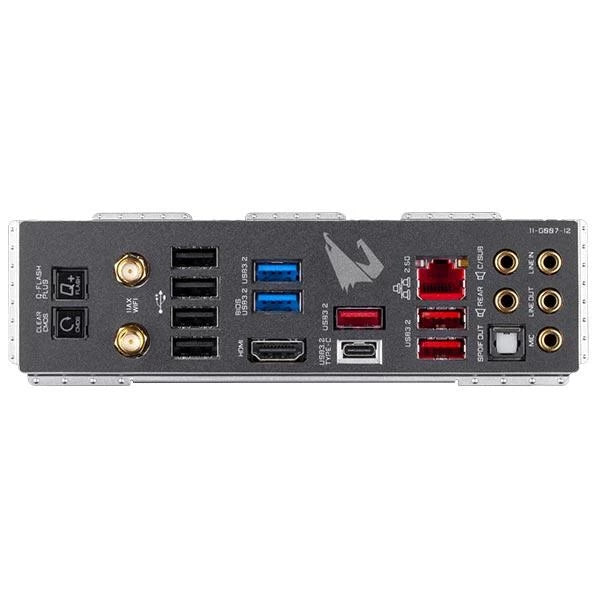

Back Panel Connectors	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license)
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
