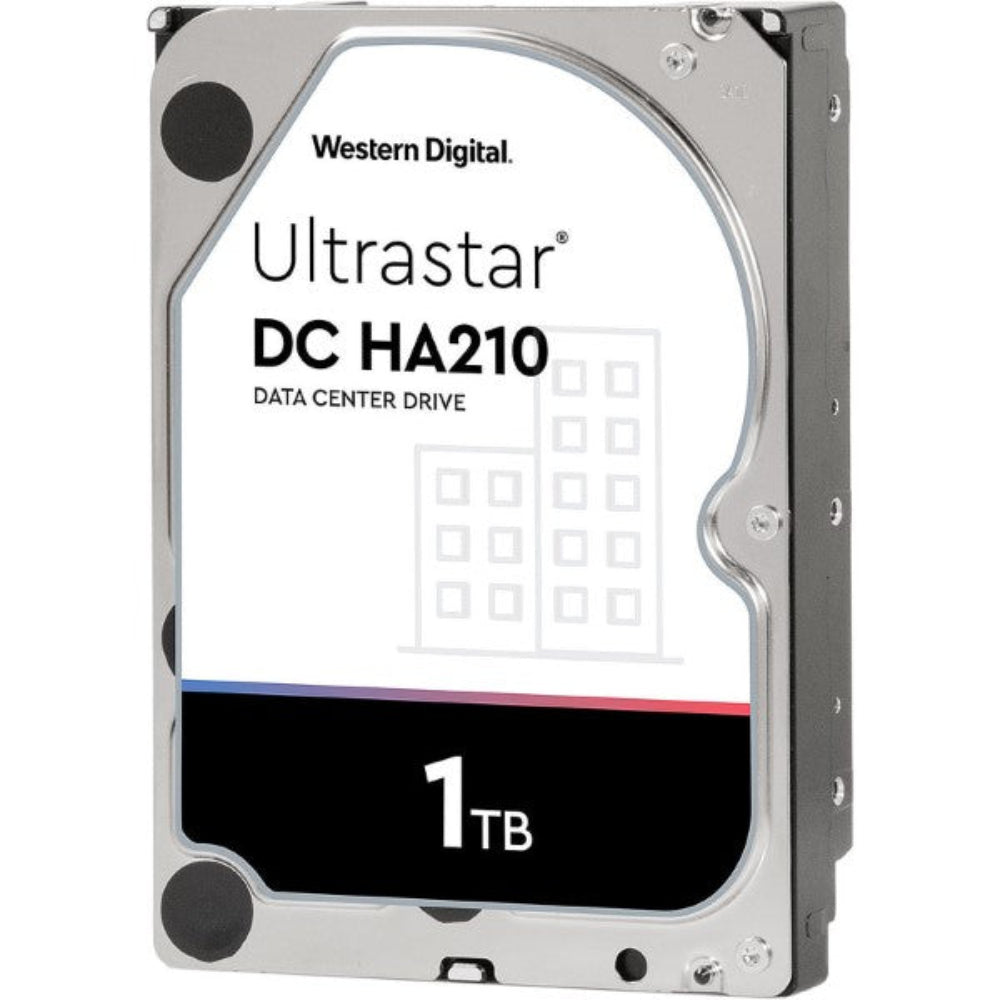

- WESTERN DIGITAL Ultrastar DC HA210 1TB Internal HDD
Description
Features of WESTERN DIGITAL Ultrastar DC HA210 1TB Internal HDD
- 3.5″ 1 TB hard disk for data centres
- Professional use for servers, NAS, cloud and data centres
- Cache memory: 128 MB
- Rotational speed: 7200 RPM
- RAFF anti-vibration technology
- MTBF: 2 million hours
- Annual load: 550 TB
- Average power consumption : 8.1 W (operating), 5.9W (idle)
- Manufacturer warranty : 5 years
The New Gold Standard
The secret ingredient in our WD Gold product line, Ultrastar hard drives feature up to 10 times the workload rating of desktop drives and employ advanced technologies for enterprise-class reliability, power efficiency and performance. Designed from the ground up to be an ultra-robust storage device, Ultrastar drives are the perfect solution for your business.
High workload rating
Delivering dependable performance to any storage environment, Ultrastar hard drives are designed with a workload rating up to 550TB per year, up to 10 times the rating for desktop drives. Ultrastar drives employ advanced technologies for enterprise-class reliability, power efficiency and performance. Enterprise-class storage to rely on With up to 2.5 million hours MTBF, Ultrastar hard drives deliver reliability and durability, are built for year operation (24x7x365) within the most demanding storage environments, and are backed with a 5 year limited warranty.
HelioSeal Technology
Featured in over 30 million Western Digital hard drives shipped, HelioSeal technology (on 10TB drives and above) allows for higher capacities and less turbulence on large storage arrays. And now on its 5th generation design, HelioSeal technology is field-tested and proven to delivery high capacity, reliability, and power efficiency you can trust.
Designed with Data Center Requirements in Mind
Multi-axis shock sensor technology automatically detects the smallest shock events and compensates to protect stored data on the Ultrastar DC HA210. RAID-specific, timelimited error recovery reduces drive fallout caused by extended hard drive error-recovery processes. Ramp load/unload technology keeps the recording heads away from the disk media during idle time and power down, ensuring significantly less wear to the recording heads and media, and provides better drive protection in transit. Through the use of dynamic fly-height technology, each read-write head’s fly-height is adjusted in real time for optimum reliability and performance. With a 2M hour MTBF rating and a 5-year warranty, rely on Ultrastar DC HA210 to deliver capacity, performance and reliability for more value to your data center.
Western Digital Quality and Service
Ultrastar DC HA210 extends Western Digital’s product offerings for capacity-enterprise environments. The proven drive design enables high reliability and availability to customer data. Ultrastar quality, performance and world class technical support and service provides customers with a lower total cost of ownership over previous generations. Western Digital data center drives are backed by an array of technical support and services, which may include customer and integration assistance. Western Digital offers a complete portfolio of product offerings designed to create environments for data to thrive.
Highlights
- Up to 1TB capacity in a standard 3.5-inch form factor
- Enhanced RAFF™ anti-vibration technology for robust performance in multi-drive environments
- Reliable, field-proven design
- SATA 6Gb/s with 512-byte (512n) supported legacy enterprise applications
- 2M hours MTBF2 rating & 5-year limited warranty
Applications/Environments
- RAID arrays
- Massive scale-out (MSO) data centers
- Data warehousing & mining
- Cloud storage
- Enterprise NAS
- Disk-to-disk backup & archiving
- Legacy mainstream enterprise capacity applications that require 512n block size
Specification of WESTERN DIGITAL Ultrastar DC HA210 1TB Internal HDD
| General | |
| Device Type | Hard drive – internal |
| Capacity | 1 TB |
| Form Factor | 3.5″ |
| Interface | SATA 6Gb/s |
| Buffer Size | 128 MB |
| Bytes per Sector | 512 |
| Features | Dual Stage Actuator (DSA), Secure Erase function, HelioSeal, 24×7 continuous operation, Enhanced Rotational Vibration Safeguard (RVS), Dynamic fly height technology, advanced format 512n |
| Width | 4 in |
| Depth | 5.8 in |
| Height | 1 in |
| Weight | 22.57 oz |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 184 MBps |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,000,000 hours |
| 24×7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 6,00,000 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5″ |
| Power | |
| Power Consumption | 8.1 Watt (active) | 5.9 Watt (idle) |
| Miscellaneous | |
| Compliant Standards | RoHS 2011/65/EU |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Shock Tolerance (operating) | 65 g @ 2 ms half-sine wave |
| Shock Tolerance (non-operating) | 300 g @ 2 ms half-sine wave |
| Vibration Tolerance (operating) | 1.08 g @ 10-300 Hz |
| Vibration Tolerance (non-operating) | 3.8 g @ 10-300 Hz |
