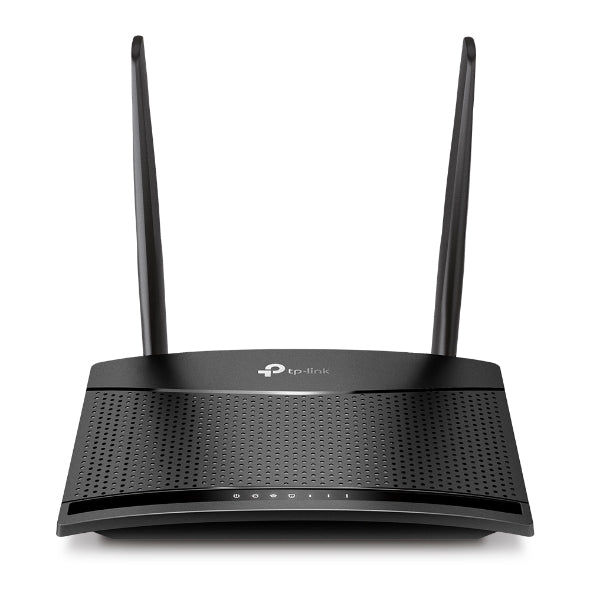

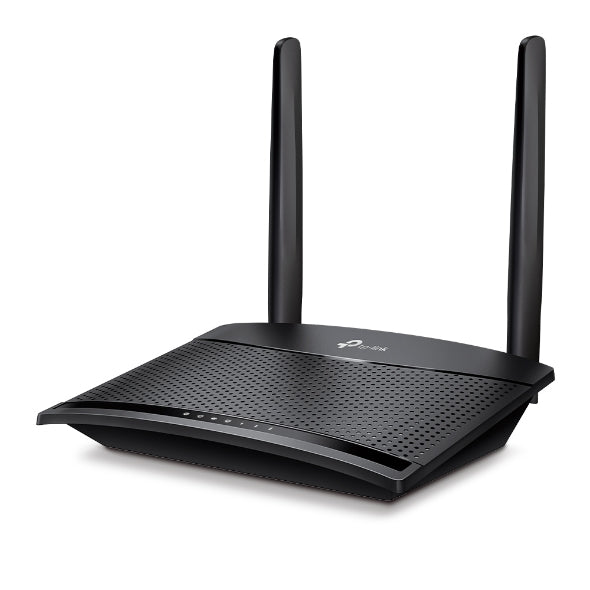

- TPLink TL-MR100 300 Mbps Wireless N 4G LTE Router
Description
Features of TPLink TL-MR100 300 Mbps Wireless N 4G LTE Router
- Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

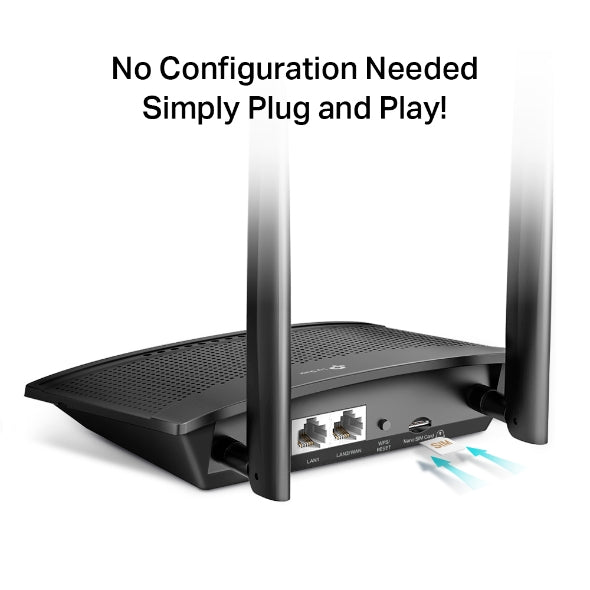

- Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Specifications of TPLink TL-MR100 300 Mbps Wireless N 4G LTE Router
HARDWARE FEATURES | |
Interface |

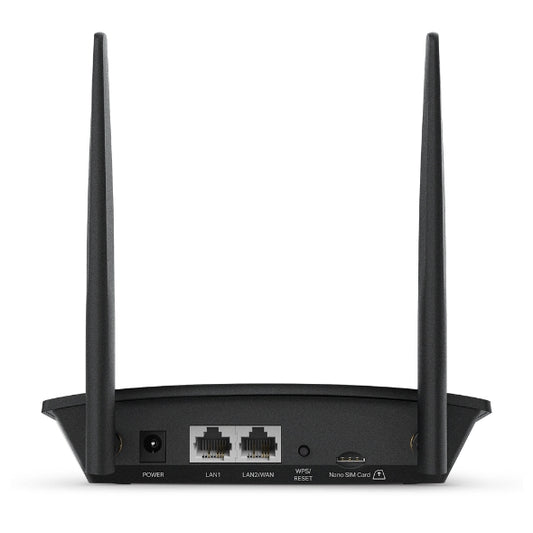

1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot |
Button | WPS/Reset Button |
External Power Supply(EU) | 9V/0.85A |
Dimensions ( W x D x H ) | 6.06×4.49×1.42 in ( 154×114×36 mm) |
Antenna | 2 Detachable External 4G LTE Antennas |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11b/g/n |
Frequency | 2.4 GHz |
Signal Rate | 300 Mbps |
Reception Sensitivity |
11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm |
Transmit Power | < 20 dBm (2.4 GHz) |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
WAN Failover | Yes |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type |
4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)* 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) *The B41 frequency of this product supports 2555-2655MHz |
SOFTWARE FEATURES | |
Security | IPv4 SPI Firewall, IP and MAC Address Binding |
Operating Modes | 3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management | Local Management, Remote Management |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz Guest Network |
Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
OTHERS | |
Certification | CE, RoHS |
Package Contents |
300 Mbps Wireless N 4G LTE TPLink TL-MR100 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Micro SIM Card |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
