Description
Features:
Pre-installed Two 200mm ARGB PWM Fans & One 120mm
ARGB PWM Fan for Massive Airflow
Choose your style with dual front panels!

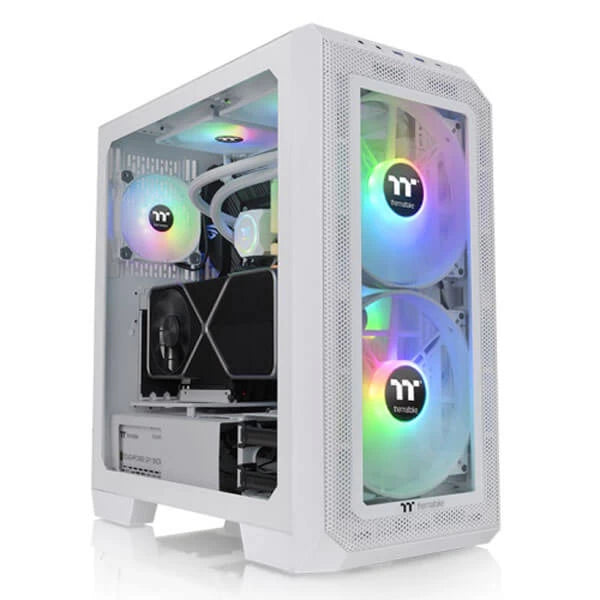

Designed to push the beloved View Series lineup to another level, the View 300 MX Snow Mid-Tower Chassis features two pre-installed 200mm ARGB PWM fans in the front and one 120mm ARGB PWM fan at the rear to provide optimal cooling performance. Noteworthy, the View 300 MX Snow series is the first chassis of the Thermaltake collection that comes with dual front panels, including a tempered glass panel and a perforated metal panel featuring the TT Logo, allowing users to choose their own style. Moreover, the View 300 MX features rotational PCI-E Slots, removable filters, a removable PSU cover, and supports up to E-ATX motherboards (12” x 13”), up to a 360mm Radiator on the front, top and M/B side. These merits make the View 300 MX Snow an eye-catching chassis that is ideal for you to make your next build epic, high-performing, and one of a kind.
Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan
Two 200mm ARGB PWM fans and one 120mm ARGB PWM fan are pre-installed, efficiently moving a considerable amount of air through the chassis with minor noise thanks to the fan speed control and through the PWM function. Furthermore, the LED lighting effect can be manipulated with a physical button or motherboard supported software.

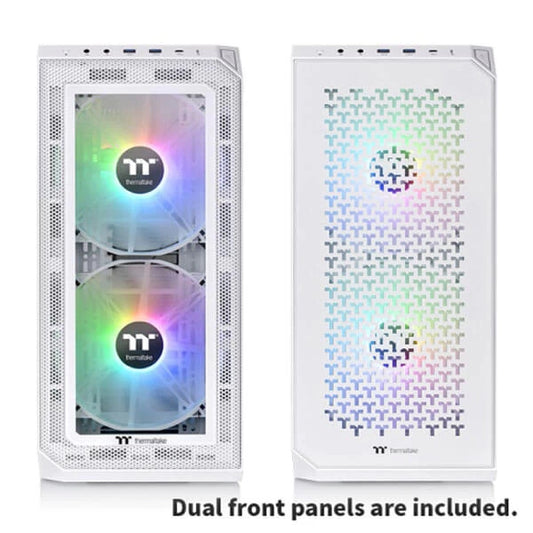

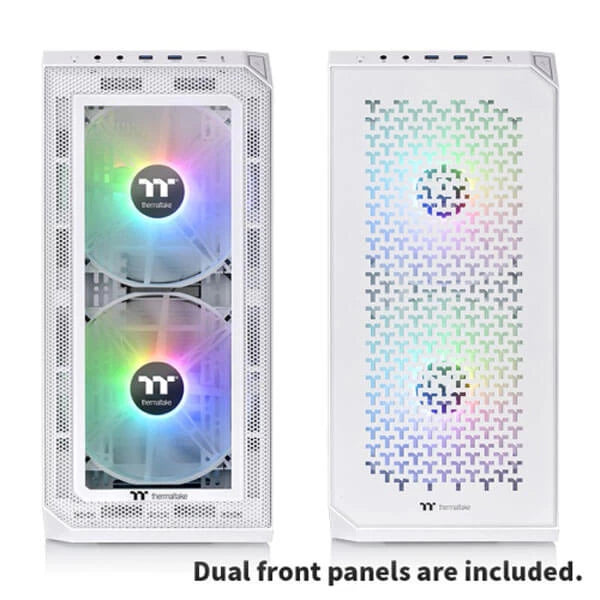

Choose from a Tempered Glass Mesh Panel or a Perforated TT logo Steel Panel
There are two front panels that come in the box: one tempered glass mesh panel for an outstanding look, and the other is a perforated steel panel with TT logo cutouts for better airflow. Two styles for users to choose, display your PC build the way you want.
Dual 360mm Radiator Support
Our View 300 MX features exceptional cooling support, besides the two pre-installed 200mm ARGB PWM fans at the front and one pre-installed 120mm ARGB PWM fan at the rear, the View 300 MX can also house dual 360mm AIO radiators at the same time. Users can choose to place them at the front, top, and motherboard side, giving users opportunities to build their desired high-end system!

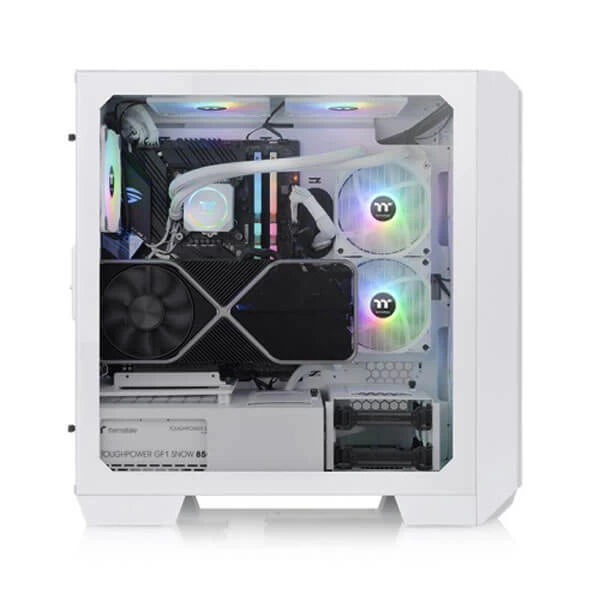

Tempered Glass Window
The 4mm tempered glass panel on the side of the View 300 MX Snow is thicker and more scratch resistant than standard acrylic. It enables you to display and admire all your components in their full RGB glory.
Patented Rotatable PCI-E Slots
Patented rotatable PCI-E slots allow vertical GPU installation. The design, compared with the more traditional 7+2 approach, has little limitation regarding the thickness of the graphics card. Additionally, the enclosed riser cable bracket helps to secure the riser cable at bay (supporting a 180° connector).
Excellent Dust Filtration
There are fine magnetic filters on the right, top, and at bottom to provide excellent protection against dirt and dust from the outside of the case and they are easily removable for cleaning.
Removable PSU Cover
To achieve a more tidy-looking system, the built-in PSU cover is designed to hide unsightly cables with overall good ventilation.
Air Intake and Exhaust
The cooling performance of the View 300 MX Snow is fabulous thanks to two 200mm ARGB PWM fans and one 120mm ARGB PWM fan pre-installed. The Perforated TT logo Steel Panel allows optimal air intake, while the tempered glass mesh panel also provides sufficient air-intake through its mesh edge.
Massive Airflow & Amazing Performance
Thermal images were taken during thermal testing. Thanks to two pre-installed 200mm ARGB PWM fans in the front and one pre-installed 120mm ARGB PWM fan at the rear, we were able to ensure that the View 300 MX comes with massive airflow, which guarantees an amazing cooling performance that the interior temperature stays low and stable at all times.
Hardware Compatibility
View 300 MX Snow has exceptional expandability. It can support E-ATX motherboards (12”x13”), a CPU cooler with a maximum height of 175mm, VGA clearance up to 400mm in length without a reservoir, and a power supply with a length of up to 200mm. Optimized for excellent cooling capabilities, the View 300 MX Snow can house up to three 140mm or two 200mm front fans, up to three 120mm fans on top, and a radiator of up to 360mm at the front, top and MB side to allow users to build their desired high-end system.
Specifications:
| P/N | CA-1P6-00M6WN-00 |
| Series | View |
| Model | View 300 MX Snow |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) |
505 x 230 x 506 mm (19.9 x 9.1 x 19.9 inch) |
| NET WEIGHT | 10.4 kg / 22.9 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1 |
| Color | White |
| MATERIAL | SPCC + ABS |
| COOLING SYSTEM |
Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 4 x 2.5” or 6 x 2.5” |
| EXPANSION SLOTS | 7 (Rotatable Patented Design) |
| MOTHERBOARDS |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) Rear: 1 x 120mm |
| RADIATOR SUPPORT |
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) Rear: 1 x 120mm |
| CLEARANCE |
CPU cooler height limitation: 175mm VGA length limitation: 280mm(With reservoir) 400mm(Without reservoir) PSU length limitation: 200mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
