- THERMALTAKE View 28 RGB Riing Edition ATX Mid Tower Cabinet (Black)
Description
Features of THERMALTAKE View 28 RGB Riing Edition
The THERMALTAKE View 28 RGB Mid-Tower Chassis features a transparent gull-wing window, advanced floating GPU mounting system with an optional PCI-e riser cable, and a built-in power supply cover for clean cable management. The tinted front panel with a controllable RGB LEDs matrix gives users a clean look whilst adding incredibly stunning visual perspective to the system. The View 28 RGB supports all high-end PC hardware, graphic cards, and air/liquid cooling solutions. Build your ultimate PC chassis with the Thermaltake View 28 RGB Riing Edition.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

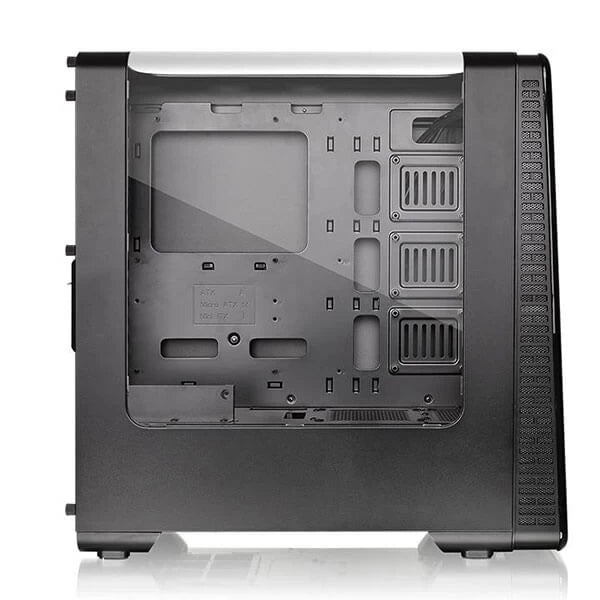

Gull-Wing Window Design
Unlike any other cases on the market, the enlarged window panel with wraparound design permits you to admire every component in your build either from the left side or from the top. See the vision of next generation PC chassis with the View 28 RGB Riing Edition.

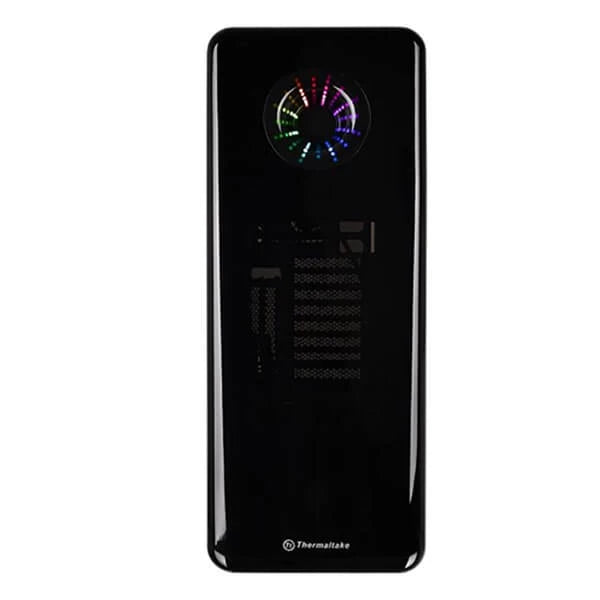

Gaze Into Infinity from the RGB Matrix
The View 28 RGB Riing Edition brightens up your system in a brand-new way with its RGB Matrix on the front panel. Inspired by a spiral galaxy, the RGB Matrix illuminates from the darkness, and colors your build with vivid lighting effects, including static color (red/blue/white/green), RGB spectrum and RGB breathing.
RGB Control Mode:
Mode 1 – RGB lighting
Mode 2~5 – Single Color (arrange from red, blue, white, green)
Mode 6 – RGB breath lighting
Mode 7~10 – Single color breathing (arranged from red, blue, white, green)
Mode 11 – Light off
Long press on the control button will immediately turn the light off, press the control button once again to restore it to original states.
Control All Your RGB Lights by One Button
With the integrated RGB LED controller on the front-top panel, all the lighting effects of Thermaltake’s Riing 12 LED RGB fan can fully sync with the lights of the RGB Matrix.
Tool-Free Installation
The innovative 3.5” & 2.5” tool-free drive bay design minimizes the hassles of installation and removal, whilst allowing users to freely interchange the hard-drive cages to suit their particular needs. The dual drive bay concept of “2+4” offers a good ratio for accessories and storage devices.
Riser GPU Support Design
Specially designed with dual GPU placement, the View 28 RGB Riing Edition has the support for vertical graphic card layout with dual PCI-E slots design and optional PCI-e riser cable.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.

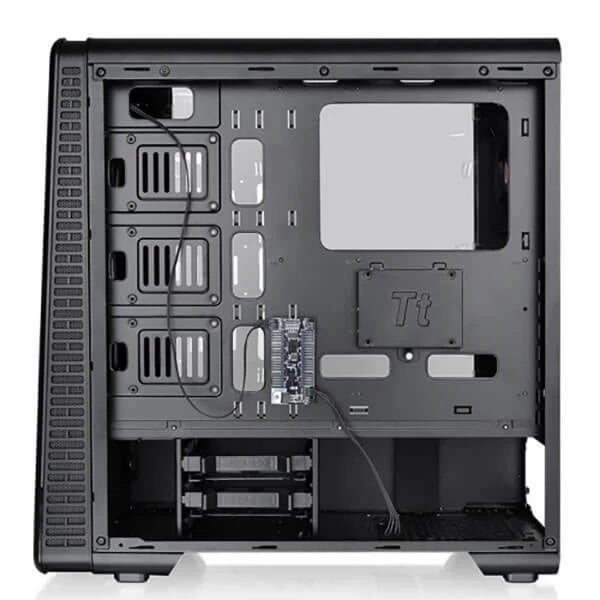

Outstanding Expandability with a Clean Look
The View 28 RGB Riing Edition supports motherboards up to standard ATX, a dual expansion slot GPU of up to 410mm in length without front fan, and has the ability to accommodate multiple 3.5”/2.5” storage devices. Besides, the View 28 RGB features its advanced cable management with a built-in power cover that allows the entire bottom area to be used to reorganize unused cables.

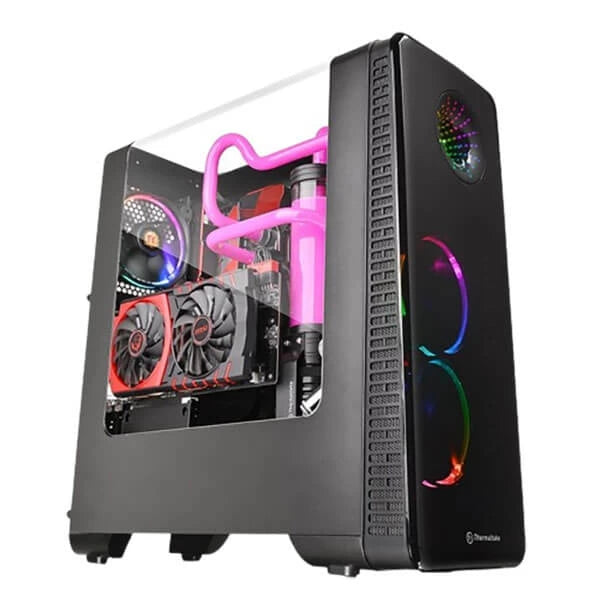

Superior Ventilation and Liquid Cooling Capable
The View 28 RGB Riing Edition delivers a superior cooling performance for DIY/AIO liquid cooling and air cooling systems. Users can install up to a 360mm radiator at the front and a 120mm radiator at the rear. The View 28 RGB also supports a tower CPU cooler with maximum height 155mm, and is preinstalled with a 120mm Riing RGB fan at the rear to optimize system ventilation.
Specifications of THERMALTAKE View 28 RGB Riing Edition
P/N | CA-1H2-00M1WN-01 |
Case Type | Mid Tower |
Series | View |
Dimension (H x W x D) |
505 x 200 x 493mm (19.9 x 7.9 x 19.4 inch) |
Net Weight | 6.7 kg / 14.9 lb |
Side Panel | Transparent Window |
Color | Exterior & Interior : Black |
Material | SPCC |
Cooling System |
Rear (exhaust): 120 x 120 x 25 mm Riing RGB fan (1400rpm, 28dBA) x 1 |
Drive Bays |
-Accessible -Hidden 2 x 3.5’’ or 2.5’’(with HDD tray) 4 x 2.5’’ (with the M/B tray) |
Expansion Slots | 8 + 2 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O Port | USB 3.0 x 2,USB 2.0 x 1, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
Fan Support |
Front: 3 x 120mm Rear: 1 x 120mm Power Cover: 1 x 120mm |
Radiator Support |
Front: 1 x 360mm Rear: 1 x 120mm |
Clearance |
CPU cooler height limitation: 155mm VGA length limitation: 410mm (Without Front Fan) ※Suggested VGA thickness up to 40mm(2-slot reference card standard) with 7mm space for ventilation if extending for VGA card PSU length limitation: 180mm LED Controller Supports Up To 8 Thermaltake Riing RGB Fans(Hardware Edition) |
Warranty | 3 Years |
Note | ***Features, Price and specifications are subject to change without notice. |
