Description
Features of THERMALTAKE View 270 Plus WS ARGB Mid Tower Cabinet ( Snow )

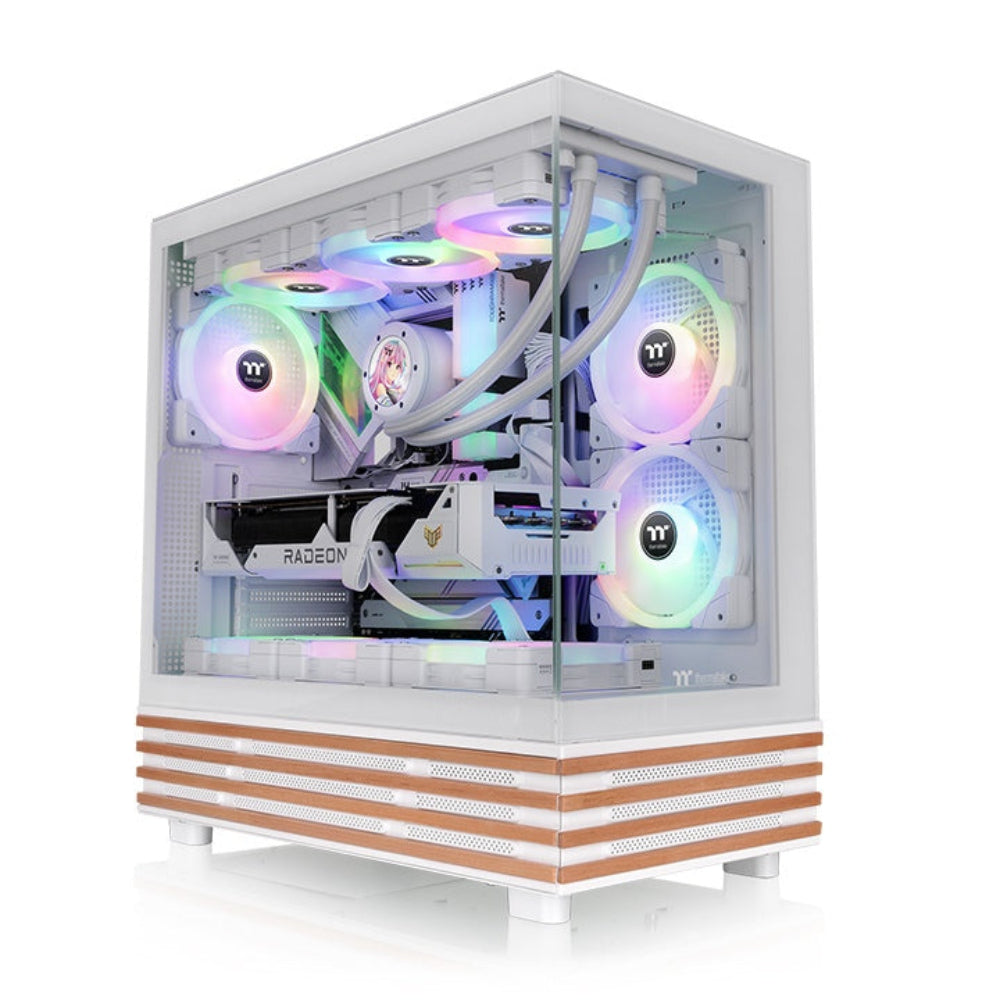

View 270 Plus WS ARGB Mid Tower Chassis
The View 270 Plus WS ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, accented with a stylish wood, and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 Plus WS ARGB Mid Snow Tower Chassis.

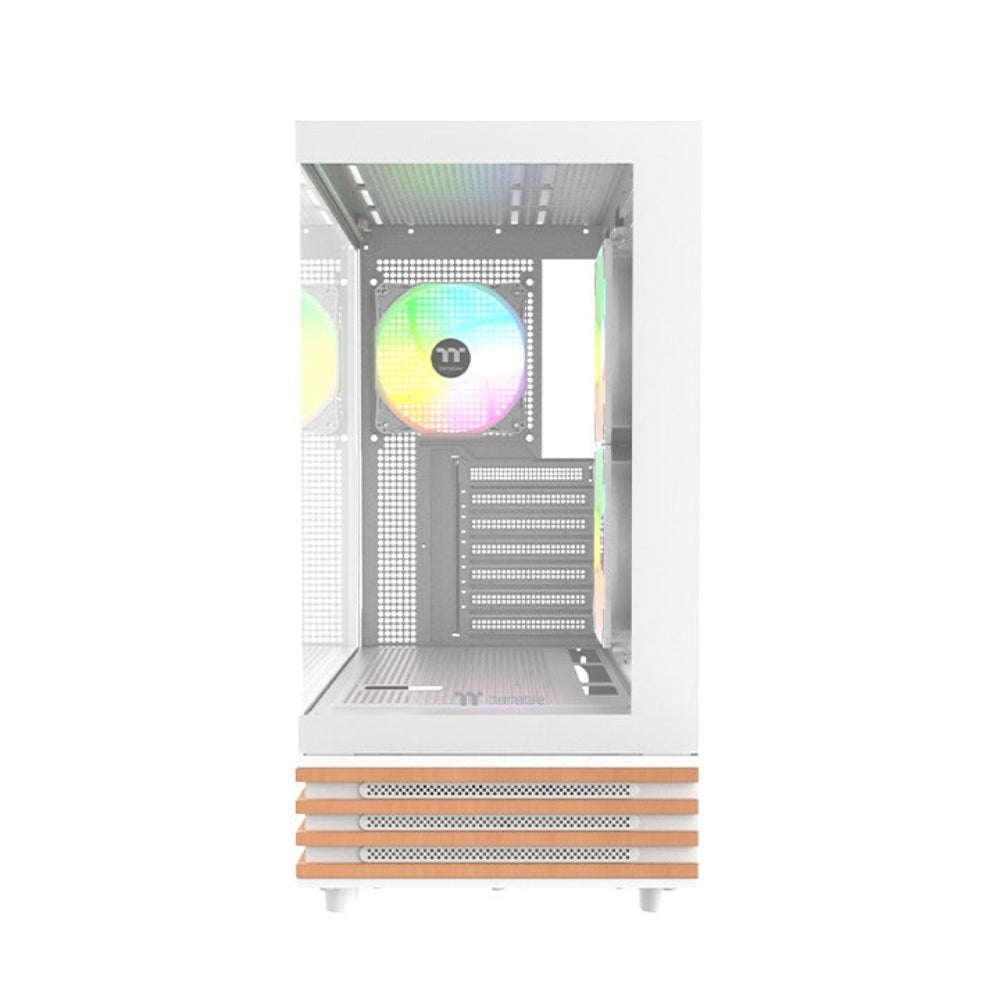

Tempered Glass Front and Left Panels
The View 270 Plus WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels framed with elegant wood, allowing users to enjoy their system with a stylish touch
Supports up to a 360mm Radiator on the Top
Providing good cooling support, users can choose to place a 360mm radiator on the top of The View 270 Plus WS ARGB.

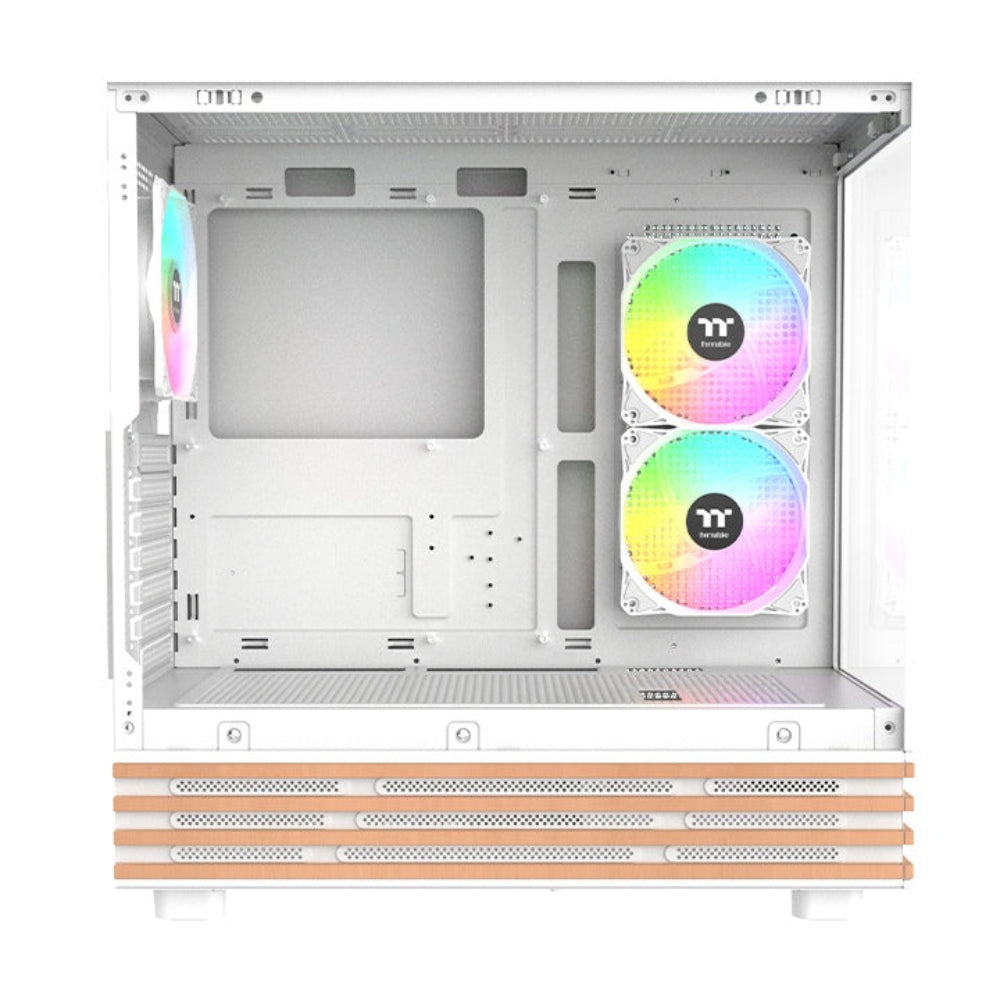

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed
The View 270 Plus WS ARGB Mid Tower Chassis features elegant wood and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its captivating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover
The View 270 Plus WS ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
Opportunities For High-End Expansion
The View 270 Plus WS ARGB Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!
How Much Storage Is Totally Up To You
For storage compatibility, The View 270 Plus WS ARGB Mid Tower Chassis gives maximum support of up to two 2.5‘’ SSDs or two 3.5‘’ HDDs in total.

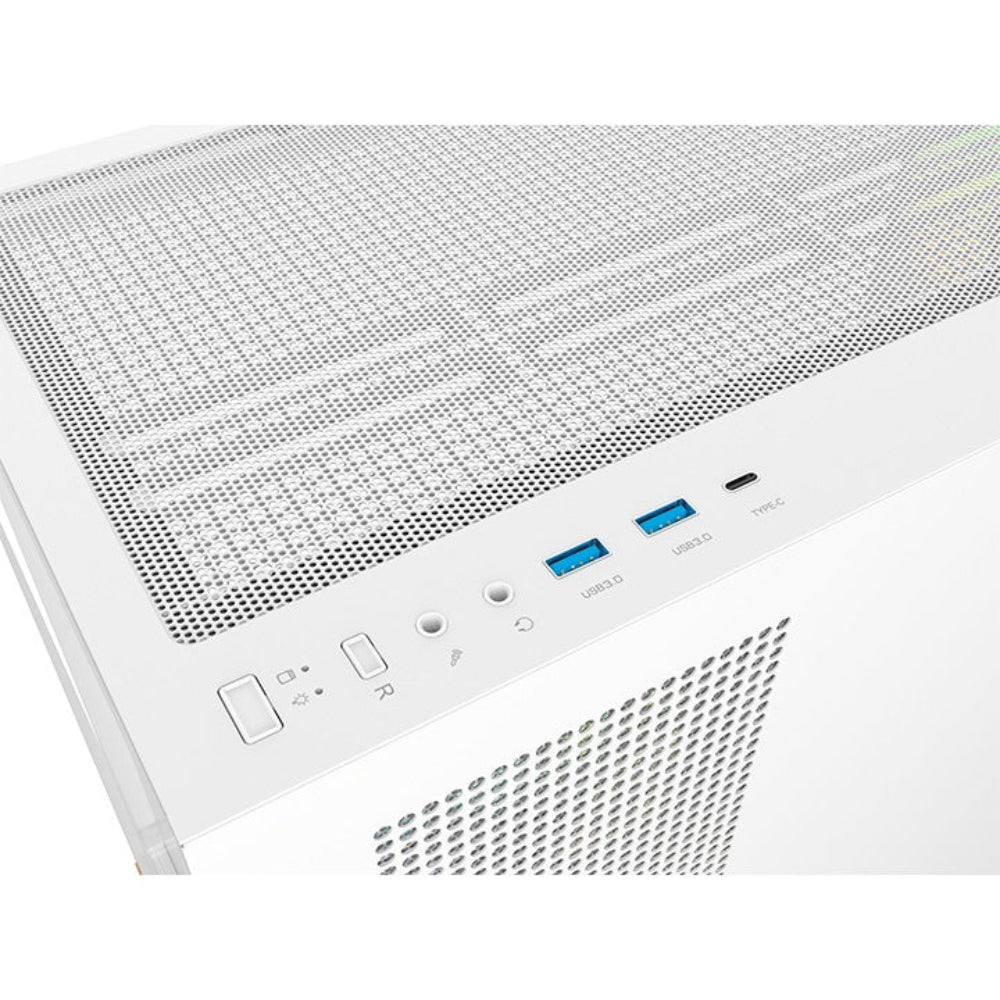

Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type-C and HD Audio ports are placed on the top panel to grant direct access when needed
Specifications of THERMALTAKE View 270 Plus WS ARGB Mid Tower Cabinet ( Snow )
| Product Name | CA-1Y7-00M6WN-WS |
| Series | View |
| Model | View 270 Plus WS ARGB |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 456 x 230 x 454 mm (17.95x 9.1 x 17.9 inch) |
| PANEL | Tempered Glass x 2 |
| Color | Snow |
| MATERIAL | SPCC |
| COOLING SYSTEM | Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| RADIATOR SUPPORT | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| CLEARANCE | CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 280 mm (HDD Cage at the front) PSU max length: 250 mm (HDD Cage at the back) |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
