- THERMALTAKE Tower 100 TG Type-C ITX (USB-3.2 Gen 2) Mini Tower Cabinet (Turquoise)
Description
Features of THERMALTAKE Tower 100 (Turquoise)

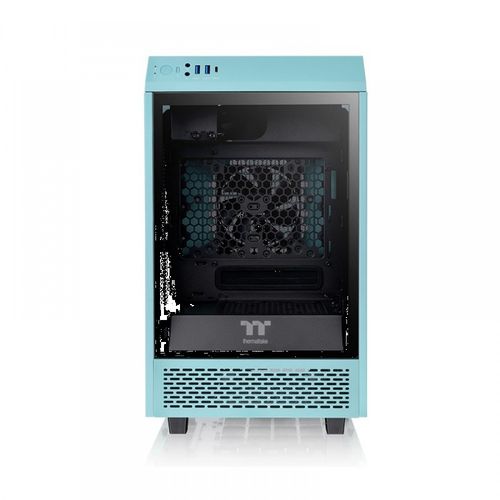

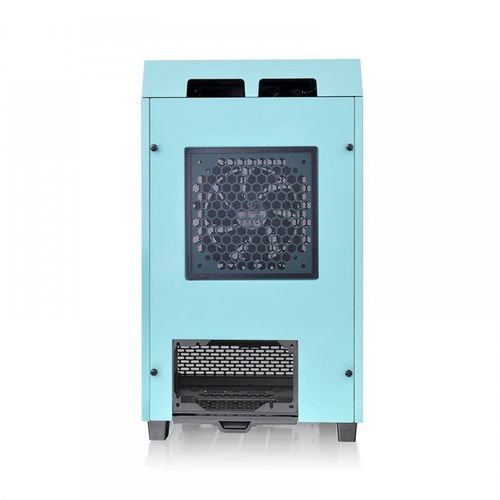

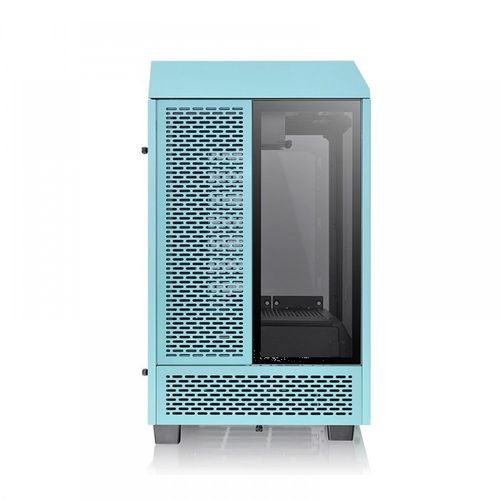

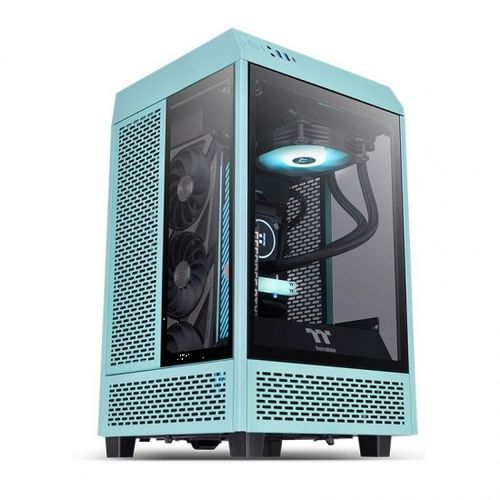

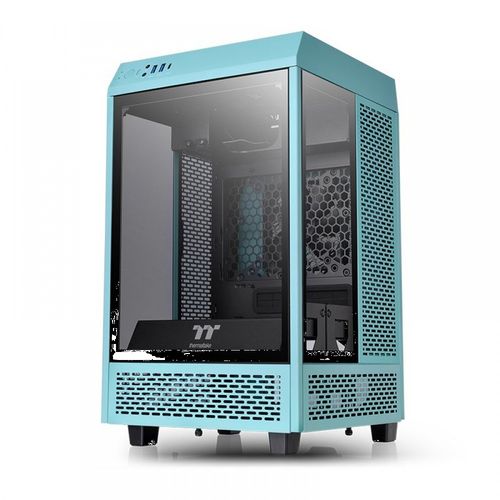

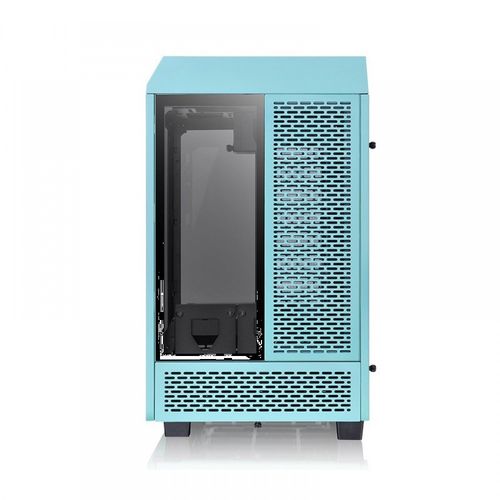

THERMALTAKE The Tower 100 Turquoise is a vertically designed mini-ITX chassis with panoramic viewing. It comes with two preinstalled 120mm standard fans and three 4mm tempered glass windows at the front, on left and right side.
Designed to expand the legacy of the Thermaltake Cabinet Tower 900 E-ATX Super Tower Chassis, the Tower 100 Turquoise Mini Chassis is the newest member of the Tower Series. It features three 4mm tempered glass windows for a stunning view and two preinstalled 120mm standard fans on top and at the rear for exhaust. It is a much smaller version of the Tower 900 with dimensions of 462.8mm (Height), 266mm (Width), and 266mm (Depth).
Though it may not be the smallest Mini-ITX chassis on the market, it is a highly capable one that can fit high-end components like the RTX 30 Series Graphics Cards. The Tower 100 Turquoise Mini Chassis is designed to target users who have limited space at their workplace or at home or those who simply do not want their PC to take too much space. No matter if you are a regular user, gamer, or content creator, you will find it ideal and can place it almost anywhere in your room.
Vertical Body Design
The Tower 100 Turquoise is a vertically designed case constructed with solid steel all around. The vertical design allows the chassis to have a smaller footprint and helps to minimize obstruction to your gaming and workspace area. The vertical design also helps extract heat from the chassis by using a chimney effect, intaking cold air from the base and dispelling the heat via the top.
Tempered Glass Panels with Panoramic View
The three 4mm tempered glass windows of the Tower 100 Turquoise are thicker and more scratch resistant when compared to standard acrylic. It not only creates a panoramic view for displaying internal components but also gives users easy and quick access once the top panel and the three tempered glass windows are removed.
Excellent Dust Filtration
The Tower 100 Turquoise has well-designed removable magnetic fan filters on the back, on the inner two sides, and at the inner bottom. At the base, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
Sophisticated Space Design
Sophisticated space design maximizes the capacity of the Tower 100 Turquoise for PC components supported and helps tidy up cable management.
Air Intake and Exhaust
People may have a concern about the cooling performance of a mini-ITX chassis. However, the cold air intakes and hot air exhausts are well-developed, ensuring the interior temperature stays low at all times.
Idle and Full-load Temperature
To let our customers better understand the thermal performance of the Tower 100 Turquoise Mini Chassis, we ran a test at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes
Hardware Support and Cooling Solution
The Tower 100 Turquoise has good hardware support. It can support a CPU cooler with a maximum height of 190mm, VGA with a maximum length of 330mm, a power supply with a length of up to 180mm, two 2.5” SSDs with the side bracket, and two 2.5" or two 3.5" HDDs at the rear (without rear fan). Although Tower 100 is a mini-ITX case, it is still optimized for good cooling. The case comes with two preinstalled 120mm standard fans on top and at the rear for thermal extraction. Moreover, you can put one extra 120mm or 140mm fan on the top of the PSU cover and a 120mm All-in-One CPU cooler can be fitted on the top for basic water cooling.
Handy I/O Ports
Two USB 3.0 and one USB 3.1 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.
DMD: Dismantlable Modular Design
Strip your case down to the bones and install elements when and as you need them with our modular design. The Tower 100 Turquoise features modular panels, racks, brackets, and pre-designed mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Get the affordable pc cabinet case with the huge variety with us!
Specifications of THERMALTAKE Tower 100 (Turquoise)
Brand | Thermaltake |
Series | The Tower 100 |
Model | CA-1R3-00SBWN-00 |
Type | Mini-ITX Tower |
Color | Turquoise |
Case Material | Steel / Tempered Glass |
With Power Supply | No |
Power Supply Mounted | Bottom |
Motherboard Compatibility | Mini-ITX |
Side Panel Window | Yes |
Dust Filters | Bottom / Side / Top |
External 5.25" Drive Bays | 1 |
Internal 3.5" Drive Bays | 2 x 2.5" or 2 x 3.5" (without rear fan) |
Internal 2.5" Drive Bays | 2 (with side bracket) |
Expansion Slots | 2 |
Front Ports | 2 x USB 3.0, 1 x USB 3.2 (Gen 2) Type-C, 2 x HD Audio |
Fan Options |
Top: 1 x 120mm / 1 x 140mm (1 x 120mm Standard fan included) Rear: 1 x 120mm / 1 x 140mm (1 x 120mm Standard fan included) Top of the PSU Cover: 1 x 120mm / 1 x 140mm |
Radiator Options | Top - Up to 120mm |
Max GPU Length | 330 mm |
Max CPU Cooler Height | 190 mm |
Max PSU Length | 180 mm |
Dimensions (H x W x D) | 10.50" x 10.50" x 18.20" |
Weight | 13.45 lbs. |
Features |
The Tower 100 Mini ITX Chassis is the mini version of our iconic case The Tower 900 4mm Thick Tempered Glass Window Panels: three 4mm thick tempered glass window panel at front, left, and right Handy I/O Port and unique internal design: with a high speed Type-C connector and two USB 3.0 The Tower 100 supports up to two 3.5" HDD or four 2.5" SSD, include two bracket for 2.5" SSD at right side Dust Filter Design: Eight super fine filters on the right, left, top, and at the bottom are designed to provide excellent protection against dirt and dust from the outside of the case and is easily removable for cleaning |
