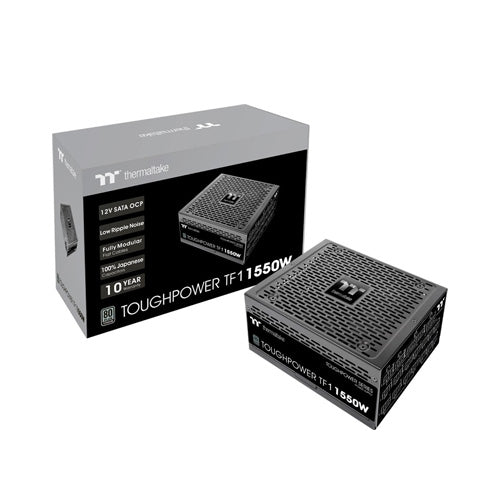

- THERMALTAKE Toughpower TF1 1550W 80 + Titanium ATX 2.0 Power Supply
Description
Features of THERMALTAKE Toughpower TF1 1550W
- Continuous & stable output at 1550W with 80 Plus Titanium certified efficiency
- Single +12V rail design with 100% genuine Japanese capacitors
- Transient response: 12V 16ms; <30mV extreme low ripple noise
- 140mm PWM fan with Turbo Fan function for better heat dissipation
- 10 Year Warranty; Built-in industrial grade protections: OCP, OVP, UVP, OPP, SCP, OTP.
The THERMALTAKE Toughpower TF1 1550W is Designed for overclockers, user’s with high-end system demands, and more, the Toughpower TF1 Titanium 1550W delivers 80 PLUS Titanium efficiency to satisfy their needs. Besides the critical features like <30mV low ripple noise, extremely strict Voltage Regulation < ±2%, and Hold up time> 16 milliseconds, Thermaltake also added three vital features to make sure Toughpower TF1 Titanium 1550W can consistently and safely power up the whole system. Firstly, Low Transient Response Secondly, Inrush current <50 Ampere. Lastly, 12V OCP protection is covered. With all the advantages plus a 10-years warranty, the Toughpower TF1 Titanium 1550W can satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.
Turbo Fan Button
The turbofan button is designed to maximize airflow intake around 2400±10% RPM to cool down the power supply when it is in a full load. Users can easily push the button behind the PSU panel to use this function.
Extra Jumper Accessory
The Toughpower TF1 Titanium 1550W comes with an extra jumper to provide electricity to the system without connecting to the motherboard. If you need more than one power supply to power up your system, the extra jumper will help a lot.
Low Transient Response
The transient response is a measure of how well the power source can hold its output constant in response to load changes. We make sure that we can keep the results comply with 12V < 1 %, 5V < 3%, and 3.3V < 5% to avoid PSU output voltage deviation causing subsequent equipment malfunction or even shut down.
Inrush current < 50 Ampere
Inrush current is the instantaneous high input current drawn by a power supply or electrical equipment at turn-on. This arises because of the high initial currents required to charge the capacitors, inductors, or transformers. We make sure that the test results are under 50 ampere to avoid damage to the PSU components.
140mm Pulse Width Modulation Fan
THERMALTAKE Power Supply comes with 140mm Pulse Width Modulation Fan with intelligent RPM controls to help guarantee superior cooling performance and near-silent operation.
Get the best 80 Plus Titanium smps for pc price from us today!
Specifications of THERMALTAKE Toughpower TF1 1550W
| WATTS | 1550W |
| RGB FAN | No |
| FORM FACTOR | ATX |
| MODEL | TTP-1550AH3FCT |
| MAX. OUTPUT CAPACITY | 1550W |
| PEAK OUTPUT CAPACITY | 1860W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 180mm(D) |
| WEIGHT | 2.4kg |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 100% of full load |
| INPUT CURRENT | 18A max |
| INPUT FREQUENCY RANGE | 47Hz-63Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 50°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 14cm PWM fan |
| EFFICIENCY |
Meet 80 PLUS® Titanium at 115Vac input.
|
| MTBF | 120,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV/FCC/BSMI/EAC/ CCC |
| PCI-E CONNECTOR | 8 |
