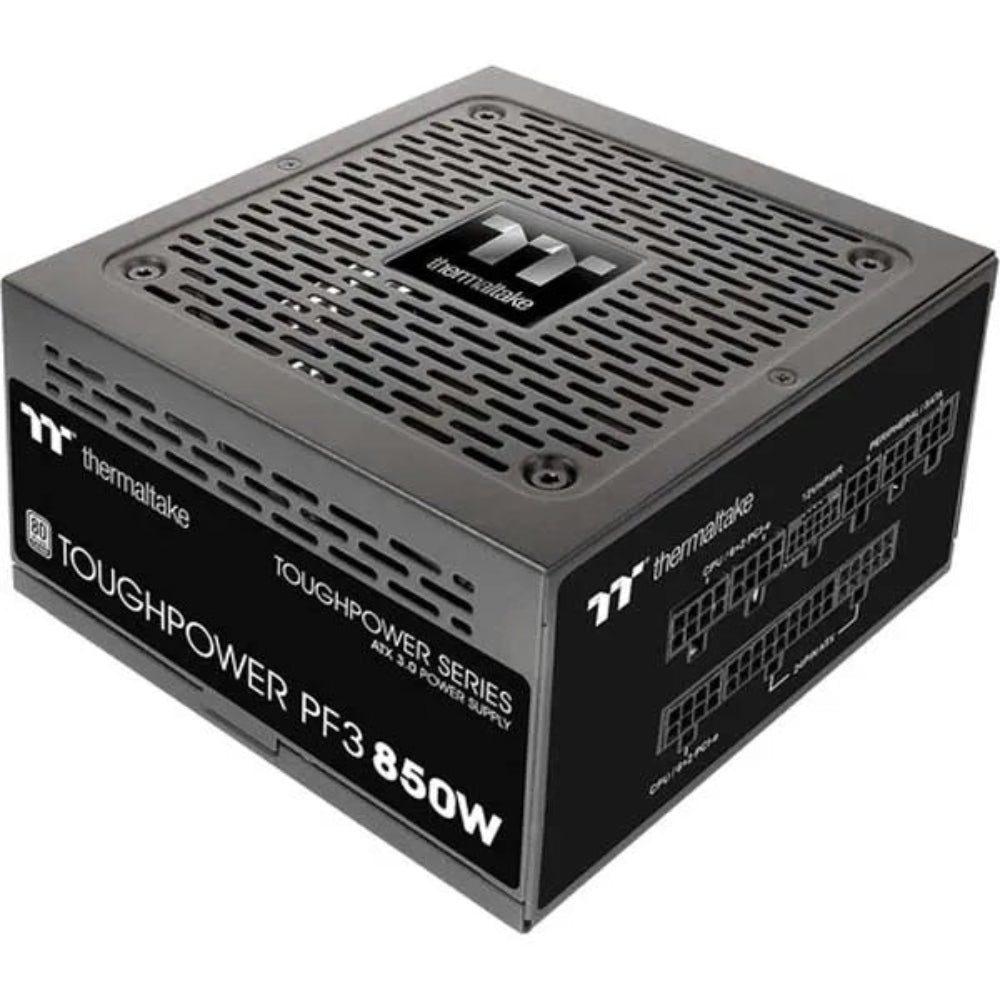

- THERMALTAKE Toughpower PF3 850W 80+ Platinum Fully Modular ATX 3.0 Power Supply ( 850W )
Description
Features of THERMALTAKE Toughpower PF3 850W 80+ Platinum Fully Modular ATX 3.0 Power Supply ( 850W )
Thermaltake Toughpower PF3 ATX 3.0 850W 80+ Platinum Full Modular SLI/Crossfire Ready Power Supply; PCIe 5.0 12VHPWR Connector Included; 10 Year Warranty; PS-TPD-0850FNFAPD-3
Keep your rig up and running with the Toughpower PF3 850W 80 PLUS Platinum Power Supply from Thermaltake. Featuring a standard ATX form factor and Intel ATX Version 3.0 compliance, this 850W PSU utilizes a single +12V rail and 120mm cooling fan. Furthermore, it boasts an 80 PLUS efficiency rating and delivers 60% low-load efficiency. The Thermaltake Toughpower PF3 850W 80 PLUS Platinum Power Supply has a mean time between failures (MTBF) of 100,000 hours, minimum.
Power Up the Next Generation Hardware
The Toughpower PF3 850W 80 PLUS Platinum Power Supply is designed to meet ATX 3.0 standards, and it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards.
The Smart PF3 is fully compatible with Intel ATX 3.0 specifications and it supports up to 200% power excursion, reaches 70% low load efficiency, and complies with required power supply timing standards.
PCIe Gen 5.0 Ready
The PSU comes with a 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.The wattage marked on the 12VHPWR’s connector is the recommended Intel wattage. The native 16-pin (12VHPWR) PCIe connector of the PF3 850W can deliver up to 450W for PCIe 5.0 graphics cards.
Complies with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards with different connection types.
Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling, and its Smart Zero fan will adjust the fan speed and minimizes undesired noise.
The powerful single +12V rail can properly deliver the power you need for the best compatibility.The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Industrial Grade Protection
To protect the hardware, the Smart BM3 is built with industry grade protections:
- OCP (Over Current Protection)
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
Semi Modular Flat Cable Design
Soft low-profile black cables make installation easy while powering the system at optimal voltages. It features the following connections:
- A main 24-pin connector
- Two 4+4-pin ATX 12V connectors
- Four 6+2-pin connectors
- One PCIe 12+4-pin 450W connector
- 12 SATA 5-pin connectors
- Four 4-pin peripheral connectors
- One FDD adapter
The build quality features low ripple noise that is lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure a stable operation and allow your performance-critical components to function reliably for longer.The PSU voltage regulation is tighter than Intel’s standard +5%,-7% for major rails and ±10% for -12V, and is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.
During a power interruption, your computer might shut down or reboot, so the PF3 series is designed to deliver at least 17ms at 100% workload, without system reboot or resetting.
80 Plus Platinum Certified + Intel C6/C7 States Ready
Its 80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.
Specification of THERMALTAKE Toughpower PF3 850W 80+ Platinum Fully Modular ATX 3.0 Power Supply ( 850W )
| Total Connectors | 1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design | Modular |
| PCIe Connector Distances | 23.6" / 600 mm |
| SATA Connector Distances | 19.7" / 500 mm 25.6" / 650 mm 31.5" / 800 mm 37.4" / 950 mm |
| Peripheral Connector Distances | 19.7" / 500 mm 25.6" / 650 mm 31.5" / 800 mm 37.4" / 950 mm |
| ATX Connector Distance | 25.6" / 650 mm |
| EPS Connector Distances | 23.6" / 600 mm |
| Total Wattage | 850 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 850 W |
| Max Load for +12 V | 70.8 A |
| Combined Power for +3.3/+5 V | 100 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Max Power for -12 V | 3.6 W |
| Max Load for -12 V | 0.3 A |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Efficiency Rating | 80 PLUS Platinum |
| Active Power Factor Correction | Yes |
| Fan Size | 120 mm |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Form Factor | ATX |
| Compliance | ATX 12 V v3.0 |
| Certifications | CB, FCC, ICES, cTUVus |
| Operating Conditions | 41 to 104°F / 5 to 40°C at 20 to 85% Humidity |
| Mean Time Between Failures (MTBF) | 100,000 Hours |
| Dimensions | 5.9 x 5.5 x 3.4" / 150 x 140 x 86 mm |
