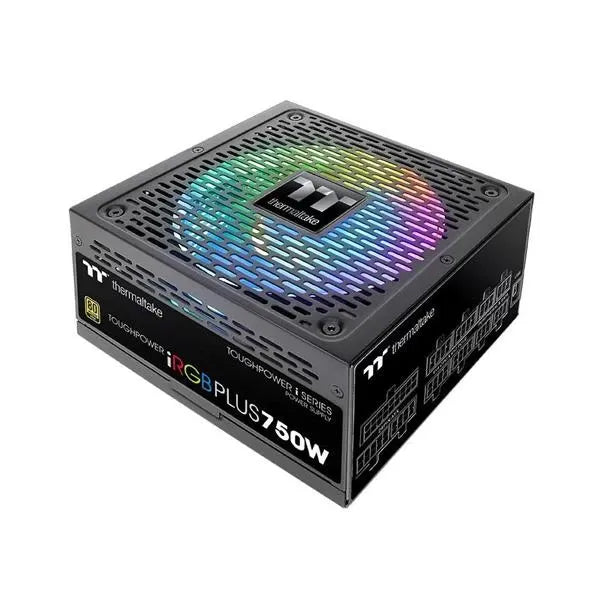

- THERMALTAKE ToughPower iRGB 80+ Gold Fully Modular Power Supply (750 W)
Description
Features of THERMALTAKE ToughPower iRGB (750 Watt)
THERMALTAKE Power Supply Gold Series (750W/850W/1000W) is the first lineup that packs the patented 16.8 million-color Ring Duo 14 RGB fan with 18 addressable LEDs preinstalled to provide various illumination options. Features premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C. The series supports Smart Power Management, so users get to digitally control the lighting and manage PSU/PC anywhere while stay green. They also work with TT RGB PLUS software, Amazon Alexa and Razer Chroma for countless customizable lighting possibilities.
Smart Power Management (SPM)
Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms – DPS G PC APP, DPS G Smart Power Management Cloud and DPS G Mobile APP – and compiles key statistics about your PSU/PC into detailed charts for your review and management. With easy access to SPM through your PC/mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!
DPS G Smart Power Management Cloud 1.0
The most powerful and easy-to-use monitoring tool that provides digital solution to your PSU/PC management together with PC
DPS G PC APP for Digital PSU
The new digital PSU solution DPS G PC APP enhances the Smart Power Management(SPM) platform. It allows users for a more comprehensive PSU/PC monitoring and control through an even more user-friendly interface to help you manage and reduce your power consumption.
DPS G Mobile APP 1.0
Smartly manage your PSU through your smart phone! Access the key parameters of PSU/PC and control your RGB LED fan lighting anytime, anywhere you want.
Real-Time PSU Status Monitoring
Enables users to digitally monitor the key parameters of the power supplies, including efficiency, wattage, voltage, ampere and temperature while using computer.
Real-Time CPU/RAM/Multi-VGA Status
Keep an eye on multiple key parameters in real-time simultaneously-
CPU: temperature/loading/fan speed/clock/wattage
Multiple VGA Graphics Cards: temperature/loading/fan speed/clock/wattage of each VGA Graphics Cards
RAM: Usage tracking
Hard Disk: Capacity of each hard disk
Warning Alert
The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.
Schedule Shutdown
Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.

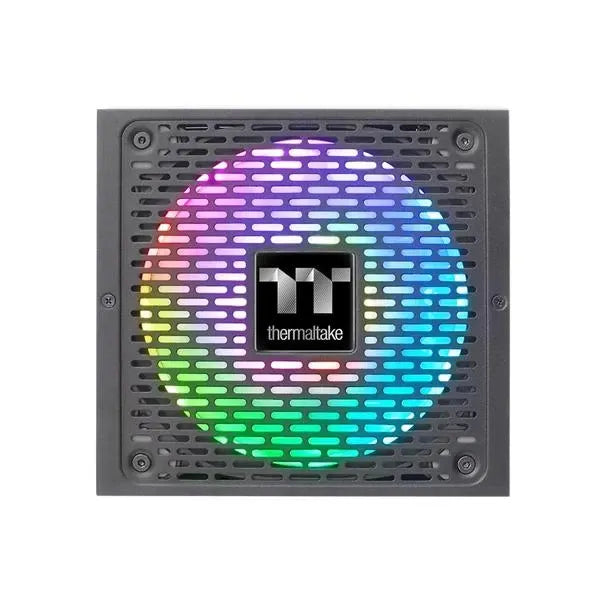

Built-in 16.8 Million Color Riing Duo 14 RGB Fan
The Riing Duo 14 RGB Fan features duo rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors. It supports DPS G PC/Mobile APP, TT RGB PLUS, Amazon Alexa and Razer Chroma for the ultimate synchronization experience.
< 30 mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure an excellent performance and a reliable operation.
Extremely Strict Voltage Regulation < ±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
100% High Quality Japanese 105°C/221°F Capacitors
Comes with high quality 105 °C (221 ° F) Japanese capacitors to help improve the durability and offer impressive stability.

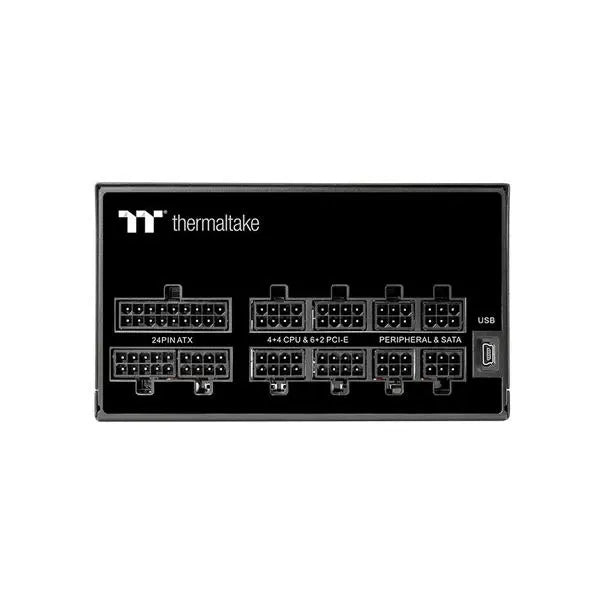

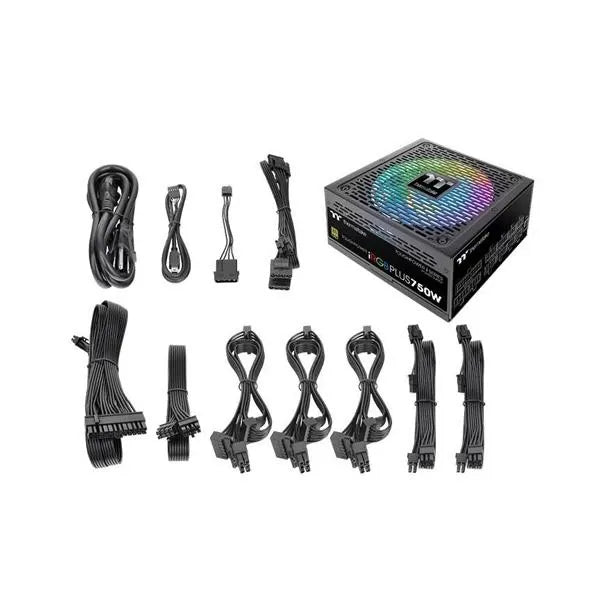

Fully Modular Cable Design
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. 750W Power Supply has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Smart Power Management Reports
Users can access the ECO report and the Energy Consumption Report to understand the detailed information about CO2 emission and energy consumption by comparing current data with the previous 3 months. Users could simply save the money by setting the goal of how much kWh they are going to consume within a specific period through Energy Saving Plan. Users could also decide whether to receive the notification via email and mobile app in order to successfully achieve the goal of saving more money and energy. In addition, Power Usage Behavior report can provide a comprehensive analysis for Smart Power Supply users. With the PSU’s conversion efficiency on the y-axis and power consumption on the x-axis, the report presents a complete overview of your electricity consumption behavior. In addition, the report can recommend suitable power supply wattages for optimum efficiency.
Get the best 80 Plus Gold smps for pc price from us today!
Specifications of THERMALTAKE ToughPower iRGB (750 Watt)
Watts | 750W |
RGB Fan | Yes |
Form Factor | ATX |
Model | TPI-750DH3FCG |
Type | ATX 12V v2.4 and EPS v2.92 |
Max. Output Capacity | 750W |
Peak Output Capacity | 900W |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | > 16msec at 100% of full load |
Input Current | 10A |
Input Frequency Range | 50Hz - 60Hz |
Input Voltage | 100V – 240V~ |
Operating Temperature | 0°C to + 50°C |
Operating Humidity | 20% to 90%,non-condensing |
Storage Temperature | -20°C to + 70°C |
Storage Humidity | 5% to 95%, non-condensing |
Cooling System | 14cm hydraulic bearing fan |
Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
MTBF | 120,000 hrs minimum |
Safety Approval | CE/cTUVus/TUV/FCC/EAC /S-Mark |
PCI-E 6+2pin | 4 |
Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
Color | Black |
Warranty | 10 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
