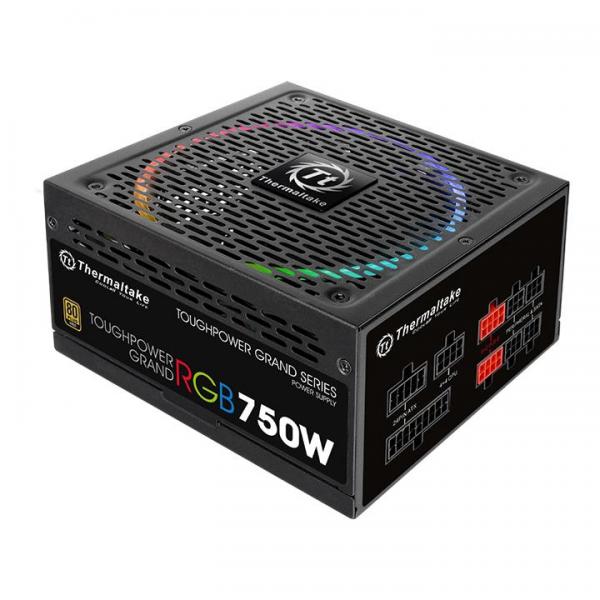

- THERMALTAKE ToughPower Grand RGB 750W 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features of THERMALTAKE ToughPower Grand RGB 750W
THERMALTAKE Toughpower Grand RGB 750W Power Supply is an 80 Plus Gold certified Power Supply from Thermaltake using high-quality capacitors and components. Thermaltake Toughpower Grand RGB 750W Gold Full Modular Power Supply has been pre-installed with the patented Riing TRIO 14 RGB Fan. The face-up placement of the fan inside the power supply unit enables it for providing better cooling. The Riing Trio RGB fan with the concentrated compression fan blades is made to create high static pressure. Hydraulic bearing enables silent operations and guarantees low noise while an anti-vibration mounting system strengthens the stability to function properly inside the chassis. Ultra Quiet Smart zero fan ensures low noise when the system operates below 20%. The fan starts operating when the load on the power supply increases and a switch has been provided for users who want to use it continuously.
The low ripple noise of the Thermaltake Toughpower Grand RGB 750W Gold Full Modular Power Supply ensures the users that the performance and critical components of the PC works smoothly and reliably longer. The 100% high-quality Japanese capacitors have been inside the Thermaltake Toughpower Grand RGB 750W Gold Full Modular Power Supply that greatly improves reliability and stability while improving the durability of the power supply unit. THERMALTAKE Power Supply provides the best aesthetics for all kinds of chassis along with the flat and fully modular cables to improve cable management and remove cable clutter. This, in turn, increases the airflow inside the cabinet making it look beautiful and vibrant.
One Button to Your Desired Color
By pressing the RGB lighting button, the fan color can be switched among a 256 Color RGB Cycle with variants including Solid Red, Green, Blue, White, and a LED Off mode. The fan is also constructed with a built-in memory function, saving the color applied and insuring the same color selection every time you boot your PC.
Power Supply Fan Face-Up Placement for Better Cooling
With the face-up placement of the fan, users can freely gaze upon their patented circular 256 multi-colored RGB fan and at the same time obtaining additional performance by using the fan as a additional exhaust mechanism, repelling unwanted heat from your chassis.
As the thermal image testing shown, the temperature of PSU and computer system will decrease around 3°C (5.4 °F) by placing PSU face-up.
Riing 14 RGB Fan with Concentrated Compression Fan Blade
Riing 14 RGB fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. Moreover, In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.
Ultra Quiet Smart Zero Fan
Smart Zero Fan ensures zero noise when the fan operates below 20% working load to minimize audible noise. The fan will operate when the power supply working load over 20%. A switch is provided for those who prefer the fan to spin constantly.
Get the best 80 Plus Gold smps for pc price from us today!
Specifications of THERMALTAKE ToughPower Grand RGB 750W
P/N | PS-TPG-0750FPCGEU-R |
Short P/N | TPG-0750F-R |
Type | ATX 12V v2.4 and EPS v2.92 |
Max. Output Capacity | 750W |
Peak Output Capacity | 900W |
Color | Black |
Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | > 16msec at 100% of full load |
Input current | 10A |
Input Frequency Range | 50Hz - 60Hz |
Input Voltage | 100V – 240V~ |
Operating Temperature | 0°C to 50°C |
Operating Humidity | 20% to 90%,non-condensing |
Storage Temperature | -40°C to 70°C |
Storage Humidity | 20% to 95%, non-condensing |
Cooling System | 14cm hydraulic bearing fan |
Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
MTBF | 120,000 hrs minimum |
Safety Approval | CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC |
Protection | OVP,SCP,OPP,UVP,OTP,OCP |
PCI-E Connector | 4 |
Warranty | 10 Years |
Note | ***Features, Price and specifications are subject to change without notice. |
