- THERMALTAKE Toughpower GF3 850W 80 + Gold Fully Modular ATX 2.0 Power Supply
Description
Features of THERMALTAKE Toughpower GF3 850W
The THERMALTAKE Toughpower GF3 850W is Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.
The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 850W can deliver up to 450W for PCIe 5.0 graphics cards.
Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections
PCIe Gen 5.0 Ready
Toughpower GF3 850W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.
Ultra Quiet Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
<30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation <±2%
The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

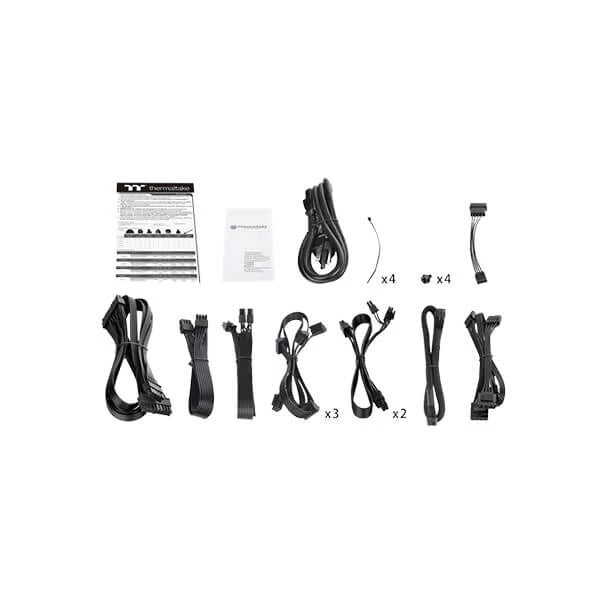

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
100% High Quality Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

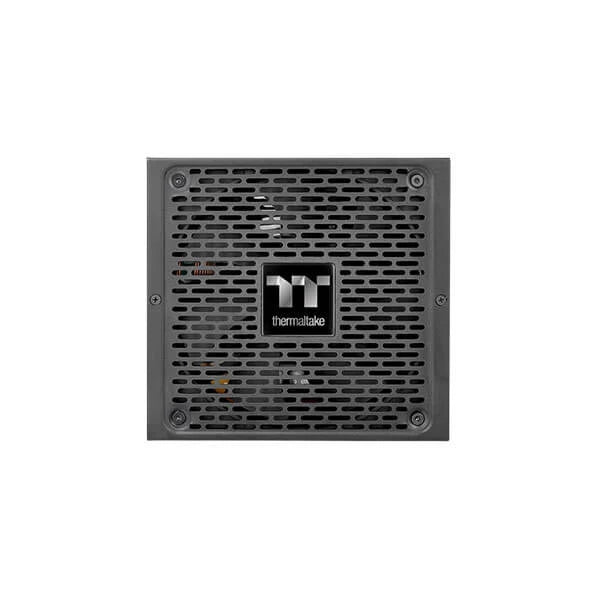

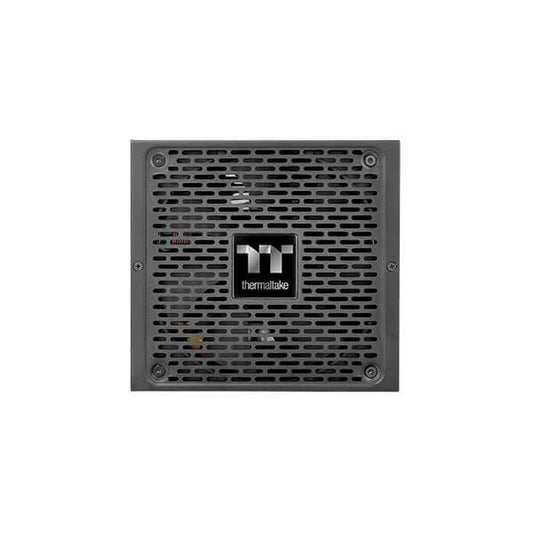

Fluid Dynamic Bearing fan
Featuring a 135mm fluid bearing fan to guarantee superior cooling performance.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving
CYBENETICS - EFFICIENCY LEVEL CERTIFICATION – GOLD
Toughpower GF3 850W is certified to CYBENETICS GOLD in 115V and 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥87% to <89% of 115V input and 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power.
Specifications of THERMALTAKE Toughpower GF3 850W
P/N | PS-TPD-0850FNFAGx-4 |
WATTS | 850W |
MODEL | TPD-0850AH3FCG |
MAX. OUTPUT CAPACITY | 850W |
WEIGHT | 1.63 KG |
COLOR | Black |
DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
PFC (POWER FACTOR CORRECTION) | Active PFC |
POWER GOOD SIGNAL | 100-150 msec |
HOLD UP TIME | > 17msec at 100% of full load |
INPUT CURRENT | 10.0A / 5.0A |
INPUT FREQUENCY RANGE | 50/60Hz |
INPUT VOLTAGE | 100V – 240V~ |
OPERATING TEMPERATURE | 0°C to + 40°C |
OPERATING HUMIDITY | 20% to 90%,non-condensing |
STORAGE TEMPERATURE | -20°C to + 70°C |
STORAGE HUMIDITY | 5% to 95%, non-condensing |
EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
COOLING SYSTEM | 13.5cm fluid bearing fan. |
MTBF | 100,000 hrs minimum |
SAFETY APPROVAL |
CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
|

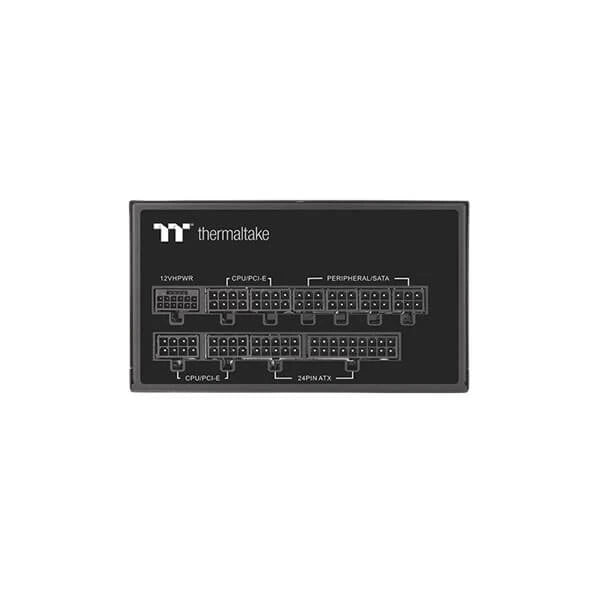

PCI-E 6+2PIN | PCIe 6+2Pin X 4 PCIe 12+4Pin X 1 |
Warranty | 10 Years |
Protection | OCP, OVP, UVP, OPP, SCP, OTP |
Note |
*** Features, Price, Specifications are subject to change without notice.
|
