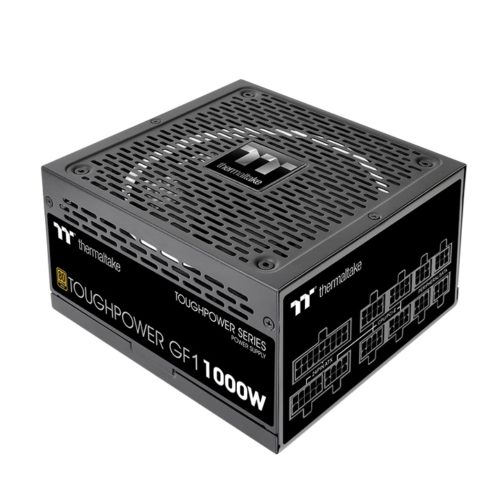

- THERMALTAKE ToughPower GF1 TT Premium Edition 1000W 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features of THERMALTAKE ToughPower GF1 TT Premium Edition 1000W
The fully modular THERMALTAKE Toughpower GF1 series now comes in 1000W Power Supply and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 1000W Gold is able to satisfy the market where PC enthusiasts are looking for a premium power supply with all the latest features.
- Durable Chassis
- Modular Cable Management
- Anti-Vibration Mounting System
- Side Ventilation Design
- Concentrated Compression Fan Blade
- DC to DC Design
- Zero Cable Platform
- 100% High Quality Japanese 105°C / 221°F Capacitors
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

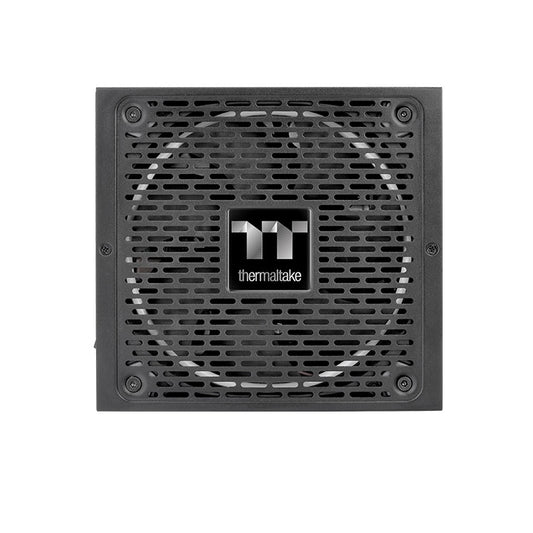

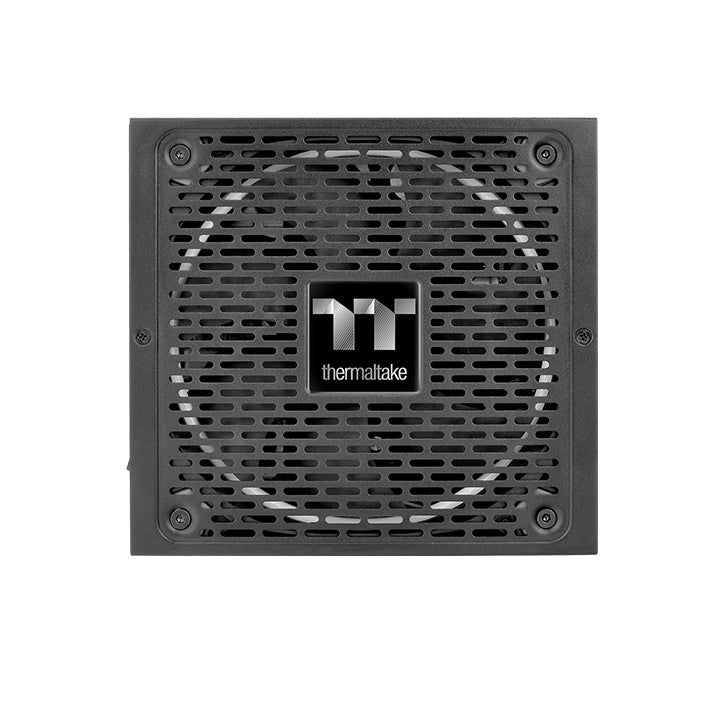

Ultra Quiet 140mm Hydraulic Bearing Fan
THERMALTAKE Power Supply comes with 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

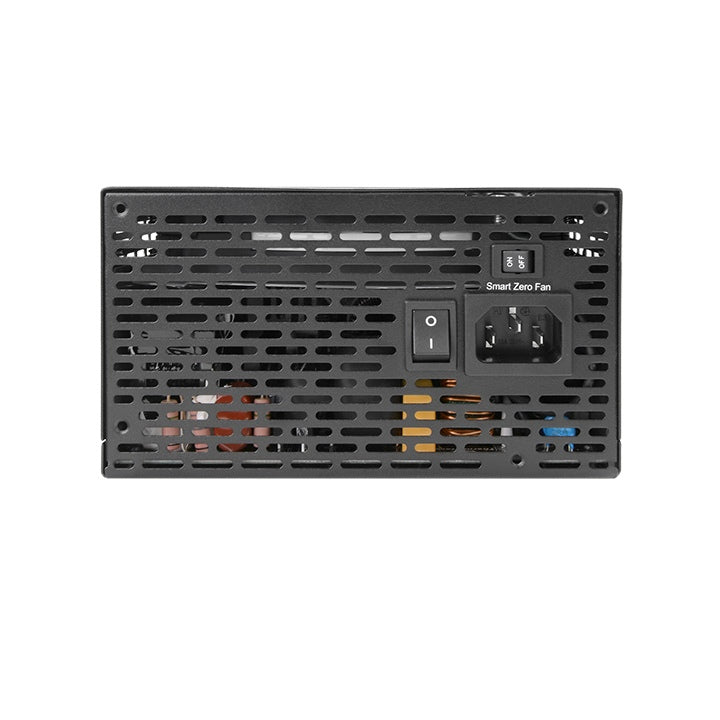

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

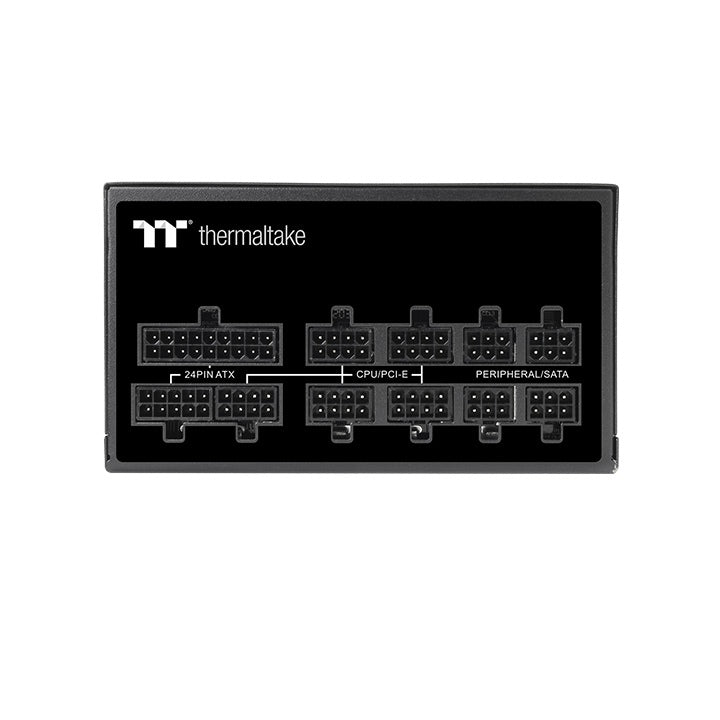

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Get the best 80 Plus Gold smps for pc price from us today!
Specifications of THERMALTAKE ToughPower GF1 TT Premium Edition 1000W
| P/N | PS-TPD-1000FNFAGx-1 |
| Watts | 1000 Watts |
| Form Factor | ATX |
| Model | TTP-1000AH3FCG |
| Max Output Capacity | 1000W |
| Peak Output Capacity | 1200W |
| Color | Black |
| Dimension (W/H/D) | 150mm(W) x 86mm(H) x 160mm(D) |
| Weight | 1.8KG |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 15A Max |
| Input Frequency Range | 50Hz /60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV/FCC/BSMI/EAC |
| PCI-E 6+2PIN | 6 |
| Protection | OCP, OVP, OPP, SCP, OTP |
| Warranty | 5 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
