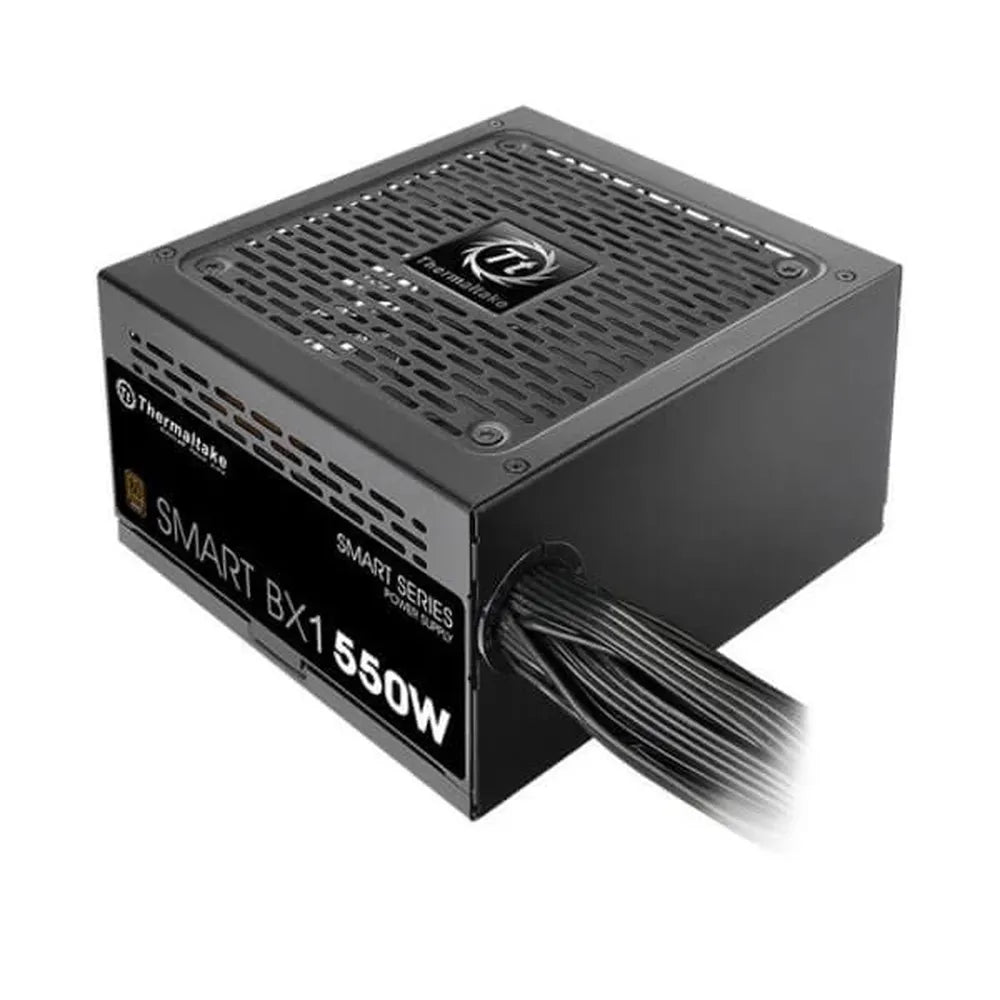

- Thermaltake Smart BX1 550 Watt 80 Plus Bronze SMPS PSU
Description
Features:
Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

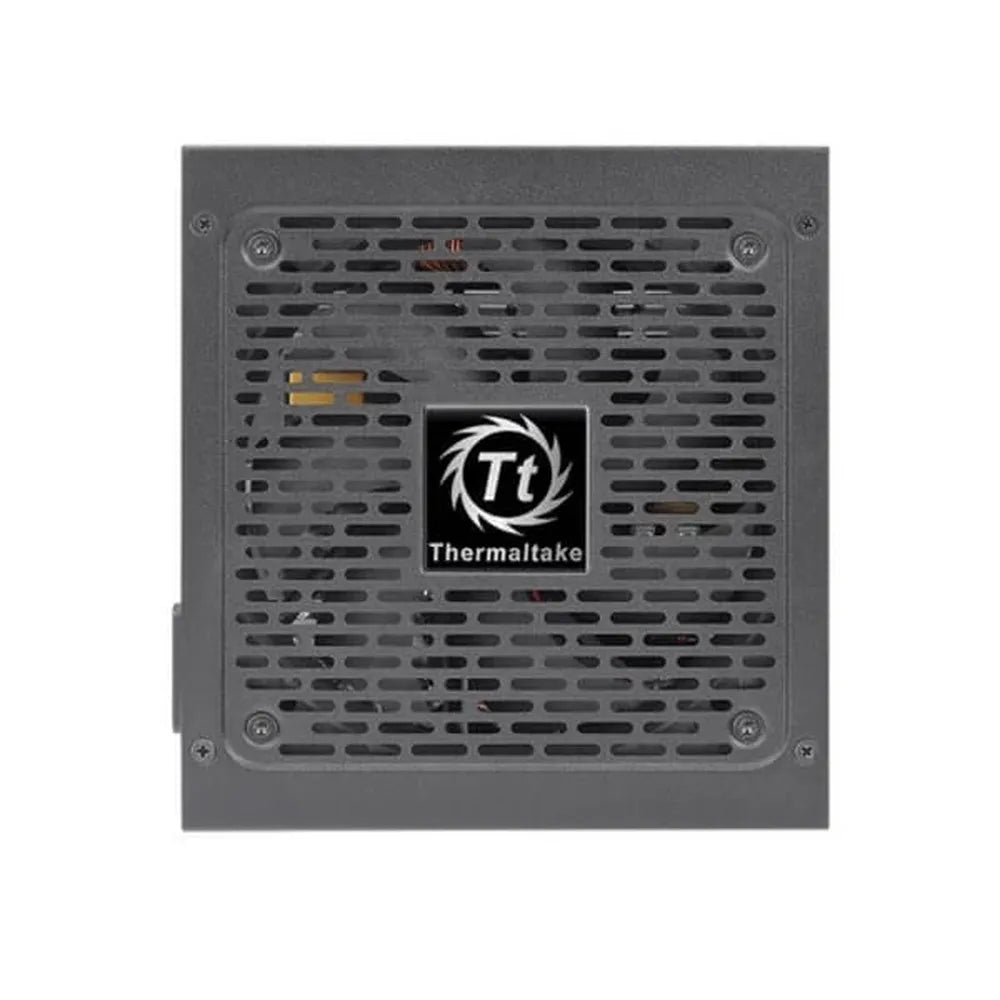

Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
Low Ripple Noise
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Specifications:
| Model | Smart BX1 550W |
| P/N | PS-SPD-0550NNSABD-1 |
| watts | 550W |
| RGB Fan | No |
| Form Factor | ATX |
| Model | SPD-550AH2NKB |
| Type | ATX 12V v2.3 and EPS v2.92 |
| Max. Output Capacity | 550W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 70% of full load |
| Input Current | 10A max. |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 5°C to + 40°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV/ UL/ FCC/ BSMI |
| PCI-E 6+2pin | 2 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
