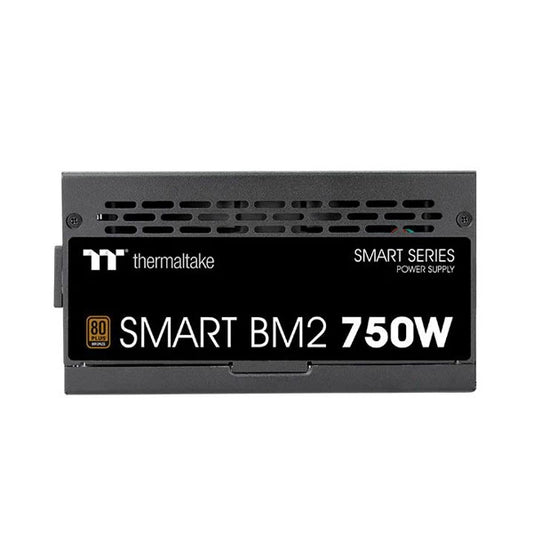

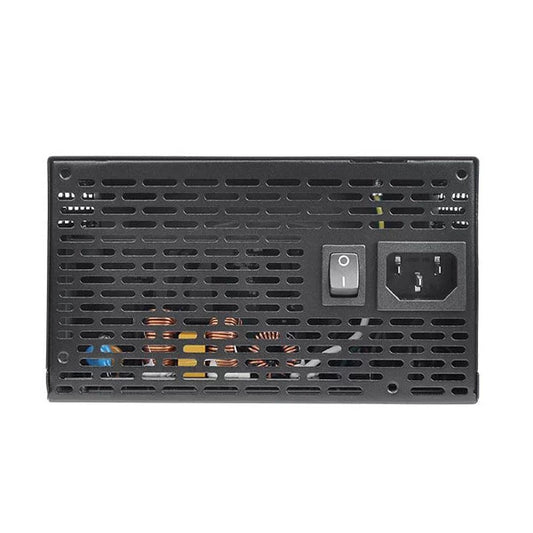

THERMALTAKE Smart BM2 750 Premium Edition 750W 80+ Bronze Non Modular ATX 2.0 Power Supply

Features of THERMALTAKE Smart BM2 750

THERMALTAKE Smart BM2 750W Premium Edition 80 Plus Bronze SMPS With Active PFC, Features a Semi Modular Design, 140mm Cooling Fan, Japanese Capacitors, and a High 12V Power Supply Rail.

80 PLUS Bronze certified semi modular PSU with Rifle Bearing fan.

Built to deliver 80 PLUS Bronze efficiency with up to 85% of it, the Smart BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle bearing fan, Japanese main capacitors and other premium components, the Smart BM2 750W delivers a continuous and stable power output at 40℃, allowing near silent operation and reliable performance. With an ample 5-year warranty, the Smart BM2 750W is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

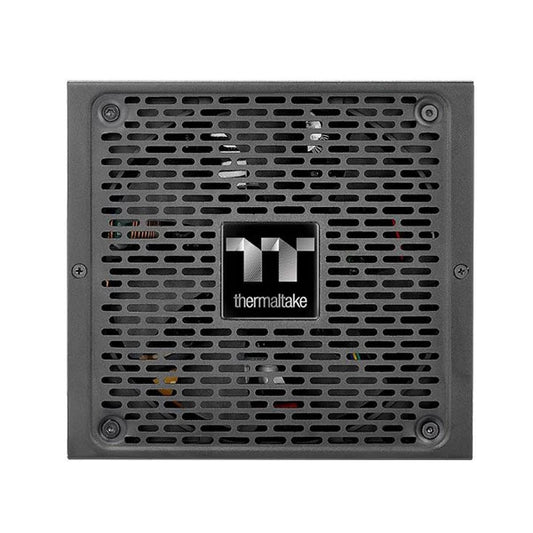

Ultra Quiet 140mm Rifle Bearing Fan

The Smart BM2 750W adopts s 140mm silent Rifle Bearing fan with intelligent preset RPM control guarantying cooling performance and silent operation.

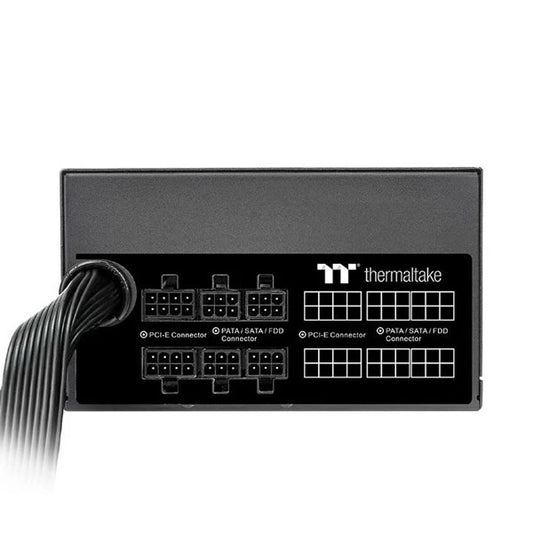

Semi Modular Flat Cable Design

Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Main Power Connector (24pin)

24pin Main connector (600mm) x 1

ATX 12V (4+4pin)

ATX 12V 8pin connector (600mm) x 1
4+4pin connector (150mm) x 1

SATA (5pin)

SATA connectors (500mm + 150mm + 150mm) x 3
SATA connectors (500mm + 150mm + 150mm) x 3
SATA connectors (500mm + 150mm + 150mm) x 3

PCI-E (6+2pin)

PCI-E 6+2pin connectors (500mm + 150mm) x 2
PCI-E 6+2pin connectors (500mm + 150mm) x 2

Peripheral

Peripheral connectors (500mm + 150mm + 150mm+ 150mm) x 4

Floppy Adapter

Peripheral to FDD adapter cable (150mm) x 1

Japanese Main Capacitor

High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Smart BM2 750W to have highest stability and reliability.

DC to DC for Stable Output Voltage

With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Bronze Certified and Intel C6/C7 States Ready

Smart BM2 650W saves energy through its high energy efficiency up to 85%. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.

Specifications of THERMALTAKE Smart BM2 750
