Description
Features of THERMALTAKE S300 (Snow)

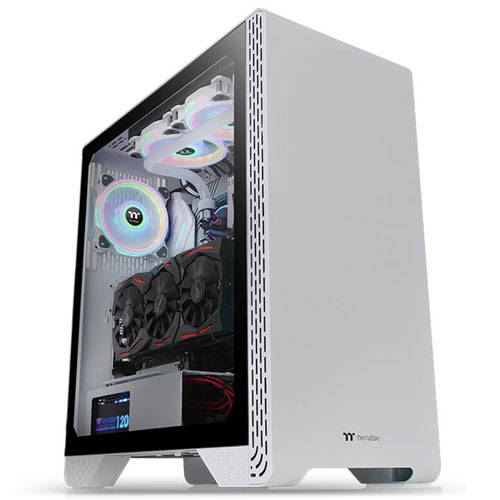

The THERMALTAKE S300 Tempered Glass Snow Edition is the perfect case for those who want a low-profile, yet stylish PC cabinet. The Thermaltake S300 Tempered Glass Snow Edition, in particular, is a great choice for those who want a minimalistic white-themed PC build. This case combines style, with sophistication, and ticks all the right boxes. The S300 is made out of steel, so durability is not a concern with it at all. The Thermaltake S300 is a part of the TT Premium series and is also Tt LCS certified. Features and quality are all absolutely top-notch with this cabinet.
A 4mm thick tempered glass that is scratch-resistant and allows you to get a clear view of all the hardware inside the cabinet. It also comes with a PSU cover that hides all the messy cables of the PSU and has ample vents for improved airflow. In terms of space, there is a lot of that inside the Thermaltake S300 Tempered Glass Edition. It can hold upto 360mm of radiator, 7x 120mm fans. Cooler with a height of upto 170mm, and a graphics card with a length of upto 360mm can also fit inside the Thermaltake S300 Tempered Glass Snow Edition Mid-Tower Chassis.
Thermaltake Cabinet S300 Tempered Glass Edition mid-tower chassis combines sophistication and elegance and is built with modern steel construction. Like the S500 TG, the S300 TG is designed to be compact and is manufactured with one tempered glass window on the left for a stunning view and one preinstalled 120mm standard fan at the rear for fundamental ventilation. Furthermore, it incorporates a full modular design, vertical radiator & GPU mount, Patented Rotational PCI-E slots, and the support for 200mm fans. The flexibility is limitless for high-end components. The S300 TG Mid Tower ATX Cabinet is a great fit for users who are looking for a modern and stylish chassis.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Compact and Elegant Design
Full metal construction with sleek front panel design, the S300 TG Mid Tower Chassis showcases its simply and elegant design.
Built-in PSU Cover and Riser GPU Bracket
The built-in PSU cover with a ventilated design can improve airflow and hide those unsightly cables. The integrated riser GPU support bracket not only prevents the graphic card from sagging, but helps reduce the weight on the motherboard PCI-E slots.
Patented Rotational PCI-E 7 Slot Design
With Patented Rotational PCI-E slots, you can choose to display your graphics cards vertically which helps you gain flexible space for your system.
Tempered Glass Window
The 4mm tempered glass window on the side of the S300 TG is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
Dust Reduction
Two magnetic super fine fan filters with excellent protection and reduction against dirt on the top and the right side and another removable filter at the bottom.
Superior Hardware and Liquid Cooling Support
S300 TG pc cabinet has excellent expandability. It can support a CPU cooler with a maximum height of 170mm, dual VGA expansion slot of up to 360mm in length without a reservoir, and a power supply with a length of up to 200mm. Optimized for excellent cooling capability with one 120mm exhaust rear fan preinstalled, S300 TG is able to house up to three 140mm or two 200mm front fans, up to three 120mm fans on top, and a radiator of up to 360mm at the front to allow users to build their desired high-end Technical details
Handy I/O Ports
One 3.0 USB and two 2.0 USB ports on the top-front panel to grant direct access when needed.
Specifications of THERMALTAKE S300 (Snow)
P/N | CA-1P5-00M6WN-00 |
Series | S Series |
Model | S300 TG |
CASE TYPE | Middle Tower |
Dimension (H x W x D)
|
493 x 230 x 508 mm |
(19.4 x 9.05 x 20 inch) | |
Net Weight | 11.05 kg / 24.36 lbs. |
SIDE PANEL | 4mm Tempered Glass x 1 |
Color | Exterior & Interior : Black |
MATERIAL | SPCC |
COOLING SYSTEM
|
Rear (exhaust) : |
120 x 120 x 25 mm fan | |
(1000rpm, 16 dBA) | |
Drive Bays | |
-Accessible | 2 x 3.5“ or 2.5” (HDD Rack); 2 x 3.5“(Without HDD Rack); |
-Hidden | 2 x 2.5” (HDD Bracket) |
EXPANSION SLOTS | 7 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT
|
Front: |
3 x 120mm, 3 x 140mm, 2 x 200mm | |
Top: | |
3 x 120mm, 2 x 140mm, 1 x 200mm | |
Rear: | |
1 x 120mm, 1 x 140mm | |
RADIATOR SUPPORT
|
Front: |
1x 280mm, 1 x 360mm | |
Top: | |
1 x 240mm, 1x 280mm | |
Rear: | |
1 x 120mm, 1 x 140mm | |
Right: | |
1 x 360mm, (Without HDD Rack); | |
CLEARANCE
|
CPU cooler height limitation: 170mm |
PSU length limitation: 200mm | |
VGA length limitation: 280mm(With reservoir) | |
360mm(Without reservoir) |
