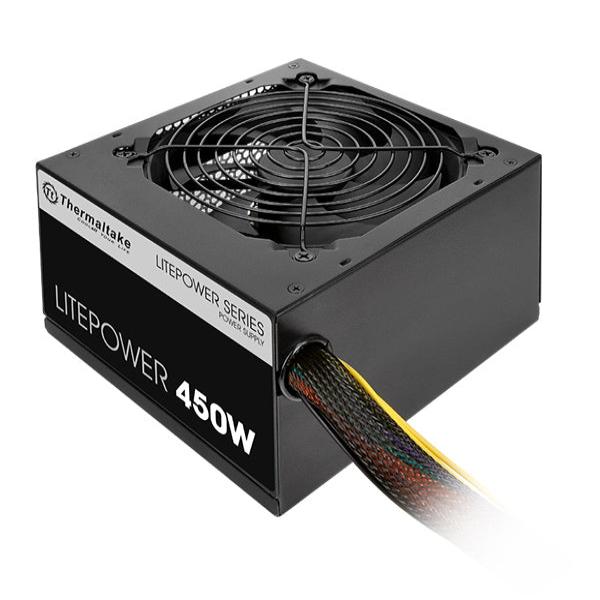

- THERMALTAKE Litepower 450W Non Modular ATX 2.0 Power Supply
Description
Features of THERMALTAKE Litepower 450W Non Modular ATX 2.0
THERMALTAKE Litepower 450W Power Supply is a Series that comes with various power supply which are 350W to 650W Power Supply.
Thermaltake Power Supply has new 120mm cooling fan which saves energy up to 80% and gives an excellent airflow. It is embedded with an intelligent cooling fan that delivers an excellent flow of air at a very low exceptional noise level.
Users have an advantage with the cables as they are at optimal location which prevents the airflow blockage. This extra-long EPS/ ATX 12V 4+4 pin CPU cable is 550mm and has a sufficient length to the build especially in the full – tower chassis. Cable management is made easy with the sleeved 24-pin. This reduces the clutter and increases the airflow.
The litepower has high quality components which enables a non-stop usage and is stable and reliable. This is equipped with powerful +12V rails which give a superior performance in all types of system loading.
It comes with a switchable PSU and the input voltage is 110V / 220V and Input current is 8A Max with 50 Hz – 60 Hz of frequency. For the safety approvals it come with S-mark, RCM, BSMI certified and more.
It is leakage free as well as explosion free. It weighs only 300g and has 2 years of manufacturer warranty.
It is compatible with NVIDIA and ATI/ AMD graphic cards. Dimensions are as follows – 150 mm x 85.1 mm x 141 mm width, height and depth simultaneously with a high reliability – MTBF > 100,000 hours.
- Complies with latest ATX 12V V2.3 Standard for utmost reliability and compatibility
- High current & single 12V rail.
- Ultra-quiet 120mm cooling fan delivers excellent airflow.
- Intel & AMD CPU compliant.
- Nvidia & ATI/AMD graphic card compatible.
- Dimension (W/H/D): 150mm x 85.1mm x 141mm.
- High reliability: MTBF>100,000 hours.
- Built-in industry grade protections: Over Current, Over Voltage, Over Power and Short-Circuit protection
- Safety / EMI Approvals: TUV, CE, GOST

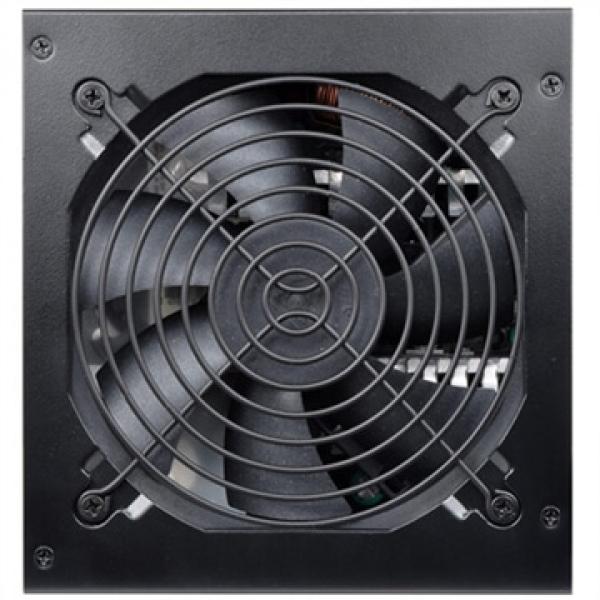

Ultra Quiet Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

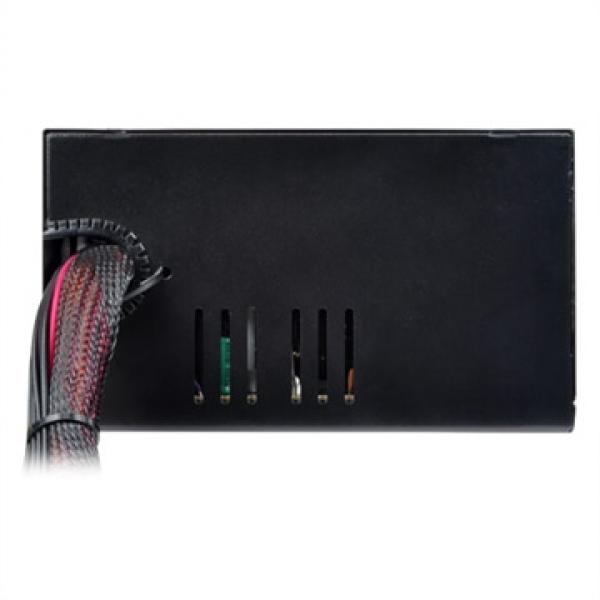

Cables with High Flexibility
Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (550mm) guarantees sufficient lengths of cables to the build, especially full-tower chassis. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage
Massive and Dedicated +12V Output
Litepower smps for pc is equipped with powerful +12V rails, superior performance under all types of system loading.
Specifications of THERMALTAKE Litepower 450W Non Modular ATX 2.0
| P/N | W0423 |
| Type | ATX 12V 2.3 |
| Max. Output Capacity | 450W |
| Color | Black |
| Dimension | 150mm x 85.1mm x 141mm |
| PFC （Power Factor Correction） | W/O PFC |
| Power Good Signal | “Power Good” signal rise time is within 1ms. |
| Hold Up Time | 16msec (minimum) at 80% of Max. load at 115/230 Vac input. |
| Input current | 230Vac/4Amax |
| Input Frequency Range | 60Hz / 50Hz |
| Input Voltage | Only 230V |
| Operating Temperature | 10°C to 40°C |
| Operating Humidity | To 85% relative humidity |
| Storage Temperature | -20°C to 70°C |
| Storage Humidity | To 95% relative humidity |
| Cooling System | 120mm Fan: 50%0-1900 RPM |
| Efficiency | 70% typical at nominal line, maximum load. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | TUV, CE, Gost |
| PCI-E adaptor cable | PCI-E 6 PIN (x1) |
| Warranty | 5 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
