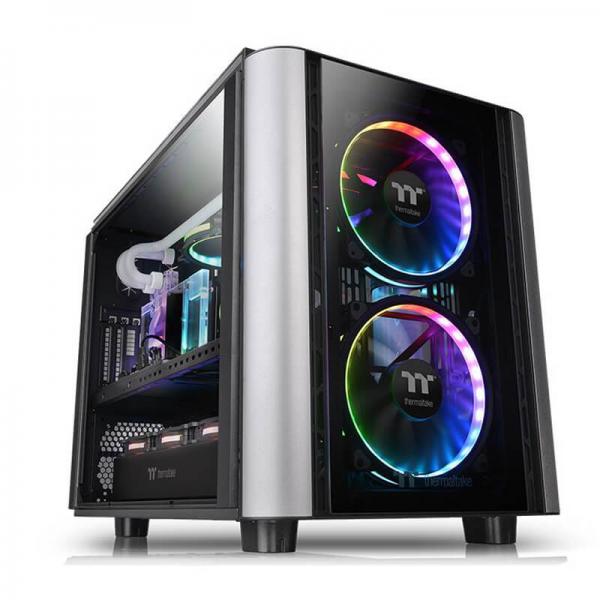

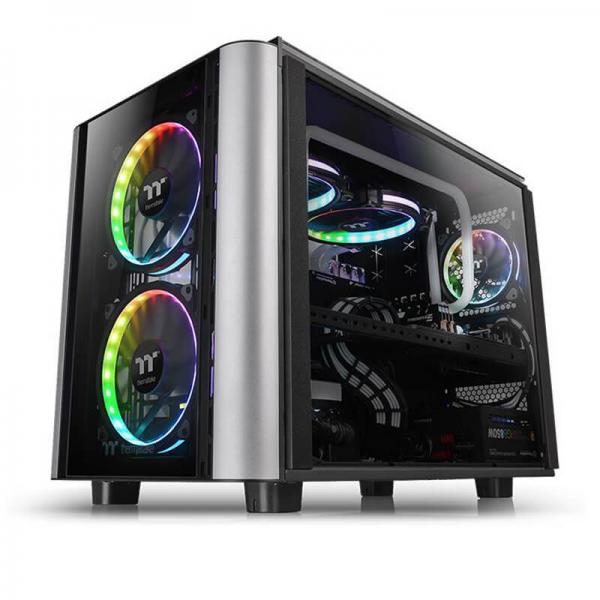

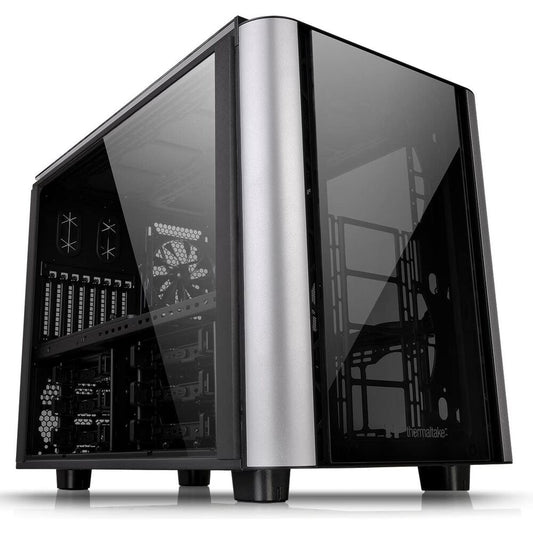

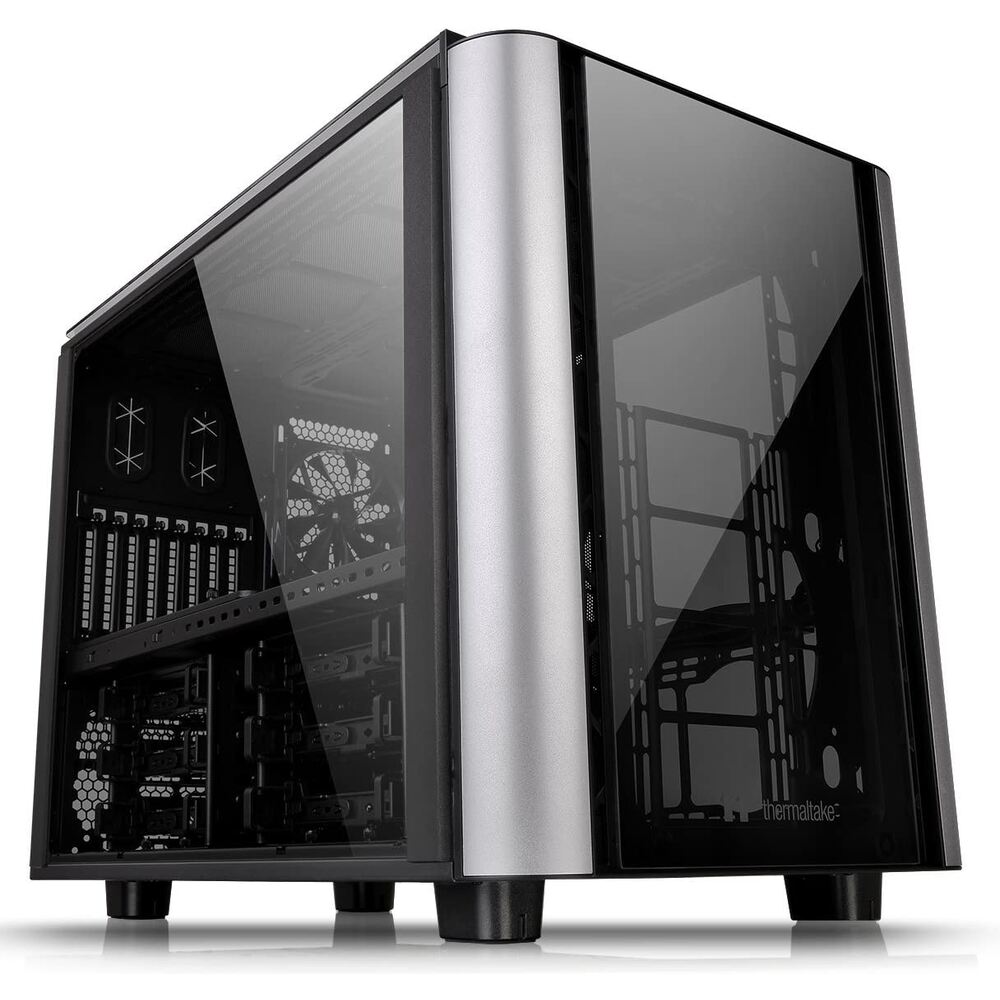

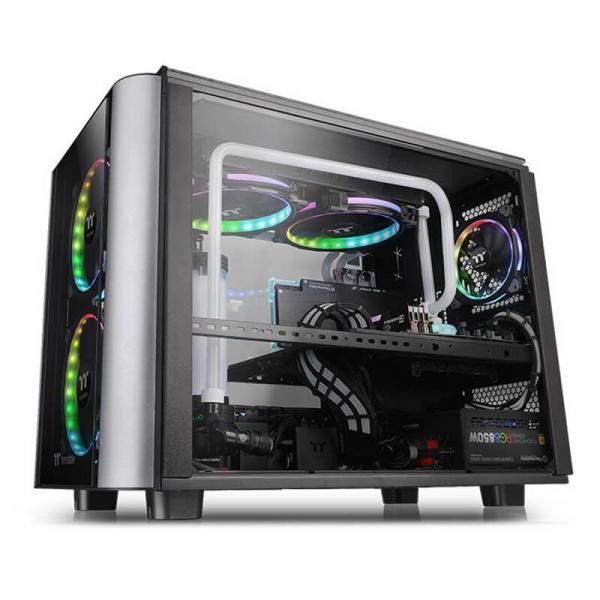

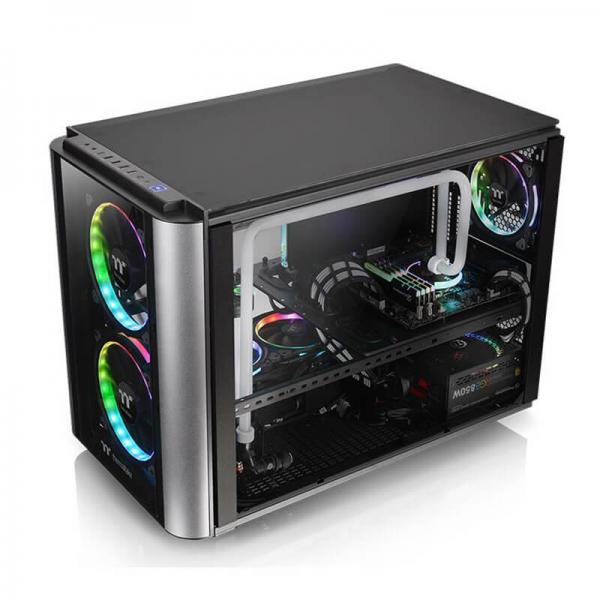

- THERMALTAKE Level 20 XT EATX Full Tower Cabinet (Black)
Description
Features of THERMALTAKE Level 20 XT
THERMALTAKE LEVEL 20 XT is an EATX Cabinet This cube chassis comes from the level 20 family and is a TT premium cabinet with 4mm thick tempered glass side panels. The THERMALTAKE LEVEL 20 XT CABINET was specially designed to show off the custom-designed liquid cooling systems of professionals and enthusiasts. The unique flat motherboard tray of the Thermaltake Level 20 XT put the components on display from any angle. The chamber style design cooling, PSU, and hardware components into the upper and lower sections. Superior hardware and liquid cooling can be done with the Thermaltake Level 20 XT. Thermaltake Level 20 XT has the support for E-ATX motherboards, higher length CPU coolers with up to 250mm in height, longer and powerful GPU lengths up to 400mm and PSU sizes up to 220mm in length.
Thermaltake Cabinet Level 20 XT also supports 480mm radiators with mounting positions on the top panel, front panel, or either side of the lower chamber. Thermaltake Level 20 XT features advanced ventilation with 140mm fans in the rear portion, Level 20 XT enables the user to build a complete high-end system with ample space for system airflow. The side I/O ports of the Thermaltake Level 20 XT pc cabinet supports speedy transmission with two USB 3.0 and a USB Type-C port. The DMD or Dismantlable Modular Design gives the user access to strip down the case to bones and install elements of the Thermaltake Level 20 XT. The Thermaltake Level 20 GT features modular panels, racks, brackets, and pre-designed mounting arrays and made Installation easy with the help of Dismantlable Modular Design.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Chamber Design

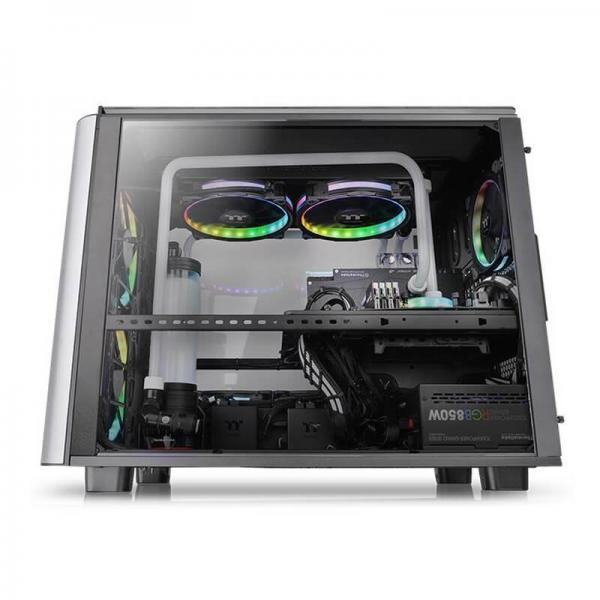

The Level 20 XT carries over the innovations of some of our earlier cube case designs by splitting the chassis into two chambers. The chamber houses the motherboard tray GPU and other PCI-E cards, while the lower chamber houses the power supply, storage devices and cooling elements.
Superior Hardware and Liquid Cooling Support
Level 20 XT supports up to E-ATX motherboards, CPU coolers up to 250mm in height, VGA lengths up to 400mm and PSU sizes up to 220mm in length. The XT also supports up to 480mm radiators, with mounting positions along the top, the front, or along either side in the lower chamber.
Four 4mm Tempered Glass Panels
The front, top and side panels are all built from our ultra-durable 4mm tempered glass. This means the panels are more resistant to dust and scratches than acrylic and provide a clearer view of internal components.
Advanced Ventilation
Level 20 XT is preinstalled with one 140mm rear fan. Level 20 XT enables users to build a complete high-end system with ample room for up to two front 200mm fans and is fully compatible with 480mm, 360mm, 280mm, 240mm, 140mm and 120mm radiators. Removable top magnetic fan filter, front fan filter, and bottom filter provide excellent reduction against dust, and better airflow.
Speedy Transmission (USB Type-C™ & USB 3.0)
The side I/O ports features two USB 3.0, two USB2.0 and one Type-C port, to grant users easy access for speedy transmission.
DMD: Dismantlable Modular Design
Strip your case down to the bones and install elements when and as you need them with our modular design. The level 20 GT features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Specifications of THERMALTAKE Level 20 XT
Model | Level 20 XT |
P/N | CA-1L1-00F1WN-00 |
Case Type | E-ATX Cube Case |
Dimension (H x W x D) | 515 x 394 x 662 mm(20.3 x 15.5 x 26.06 inch) |
Net Weight | 20.4 kg / 44.97 lb |
Side Panel | 4mm Tempered Glass x 4(Left & Right & Front & Top) |
Color | Exterior & Interior : Black |
Material | SPCC |
Cooling System | Rear (exhaust) :140 x 140 x 25 mm fan (1000rpm, 16dBA) |
Drive Bays-Accessible-Hidden | 6 x 3.5’’ or 2.5’’ (HDD Cage)1 x 3.5’’, 2 x 2.5’’ (M/B Tray) |
Expansion Slots | 8 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
I/O Port | USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1 |
PSU | Standard PS2 PSU (optional) |
Fan Support |
Front:3 x 120mm, 2 x 140mm, 2 x 200mm Top:8 x 120mm, 6 x 140mm, 2 x 200mm Rear:2 x 120mm or 2 x 140mm Bottom:3 x 120mm Left / Right Side:4 x 120mm, 3 x 140mm |
Radiator Support |
Front:1 x 120mm or 1 x 240mm or 1 x 360mm1 x 140mm or 1 x 280mm Top:2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm2 x 140mm or 2 x 280mm or 2 x 420mm Rear:1 x 120mm or or 1 x 140mm Left / Right Side:1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm1 x 140mm or 1 x 280mm or 1 x 420mm Bottom:1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm1 x 140mm or 1 x 280mm or 1 x 420mm |
Clearance | CPU cooler height limitation:250mmVGA length limitation:400mm(with ODD cage)590mm(without ODD cage)PSU length limitation:220mm (With Bottom Fan) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
