- THERMALTAKE Level 20 VT MATX Mini Tower Cabinet (Black)
Description
Features of THERMALTAKE Level 20 VT MATX Mini Tower Cabinet (Black)
THERMALTAKE LEVEL 20 VT that comes with tempered glass panels and one pre-installed 200mm fan. The LEVEL 20 VT is a micro chassis from the Level 20 series product line up which commemorates 20 years of Thermaltake’s dedication to the PC industry. The Thermaltake Level 20 VT boasts of a 200mm fan that comes pre-installed along with interchangeable tempered glass side panels and filters. The TT Premium and TT LCS certification show that the Thermaltake Level 20 VT is an enthusiast-level case with premium performance and the best cooling capability. Thermaltake Level 20 VT focuses on the big possibilities inside a smaller footprint. The level 20 VT has the 2 tier chamber design which supports M-ATX motherboards and PCIe components on one level with the other level houses the drives bays and PSU.
This makes the Thermaltake Level 20 VT more flexible to house larger components in the smaller form factor without running into space issues. The 4 sides tempered glass panel ensures that the case is more durable and scratch-resistant while providing an internal view of the components being used there. The advanced ventilation of the Thermaltake Level 20 VT provides ample airflow without compromising performance. The 200mm that comes pre-installed provides a greater amount of airflow for its bigger circumference and area. The I/O ports of the Thermaltake Level 20 VT includes two USB 3.0 ports and two USB 2.0 port that grants access to the user for speed transmission of data.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high-performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Big Possibilities, Small Footprint
The Level 20 VT is all about big things coming in small packages. The VT supports M-ATX motherboards, as well as CPU coolers up to 185mm in height, VGA lengths up to 350mm and PSU sizes up to 200mm in length. It also supports up to two 240mm radiators side-by-side in the top panel, or one 280mm at the top or along the side. Meaning you can fit plenty of top-end hardware in this little case.
Chamber Design
The Level 20 VT is optimized for space management. It’s divided into two main chambers: the upper chamber is made to house the motherboard and PCI-E components, while the lower one is made for the PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to fit larger components or build a custom liquid cooling loop.
Four 4mm Tempered Glass Panels
The front, top and side panels are all built from our ultra-durable 4mm tempered glass. This means the panels are more resistant to dust and scratches than acrylic and provide a clearer view of internal components.
Advanced Ventilation

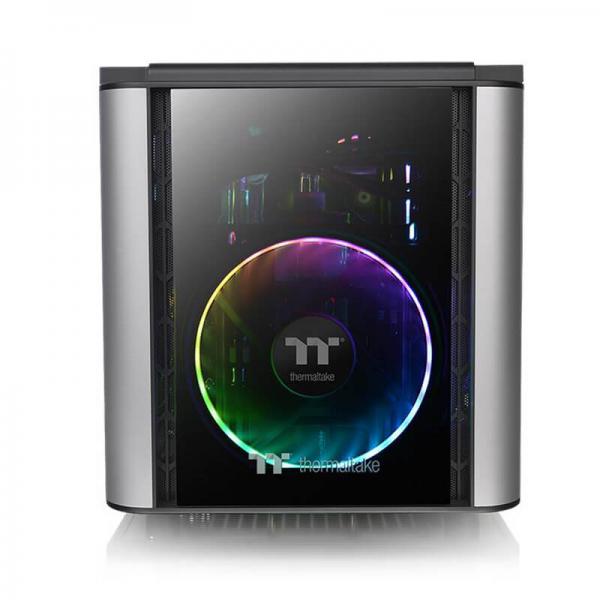

The Level 20 VT comes preinstalled with one 200mm front fan and boasts space for up to two front 140mm fans, one 140mm rear fan and two 140mm fans on the top. If you’re building a liquid cooling system, it can also handle 280mm, 240mm, 140mm and 120mm radiators.
Intake areas are also protected by removable dust filters, installed in the front, top and bottom of the case to shield your hardware from particles in the air.
Speedy Transmission

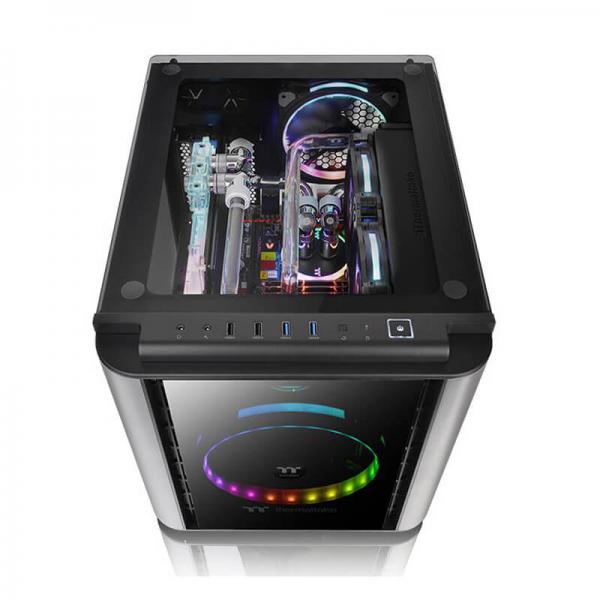

The side I/O ports features two USB 3.0 and two USB 2.0 to grant users easy access for speedy transmission.
Specifications of THERMALTAKE Level 20 VT MATX Mini Tower Cabinet (Black)
| Model | Level 20 VT |
| P/N | CA-1L2-00S1WN-00 |
| Case Type | Micro Case |
| Dimension (H x W x D) |
348 x 330 x 430 mm (13.7 x 13 x 16.9 inch) |
| Net Weight | 8.66 kg / 19.09 lb |
| Side Panel | 4mm Tempered Glass x 4(Left & Right & Front & Top) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System |
Rear (exhaust) : 200 x 200 x 30 mm fan (800rpm, 13dBA) |
|
Drive Bays -Accessible -Hidden |
3.5’’ or 2.5” x 3 , 2.5’’ x 3 |
| Expansion Slots | 5 |
| Motherboards | 6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX) |
| I/O Port | USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Front:2 x 120mm, 2 x 140mm, 1 x 200mm Top:4 x 120mm, 2 x 140mm Rear:1 x 120mm, 1 x 140mm Bottom:2 x 120mm |
| Radiator Support |
Front:1 x 240mm, 1 x 140mm, 1 x 180mm(200mm series) Top:2 x 240mm, 1 x 280mm, 1 x 180mm(200mm series) Rear:1 x 120mm |
| Clearance |
CPU cooler height limitation: 185mm VGA length limitation: 350mm PSU length limitation: 200mm (With Bottom Fan) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
