Description
Features:

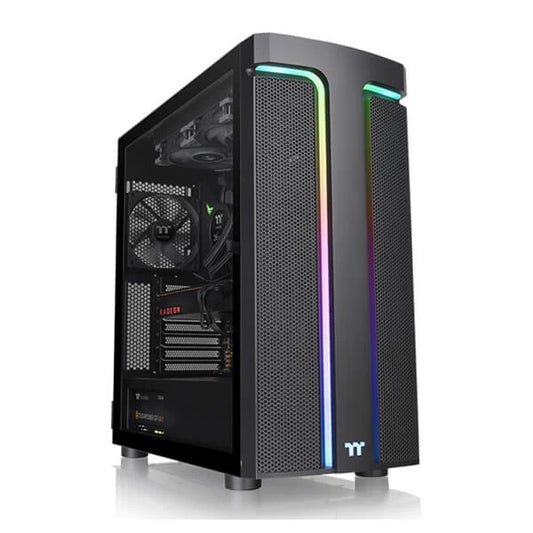

H590 TG ARGB Mid-Tower Chassis
The H590 TG ARGB mid-tower chassis supports up to E-ATX (12" x 13") Motherboards and it has a unique design on the front panel, featuring two RGB lighting strips around the T shaped pillar. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock. H590 TG ARGB mid-tower chassis comes with two pre-installed fans, one at the front and the other at the rear; what’s more, up to seven 120mm fans can be fitted to the chassis and up to a 360mm radiator can be placed on the top and the front of the chassis.

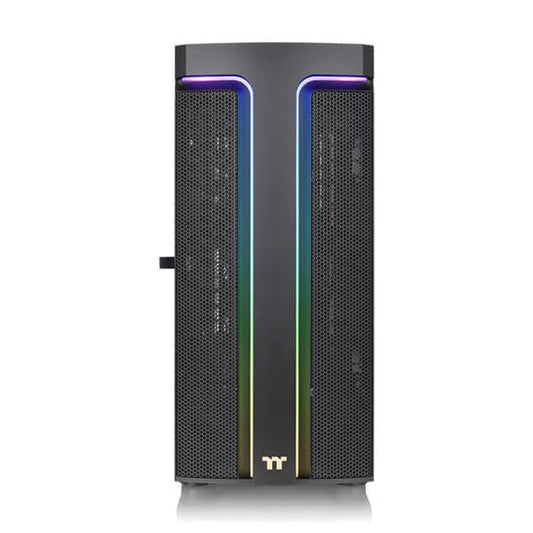

A Unique Design of the Front Panel
H590 TG ARGB mid-tower chassis has a unique design of the front panel, featuring two RGB lighting strips around the T shape. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Pre-installed Two 120mm Standard Fans
H590 TG ARGB mid-tower chassis comes with two pre-installed standard fans, one at the front and the other at the rear, delivering better cooling performance.
Built-in PSU Cover
H590 TG ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

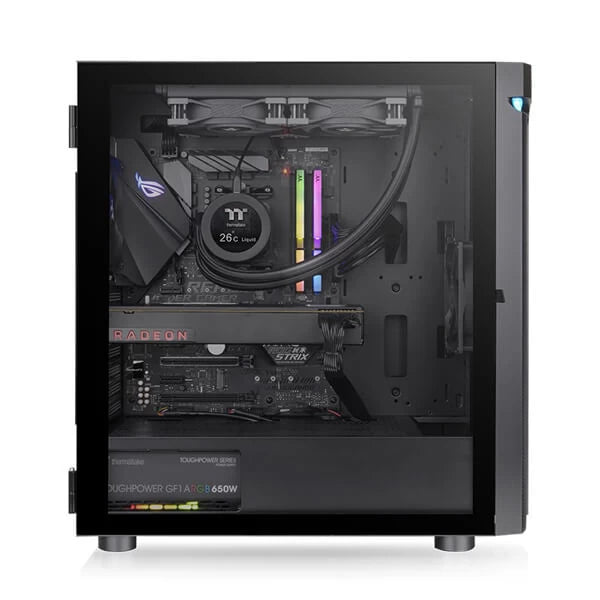

Hinged Tempered Glass Panel
The 4mm hinged tempered glass panel on the left side of the H590 TG ARGB mid-tower chassis is built to be more durable, scratch resistant, and transparent for viewing the hardware.
Dust Filtration
There is one magnetic filter on the top of the chassis to provide a good dust protection.
Handy I/O Ports
Two USB 3.0 ports, and one HD Audio and one RGB lighting control button are placed on the top panel to grant direct access when needed.
Specifications:
| Part Number | CA-1X4-00M1WN-00 |
| Series | H Series |
| Model | H590 TG ARGB |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) |
487 x 216 x 467 mm (19.2 x 8.5 x 18.4 inch) |
| NET WEIGHT | 7.45 kg / 16.42 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1 |
| Color | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM |
Front(intake): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1, LED button x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| RADIATOR SUPPORT |
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| CLEARANCE |
CPU cooler height limitation: 160mm VGA length limitation: 360mm PSU length limitation: 180mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
