SUPER FLOWER Leadex VII XG 1300 80 Plus Gold Fully Modular ATX 3.1 Power Supply (1300 W) ( White )

Features of SUPER FLOWER Leadex VII XG 1300 80 Plus Gold Fully Modular ATX 3.1 Power Supply (1300 W) ( White )

Super Flower Leadex VII XG 1300W PSU is fully compatible with Intel ATX 3.0 / ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-Pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode

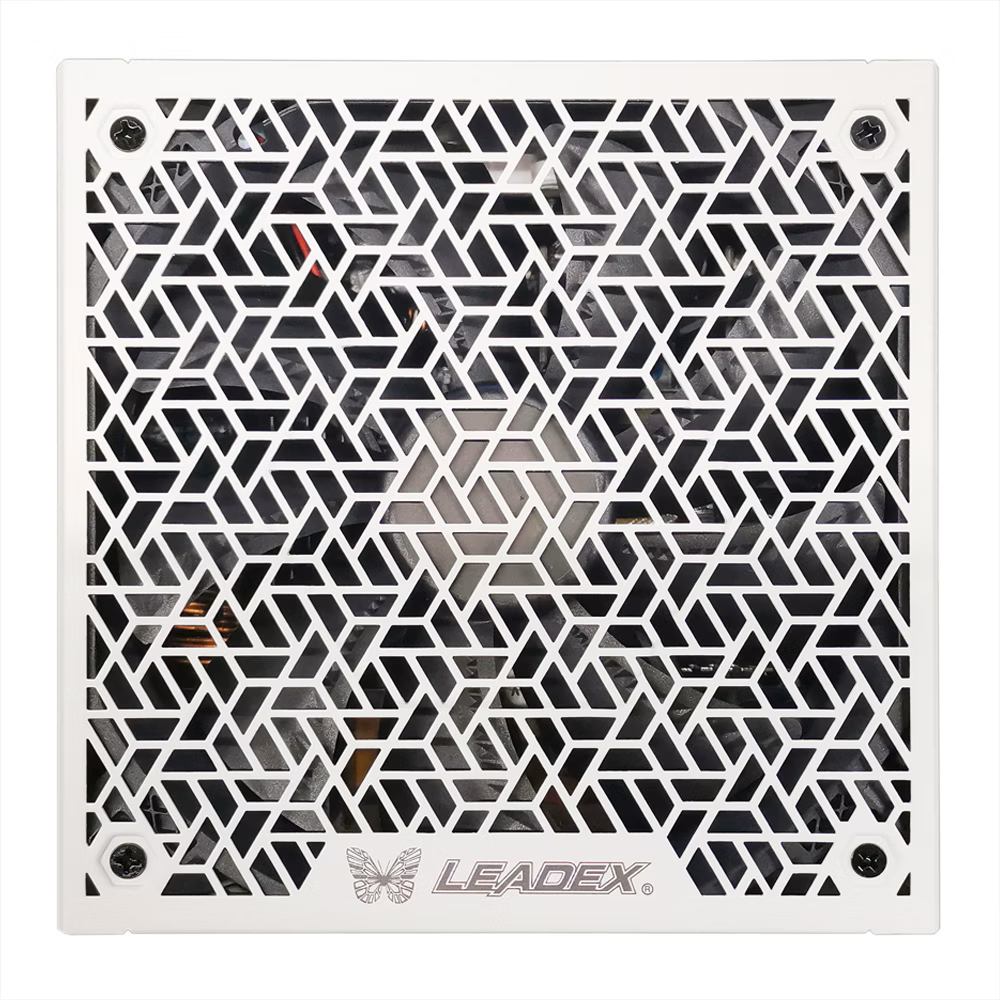

1. 140mm F.D.B Fan: Unique 9-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
2. New patented technology of Buckle (20+4) Pin connector  (Patent No.: Taiwan M563575 ; China 7566010)
3. Innovative Design for gaming System & PSU protection
4. DC output +12V/+5V/+3.3V remain stable
5. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
6. +12V Output With Exceptional Low Ripple Measurements
7. Low Output Voltage Ripple
8. ECO-design
9. Auto & ECO Fan Control
10. High efficiency on all rails, including 5VSB

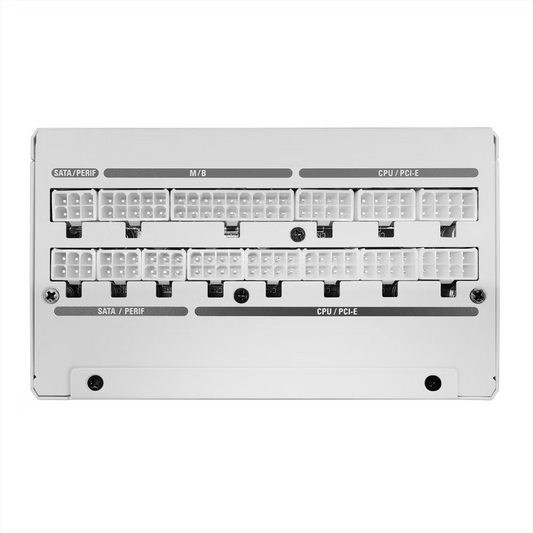

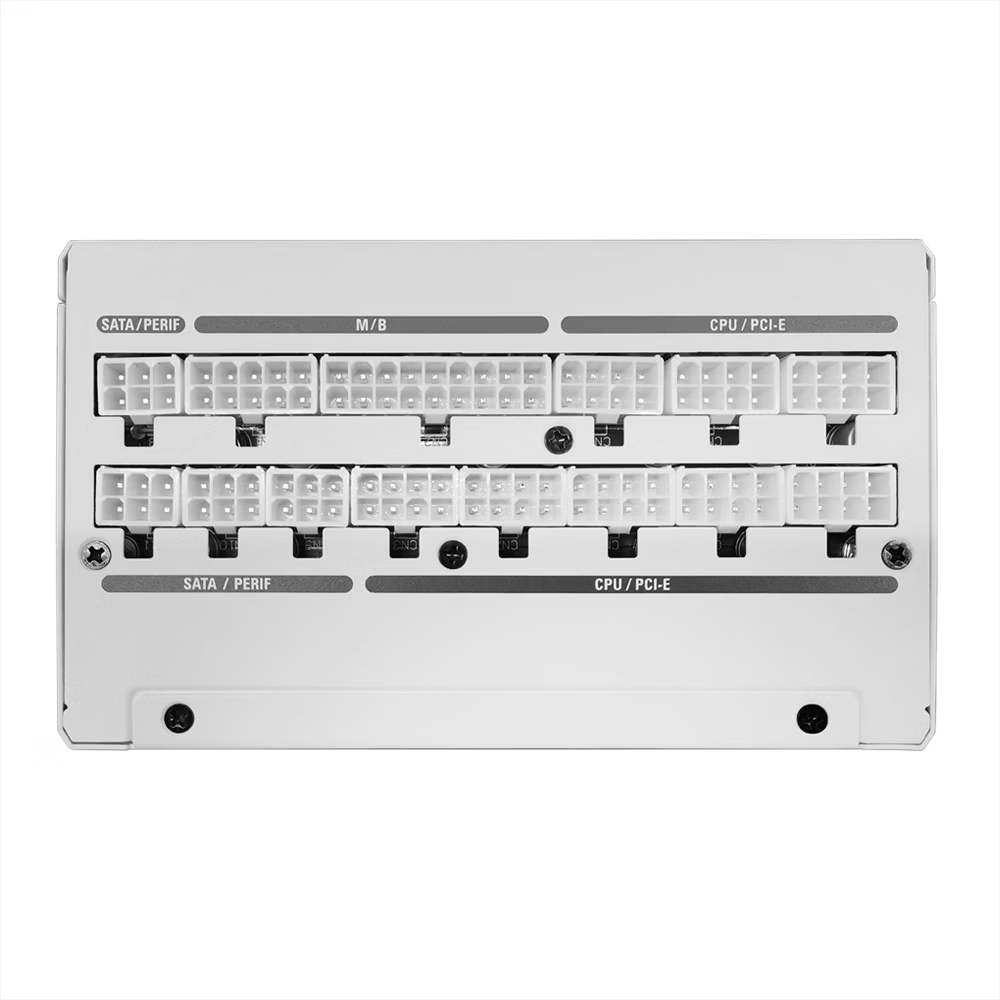

11. 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
12. 80 PLUS^® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
13. 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
14. Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
15. Comply With ATX 12V v3.0 & v3.1, EPS 12V v2.92 Specification.
16. Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
17. Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
18. Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
19. Support NVIDIA^® SLI™ & ATI CrossFireX™ High Performance Graphic Card
20. More than 2,000 times On/Off test
21. Lead-free Green Materials with RoHS / WEEE Compliance
22. Perfect For Professional & High Performance Gaming System
23. PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
24. Complete Japanese Capacitors.

Specifications of SUPER FLOWER Leadex VII XG 1300 80 Plus Gold Fully Modular ATX 3.1 Power Supply (1300 W) ( White )
