SUPER FLOWER Leadex VII Platinum Pro 1200W Fully Modular ATX 3.0 Power Supply ( 1200W ) ( White )

Features of SUPER FLOWER Leadex VII Platinum Pro 1200W Fully Modular ATX 3.0 Power Supply ( 1200W ) ( White )

Super Flower Power Supply VII Platinum PRO is fully compatible with Intel ATX 3.0 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

• 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
• Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.

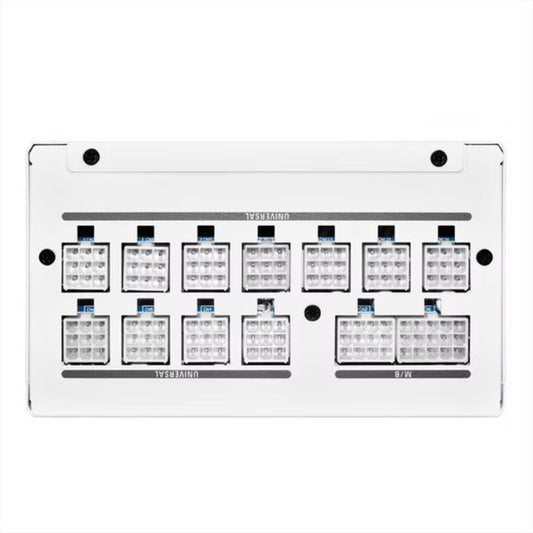

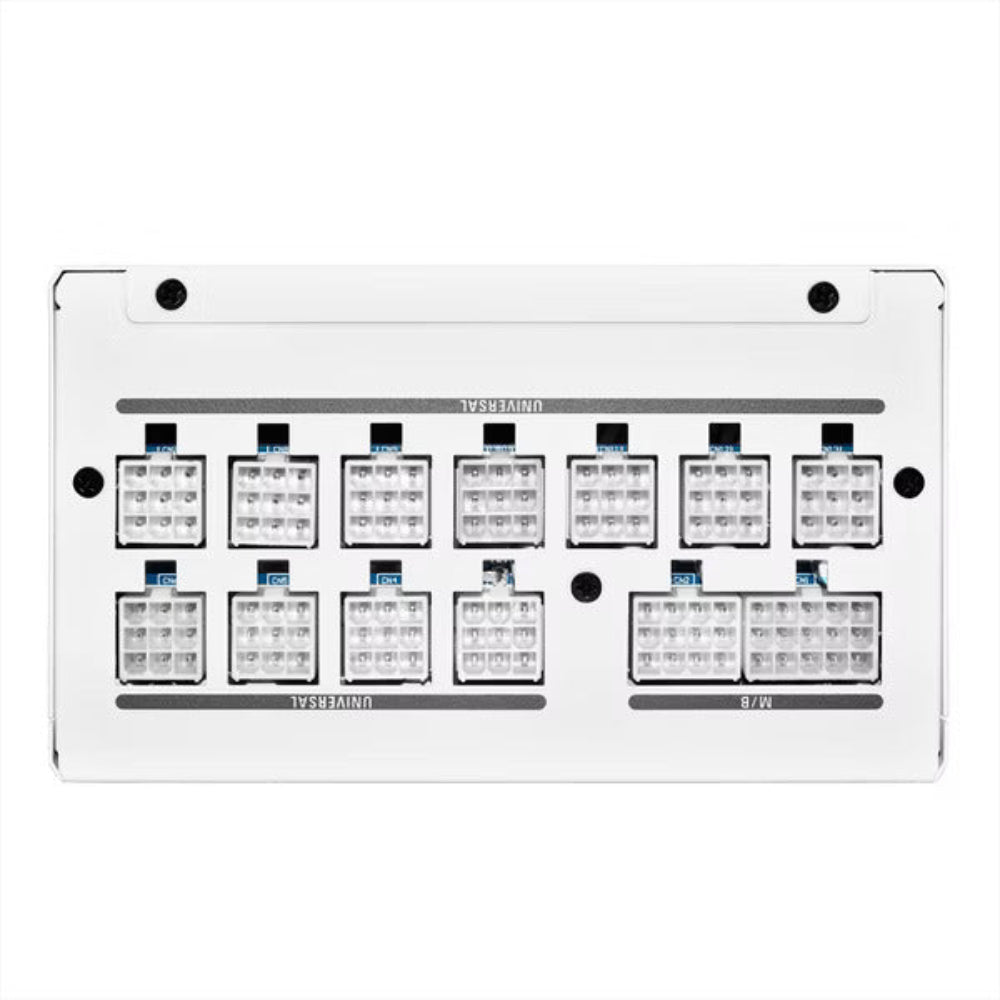

• New patented Universal SUPER CONNECTOR Universal Super Connectors with a patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided.
• New patented technology of Buckle (20+4) Pin connector
• Innovative Design for gaming System & PSU protection

1. DC output +12V/+5V/+3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple

• ECO-design

1. Auto & ECO Fan Control
2. High efficiency on all rails, including 5VSB

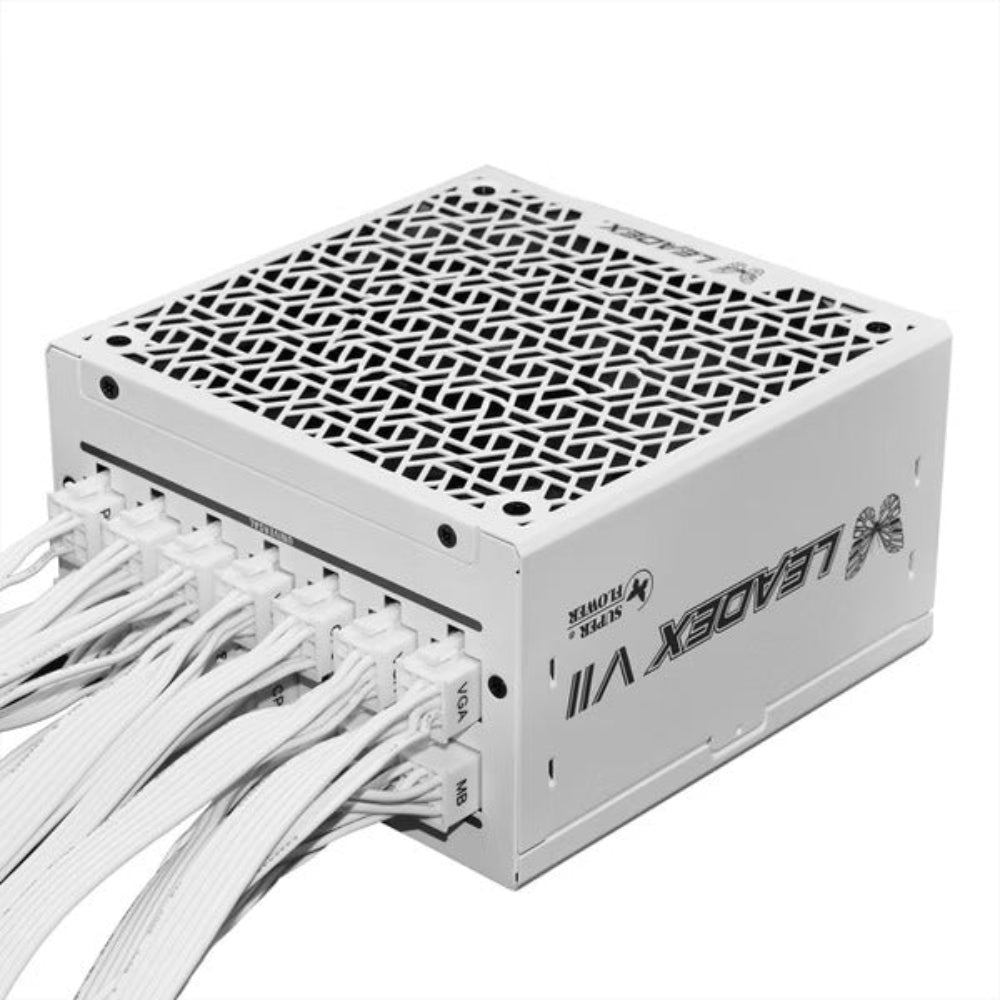

• 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
• Super Flower 1200W Power Supply comes with 80 PLUS Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
• 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
• Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
• Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.
• Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
• Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
• Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
• Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card
• More than 2,000 times On/Off test
• Lead-free Green Materials with RoHS / WEEE Compliance
• Perfect For Professional & High Performance Gaming System
• PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.

Specifications of SUPER FLOWER Leadex VII Platinum Pro 1200W Fully Modular ATX 3.0 Power Supply ( 1200W ) ( White )
