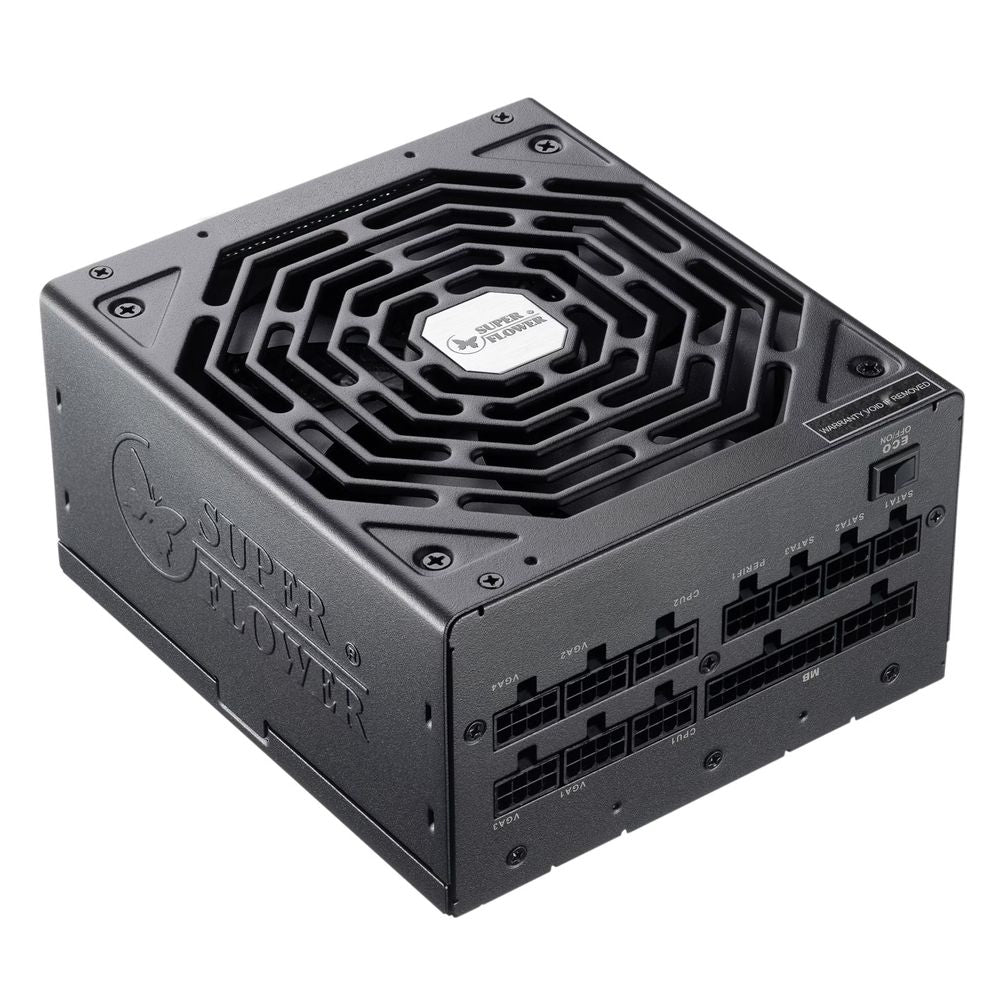

- SUPER FLOWER Leadex SE 850 80 Plus Platinum Fully Modular Power Supply (850 W)
Description
Feature of SUPER FLOWER Leadex SE 850 80 Plus Platinum
SUPER FLOWER Leadex SE 850W Power Supply are 80 PLUS certified with 100% fully modular cable design, our R&D. team's.
latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable
routing solution, also increase case chassis air flow to have best cooling for your system.
Super Flower Power Supply provides high efficiency & stable power output and come with a 14cm two-
way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load,
also capable of powering your PC system equipped with NVIDIA® SLIM or ATI CrossFireX™ setup.
•100% Full Modular Cabling Design For Easy Cable Management.
+80 PLUS® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
*Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
*Comply With ATX 12V.v2:2; EPS 12V v2.91 & SSI EPS 12V.v2:92.Specification.
•Comply With Energy Star Standard & EuP (Energy Using Products) Regulation:
•Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under.
Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
«Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
«Support NVIDIA@.SLIM & ATI.CrossFireX™ High Performance Graphic.Card.
+100% Japanese 105°C Capacitors.

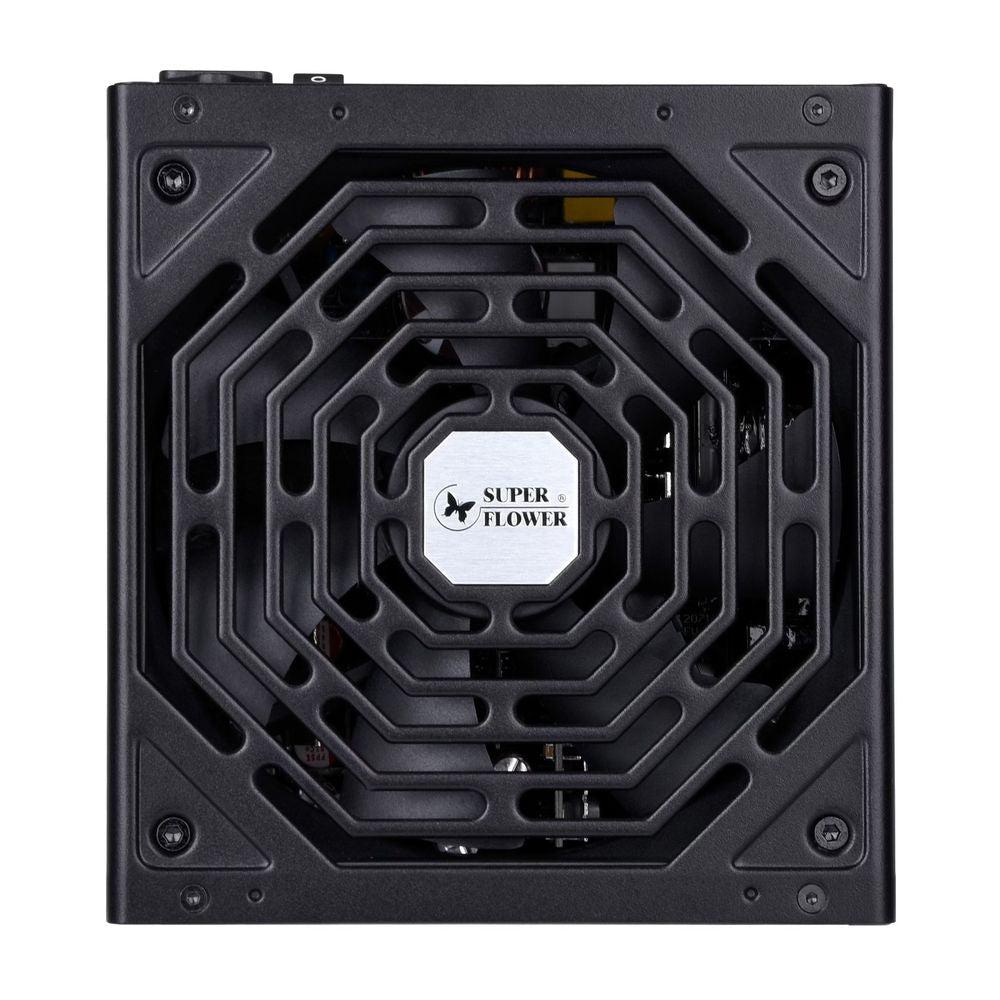

*Ultra Silent 140mm Dual Ball Bearing Fan.
*More than 2,000 times On/Off test:
«Unleaded Green Materials with RoHS/WEEE Compliance.
•Perfect For Professional & High Performance Gaming System:
•Exclusive Patents
1ECO Intelligent Thermal Control System.
2. High Power Vertical Double Layer Main Transformer (China Patent No: 712009 2 0273193.2: Taiwan Patent No: M381155)
• This product is designed for personal desktop system and high-end gaming systems,
warranty void if use
for the following special-purpose system:
• Industrial grade server system.
Special ultra-high load operation system (for example; bitcoin mining machine, etc.)
Test equipment system (for example: memory RAM, VGA graphic card or USB device test)

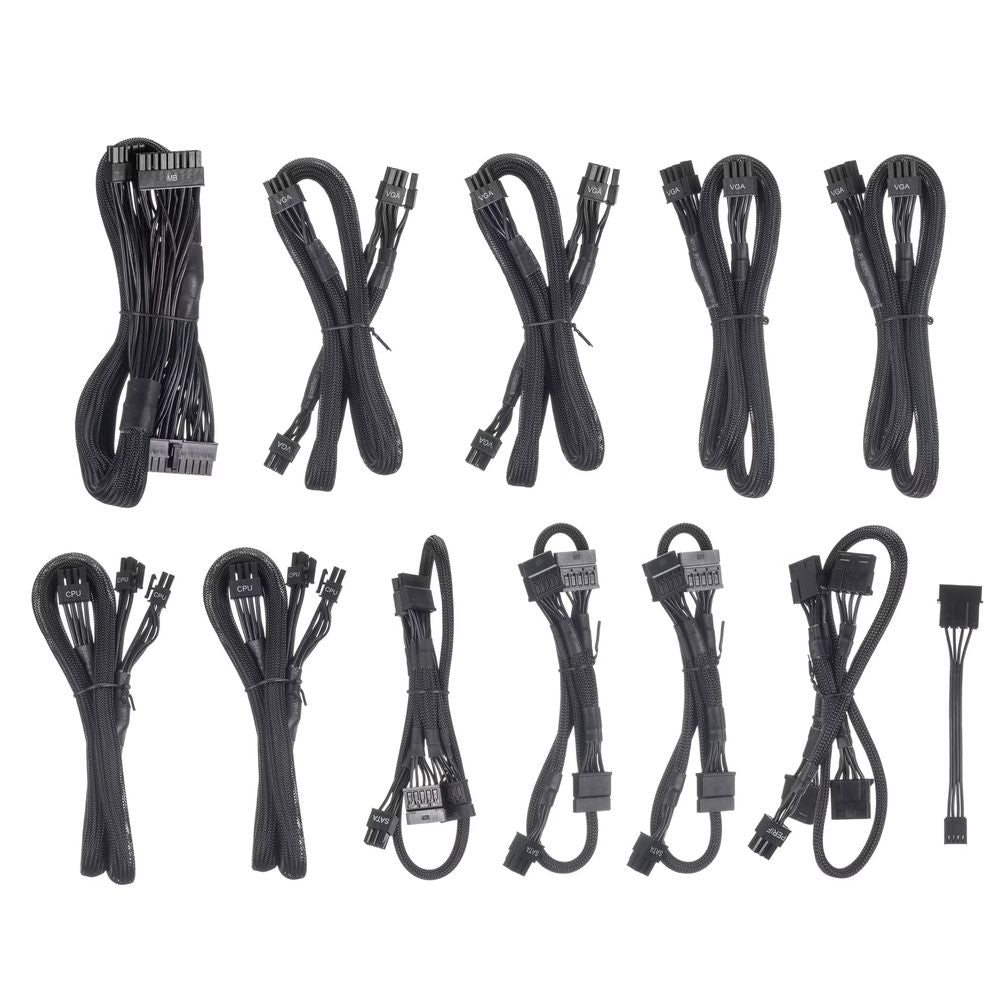

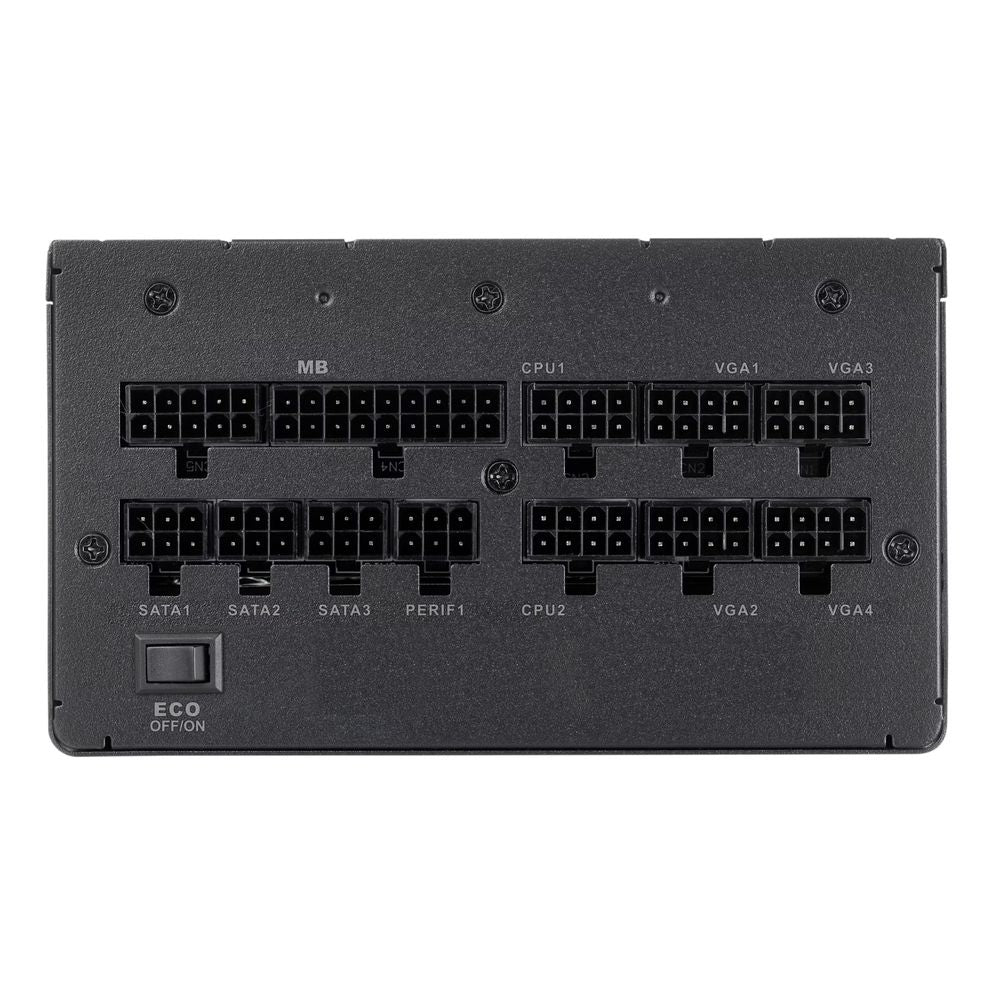

MODULAR SYSTEM
100% full modular cabling design offers easy cable management.
Energy Saving
80 PLUS® Platinum Certified
90% 92% 89% high efficiency at 20% 50% 100% rated load
Get the best 80 Plus Platinum computer SMPS price from us today!
Specifications of SUPER FLOWER Leadex SE 850 80 Plus Platinum
Brand | Super Flower |
Series | Leadex Platinum |
Model | SF-850F14MP |
Type | ATX12V / EPS12V |
Maximum Power | 850 W |
Fans | 1 |
PFC | Active |
Main Connector | 20+4Pin |
#ERROR! | Single |
PCI-Express Connector | 4 x 6+2-Pin |
SATA Power Connector | 10 |
SLI | SLI Ready |
Haswell Support | Ready |
CrossFire | CrossFire Ready |
Max PSU Length | 165 mm |
Modular | Full Modular |
Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) |
Energy-Efficient | 80 PLUS PLATINUM Certified |
Protection | OVP / OCP / OPP / SCP / OTP / UVP / SVP |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A |
Output | #ERROR! |
Approvals | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI R33529 / RoHS / KCC / CCC |
Connectors | 1 x 24 pin (20+4) ATX |
Features |
100% Full Modular Cabling Design For Easy Cable Management 80 PLUS Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load Full Range Auto Voltage Detection Design 100V~240V (Active PFC) Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification Comply With Energy Star Standard & EuP (Energy Using Products) Regulation Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection. Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card Patented Easy To Use & Install Crystal Clear Cube Connectors with LED More than 2,000 times On/Off test Unleaded Green Materials with RoHS/WEEE Compliance Perfect For Professional & High Performance Gaming System |
Dimensions | 3.39" x 5.91" x 6.50" |
