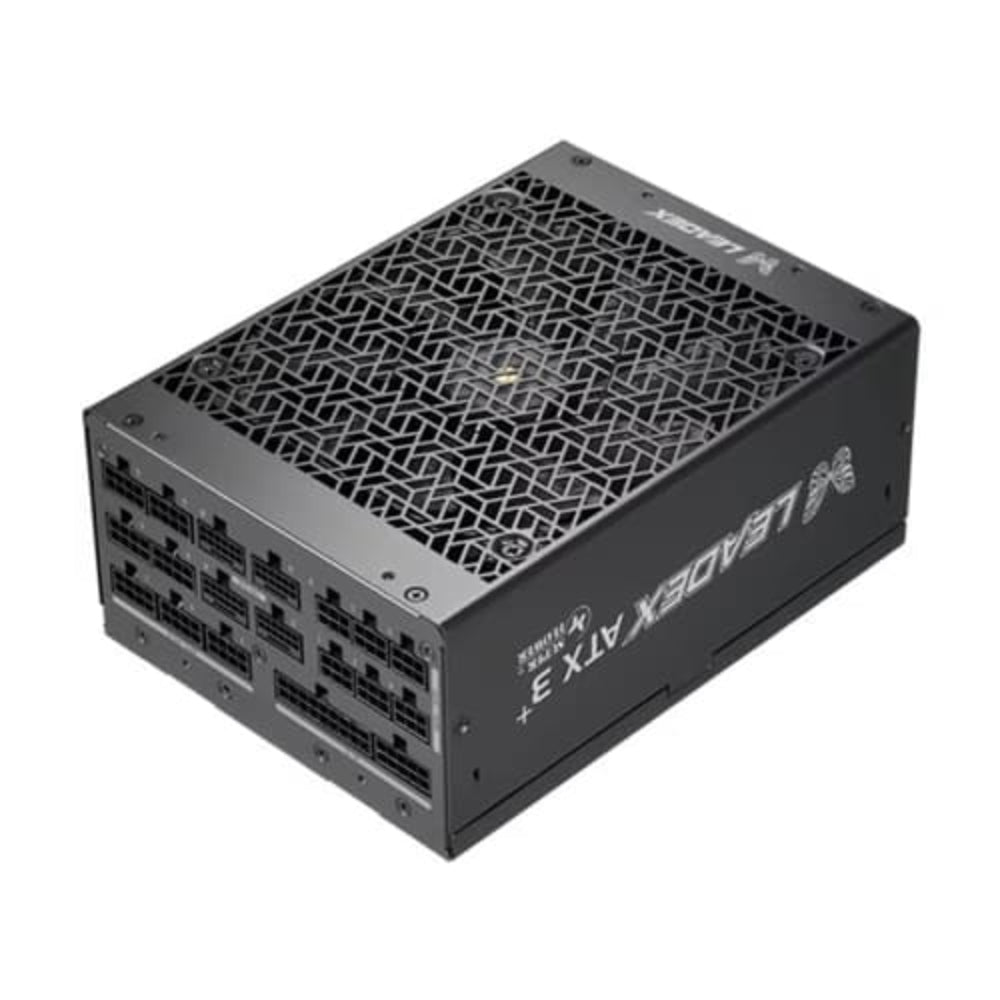

SUPER FLOWER Leadex 2800W 80+ Titanium ATX 3.1 Fully Modular Power Supply ( 2800W )

Features of SUPER FLOWER Leadex 2800W 80+ Titanium ATX 3.1 Fully Modular Power Supply

SF-2800F14HP ATX3.1

• 100% Full Modular Cabling Design For Easy Cable Management.
• Innovative Design for Gaming System & PSU Protection:Low Output Voltage Ripple.
• Cybenetics Titanium 230V Input Certified (Overall Efficiency: ≥ 93% to <95%).
• Single Voltage Design 230V (Active PFC).
• Comply With ATX 12V v2.32, EPS 12V v2.92, ATX 3.1 Specification.
• Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
• Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
• Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
• Support Up To NVIDIA 50 & Radeon 9000 Series High Performance Graphic Card.
• First To Use 3 Phase 12 Motor Fan In PSU.
• Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
• More than 2,000 times On/Off test.
• Unleaded Green Materials with RoHS/WEEE Compliance.
• Perfect For Professional & High Performance Gaming System.
• Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design.

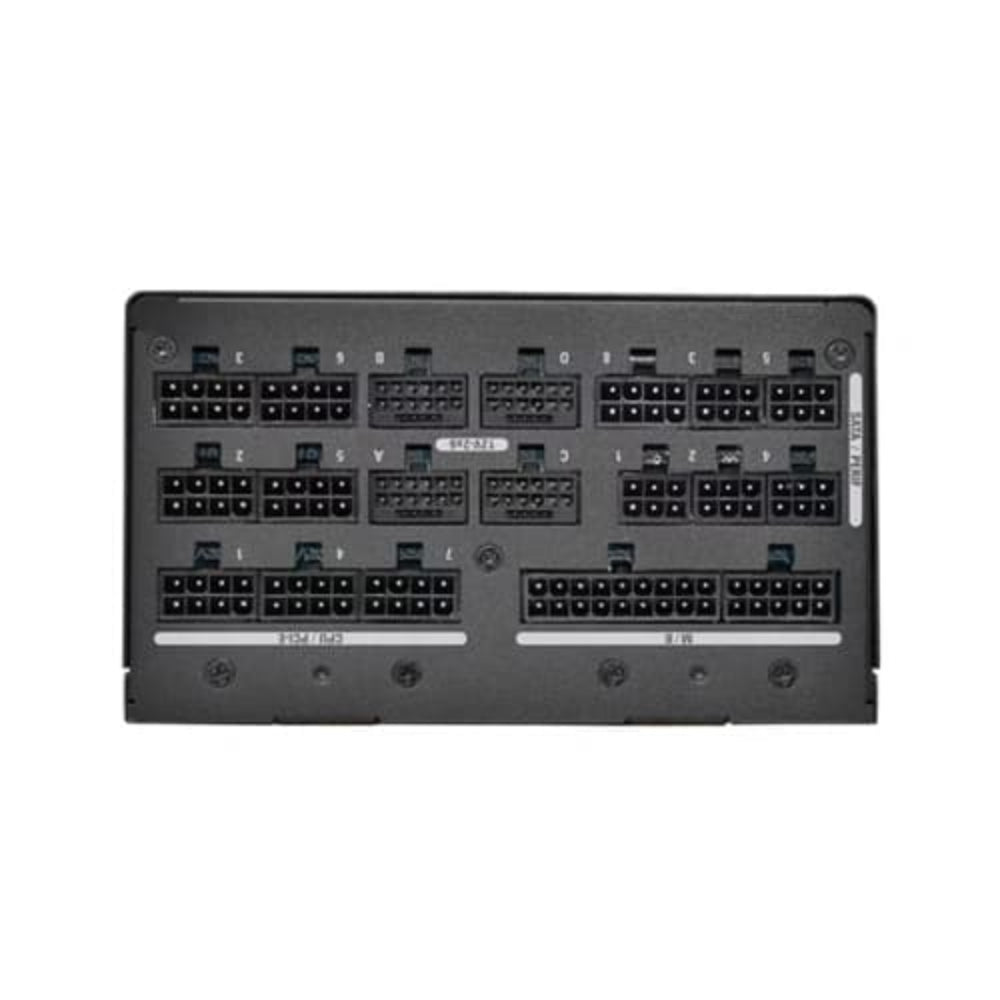

• 12V-2x6 & PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
• Complete Japanese Capacitors.

Support Up To 4 Native 12V-2x6 Sockets For Powering Up 4 * 50xx Graphic Cards. Ideal for Al-Related Systems and Multi-GPU Workstations

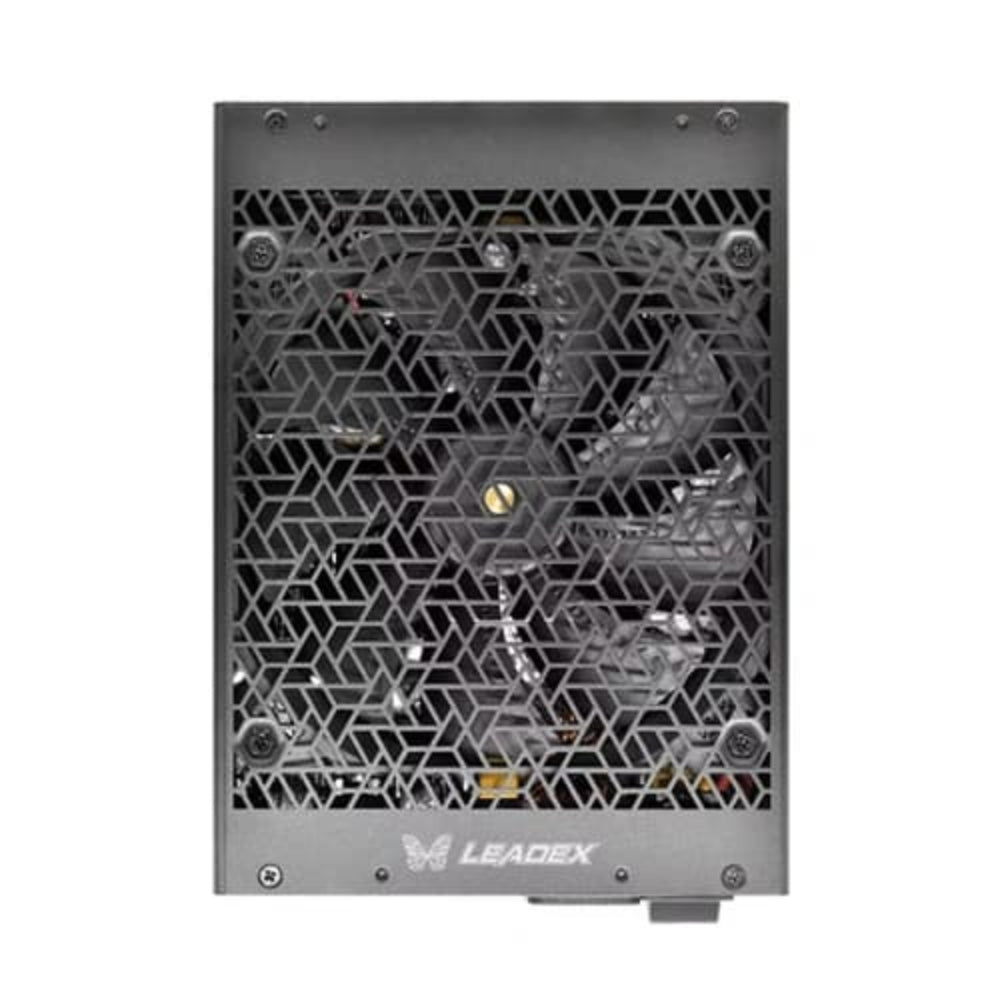

14cm Dual Bearing Fan Offering Longer Lifespan Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.

•  LLC resonance conversion in the primary range and DC-DC conversion for the +3.3V and +5V rails ensure overall system stability.
•  105 degree electrolytic capacitors of Japanese brands and polymer solid capacitors are used on the mainboard in order to offer the best quality.
•  Complete protection: with protection against over- and undervoltage (OVP, UVP), short circuit (SCP), overload (OPP), and over temperature (OTP), LEADEX ATX 3+ Titanium have complete protections to prevent valuable hardware from damaging.

Specification of SUPER FLOWER Leadex 2800W 80+ Titanium ATX 3.1 Fully Modular Power Supply
