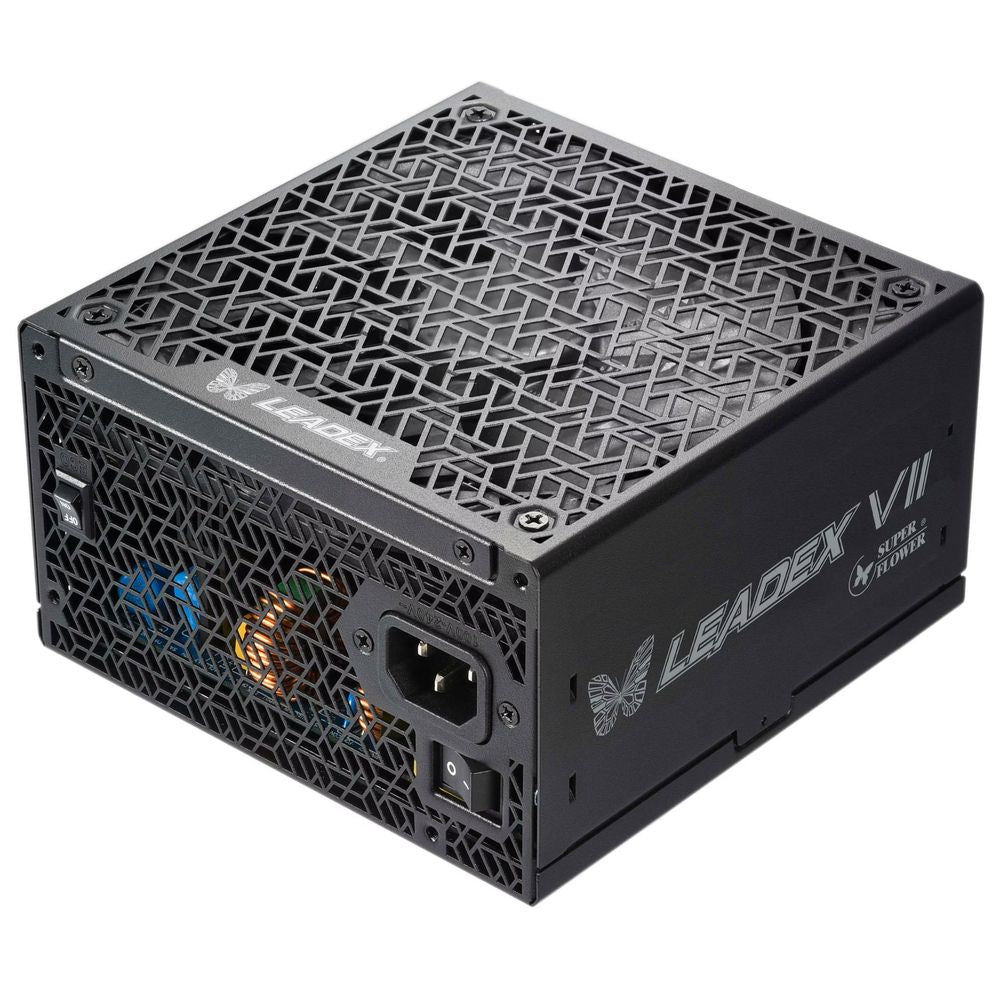

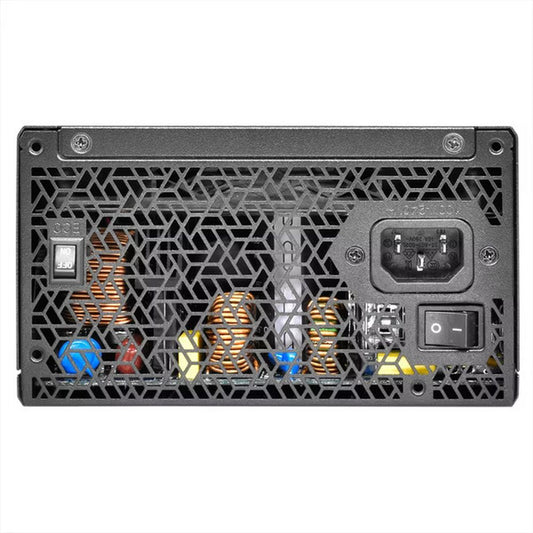

- SUPER FLOWER Leadex VII 1000 80 Plus Gold Fully Modular Power Supply (1000 W)
Description
Features of SUPER FLOWER Leadex VII 1000 80 Plus Gold Fully Modular Power Supply (1000 W)
SUPER FLOWER Leadex VII 1000W Power Supply is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode
HIGHLY EFFICIENCY FROM ULTRA-LIGHT LOADING TO FULL POWER Super Flower Power Supply has achieved triple efficiency certification with 80PLUS Gold badge & Cybenetics Gold badges both in 115V & 230V input that assures extremely low power consumption and waste

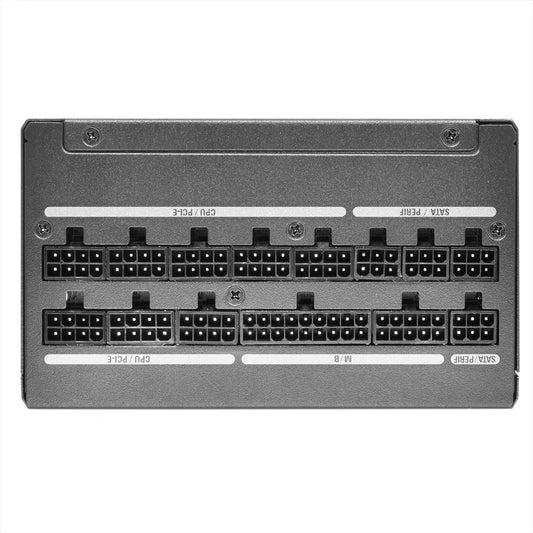

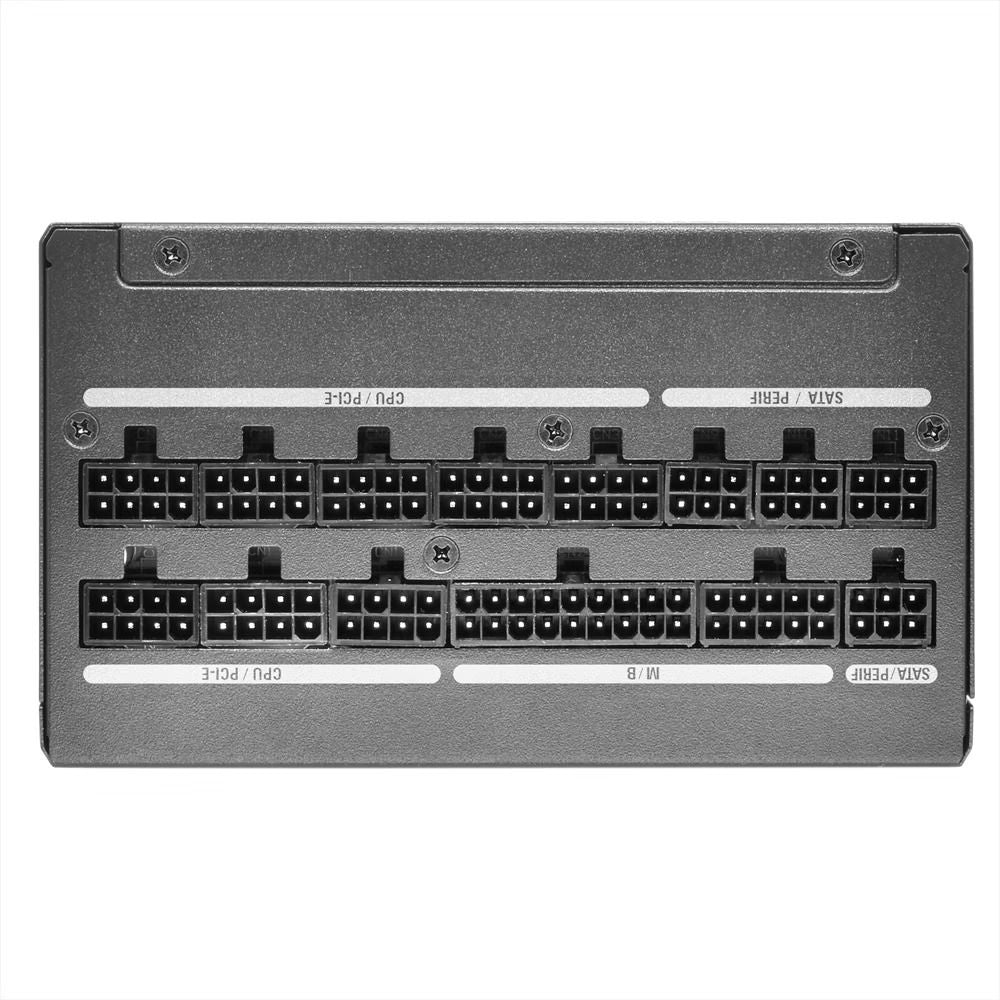

CABLE & CONNECTOR INNOVATIVE DESIGN Compact 150mm size, Fully modularity with all flat cables design makes it easy for installation and cable management. Patented connector design makes it fully compatible with all motherboards connection (20-24pin for MB/ 8, 8+4 or 8+8 for CPU).

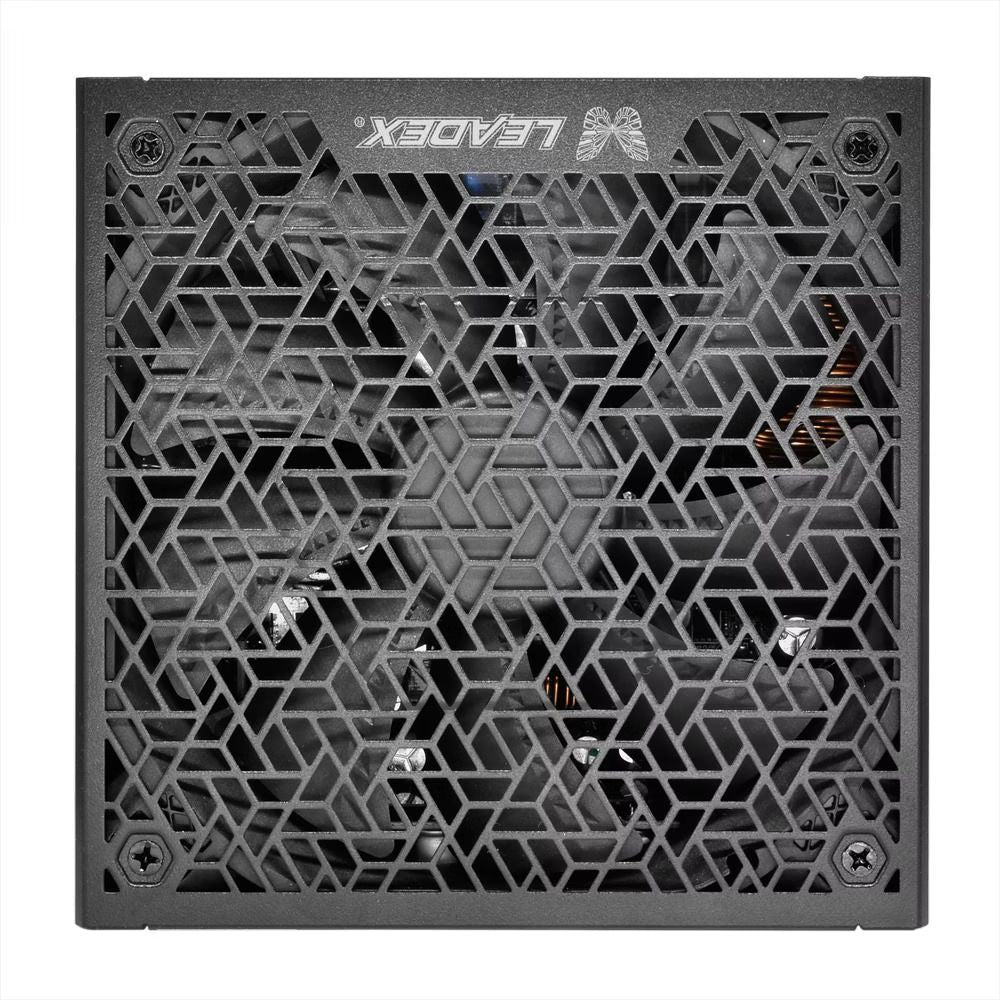

14CM FDB FAN WITH ECO DESIGN WHICH MINIMIZES THE NOISE (dBA)
Linear fan grill design and 140mm & F.D.B Fan with ECO function. Provides superb airflow for better heat dissipation thus maintaining overall efficiency.
RECOMMENDED BADGES FROM HW BUSTERS
LEADEX = Extreme Leader, and Super Flower offers you a superb power! Obtaining the badges from Hardware Busters means XG series scores top performance: Tight load regulation, Good ripple suppression, 100% High Quality Japanese Capacitors and LLC half-Bridge with DC-DC Design
New patented technology of Buckle (20+4) Pin connector (Patent No.: Taiwan M563575 ; China 7566010)
-
Innovative Design for gaming System & PSU protection
1. DC output +12V/+5V/+3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple
- ECO-design
1. Auto & ECO Fan control
2. High efficiency on all rails, including 5VSB - 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
- 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
- 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)

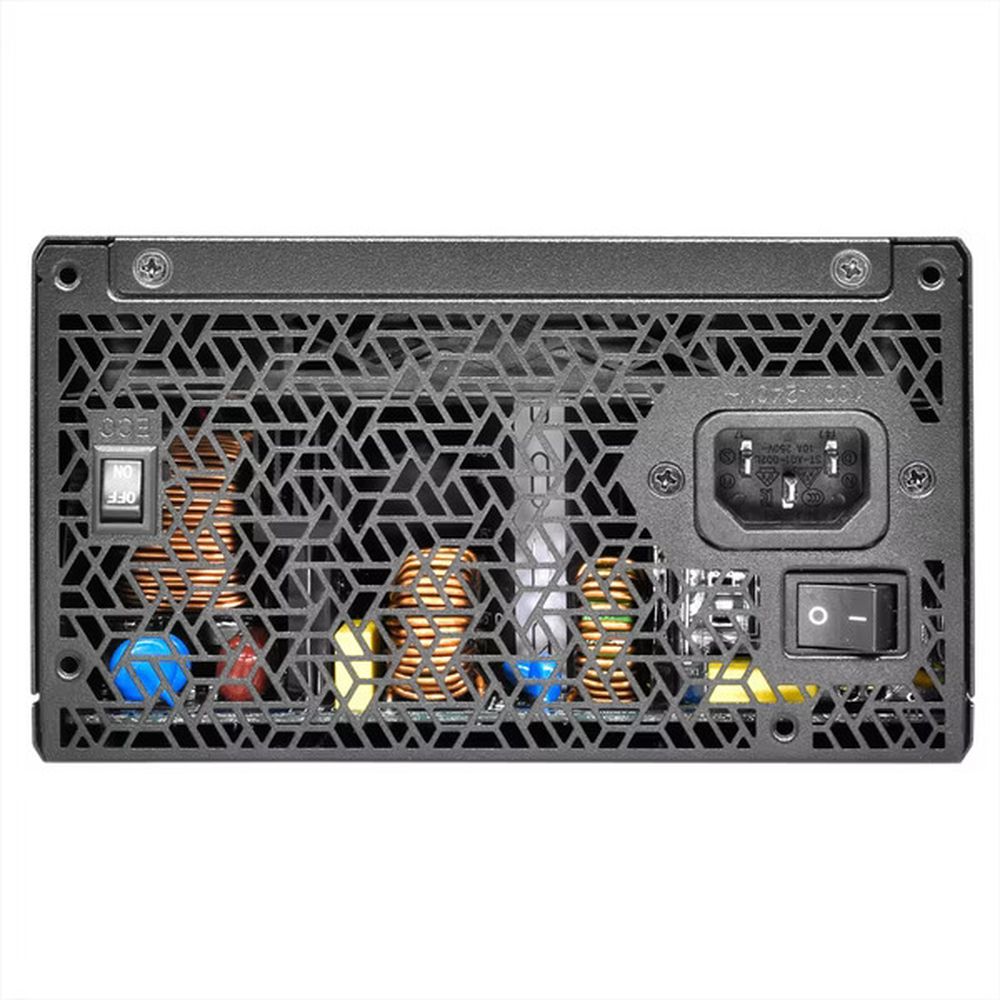

- Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
- Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready) Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
- More than 2,000 times On/Off test
- Lead-free Green Materials with RoHS / WEEE Compliance
- Perfect For Professional & High Performance Gaming System
- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
- Complete Japanese Capacitors.
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SUPER FLOWER Leadex VII 1000 80 Plus Gold Fully Modular Power Supply (1000 W)

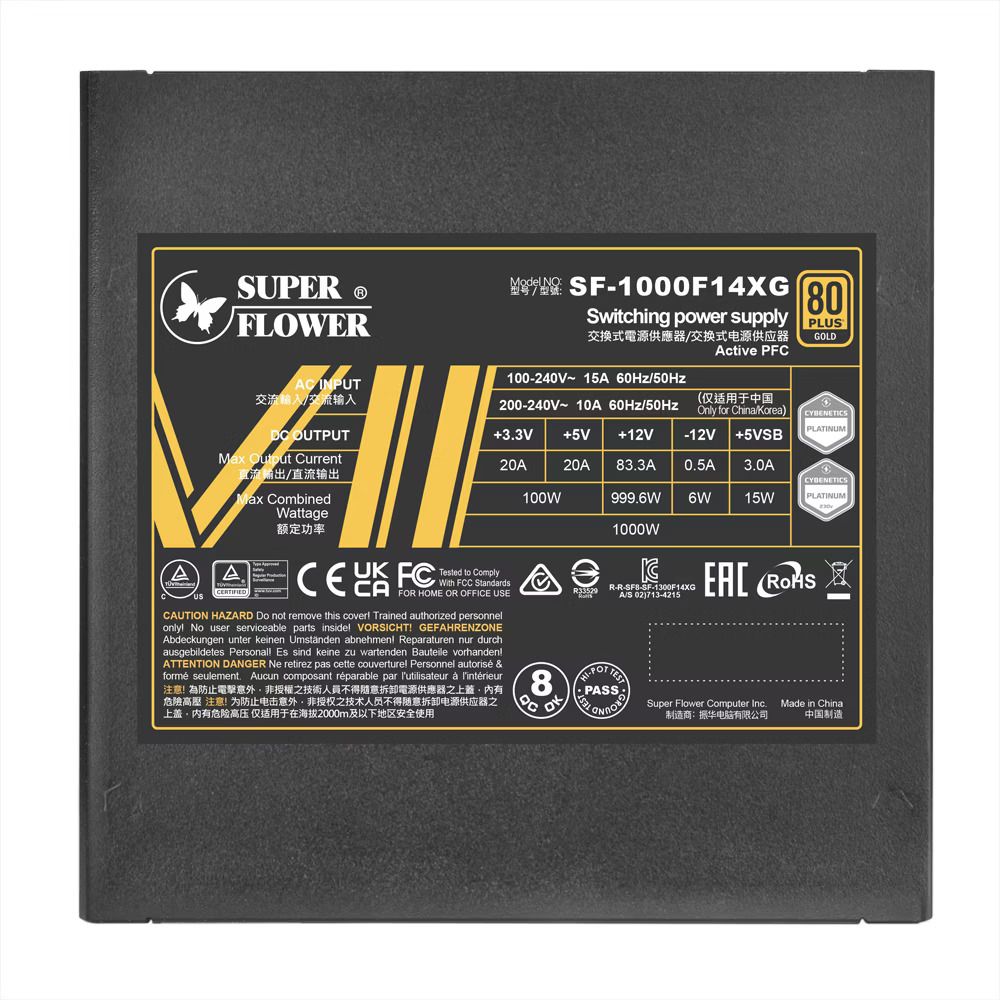

| Model No.: | SF- 1000F14XG |
| Transform Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) Efficiency |
| Cybernetics Certified | Efficiency: Gold / Efficiency 230V: Gold |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.1 |
| AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC |
| Fan Size | 14cm FDB FAN |
| Dimension | 150mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature | Passed 50℃ Hot Testing |
