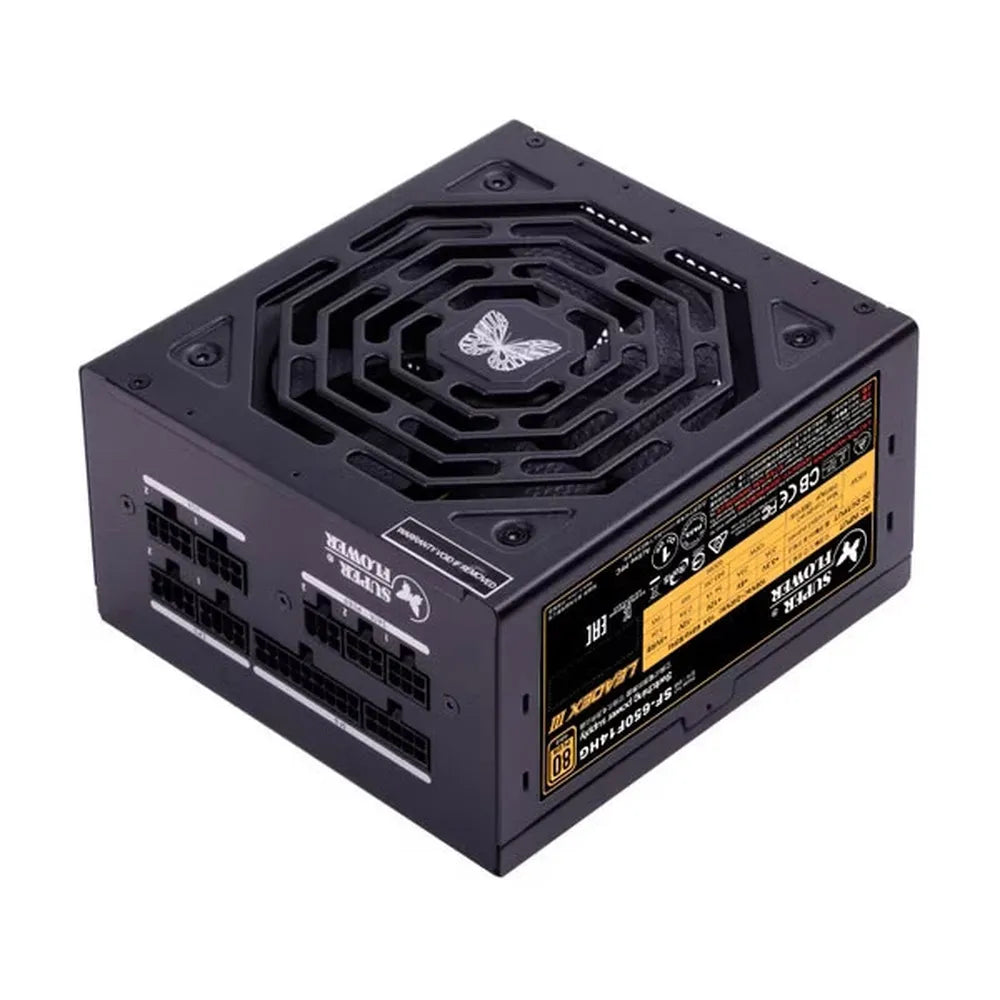

- SUPER FLOWER Leadex III 650 80 Plus Gold Fully Modular Power Supply (650 W)
Description
Feature of SUPER FLOWER Leadex III 650 80 Plus
SUPER FLOWER Leadex III 650W Power Supply are 80 PLUS Gold certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. Super Flower Power Supply provides high efficiency & stable power output and come with a 13cm three-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading improvement on +12V/ +5V/ +3.3V
3. Low Output Voltage Ripple
4. Dual Over Power Protection
ECO-design
-
Auto + two levels of ECO Fan control
2. High efficiency on all rails, including 5VSB
♦ 100% Fully Modular Cabling Design For Easy Cable Management
♦ 80 PLUS ® Gold Certified for LEADEX III Gold Series
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
♦ 100% Taiwan A Grade 105°C Capacitors (Modular Backpanel)
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V. v2.32 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SUPER FLOWER Leadex III 650 80 Plus
Brand | Super Flower |
Series | Leadex III Gold |
Model | SF-650F14HG |
Type | ATX |
Maximum Power | 650W |
80 Plus Efficiency | Gold Rating |
20% : 87% / 50% : 90% / 100% : 87% (115V Internal Gold) | |
Fan | 130mm Fan |
FDB (Fluid Dynamic Bearing) | |
PFC | Active |

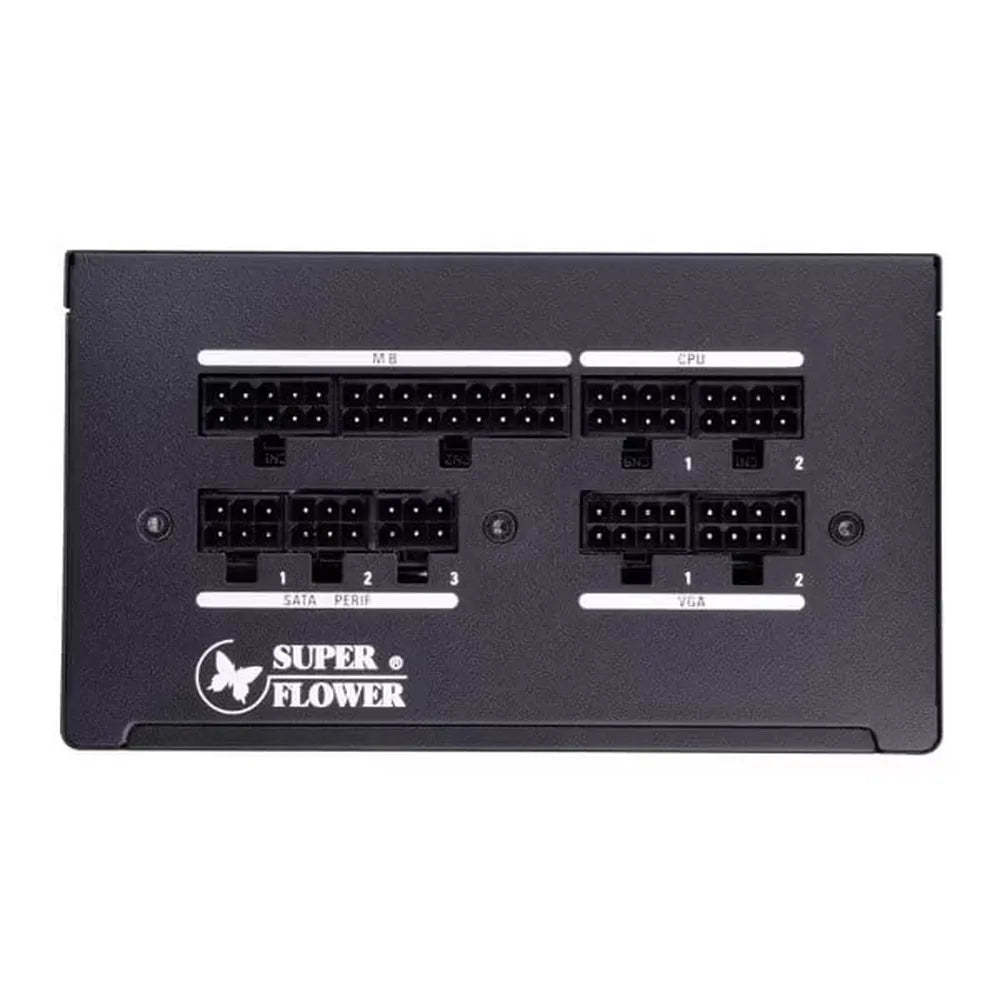

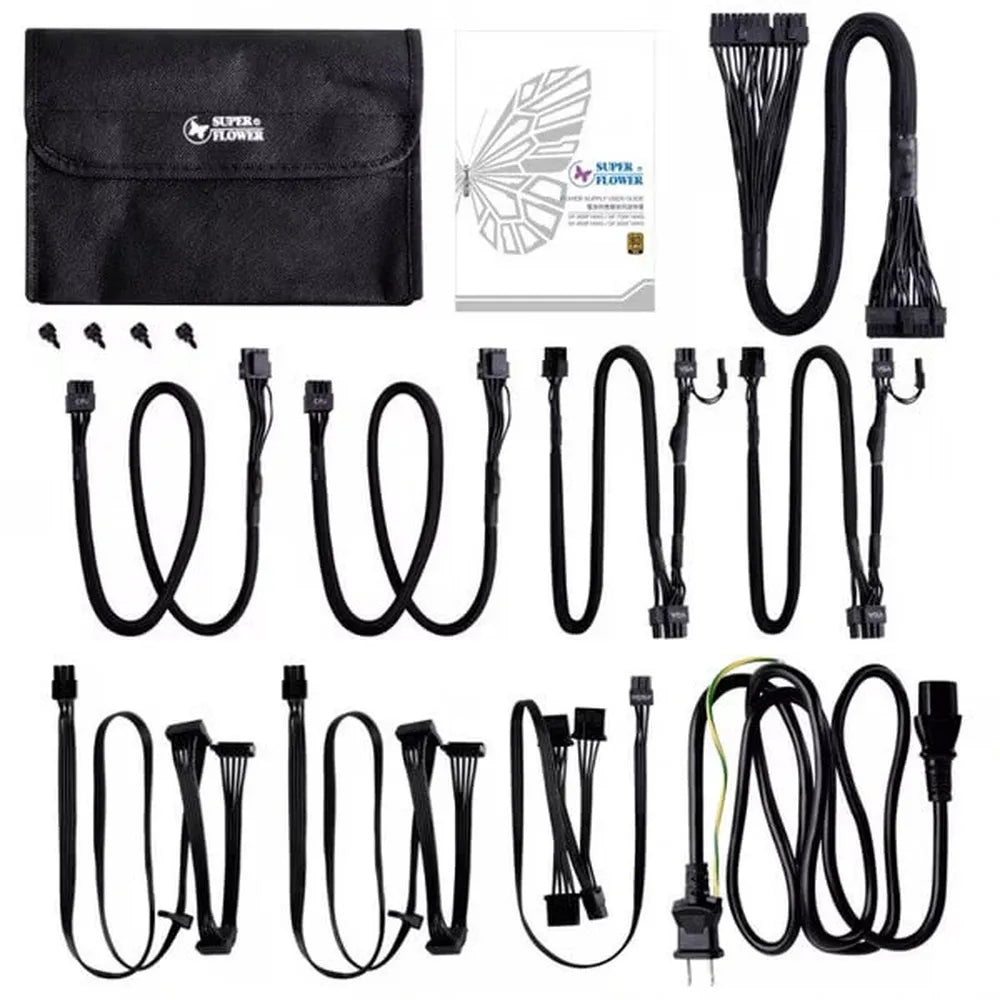

Modular Cables | Fully Modular Design |
Connectors | 1x 20 + 4 Pin Connector |
2x 4 + 4 Pin Connector | |
4x PCI 6 + 2 Pin Connectors | |
6x SATA Connectors | |
4x 4 Pin Molex Connectors | |

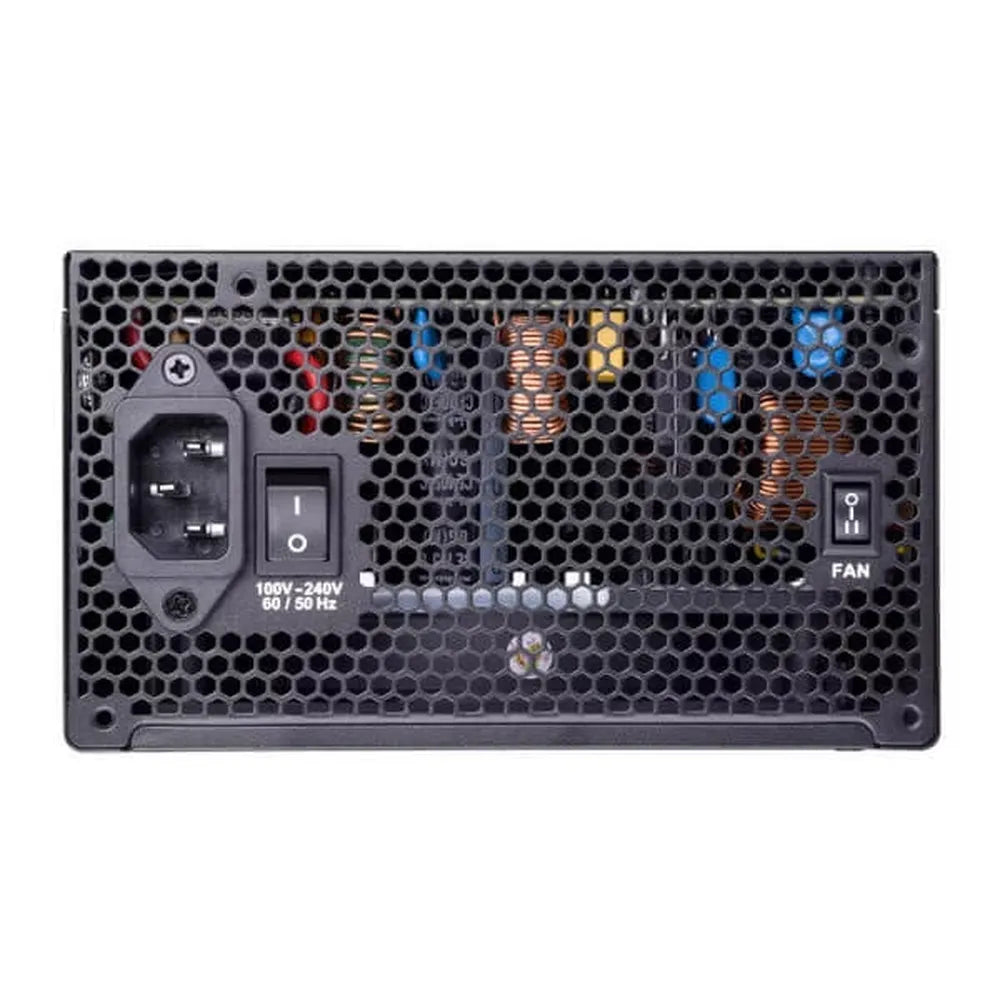

AC Input Voltage | 100V - 240V |
Input Frequency Range | 50Hz / 60Hz |
DC Output Voltage | #ERROR! |
Protection | OVP, OCP, OPP, SCP, UVP, OTP |
Safety Certification | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI R33529 / RoHS / KCC /CCC |
Dimension | 160 x 150 x 86 mm (LxWxH) |
Warranty Information | |
Warranty | 5 Year Warranty |
